White & Blue MaxTow 100 PSI Fuel Pressure Gauge
  • White & Blue MaxTow 100 PSI Fuel Pressure Gauge
  • Included Components with MaxTow Fuel Pressure Gauge
  • White & Blue MaxTow 100 PSI Fuel Pressure Gauge Unboxed
  • White & Blue MaxTow 100 PSI Fuel Pressure Gauge Day/Night View
  • White & Blue MaxTow Daytime & Nighttime Dimming Modes

White & Blue MaxTow 100 PSI Fuel Pressure Gauge

| Write A Review
SKU:
MT-WBDV11

$89.99 $189.99 (You save $100.00)

  • Same Day Shipping If Ordered by 3pm EST

  • One Year
    Limited Warranty

  • Free Installation Support

  • Free Shipping Over $50Contiguous USA

MaxTow’s White Double Vision™ Series 100 PSI Fuel Pressure Gauge is an electronically driven truck gauge that includes an electronic fuel pressure sensor which reads and displays your truck’s fuel pressure levels from 0 to 100 PSI with unrivaled accuracy, ensuring your fuel system’s pressure is running at optimal levels, and is not too low, which could result in loss of horsepower or damage to your fuel pump or injectors.

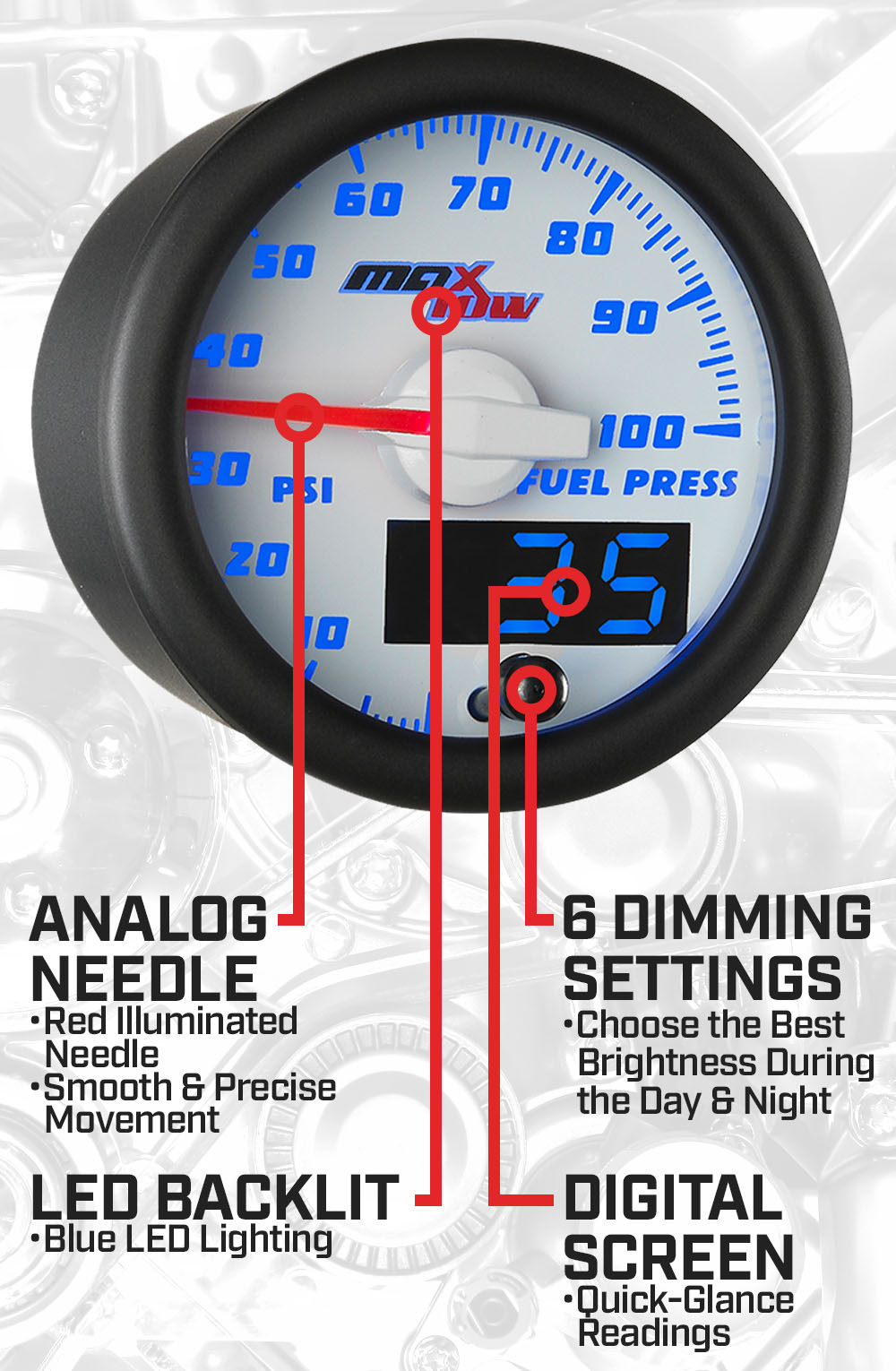

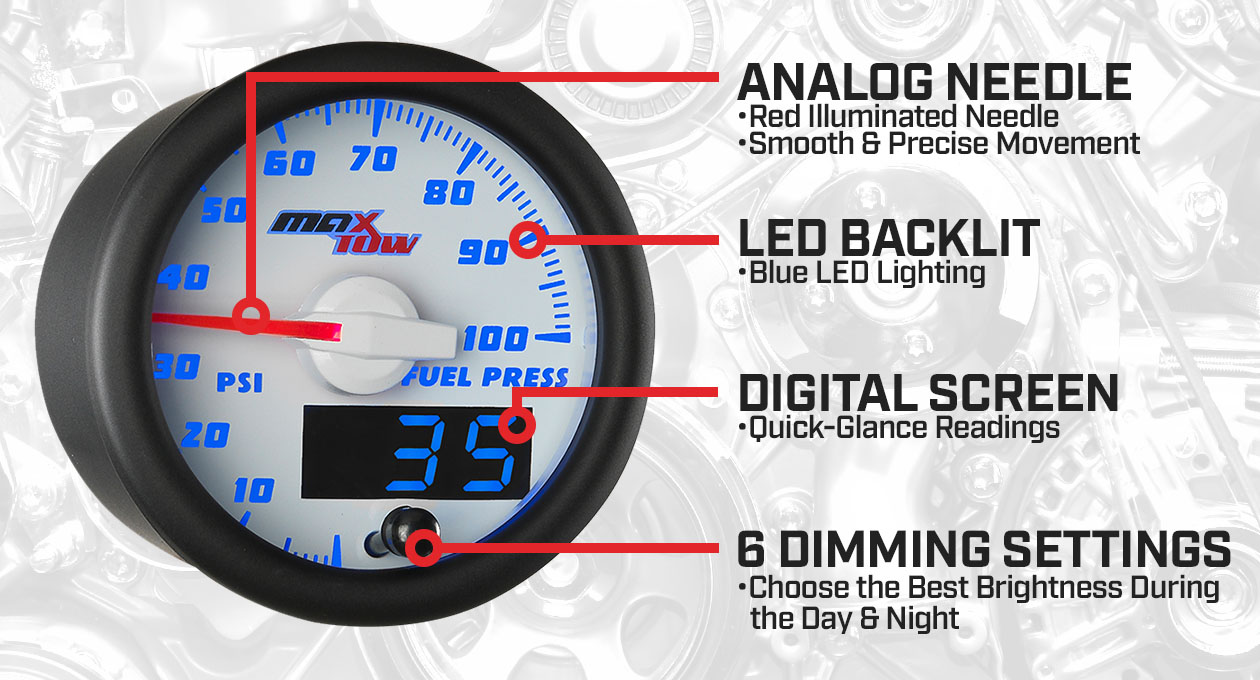

You asked for it and we listened! MaxTow’s White & Blue Double Vision™ Gauge Series features a white gauge face with dual readout displays which include an analog reading with an illuminated red needle and a quick glance digital display; both of which are illuminated by ultra-bright blue LED lighting. Each 2 1/16” (52mm) gauge is driven by stepper motor technology which allows for exceptionally smooth needle movement that keeps up with the changing statistics of the engine. This fuel pressure gauge also features daytime and nighttime dimming modes with 3 customizable settings for each mode. This feature offers multiple dimming options allowing you to set your preference when hitting the road during the day or at night! The included brightness recall function remembers the previous brightness setting that was enabled before powering the truck down so you won’t have to reset it every time you turn the truck on!

MaxTow’s 100 PSI Electronic Fuel Pressure Sensor features a 1/8-27 NPT threads allowing it to be installed directly to your fuel filter housing or by using an adapter, and the extended wire harnesses for both power (3') and fuel pressure sensor (9') connections assure that you’ll have more than enough wire for an easy installation. All gauge mounting hardware and installation instructions come standard with every electronic fuel pressure gauge purchased, as well as a one year limited warranty and free lifetime technical support. Get ready to hit the road and Tow to the Max™!

Note: This gauge includes a 1/8-27 NPT thread size on the sensor and your vehicle may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require additional threading adapters, please contact a GlowShift Technical Support Specialist.

  • 2 1/16" (52mm) White Gauge Face with a Magnified Lens
  • Fuel Pressure Reading from 0 to 100 PSI
  • Fuel Pressure Sensor with 1/8-27 NPT Threads
  • Double Vision Display Feature with Analog and Digital Readings
  • Blue LED Through Dial Lighting with a Red Illuminated Needle
  • Daytime Mode with 3 Customizable Brightness Settings
  • Nighttime Mode with 3 Customizable Brightness Settings
  • 9' Fuel Pressure Sensor Wire
  • 3' Power Wire
  • Gauge Depth Measures 1 5/16"
  • Mounting Hardware
  • Installation Instructions
  • One Year Limited Warranty
  • Free Lifetime Technical Support
Gauge Series
White & Blue MaxTow Series
Brand
MaxTow
Gauge Type
Fuel Pressure
Range of Reading
0 - 100 PSI
Face Color
White
Size
52mm
Lens
Clear
Backlighting Color
Blue
Sending Unit
Electronic
Measurement Unit
Standard
Display
Combo
pdf
http://www.glowshift.com/instructions/MaxTow/MT-DV11.pdf
MaxTow Double Vision Gauge Series 01:24

MaxTow Double Vision Gauges provide diesel truck drivers with the most reliable gauge readings when hitting the road and towing to the Max! The MaxTow Double Vision Gauge Series provides the classic look of an analog gauge along with an easy-to-read LED digital numerical readout available with blue or green LEDs, illuminated red needle, and is available with a white or black face. There are 6 customizable levels of dimming to allow for total gauge visibility while driving during the day or late hours of the night. Innovative stepper motor technology allows for exceptionally smooth needle movement providing extremely reliable and accurate gauge readings for monitoring any truck’s most vital parts. Monitor boost pressure, transmission temperature, EGT and more. Get ready to hit the road and Tow to the Max®! For more information: Black and Blue - https://www.maxtow.com/black-blue-maxtow-double-vision-gauge-series/?utm_campaign=MaxTow%20Promo%20Video&utm_medium=Social&utm_source=YouTube&utm_content=MaxTow%20black%20blue%20Promo%20Video%20description%20link&utm_term= White and Blue - https://www.maxtow.com/white-blue-maxtow-double-vision-gauge-series/?utm_campaign=MaxTow%20Promo%20Video&utm_medium=Social&utm_source=YouTube&utm_content=MaxTow%20white%20blue%20Promo%20Video%20description%20link&utm_term= Black and Green - https://www.maxtow.com/black-maxtow-double-vision-gauge-series/?utm_campaign=MaxTow%20Promo%20Video&utm_medium=Social&utm_source=YouTube&utm_content=MaxTow%20black%20green%20Promo%20Video%20description%20link&utm_term= White and Green - https://www.maxtow.com/white-maxtow-double-vision-gauge-series/?utm_campaign=MaxTow%20Promo%20Video&utm_medium=Social&utm_source=YouTube&utm_content=MaxTow%20white%20green%20Promo%20Video%20description%20link&utm_term= Connect with us on social: Facebook: https://www.facebook.com/MaxTow.Gauges Twitter: https://twitter.com/MaxTow Instagram: https://www.instagram.com/maxtow/

MaxTow Double Vision Gauge Series

MaxTow Double Vision Gauges provide diesel truck drivers with the most reliable gauge readings when hitting the road and towing to the Max! The MaxTow Double Vision Gauge Series provides the classic look of an analog gauge along with an easy-to-read LED digital numerical readout available with blue or green LEDs, illuminated red needle, and is available with a white or black face. There are 6 customizable levels of dimming to allow for total gauge visibility while driving during the day or late hours of the night. Innovative stepper motor technology allows for exceptionally smooth needle movement providing extremely reliable and accurate gauge readings for monitoring any truck’s most vital parts. Monitor boost pressure, transmission temperature, EGT and more. Get ready to hit the road and Tow to the Max®! For more information: Black and Blue - https://www.maxtow.com/black-blue-maxtow-double-vision-gauge-series/?utm_campaign=MaxTow%20Promo%20Video&utm_medium=Social&utm_source=YouTube&utm_content=MaxTow%20black%20blue%20Promo%20Video%20description%20link&utm_term= White and Blue - https://www.maxtow.com/white-blue-maxtow-double-vision-gauge-series/?utm_campaign=MaxTow%20Promo%20Video&utm_medium=Social&utm_source=YouTube&utm_content=MaxTow%20white%20blue%20Promo%20Video%20description%20link&utm_term= Black and Green - https://www.maxtow.com/black-maxtow-double-vision-gauge-series/?utm_campaign=MaxTow%20Promo%20Video&utm_medium=Social&utm_source=YouTube&utm_content=MaxTow%20black%20green%20Promo%20Video%20description%20link&utm_term= White and Green - https://www.maxtow.com/white-maxtow-double-vision-gauge-series/?utm_campaign=MaxTow%20Promo%20Video&utm_medium=Social&utm_source=YouTube&utm_content=MaxTow%20white%20green%20Promo%20Video%20description%20link&utm_term= Connect with us on social: Facebook: https://www.facebook.com/MaxTow.Gauges Twitter: https://twitter.com/MaxTow Instagram: https://www.instagram.com/maxtow/
