White & Green MaxTow 100 PSI Fuel Pressure Gauge
  • White & Green MaxTow 100 PSI Fuel Pressure Gauge
  • Included Components with MaxTow Fuel Pressure Gauge
  • White & Green MaxTow 100 PSI Fuel Pressure Gauge Unboxed
  • White & Green MaxTow 100 PSI Fuel Pressure Gauge Day/Night View
  • White & Green MaxTow Daytime & Nighttime Dimming Modes

White & Green MaxTow 100 PSI Fuel Pressure Gauge

| Write A Review
SKU:
MT-WDV11

$89.99 $189.99 (You save $100.00)

  • Same Day Shipping If Ordered by 3pm EST

  • One Year
    Limited Warranty

  • Free Installation Support

  • Free Shipping Over $50Contiguous USA

MaxTow’s White Double Vision™ Series 100 PSI Fuel Pressure Gauge is an electronically driven truck gauge that includes an electronic fuel pressure sensor which reads and displays your truck’s fuel pressure levels from 0 to 100 PSI with unrivaled accuracy, ensuring your fuel system’s pressure is running at optimal levels, and is not to low, which could result in loss of horsepower or damage to your fuel pump or injectors.

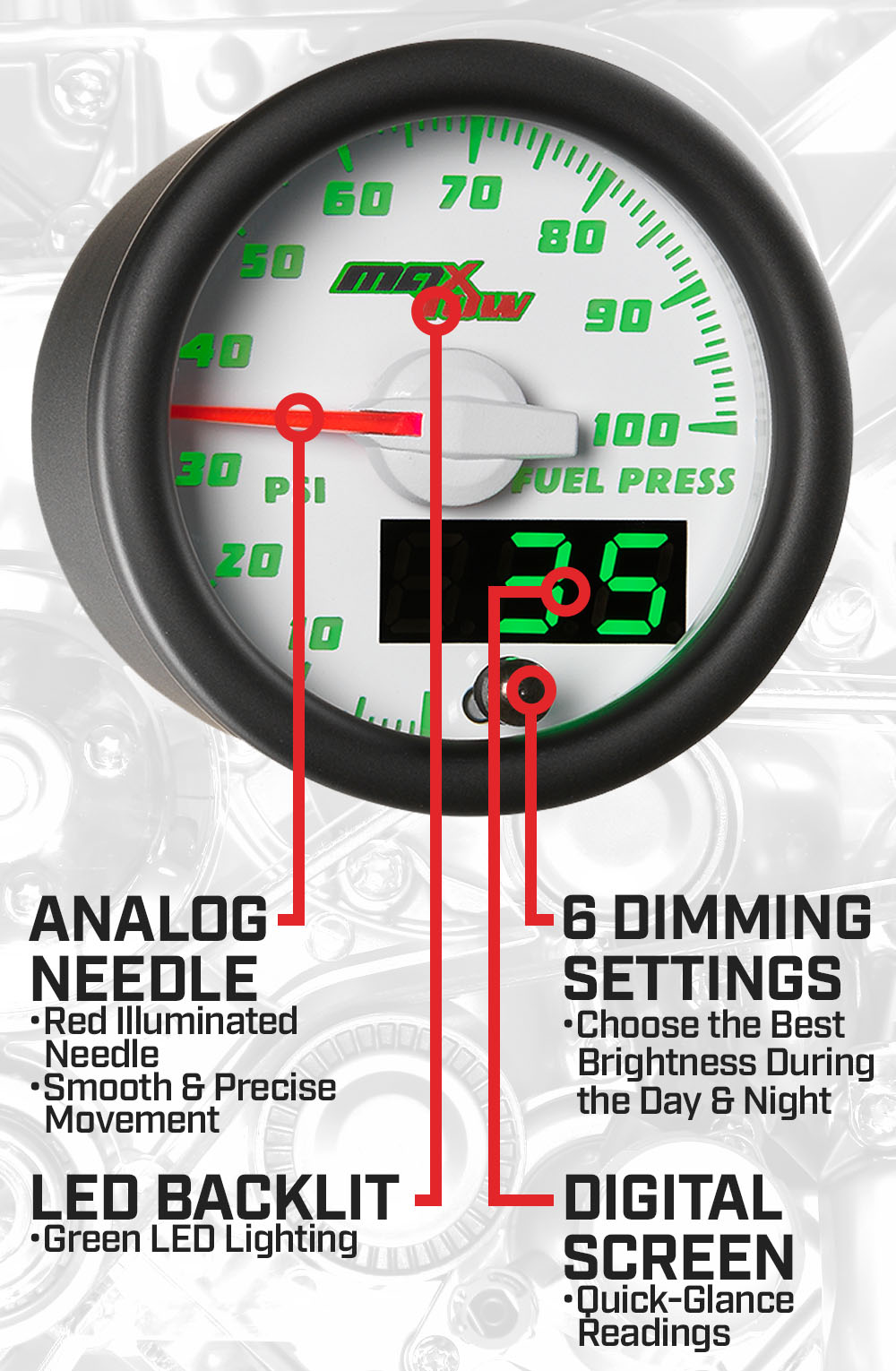

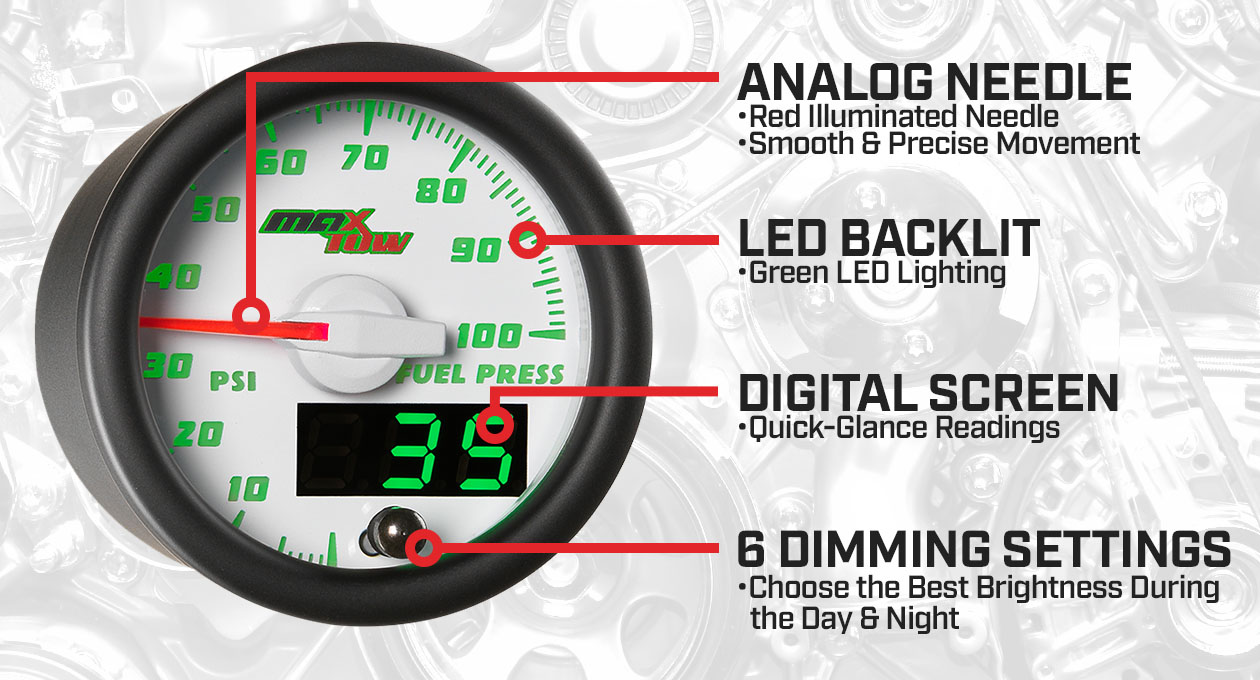

MaxTow’s White Double Vision Gauge Series features a green LED display and an illuminated red needle, which gives you the classic look of an analog gauge, as well as an easy to read green digital numerical readout. The Double Vision Gauge Series outperforms the competition by offering multiple options and added convenience when it comes to monitoring your truck’s most vital functions! This 2 1/16" (52mm) 100 PSI fuel pressure gauge features stepper motor technology which allows for exceptionally smooth needle movement and extremely precise gauge readings. No matter how much your truck is shaking or pulling, the needle is unaffected and delivers the accurate results you’re looking for. Our diesel fuel pressure gauge also features innovative daytime and nighttime modes with three customizable brightness settings for each mode. The three daytime brightness settings (d1, d2, d3) allow you to easily view your gauge readings without being affected by the sunlight, while the three nighttime brightness settings (n1, n2, n3) allow up to a 50% more subtle glow for your gauge while driving during the late hours of the night. Also featured with the nighttime mode is that the illuminated red needle will match the brightness level of the gauge for easier viewing at night! The included brightness recall function will remember the previous brightness setting you had on before powering your vehicle down so you won’t have to reset it every time you turn your vehicle on.

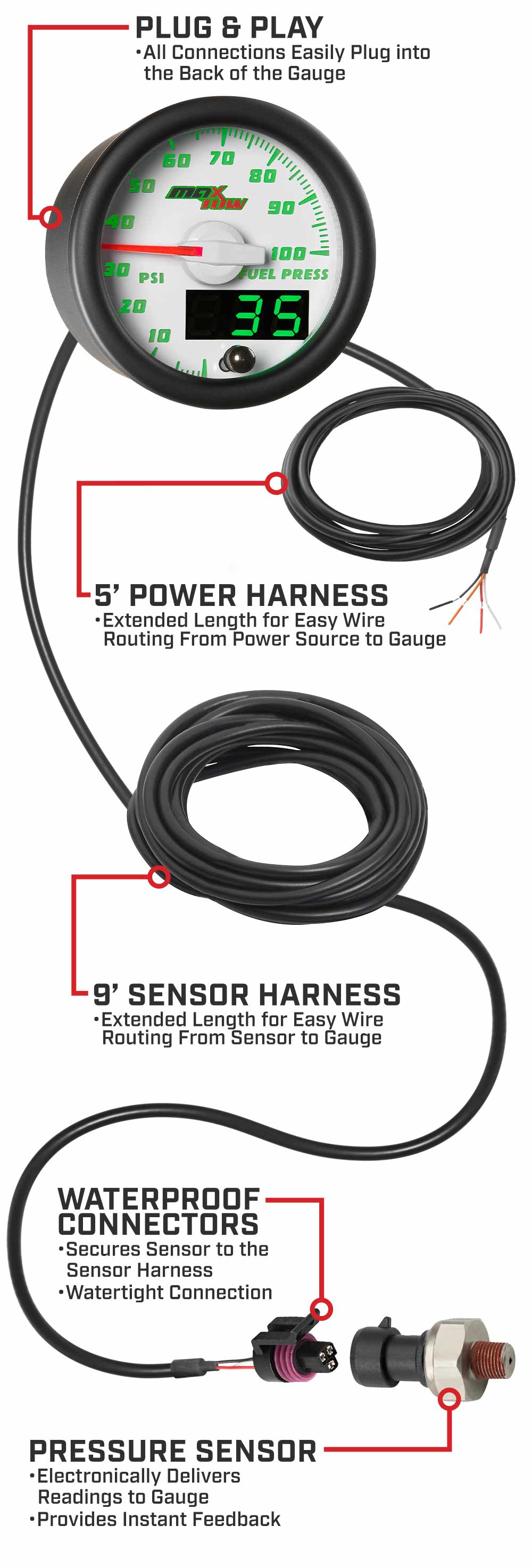

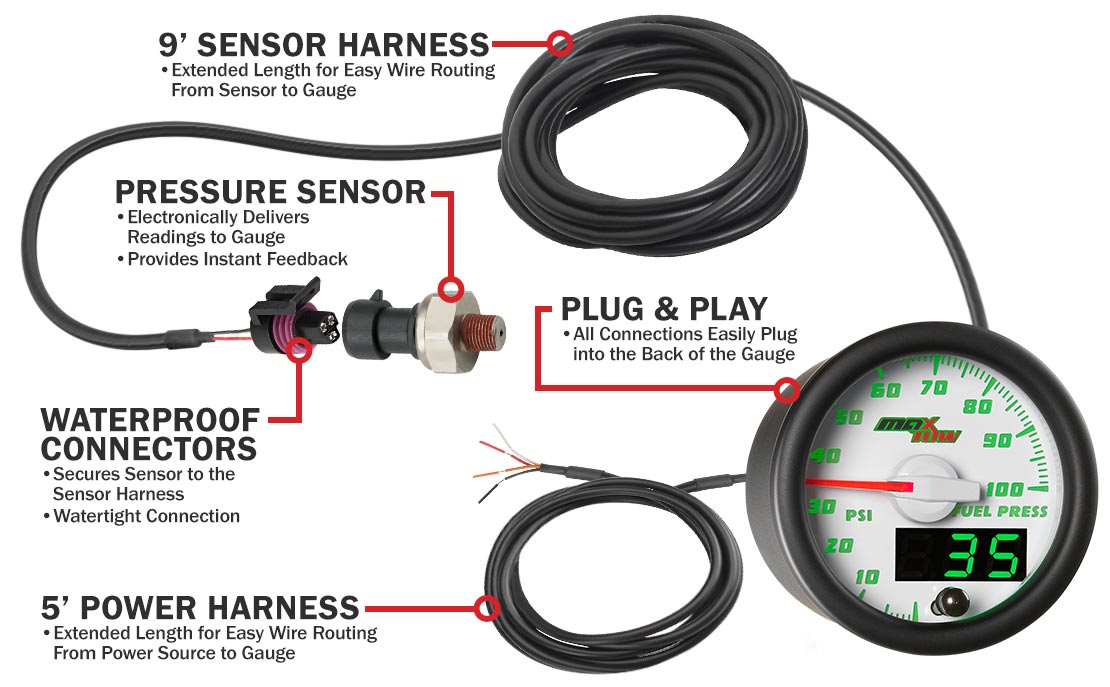

MaxTow’s 100 PSI Electronic Fuel Pressure Sensor features a 1/8-27 NPT threads allowing it to be installed directly to your fuel filter housing or by using an adapter, and the extended wire harnesses for both power (3') and fuel pressure sensor (9') connections assure that you’ll have more than enough wire for an easy installation. All gauge mounting hardware and installation instructions come standard with every electronic fuel pressure gauge purchased, as well as a one year limited warranty and free lifetime technical support. Get ready to hit the road and Tow to the Max™

Note: This gauge includes a 1/8-27 NPT thread size on the sensor and your vehicle may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require additional threading adapters, please contact a GlowShift Technical Support Specialist.

  • 2 1/16" (52mm) White Gauge Face with a Magnified Lens
  • Fuel Pressure Reading from 0 to 100 PSI
  • Fuel Pressure Sensor with 1/8-27 NPT Threads
  • Double Vision Display Feature with Analog and Digital Readings
  • Green LED Through Dial Lighting with a Red Illuminated Needle
  • Daytime Mode with 3 Customizable Brightness Settings
  • Nighttime Mode with 3 Customizable Brightness Settings
  • 9' Fuel Pressure Sensor Wire
  • 3' Power Wire
  • Gauge Depth Measures 1 5/16"
  • Gauge Visor
  • Mounting Hardware
  • Installation Instructions
  • Free Lifetime Technical Support
  • One Year Limited Warranty
Gauge Series
White & Green MaxTow Series
Brand
MaxTow
Gauge Type
Fuel Pressure
Range of Reading
0 - 100 PSI
Face Color
White
Size
52mm
Lens
Clear
Backlighting Color
Green
Sending Unit
Electronic
Measurement Unit
Standard
Display
Combo
pdf
http://www.glowshift.com/instructions/MaxTow/MT-DV11.pdf
MaxTow High Performance Diesel Gauges 02:14

MaxTow’s Double Vision™ Gauge Series features a green LED display, as well as an illuminated red needle, which will give you the classic look of an analog gauge while also giving you an easy to read green digital numerical readout, offering multiple options and added convenience when reading the output of your truck gauge. This truck gauge series also features innovative daytime and nighttime dimming modes with three customizable brightness settings (low, medium, high) for each mode. Get ready to hit the road and Tow to the Max™. For More Information Please Visit: http://www.MaxTow.com

MaxTow High Performance Diesel Gauges

MaxTow’s Double Vision™ Gauge Series features a green LED display, as well as an illuminated red needle, which will give you the classic look of an analog gauge while also giving you an easy to read green digital numerical readout, offering multiple options and added convenience when reading the output of your truck gauge. This truck gauge series also features innovative daytime and nighttime dimming modes with three customizable brightness settings (low, medium, high) for each mode. Get ready to hit the road and Tow to the Max™. For More Information Please Visit: http://www.MaxTow.com
