10 Color Digital Series Triple Gauge Package for 2011-2016 Ford Super Duty Power Stroke

GlowShift's 10 Color Digital Series Triple Gauge Package was made for the 2011-2016 Ford Super Duty Power Stroke F-250 and F-350 with a 6.7L Power Stroke engine. This gauge package features the innovative 10 Color Digital Gauge Series which includes 10 different solid color options and an ultra-bright digital LED gauge display. GlowShift’s triple gauge package gives you the choice of any 3 gauges from a wide and diverse selection, and many gauges come with their required sensor. This package also includes your choice between a black, gray or tan Ford Super Duty full size pillar pod.

Gauge Series Details

With the 10 Color Digital Gauges Series you can choose from 10 selectable solid color options to set the color you prefer for your gauge. Another main feature of this gauge series is the sharp digital display which provides you with extremely accurate quick-glance readouts. These 2-1/16” (52mm) gauges feature a streamlined design with a flat, black gauge face and low profile tinted lens. In addition to the solid color settings, you will also have the option of a Color Cycle mode which cycles through all solid color options. The Color Fade slowly navigates and fades through each solid color option. Additional features include a Color Recall capability so that your gauge will remember the last color setting you used before it was turned off. For even better visibility at nighttime there is an easy-to-use Dimming Feature which allows you to dim the gauge 50% at night for clearer viewing. All of these options provide you with the ability to fully customize the lighting experience of these innovative digital gauges. GlowShift also includes all sensors, wiring, mounting hardware and a one-year limited warranty with each purchase.

Extremely Accurate Digital Readings Digital Numerical Readout Flat, Black Gauge Face Low Profile Tinted Lens Extremely Thin Design Quick-Glance Readings

Customizable Color Display Ultra-Bright LED Lighting 10 Solid Color Settings Blue, Red, Green, Teal, Purple, White, Yellow, Pink, Amber & Orange Color Cycle & Color Fade Modes Self-Calibration Mode at Startup

Nighttime Dimming Dimmer Wire Dims Gauge 50% Reduce Brightness When Driving at Night Continue to Easily View your Readings Works When your Headlights are Turned On Activate with a Simple Connection

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Ford Super Duty. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

60 PSI Boost Reads Boost from 0 - 60 PSI 1/8-27 NPT Electronic Pressure Sensor 9’ Sensor & 2’ Power Wire Harnesses

Transmission Temperature Reads Transmission Temperature from 68 - 302° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 2' Sensor & Power Wire Harnesses Recommended for Vehicles with Automatic Transmission

100 PSI Fuel Pressure Reads Fuel Pressure from 0 - 100 PSI 1/8-27 NPT Electronic Pressure Sensor 9’ Sensor & 2' Power Wire Harnesses

Exhaust Gas Temperature Reads Exhaust Temperature from 200 - 2200° Fahrenheit 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable 6' Sensor & 2' Power Wire Harnesses Waterproof EGT Probe to Sensor Harness Connector

Pillar Pod Details

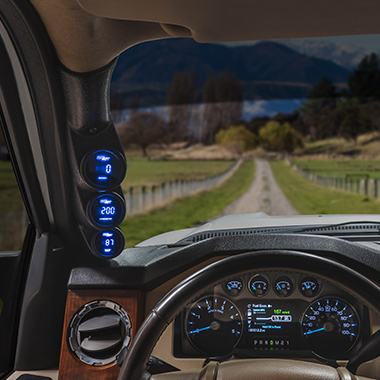

The included full size, factory matched triple pillar pod is made specifically for the 2011-2016 Ford Super Duty Power Stroke F-250 and F-350 with a 6.7L Power Stroke engine. Select from black, gray or tan, and this pod can be effectively mounted as a complete replacement of your factory A-pillar. This pillar gauge pod holds (3) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. It can also be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish. Fits: 11, 12, 13, 14, 15, 16 Ford Super Duty, F-250, F-350

Holds (3) 2-1/16” (52mm) Gauges Choose Between Black, Gray or Tan Made from ABS Plastic Withstands Cracking, Fading and Warping

Replacement of Factory A-Pillar Full Length Gauge Pod Match to Your Factory Interior Professional Fit and Finish

Bolt Included for Pod Installation Installs Through Pre-Drilled Hole on Pod Easily Mounts to Factory Location No Drilling Required

Fitment Details

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	EGT Probe Bracket Quick & Easy Install the EGT Probe to the Exhaust Pipe No Drilling & Tapping the Exhaust Manifold Required Recommended Installing Bracket Close to the Turbo Drill a 3/8" Hole to the Exhaust Pipe & Clamp the Adapter to the Pipe Features 1/8-27 NPT Ferrule Fitting Bracket Sized at 3-1/8" - 5"	Test Port Adapter for 6R140 Quick & Easy Install of Temperature Sensor to Transmission Test Port Threads onto Temperature Sensor for Protection from Internal Transmission Parts No Modifications to Transmission Necessary Female 1/8-27 NPT Thread for Sensor Includes Crush Washer for Leak-Free Seal Fits 2011-2020 Ford Super Duty 6.7L Power Stroke with 6R140 Transmission	Big Line Kit for 2011-2020 Ford 6.7L Power Stroke Allows Installation of Fuel Pressure Sensor into Factory Fuel System Replaces the Factory Hard Line Between Secondary Fuel Filter & Vapor Control Valve Pre-Assembled Design with 3/8” Rubber Hose, T-Fitting, Quick-Connectors & Hose Clamps Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor Fits 2011-2020 Ford 6.7L Power Stroke
Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features a 1”-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal Fits 2011-2022 Ford Super Duty 6.7L Power Stroke	Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes 4 Amp Fuse for Circuit Protection

Installation Guides

This 10 Color Digital Series Triple Gauge Package comes with an installation guide which is available online and in print for the 2011-2016 Ford Super Duty Power Stroke F-250 and F-350 with a 6.7L Power Stroke engine. An installation video is also available which provides a complete step-by-step tutorial along with useful tips on how to install this gauge package.

Watch the Installation Video

Download and Print the PDF
