Chevrolet C/K

The 6.5L Turbo Diesel 35 PSI Boost Gauge was made for any 95-98 Chevy C/K Full Size Truck, giving you the ability to easily monitor your Chevy’s turbo boost levels from 0 to 35 PSI through one gauge. Installing this gauge will help you guard against overboosting, which could potentially result in significant damage to your diesel engine. 95-98 C/K stock levels run at about 7-12 PSI, but with a tuned diesel engine those boost pressure levels can go much higher, which is why the 35 PSI boost gauge is an ideal fit. This mechanical gauge comes with everything required for the install, including 9’ of Boost Line and 1/8-27 NPT Compression Fittings which give you access to extremely accurate readings when you drill and tap your intake manifold. Complete with all of the color options and lighting effects that come standard with these gauges, the interior of your C/K 2500HD/3500HD will be upgraded and enhanced by the addition of this gauge.

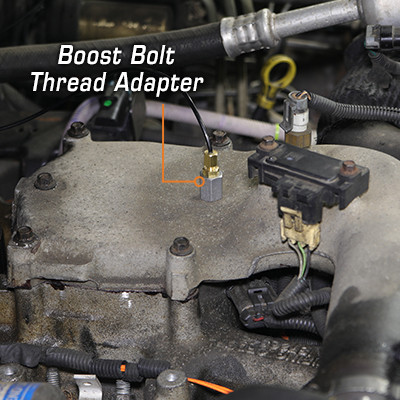

GlowShift’s GM 6.5L Turbo Diesel Boost Bolt Thread Adapter makes it extremely easy to install a Boost Sensor or Boost Hose to any GM 6.5L Turbo Detroit Diesel Motor. This adapter replaces a bolt on the intake manifold, allowing you to use the adapter to read your vehicle's boost pressure without the need for drilling or tapping.

A Transmission Temperature Gauge is essential for any 6.5L Turbo Diesel and goes hand-in-hand with monitoring 95-98 C/K 4L80-E transmissions, especially when these trucks are towing heavy loads. This gauge allows you to closely monitor the temperature of your transmission, ensuring that it does not overheat causing significant damage. Once you connect the included electronic transmission temperature sensor with 1/8-27 NPT male threads, this trans temp gauge will take extremely accurate readings from 80° to 260° Fahrenheit. One of the major factors in reducing the life of a C/K’s transmission is overheating, and one of the main reasons a truck transmission overheats is due to the strain of towing larger and heavier amounts of cargo. A C/K trans temp gauge will monitor transmission temperatures during a larger haul and alert you in the event of temperature spikes. Another issue is older transmission fluid. Older transmission fluid will be less effective at performing its primary functions, one of the most important of which is keeping the system cool. The typical range for transmission fluid temperature is between 175° and 225°, and keeping within that average range is vital to your 6.5L diesel engine and transmission’s long term performance. By having a trans temp gauge, you’ll be kept one step ahead of any possible issues involving overheating that could potentially seize your transmission.

The 1500° F Pyrometer EGT Gauge is essential for anyone driving a 1995-1998 Chevy C/K Full Size Truck 2500HD/3500HD who is pushing for maximum output from their 6.5L Turbo Diesel engine. This gauge will ensure that your exhaust temperature is not running too hot which could result in turbo failure. With unique features such as simple Plug and Play connectors for the power and sensor harnesses, this exhaust gas temperature gauge can be activated in no time and will take extremely accurate readings from 0 to 1500° Fahrenheit. The quick and easy installation process for the included EGT Probe involves drilling and tapping the exhaust manifold to 1/8-27 NPT and then threading and tightening the included EGT Probe. The 6.5L Turbo Diesel 1500 EGT gauge is also designed for C/K Full Size Trucks that are traveling longer distances and towing heavy loads, two factors which can at times put more stress on the engine and generate higher exhaust gas temperatures. This Chevy EGT gauge comes with everything required for installation, including the 1/8-27 NPT Type K Thermocouple EGT Probe with a Waterproof Connector that features 3’ of steel braided cable and 1/8-27 NPT threads. The EGT probe and power connections are made utilizing seamless Plug and Play connectivity to make the process even easier. GlowShift’s 6.5L Turbo Diesel EGT gauge also comes with a 2’ power harness and 6’ steel braided sensor harness with waterproof connector that plugs into the probe’s connector.

The 30 PSI Fuel Pressure Gauge for the 6.5L Turbo Diesel displays readings from 0 to 30 PSI. It’s the right gauge for any C/K Full Size Truck since they run on lower fuel pressure, with an average stock PSI range of 3 to 7 PSI. This gauge ensures your fuel pressure is running at peak levels, and that it is not too low which could result in damage to your fuel pump or injectors, resulting in a loss of overall horsepower. A fuel gauge is vital to any 95-98 C/K by helping drivers maintain their 6.5L Turbo Diesel’s performance through consistent monitoring of pressure levels while driving. Doing so not only benefits your Chevy truck in the short term but also helps to preserve engine life over time. The 30 PSI 6.5L Turbo Diesel fuel pressure gauge comes with parts required for installation as well. Included is an Electronic Fuel Pressure Sensor with 1/8-27 NPT Male Threads, 9’ Sensor Harness and a 2’ Power Harness.

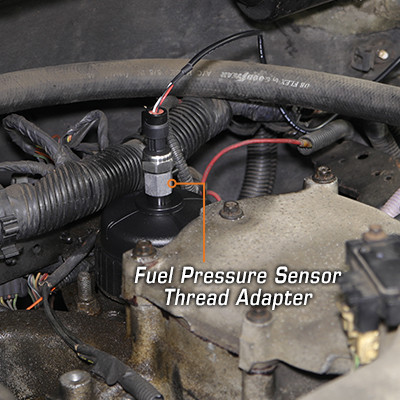

GlowShift’s Fuel Pressure Thread Adapter for a GM 6.5L Turbo Diesel engine takes the effort out of installing a fuel pressure sensor into your Chevy C/K Full Size Truck 2500HD/3500HD. That’s because this adapter allows you to easily install your aftermarket fuel pressure sensor into your stock 6.5L GM Turbo Diesel engine in minutes without having to cut or modify the vehicle’s fuel system. Simply replace the factory plastic fuel filter bleeder valve with this easy to use fuel pressure adapter which allows the 1/8-27 NPT electronic fuel pressure sensor to easily install to the filter. The flexibility this fuel pressure gauge adapter gives you is vital. Your ability to install the fuel pressure sensor into the existing factory fuel system not only simplifies the process but also eliminates the need to make any major changes to your vehicle.
