Dodge Ram Cummins

The 6.7L Cummins 60 PSI Boost Gauge gives you the ability to easily monitor your 10-18 Ram’s boost levels from 0 to 60 PSI and is designed for any Dodge Ram running higher boost pressure to make sure that overboosting doesn’t occur which could cause problems for the turbocharger. This turbo boost gauge also ensures your turbo is performing at optimum levels and creating the type of power that it should. A boost gauge is a great fit for monitoring boost levels in your Cummins 2500 & 3500 when you’re getting more boost out of your stock or upgraded turbo. This gauge is ideal for newer or modified Dodge Rams running boost levels in the approximate area of 45 PSI to 55 PSI, where your truck’s output matches the gauge’s boost pressure level capacity. Whether your Cummins is strictly recreational or you’re using it for work applications like hauling heavy loads, this Ram boost gauge will alert you in the event your turbo isn’t creating boost levels that are within the expected range. This gauge also comes with parts required for the install, including 9’ of Boost Line and Compression Fittings.

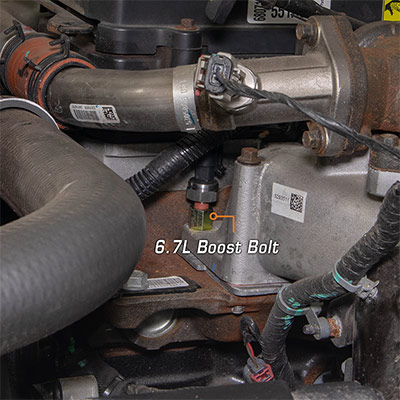

GlowShift’s Boost Bolt Thread Adapter is specifically designed to thread directly into your 2010-2018 Dodge Cummins 6.7L Diesel’s intake horn, allowing you to easily install the barbed fitting included with your GlowShift 60 PSI boost gauge. The installation process is extremely easy with no drilling or tapping necessary.

The 1500° F Pyrometer EGT Gauge is essential for anyone driving a 2010-2018 Dodge Ram 2500 or 3500 6.7L Cummins who is pushing for maximum output of their diesel engine. This gauge will ensure that your exhaust temperature is not running too hot which could result in engine failure. With unique features such as simple Plug and Play connectors for the power and sensor harnesses, this exhaust gas temperature gauge can be quickly activated and will effectively take readings from 0 to 1500° Fahrenheit. An exhaust gas temperature gauge is considered one of the most important Cummins turbo diesel gauges. Readings up to 1500° apply to most Ram trucks, with this gauge typically being enough to cover the range regardless of the diesel engine size. The Cummins 1500 EGT gauge is also designed for Ram trucks that are traveling longer distances and towing heavy loads, two factors which can at times put more stress on the engine and generate higher exhaust gas temperatures. This Ram EGT gauge comes with everything required for installation, including a ⅛-27 NPT Type K Thermocouple EGT Probe with a Waterproof Connector that features 3’ of steel braided cable and ⅛-27 NPT threads. The EGT probe and power connections are made utilizing seamless Plug and Play connectivity to make the process even easier. This gauge comes with a 2’ power harness and 6’ steel braided sensor harness with waterproof connector that plugs into the probe’s connector.

A Transmission Temperature Gauge is essential for any 6.7L Cummins with a 68RFE transmission, especially Ram 2500s & 3500s that are towing heavy loads. This gauge allows you to closely monitor the temperature of your transmission, ensuring that it does not overheat causing significant damage. The included electronic transmission temperature sensor with ⅛-27 NPT male threads requires a T-Fitting Adapter for installation. This Cummins adapter is available separately and connects directly to the cooler feed line for precise readings. Once the adapter and sensor have been installed, this trans temp gauge will take readings from 80° to 260° Fahrenheit. One of the major factors in reducing the life of a Ram’s transmission is overheating, and one of the main reasons a truck transmission overheats is due to the strain of towing larger and heavier amounts of cargo. A Cummins trans temp gauge will monitor transmission temperatures during a larger haul and alert you in the event of temperature spikes. Another issue is older transmission fluid. Older transmission fluid will be less effective at performing its primary functions, one of the most important of which is keeping the system cool. The typical range for transmission fluid temperature is between 175° and 225°, and keeping within that average range is vital to your engine and Cummins transmission’s long term performance. By having a trans temp gauge, you’ll be kept one step ahead of any possible issues involving overheating that could potentially seize your transmission.

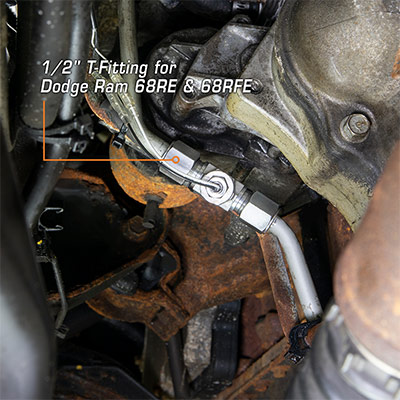

GlowShift’s Dodge Ram Cummins Transmission Line T-Fitting Adapter allows you to easily install your 1/8-27 NPT transmission temperature sensor directly to the 1/2” transmission cooler feed line for extremely accurate readings. This adapter is required on the 2010-2018 6.7L Cummins with 68RFE transmission, and is the only way to install a Transmission Temperature Gauge for these model years.

The 30 PSI Fuel Pressure Gauge monitors lower fuel pressure levels on any 2010-2018 6.7L Cummins, displaying readings from 0 to 30 PSI. This diesel fuel pressure gauge makes sure your Dodge's fuel system is running at its peak. It also ensures that the pressure is not too low which could result in damage to your fuel pump and injectors, along with causing an overall loss of horsepower. Symptoms of low fuel pressure include rough idling, poor performance and decreased fuel economy. Proper fuel pressure levels are vital for optimal Cummins performance, and installing a GlowShift 30 PSI Fuel Pressure Gauge allows you to monitor pressure levels to prevent any damage to your fuel system. As part of this gauge kit you’ll receive a 1/8-27 NPT electronic fuel pressure sensor. This sensor can be installed directly into your fuel system with our Fuel Pressure Big Line Kit, which is available separately. This kit features a ⅛-27 NPT port and replaces the restrictive line from the fuel filter housing, allowing you to install the sensor and take extremely accurate gauge readings. GlowShift’s ⅛-27 NPT Fuel Pressure Snubber Valve is also available separately which regulates, normalizes and eliminates fuel pressure spikes present throughout the fuel system during the initial ignition and startup of a diesel engine. If the 9' pressure sensor harness that comes with the gauge is not long enough for your application, GlowShift offers an Extended Length Pressure Gauge Sensor Harness. This sensor harness effortlessly snaps into the 1/8-27 NPT sensor and to the back of the fuel pressure gauge.

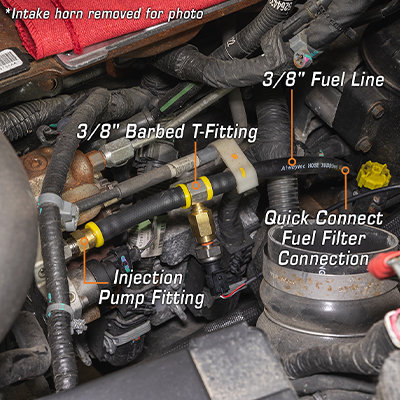

GlowShift’s Big Line Kit is available for the 2010-2018 Dodge Ram 2500/3500 with a 6.7L Cummins. This kit features a ⅜” T-Fitting with ⅛-27 NPT Port and upgrades the restrictive line, enabling you to easily install any fuel pressure sensor. The 6.7L Cummins Big Line Kit will replace the restrictive line from the fuel filter housing to the injection pump in order to let your diesel truck’s fuel system flow the way it was intended. This kit is required because the 10-18 Dodge Ram has hard lines and no open ports.
