Dodge Ram Cummins

1998 - 2002 Dodge Ram Cummins

1998 - 2002 Dodge Ram Cummins

GlowShift carries a wide range of gauges, pods, adapters and more for the 1998-2002 Dodge Ram 24v 5.9L Cummins 2500 & 3500. Gauges and accessories are available individually, or you can create a fully customizable gauge package which features both gauges and pods as well as optional add-ons. Choose from a variety of GlowShift gauges made to monitor a wide range of engine applications, with many gauge types available that were not part of the original 5.9 Cummins factory dash. Every gauge comes with the required sensor as well as wiring. Each gauge also comes with the choice of a signature GlowShift Gauge Series, with features including selectable ultra-bright LED color displays, a black or white gauge face, a magnified clear or tinted lens and more. Dual or triple pillar pods are also featured in several colors to match your Ram’s factory interior. Add-ons such as adapters, wiring kits and other accessories will help to simplify the installation process.

For the 98-02 Dodge Ram 24v 5.9L Cummins 2500 & 3500 we recommend the Black 7 Color Gauge Series. You’ll experience innovative features including a black gauge face, magnified clear lens and ultra-bright selectable 7 color LED through dial lighting. When selecting a gauge package you’ll also have a choice between dual or triple pillar pods with or without a speaker cutout option. The Black 7 Color Gauge Series features the 7 LED solid color modes Blue, Green, Red, Teal, Yellow, Purple and White.

Cummins Custom Gauge Packages

Choose between the Black, White or Tinted 7 Color Gauge Series, featuring 7 selectable solid color modes, a clear or tinted lens, and 2 Color Cycle Modes.

With the MaxTow Double Vision™ Gauge Series you’ll experience both analog and digital readings on an ultra-bright LED display in several color combinations.

Highlights of the Elite 10 Color Series include your choice of either a black or white gauge face and a tinted lens with 10 Solid Color Settings and 2 Individual Color Cycle Modes.

5.9L Cummins Boost Gauge

Black 7 Color 60PSI Boost Gauge

The 5.9 Cummins 60 PSI Boost Gauge gives you the ability to easily monitor your 98-02 Ram’s boost levels from 0 to 60 PSI and is designed for any Dodge Ram running high boost pressure. A great resource for monitoring where vacuum compression levels are not necessary, this turbo boost gauge also ensures your turbo is performing at optimum levels and that it does not overboost causing critical engine damage. A boost gauge is a great fit for monitoring boost levels in your 98-02 Cummins when you’re getting more boost out of your stock or upgraded turbo. This gauge is ideal for newer or modified Dodge Rams running boost levels in the approximate area of 45 PSI to 55 PSI, where your truck’s output matches the gauge’s boost pressure level capacity. Whether your Cummins is strictly recreational or you’re using it for work applications like hauling heavy loads, this Ram boost gauge will alert you in the event your turbo isn’t creating boost levels that are within the expected range. This gauge also comes with everything required for the install, including 9’ of Boost Line and Compression Fittings which give you access to extremely accurate readings when you drill and tap your Cummins intake manifold. Also included is a 2’ power wire attached to the back of the gauge, a dimmer wire that dims the gauge 30% for easier nighttime viewing, a gauge visor, mounting hardware and installation instructions.


Cummins Boost Adapter

Boost Bolt Adapter

Cummins Boost Adapter

Boost Bolt Adapter 5.9L Boost Bolt Thread Adapter

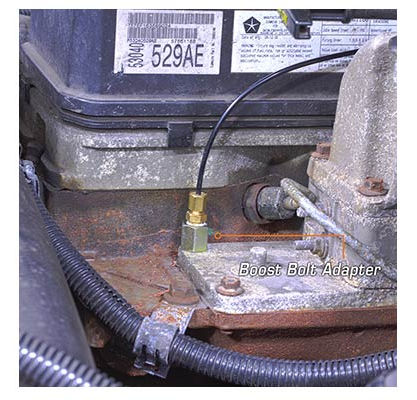

GlowShift’s Boost Bolt Adapter is designed to thread directly into your Dodge Ram Cummins 2500 & 3500 5.9L Diesel’s intake manifold, allowing you to easily install the compression fitting or sensor that is included with your GlowShift boost gauge. Installation is easy with no drilling or tapping necessary.

2nd Gen Cummins EGT Gauge

Black 7 Color 1500° F Pyrometer EGT Gauge

The 1500° F Pyrometer EGT Gauge is essential for any 1998-2002 Dodge Ram 24v 5.9L Cummins 2500 & 3500 that is driving long distances or pulling heavy loads, ensuring your exhaust temperature is not running too hot which could result in engine failure. With unique features such as simple Plug and Play connectors for the power and sensor harnesses, this exhaust gas temperature gauge can be quickly activated and will effectively take readings from 0 to 1500° Fahrenheit. An exhaust gas temperature gauge is considered one of the most important Cummins turbo diesel gauges. Readings up to 1500° apply to most Ram trucks, with this gauge typically being enough to cover the range regardless of the diesel engine size. The Cummins 1500 EGT gauge is also designed for Ram trucks that are traveling longer distances and towing heavy loads, two factors which can at times put more stress on the engine and generate higher exhaust gas temperatures. This Ram EGT gauge comes with everything required for installation, including a ⅛-27 NPT Type K Thermocouple EGT Probe with a Waterproof Connector that features 3’ of steel braided cable and ⅛-27 NPT threads. The EGT probe and power connections are made utilizing seamless Plug and Play connectivity to make the process even easier. This gauge comes with a 2’ power harness and 6’ steel braided sensor harness with waterproof connector that plugs into the probe’s connector. You’ll also receive a gauge visor, mounting hardware and installation instructions as part of this gauge kit.

Cummins Transmission Temp Gauge

Black 7 Color Transmission Temperature Gauge

A Transmission Temperature Gauge is essential for any 5.9L Cummins with an automatic transmission, especially Rams that are towing heavy loads. This gauge allows you to closely monitor the temperature of your transmission, ensuring that it does not overheat causing significant damage. Once you connect the included electronic transmission temperature sensor with ⅛-27 NPT male threads, this trans temp gauge will effectively take readings from 80° to 260° Fahrenheit. One of the major factors in reducing the life of a Ram’s transmission is overheating, and one of the main reasons a truck transmission overheats is due to the strain of towing larger and heavier amounts of cargo. A Cummins trans temp gauge will monitor transmission temperatures during a larger haul and alert you in the event of temperature spikes. Another issue is older transmission fluid. Older transmission fluid will be less effective at performing its primary functions, one of the most important of which is keeping the system cool. The typical range for transmission fluid temperature is between 175° and 225°, and keeping within that average range is vital to your engine and Cummins transmission’s long term performance. By having a trans temp gauge, you’ll be kept one step ahead of any possible issues involving overheating that could potentially seize your transmission. In addition to the included sensor which easily installs to your transmission test port or in place of the stock sensor, you will also receive a 2’ power harness, a gauge visor, mounting hardware and installation instructions.


Cummins Transmission Temp Adapter

Transmission Temp Adapter

Cummins Transmission Temp Adapter

Transmission Temp Adapter Transmission Test Port Extender

GlowShift’s 1/8-27 NPT Transmission Test Port Extender is required when installing any of our transmission temperature gauges to 5.9 Cummins 47RE and 48RE transmissions. If this extender is not installed, your Ram’s internal transmission parts will break the sensor which could result in major damage. This 1/8-27 NPT adapter will extend the transmission test port, allowing you to easily install your transmission temperature gauge’s temperature sensor.

Cummins Fuel Pressure Gauge

Black 7 Color 30 PSI Fuel Pressure Gauge

The 30 PSI Fuel Pressure Gauge monitors lower fuel pressure levels on any 1998-2002 5.9 Cummins, displaying readings from 0 to 30 PSI. This diesel fuel pressure gauge makes sure your Dodge's fuel system is running at its peak, and ensures the pressure is not too low which could result in damage to your fuel pump and injectors, along with causing an overall loss of horsepower. This gauge also comes with a 1/8-27 NPT electronic fuel pressure sensor which enables you to take extremely accurate gauge readings. Please note that a snubber valve is required when installing a 30 PSI Fuel Pressure Gauge into a 98-02 Dodge Ram Cummins. The snubber valve regulates, normalizes and eliminates fuel pressure spikes that are present during the initial ignition and startup on the Dodge Cummins diesel engine through the use of a regulator. High pressure fuel system spikes during startup are harmful and may cause early and unexpected failure of electronic fuel pressure sensors and/or sending units for fuel pressure gauges. Having a snubber valve in place will ensure that any potential spikes in your Ram’s fuel pressure levels at startup will be avoided. With the purchase of this Cummins 30 PSI Fuel Pressure Gauge you will also receive a 2’ power harness, 9’ sensor harness, a gauge visor, mounting hardware and installation instructions.


Cummins Fuel Pressure Adapters

24V Banjo/Snubber Valve Combo

Cummins Fuel Pressure Adapters

24V Banjo/Snubber Valve Combo 24V Banjo/Snubber Valve Combo

This adapter is available for the 24v 5.9L Cummins, allowing you to easily install your fuel pressure sensor directly to the fuel filter housing with the protection of the snubber valve. Benefits include less fittings and less chances of leaks, along with better clearance of the frame rails.

24V Banjo Bolt 24V Banjo Bolt 24V Banjo Bolt

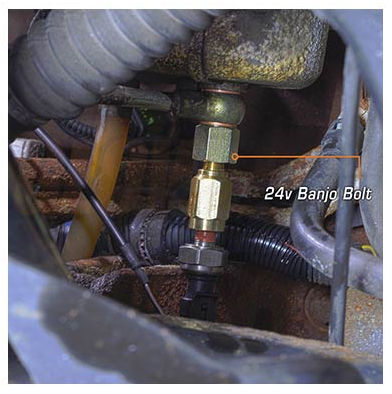

This GlowShift Banjo Bolt Adapter was specifically designed for the 98-02 Dodge Ram with a 24 valve Cummins motor. The adapter will replace your stock banjo bolt, allowing you to easily install a snubber valve and fuel pressure sending unit directly to the fuel filter housing. The 24V Cummins Banjo Bolt will fit on either the inlet side of the injection pump or the fuel filter housing. The thread size is M12 x 1.5 and it comes with (2) 0.46” diameter washers.

Dodge Ram Cummins Gauge Pods

Black triple pillar pod that holds three gauges and is available with or without a speaker cutout as an overlay that easily installs to the 98-02 Dodge Ram Cummins.

Factory color matched gray triple pillar pod that holds three gauges and is available with or without a speaker cutout as an overlay that easily installs to the 98-02 Dodge Ram Cummins.

Factory color matched tan triple pillar pod that holds three gauges and is available with or without a speaker cutout as an overlay that easily installs to the 98-02 Dodge Ram Cummins.

98 - 02 Dodge Ram Cummins Truck

Fitment Details

Year Make Model Engine
1998 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
1999 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
2000 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
2001 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
2002 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
