Ford Super Duty Power Stroke

2011 - 2016 Ford Super Duty Power Stroke

2011 - 2016 Ford Super Duty Power Stroke

Put the “power” in Power Stroke when you upgrade any 2011-2016 Ford Super Duty F-250 and F-350 with the monitoring ability that comes as part of GlowShift’s inventory of aftermarket automotive products. You can start by searching a selection of over 20 gauges that cover a wide range of 6.7L Power Stroke engine applications for comprehensive monitoring of engine performance. Choose between several different Gauge Series and features that include an analog or digital ultra-bright LED display with multiple color options, a black or white gauge face, clear or tinted magnified lens and more. In addition to our gauges you’ll have the option of triple pillar gauge pods available in black, factory color matched gray, and factory color matched tan. These pods are extremely durable, made from high quality ABS plastic, and were custom-made to replace the factory A-pillar trim of the 11-16 Super Duty. Each pod holds (3) 2-1/16” (52mm) gauges for easily viewable readings from the convenience of your 6.7L Power Stroke’s A-pillar. GlowShift also stocks a variety of gauge accessories built to help make the installation process even easier. Available are several types of adapters, wiring harnesses, expandable circuits and much more. You can purchase any products individually, or you can create custom gauge packages that feature combinations of gauges and pods with the option of adding accessories as well. Enhance your F-250/F-350 Super Duty with superior monitoring ability to get the most out of your 6.7L Power Stroke and make sure you’re fully equipped for the road ahead.

Not only do GlowShift gauges provide you with incredibly accurate readings on vital engine applications, but with your choice of several innovative Gauge Series you’ll be able to customize how your gauges look in your Super Duty’s cabin. Choose from several dynamic options such as the Tinted 7 Color and 10 Color Digital Series. Our recommendation is the Black 7 Color Gauge Series, which comes with a black gauge face, magnified clear lens and ultra-bright selectable 7 color LED through dial lighting. The Black 7 Color Gauge Series features the 7 LED solid color modes Blue, Green, Red, Teal, Yellow, Purple and White. When you choose white LEDs to go with the black gauge face, you’ll also have a look that closely matches the factory dash.

Power Stroke Custom Gauge Packages

Choose between the Black, White or Tinted 7 Color Gauge Series, 3 GlowShift gauges, and a Black, Gray or Tan Triple Pillar Pod that replaces the factory A-pillar.

Select between several unique MaxTow Double Vision™ Gauge Series, 3 gauges, and a Black, Gray or Tan Triple Pillar Pod that replaces the factory A-pillar.

Experience an ultra-bright digital LED display and 10 solid color options, along with 3 GlowShift Gauges and a Black, Gray or Tan Triple Pillar Pod that replaces the factory A-pillar.

6.7L Power Stroke Boost Gauge

Black 7 Color 60PSI Boost Gauge

The 6.7L Power Stroke gives you the ability to easily monitor your 11-16 Super Duty’s boost levels from 0 to 60 PSI and is designed for any Power Stroke running high boost pressure. This turbo boost gauge also ensures your turbo is performing at optimum levels and that it does not overboost causing critical engine damage. A boost gauge is a great fit for monitoring boost levels in your 11-16 Power Stroke when you’re getting more boost out of your stock or upgraded turbo. This gauge is ideal for newer or modified Super Duty’s running boost levels in the approximate area of 45 PSI to 55 PSI, where your Ford’s output matches the gauge’s boost pressure level capacity. Whether your Power Stroke is strictly recreational or you’re using it for work applications like hauling heavy loads, this Super Duty boost gauge will alert you in the event your turbo isn’t creating boost levels that are within the expected range. This gauge also comes with everything required for the install, including 9’ of Boost Line and Compression Fittings which give you access to extremely accurate readings when you drill and tap your Power Stroke’s intake manifold. Also included is a 2’ power wire attached to the back of the gauge, a dimmer wire that dims the gauge 30% for easier nighttime viewing, a gauge visor, mounting hardware and installation instructions.

Power Stroke EGT Gauge

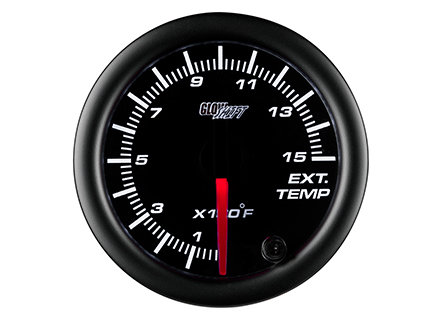

Black 7 Color 1500° F Pyrometer EGT Gauge

The 1500° F Pyrometer EGT Gauge is essential for anyone driving a 2011-2016 Ford Super Duty F-250 and F-350 with a 6.7L Power Stroke who is pushing for maximum output of their diesel engine. This gauge will ensure that your exhaust temperature is not running too hot which could result in engine failure. With unique features such as simple Plug and Play connectors for the power and sensor harnesses, this exhaust gas temperature gauge can be used to take readings from 0 to 1500° Fahrenheit after installing GlowShift’s ⅛-27 NPT Type K Thermocouple EGT Probe with a Waterproof Connector. An exhaust gas temperature gauge is considered one of the most important Power Stroke diesel gauges. Readings up to 1500° work for many diesel Super Duty’s, with this gauge typically being enough to cover the range regardless of the diesel engine size. The Power Stroke 1500 EGT gauge is also designed for Ford trucks that are traveling longer distances and towing heavy loads, two factors which can at times put more stress on the engine and generate higher exhaust gas temperatures. This Super Duty EGT gauge comes with everything required for installation, including the EGT probe which features 3’ of steel braided cable and ⅛-27 NPT threads. This gauge comes with a 2’ power harness and 6’ steel braided sensor harness with waterproof connector that plugs into the probe’s connector. You’ll also receive a gauge visor, mounting hardware and installation instructions as part of this gauge kit.


Required Pyrometer EGT Plate Kit

EGT Plate Kit For 11-16 Ford Super Duty 6.7L Power Stroke

Required Pyrometer EGT Plate Kit

EGT Plate Kit For 11-16 Ford Super Duty 6.7L Power Stroke EGT Plate Kit For 11-16 Ford Super Duty 6.7L Power Stroke

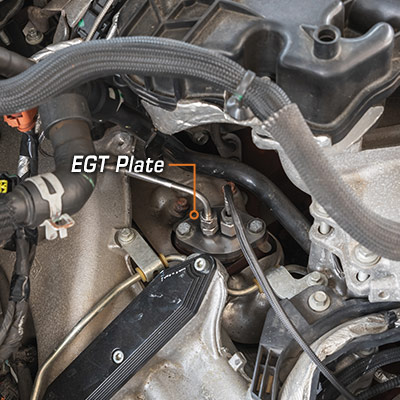

GlowShift’s Pyrometer EGT Plate Adapter Kit was created for the installation of our ⅛-27 NPT EGT probe, which monitors Exhaust Gas Temperatures in any 2011-2016 Ford 6.7L Power Stroke. Before installing this probe, you must have the EGR deleted in order to install the EGT temperature sensor via the included OEM EGT Probe Thread Adapter. Unplug the factory EGT sensor and remove it from the EGR Valve Block Off Plate. Remove the plate from the exhaust manifold and replace it with GlowShift’s EGT Block Off Plate. Thread the the ferrule fitting adapter into the 1/8-27 NPT port on the plate. Place the factory EGT sensor into the ¼-18 NPT port, and install GlowShift’s EGT probe into the adapter. Measuring 10mm thick, please note that aftermarket tuning is required when using this block off plate.

Warning: The improper use of this kit may violate local, state and federal laws. A factory temperature sensor is included with this kit. It is not required to drill, tap or cut any existing connections so that any factory EGT temperature sensor connections can remain intact. This kit must also be used with a compatible ECM tuning kit, otherwise it will not take accurate readings.

Power Stroke Transmission Temp Gauge

Black 7 Color Transmission Temperature Gauge

A Transmission Temperature Gauge is essential for any 6.7L Power Stroke and goes hand-in-hand with monitoring 6R140 TorqShift transmissions, especially on Super Dutys towing heavy loads. This gauge allows you to closely monitor the temperature of your transmission, ensuring that it does not overheat causing significant damage. Once you connect the included electronic transmission temperature sensor with ⅛-27 NPT male threads, this trans temp gauge will effectively take readings from 80° to 260° Fahrenheit. One of the major factors in reducing the life of a Super Duty’s transmission is overheating, and one of the main reasons a truck transmission overheats is due to the strain of towing larger and heavier amounts of cargo. A Power Stroke trans temp gauge will monitor transmission temperatures during a larger haul and alert you in the event of temperature spikes. Another issue is older transmission fluid. Older transmission fluid will be less effective at performing its primary functions, one of the most important of which is keeping the system cool. The typical range for transmission fluid temperature is between 175° and 225°, and keeping within that average range is vital to your engine and Power Stroke transmission’s long term performance. By having a trans temp gauge, you’ll be kept one step ahead of any possible issues involving overheating that could potentially seize your transmission. In addition to the included sensor which easily installs to your transmission test port or in place of the stock sensor, you will also receive a 2’ power harness, a gauge visor, mounting hardware and installation instructions.


Transmission Test Port Adapter

Transmission Test Port Adapter For 11-16 Ford Super Duty 6.7L Power Stroke

Transmission Test Port Adapter

Transmission Test Port Adapter For 11-16 Ford Super Duty 6.7L Power Stroke Transmission Test Port Adapter For 11-16 Ford Super Duty 6.7L Power Stroke

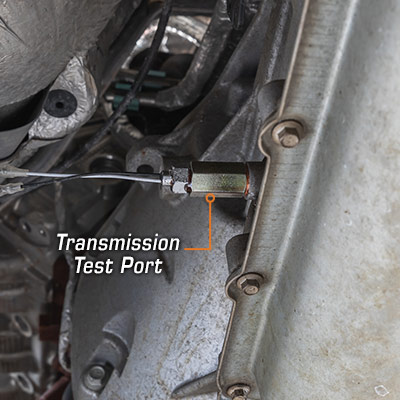

GlowShift’s Transmission Test Port Adapter allows you to easily install a 1/8-27 NPT transmission temperature sensor into your 2011-2016 Ford Super Duty with a 6R140 Torqshift6 Transmission. This Super Duty test port allows you to adapt transmission threads to the sensor threads, and also ensures that the temperature sensor is positioned at the proper depth in the transmission. Installation is quick and effortless and does not require any modifications to your system. Simply remove the factory plug on the driver side and replace it with this adapter. This Ford test port adapter is manufactured from high quality steel with a yellow zinc coating, includes a copper crush washer, and is built to last the lifetime of your Super Duty transmission.

Ford Super Duty Power Stroke Gauge Pods

Factory color matched tan triple pillar pod that holds three gauges and completely replaces the stock A-pillar trim of the 11-16 Super Duty.

Factory color matched gray triple pillar pod that holds three gauges and completely replaces the stock A-pillar trim of the 11-16 Super Duty.

Factory color matched black triple pillar pod that holds three gauges and completely replaces the stock A-pillar trim of the 11-16 Super Duty.

11 - 16 Ford Super Duty Power Stroke Truck

Fitment Details

Year Make Model Engine
2011 Ford Super Duty, F-250 & F-350 6.7L Power Stroke
2012 Ford Super Duty, F-250 & F-350 6.7L Power Stroke
2013 Ford Super Duty, F-250 & F-350 6.7L Power Stroke
2014 Ford Super Duty, F-250 & F-350 6.7L Power Stroke
2015 Ford Super Duty, F-250 & F-350 6.7L Power Stroke
2016 Ford Super Duty, F-250 & F-350 6.7L Power Stroke
