Ford Super Duty Power Stroke

2017 - 2020 Ford Super Duty Power Stroke

2017 - 2020 Ford Super Duty Power Stroke

Make sure your Alumiduty is at its best with GlowShift Gauges and Pods. A truck-specific pillar pod is available which is designed specifically for the 2017-2020 Ford Super Duty with an OEM black matte finish. This gauge pod is identical in every detail including a Built-In Speaker Grille and Factory Speaker Mount. It’s the first time since the 90s that the F-150, F-250 & F-350 all have the same frame and these Ford Super Duty gauge pods can be used on any model in the year range. You can also choose between 2-1/16” (52mm) gauges that monitor a wide range of key engine readings. Install accessories make it even easier to install many of the available Super Duty gauges. Combine all three to build a Custom Gauge Package and your 6.7 Powerstroke will be ready to go.

Decide on a GlowShift Gauge Series which defines the look of your gauges with features including a digital or analog display, multiple display color settings, a black or white gauge dial and more. For the 2017-2020 Alumiduty, we recommend the Black 7 Color Series. This Series has a black gauge dial, magnified clear lens and 7 solid color modes for the analog display: Blue, Green, Red, Teal, Yellow, Purple and White. Match the colors to the factory gauge cluster or create your own custom setup.

Power Stroke Custom Gauge Packages

Choose between the Black, White or Tinted 7 Color Gauge Series; then select 3 Gauges, a Black Triple Pillar Pod, and optional Gauge Installation Accessories.

Select one of four MaxTow Double Vision™ Gauge Series; then select 3 Gauges, a Black Triple Pillar Pod, and optional Gauge Installation Accessories.

Experience an ultra-bright digital LED display with 10 Solid Color Modes; and select 3 Gauges, a Black Triple Pillar Pod, and Optional Gauge Installation Accessories.

6.7L Power Stroke Boost Gauge

Black 7 Color 60PSI Boost Gauge

This Turbo Boost Gauge gives you the ability to easily monitor your 17-20 Super Duty’s boost levels from 0 to 60 PSI and is designed for any 6.7L Power Stroke running high boost pressure. Parts for installation of these Super Duty gauges are included and will vary depending on the Gauge Series. You will receive a Boost Sensor, 9’ of Boost Hose, 1/8-27 Compression Fittings and more. This gauge is ideal for newer or modified Super Duty’s running boost levels in the approximate area of 45 PSI to 55 PSI.

Power Stroke EGT Gauge

Black 7 Color 1500° F Pyrometer EGT Gauge

The 1500° Fahrenheit Pyrometer EGT Gauge is for anyone driving a 2017-2020 Ford Super Duty F150, F250 or F350 with a 6.7L Power Stroke who is pushing for maximum output of their diesel engine. This gauge will ensure that your exhaust gas temperature is not running too hot which could result in engine failure. Each pyrometer comes with everything required for installation, including a 1/8-27 NPT Type K Thermocouple EGT Probe with 3’ of steel braided cable; a 6’ stainless steel braided sensor harness, mounting hardware and more.


Power Stroke Transmission Temp Gauge

Black 7 Color Transmission Temperature Gauge

A Powerstroke Transmission Temperature Gauge is essential for any 2017-2020 Ford Super Duty 6.7 Powerstroke and goes hand-in-hand with monitoring F150, F250 & F350 TorqShift-G 6-Speed and TorqShift 10-Speed Automatic Transmissions. Included you’ll receive an Electronic Transmission Temperature Sensor with 1/8-27 NPT Male Threads, a 2’ Sensor & Power Harness and other installation parts. One of the major factors in reducing the lifespan of a Super Duty’s transmission is overheating. Keep an eye on changing temperatures with incredibly accurate readings and avoid any unusual spikes.


Transmission Test Port Adapter

Transmission Test Port Adapter For 11-20 Ford Super Duty 6.7L Power Stroke

Transmission Test Port Adapter

Transmission Test Port Adapter For 11-20 Ford Super Duty 6.7L Power Stroke Transmission Test Port Adapter For 11-20 Ford Super Duty 6.7 Powerstroke

GlowShift Alumiduty Transmission Test Port Adapters allow you to easily install a 1/8-27 NPT Trans Temp Sensor into your 2011-2020 Ford Super Duty with Torqshift Transmissions. Simply remove the factory plug on the driver side and replace it with the adapter. This Alumiduty test port adapter is manufactured from premium quality steel with a yellow zinc coating, includes a copper crush washer, and is built to last the lifetime of your truck.

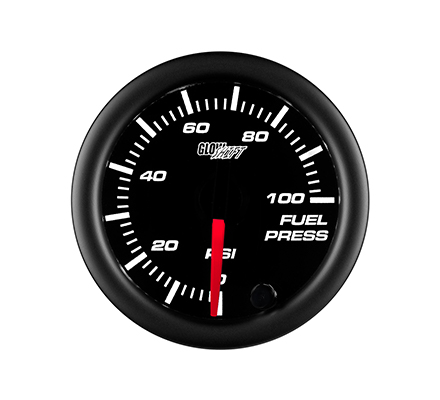

Power Stroke Fuel Pressure Gauge

Black 7 Color Fuel Pressure Gauge

This 100 PSI Fuel Pressure Gauge for the 2017-2020 Ford Super Duty F-150, F-250 & F-350 with a 6.7L Power Stroke displays readings from 0 to 100 PSI with pinpoint precision. These Super Duty gauges come with a 1/8-27 NPT Electronic Fuel Pressure Sensor, 9' Sensor Harness and more for installation. Make sure your fuel pressure is running at optimal levels and is not too low which could result in loss of horsepower and damage to your fuel pump and injectors. An average range of 60 PSI or higher is optimal for the 2017-2020 Super Duty.


Fuel Pressure Big Line Kit

Fuel Pressure Big Line Kit For 11-20 Super Duty 6.7L Power Stroke

Fuel Pressure Big Line Kit

Fuel Pressure Big Line Kit For 11-20 Super Duty 6.7L Power Stroke Fuel Pressure Big Line Kit For 11-20 Super Duty 6.7L Power Stroke

GlowShift Big Line Kits for the Alumiduty 6.7L Power Stroke replace the hard fuel line between the secondary fuel filter and vapor control valve (VCV), allowing you to install a fuel pressure sensor in-line to the source. Each kit comes pre-assembled at a length of 10-1/2” with a 3/8” T-fitting and 1/8-27 NPT port for the sensor, (2) quick-connectors, (4) hose clamps and diesel rated rubber hose with a 3/8" inner diameter.

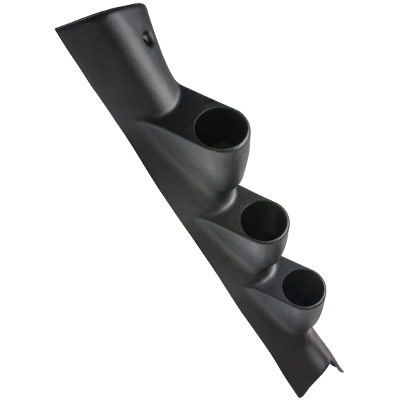

Ford Super Duty Power Stroke Gauge Pods

Black Triple Pillar Gauge Pod for 17-20 Ford Super Duty 6.7L Powerstroke Built-In Speaker Grille with Factory Speaker Mount Black Triple Pillar Gauge Pod for 17-20 Ford Super Duty 6.7L Powerstroke

OEM black matte finish triple pillar pod that holds three 2-1/16” (52mm) gauges and completely replaces the stock A-pillar trim.

This truck-specific Super Duty gauge pod is identical in every detail including a mount so that you can continue using the factory speaker.

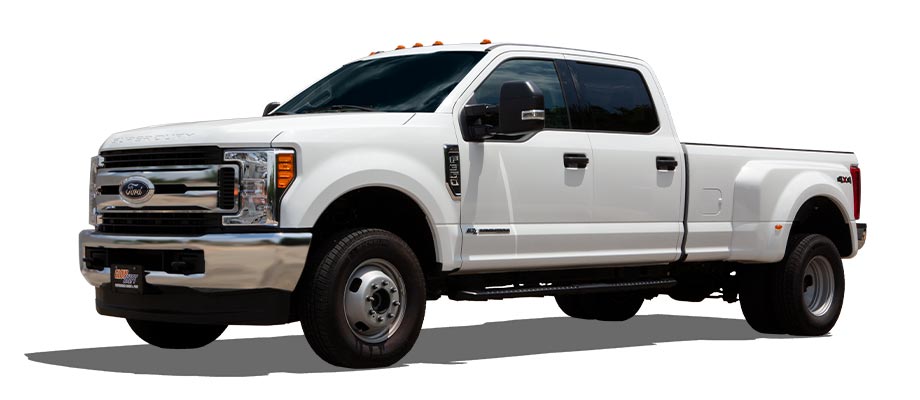

17 - 20 Ford Super Duty Power Stroke Truck

Fitment Details

Year Make Model Engine
2017 Ford Super Duty, Alumi-Duty, F-150, F-250 & F-350 6.7L Power Stroke
2018 Ford Super Duty, Alumi-Duty, F-150, F-250 & F-350 6.7L Power Stroke
2019 Ford Super Duty, Alumi-Duty, F-150, F-250 & F-350 6.7L Power Stroke
2020 Ford Super Duty, Alumi-Duty, F-150, F-250 & F-350 6.7L Power Stroke
