MaxTow's Double Vision® Series Triple Gauge Package was made for the 2011-2016 Ford Super Duty Power Stroke F-250 and F-350 with a 6.7L Power Stroke engine. Experience complete customization when you select from 15 gauges for this 3-gauge set which comes with all required sensors. This package also includes your choice between a black, tan or gray Ford Super Duty triple pillar pod. With the innovative Double Vision® Gauge Series, you’ll experience both digital and analog readouts on your choice of several unique ultra-bright LED displays.
Gauge Series Details
Multiple color and style combinations are available for complete customization of your high-performance 2-1/16” (52mm) gauges. The Double Vision® Gauge Series gives you the classic look of an analog gauge with an illuminated red needle while simultaneously displaying an easy-to-read digital numeric readout. Choose from either a black or white gauge face and a blue or green LED display. These gauges feature stepper motor technology which allows for smooth needle movement and extremely accurate gauge readings. You’ll also have the option of three daytime and three nighttime dimming modes with three customizable brightness settings (low, medium, high) for each. Choose from a variety of different gauge types to fully customize your gauge package. MaxTow also includes all sensors, wiring, mounting hardware and a one-year limited warranty. Get ready to hit the road and Tow to the Max®!
High Performance Gauges
- Gauges Measure 2-1/16” (52mm)
- Depth Measures 1-5/16”
- Magnified Lens
- Power and Sensor Wires
- Mounting Hardware
|
Double Vision® Gauge Series
- Digital and Analog Readings
- Black or White Gauge Face
- Ultra-Bright Blue or Green LED Display
- Illuminated Red Needle
- Stepper Motor Technology
|
6 Dimming Modes
- Daytime and Nighttime Dimming Modes
- 3 Customizable Brightness Settings for Each
- Continue to Easily View Readings
- Select with Button on Gauge Face
- Gauge Displays Last Setting When Reactivated
|
Plug and Play Connectivity
- Plug and Play Connectors on Power & Sensor Wires
- Both Wires Easily Snap Into the Back of the Gauge
- Extended Wire Lengths For Installation
- Quick and Easy Install
- Even Faster Readouts with an Electronic Gauge
|
Diesel Tech Picks
Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Ford Super Duty. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.
60 PSI Boost
- Reads Boost from 0 - 60 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5’ Power Wire Harnesses
|
1500° F Pyrometer EGT
- Reads Exhaust Temperature from 0 - 1500° Fahrenheit
- Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
- Includes 5' Power & 6' Sensor Wire Harnesses
- Waterproof EGT Probe to Sensor Harness Connector
|
Transmission Temperature
- Reads Transmission Temperature from 80 - 260° Fahrenheit
- 1/8-27 NPT Electronic Temperature Sensor
- 9' Sensor & 5' Power Harnesses
- Waterproof Sensor to Sensor Harness Connector
|
100 PSI Fuel Pressure
- Reads Fuel Pressure from 0 - 100 PSI
- 1/8-27 NPT Electronic Fuel Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
|
Pillar Pod Details

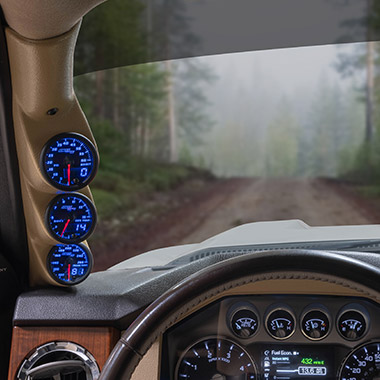

The included full size, factory matched triple pillar pod is made specifically for the 2011-2016 Ford Super Duty Power Stroke F-250 and F-350 with a 6.7L Power Stroke engine. Select from black, gray or tan, and this pod can be effectively mounted as a complete replacement of your factory A-pillar. This pillar gauge pod holds (3) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. It can also be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish.
Fits: 11, 12, 13, 14, 15, 16 Ford Super Duty, F-250, F-350
- Holds (3) 2-1/16” (52mm) Gauges
- Choose Between Black, Gray or Tan
- Made from ABS Plastic
- Withstands Cracking, Fading and Warping
|
- Replacement of Factory A-Pillar
- Full Length Gauge Pod
- Match to Your Factory Interior
- Professional Fit and Finish
|
- Bolt Included for Pod Installation
- Installs Through Pre-Drilled Hole on Pod
- Easily Mounts to Factory Location
- No Drilling Required
|
Fitment Details
Year |
Make |
Model |
Engine |
2011 |
Ford |
Super Duty, F-250 & F-350 |
6.7L Power Stroke |
2012 |
Ford |
Super Duty, F-250 & F-350 |
6.7L Power Stroke |
2013 |
Ford |
Super Duty, F-250 & F-350 |
6.7L Power Stroke |
2014 |
Ford |
Super Duty, F-250 & F-350 |
6.7L Power Stroke |
2015 |
Ford |
Super Duty, F-250 & F-350 |
6.7L Power Stroke |
2016 |
Ford |
Super Duty, F-250 & F-350 |
6.7L Power Stroke |
1/8-27 NPT Drill & Tap Set
- Used for Installing EGT Probe, Boost Fittings or Boost Sensor
- Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
- Includes Size R Drill Bit & 1/8 NPT Tap
|
EGT Probe Bracket
- Quick & Easy Install the EGT Probe to the Exhaust Pipe
- No Drilling & Tapping the Exhaust Manifold Required
- Recommended Installing Bracket Close to the Turbo
- Drill a 3/8" Hole to the Exhaust Pipe & Clamp the Adapter to the Pipe
- Features 1/8-27 NPT Ferrule Fitting
- Bracket Sized at 3-1/8" - 5"
|
Test Port Adapter for 6R140
- Quick & Easy Install of Temperature Sensor to Transmission Test Port
- Threads onto Temperature Sensor for Protection from Internal Transmission Parts
- No Modifications to Transmission Necessary
- Female 1/8-27 NPT Thread for Sensor
- Includes Crush Washer for Leak-Free Seal
- Fits 2011-2020 Ford Super Duty 6.7L Power Stroke with 6R140 Transmission
|
Big Line Kit for 2011-2020 Ford 6.7L Power Stroke
- Allows Installation of Fuel Pressure Sensor into Factory Fuel System
- Replaces the Factory Hard Line Between Secondary Fuel Filter & Vapor Control Valve
- Pre-Assembled Design with 3/8” Rubber Hose, T-Fitting, Quick-Connectors & Hose Clamps
- Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor
- Fits 2011-2020 Ford 6.7L Power Stroke
|
Oil Filter Sandwich Adapter
- Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter
- Used for Oil Pressure & Oil Temperature Sensors
- Features a 1”-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs
- Includes O-Ring for Leak-Free Seal
- Fits 2011-2022 Ford Super Duty 6.7L Power Stroke
|
Expandable Circuit
- Quick & Easy Way to Power Gauges Directly from the Fuse Panel
- Used for Constant & Switched 12 Volt Power for Gauges
- Includes 4 Amp Fuse for Circuit Protection
|
MaxTow 3 Gauge Power Wire Harness
- Used to Easily Power All 3 Gauges from 1 Harness that Connects to Power
- Daisy Chain Feature with Each Connector Plugging into Each Gauge
- Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod
- 6-1/2’ of Total Wire
|
60 PSI Boost
1500° F Pyrometer EGT
Transmission Temperature
100 PSI Fuel Pressure
Instruction Options
This Double Vision® Series Triple Gauge Package comes with product instructions that provide complete details on how to install your gauges and pod for the 2011-2016 Ford Super Duty Power Stroke F-250 and F-350 with a 6.7L Power Stroke engine. You can also view installation videos which include step-by-step tutorials and useful tips on how to install several MaxTow products.
Watch the Installation Video
|
Download and Print the PDF
|
Select Your Gauges
Select your gauges from a variety of different gauge types below which are available for this MaxTow Double Vision® Series Gauge Package. You can also reference our Tech Picks at the beginning of this list for our top recommendations that are specific to this vehicle. With gauges made to monitor a wide range of engine applications, MaxTow is sure to have the types of gauge you’re looking for as part of this custom package.
- Reads Boost from 0 - 30 PSI
- Reads Vacuum & Compression Levels from -30 - 0 inHG
- 3' Hose & T-Fitting
- 9' Sensor & 5' Power Wire Harnesses
- Reads Boost from 0 - 35 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Boost from 0 - 60 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5’ Power Wire Harnesses
- Reads Boost from 0 - 100 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5’ Power Wire Harnesses
- Reads Air/Fuel Ratio from 10.0 - 20.0
- Wideband Oxygen Sensor
- Digital Wideband Controller Unit with Data Logging
- Weld-In Sensor Bung
- Power & Sensor Wire Harnesses
- Reads Oil Pressure from 0 - 100 PSI
- 1/8-27 NPT Electronic Oil Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Vehicle Electrical System Voltages from 8 - 18 DC Volts
- 5' Power Wire Harness
Water (Coolant) Temperature
- Reads Water Temperature from 100 - 280° Fahrenheit
- 1/8-27 NPT Electronic Temperature Sensor
- 9' Sensor & 5' Power Harnesses
- Waterproof Sensor to Sensor Harness Connector
- Reads Oil Temperature from 100 - 280° Fahrenheit
- 1/8-27 NPT Electronic Temperature Sensor
- 9' Sensor & 5' Power Harnesses
- Waterproof Sensor to Sensor Harness Connector
- Reads Exhaust Temperature from 0 - 1500° Fahrenheit
- Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
- Includes 5' Power & 6' Sensor Wire Harnesses
- Waterproof EGT Probe to Sensor Harness Connector
2200° F Exhaust Gas Temperature
- Reads Exhaust Temperature from 200 - 2200° Fahrenheit
- Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
- Includes 5' Power & 6' Sensor Wire Harnesses
- Waterproof EGT Probe to Sensor Harness Connector
- Reads Vehicle’s RPM from 0 - 10,000
- 1 - 10 Cylinder Setting Switch on Back of Gauge
- 9’ Source & 5' Power Wire Harnesses
- Reads Fuel Pressure from 0 - 15 PSI
- 1/8-27 NPT Electronic Fuel Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Fuel Pressure from 0 - 30 PSI
- 1/8-27 NPT Electronic Fuel Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Fuel Pressure from 0 - 100 PSI
- 1/8-27 NPT Electronic Fuel Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Transmission Temperature from 80 - 260° Fahrenheit
- 1/8-27 NPT Electronic Temperature Sensor
- 9' Sensor & 5' Power Harnesses
- Waterproof Sensor to Sensor Harness Connector
- Reads Air Pressure from 0 - 200 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads NOS Pressure from 0 - 1,600 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Fuel Rail Pressure from 0 - 30,000 PSI
- 9' Sensor & 5' Power Wire Harnesses
- Compatible with 2004-2018 Dodge Ram 5.9L & 6.7L Cummins Engines
- Compatible with 2002-2016 GM 6.6L Duramax Engine
- Reads HPOP from 0 - 4,000 PSI
- 9' Sensor & 5' Power Wire Harnesses
- Compatible with 7.3L & 6.0L Ford Power Stroke
- Reads Diff Temperature from 100 - 250° Fahrenheit
- 1/8-27 NPT Electronic Temperature Sensor
- 18' Sensor & 5' Power Harnesses
- Waterproof Sensor to Sensor Harness Connector
- Reads Coolant Pressure from 0 - 35 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Intake Temperature from 0 - 300° Fahrenheit
- 3/8-18 NPT Electronic Air Temperature Sensor
- 9' Sensor & 5' Power Harnesses
- Waterproof Sensor to Sensor Harness Connector
- Reads Outside Air Temperature from -20 - 120° Fahrenheit
- Electronic Air Temperature Sensor
- 18' Sensor & 5' Power Harnesses
- Reads Drive Pressure from 0 - 60 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 5’ of 1/4” Copper Cooling Tubing
- 9' Sensor & 5' Power Wire Harnesses
- Reads Drive Pressure from 0 - 100 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 5’ of 1/4” Copper Cooling Tubing
- 9' Sensor & 5' Power Wire Harnesses
- Reads Truck’s Fuel Level from Empty, 1/4, 1/2, 3/4 & Full & 0 - 100%
- 9' Sensor & 5' Power Wire Harnesses
- Compatible with Gasoline & Diesel Fuel
Optional Installation Accessories
Looking for an adapter that helps to simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. GlowShift carries a wide variety of accessories to help with the installation process for your gauge package. Choose from a diverse selection of adapters, wiring harnesses and much more that will cover everything you need and make the process even easier as you install your gauges.
