3-3/8" 7 Color Series Cluster Dashboard Panel Gas & Diesel Gauge Package for 1967-1972 Chevrolet C10

SKU:
GS-DASH-02-85-7C-PKG
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

$649.99

UPC:
842559134894
Maximum Purchase:
99 units
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

1967-1972 C10 Dash Panel and Diesel Gauge Set

GlowShift 7 Color Series 7 Gauge Cluster Dashboard Panel Diesel Gauge Packages upgrade the factory dash of diesel-swapped 1967-1972 Chevrolet C10 box body/square body full size CK pickups. These custom panel and gauge packages are also compatible with C20, K10, K20 and additional Chevy/GMC trucks and SUVs in the year range. Included is a factory fitted 2nd Generation C10 Dash Panel that seamlessly replaces the stock dashboard cluster. Also included are 7 Color Series 3-3/8" (85mm) Speedometer and Diesel RPM Tachometers with (5) 2-1/16” (52mm) gauges of your choice. Swap out the factory panel and stock C10 gauges of any 2nd Gen Chevy C10 to build a custom dashboard build.

7 Color Series 7 Gauge Custom Dashboard Package for 67-72 Chevy C10 Hero 7 Color Series 7 Gauge Custom Dashboard Package for 67-72 Chevy C10 Hero

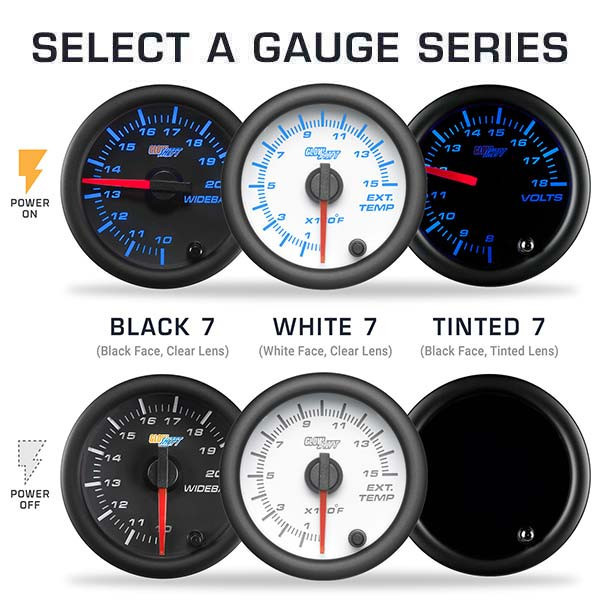

7 Color Gauge Series

GlowShift 7 Color Series Gauges feature the Tinted, Black, or White 7 Color Series. The Tinted 7 Color Series comes with a stealth-like tinted lens and black gauge dial; the Black 7 Color Series has a black gauge dial and magnified clear lens; the White 7 Color Series has a white gauge dial and magnified clear lens. Each gauge is equipped with ultra-bright analog LED displays, microprocessor controlled stepper motor technology, selectable 7 color LED through dial lighting, and an illuminated red needle that sweeps 270 degrees. Choose between Blue, Green, Red, Teal, Yellow, Purple or White for the display with (2) Solid Color Modes and Color Recall.

Features

7 Color Series Gauge Features Specs

7 Color Options

7 Color Options

Backlighting

7 Color Series Backlighting

Included 3-3/8" Gauges

7 Color 85mm Speedometer Gauge

Speedometer

Speedometer reads your Chevrolet C10’s driving speed up to 100 MPH or 140 MPH with pinpoint accuracy. This speedo gauge is equipped with an Odometer and (2) Resettable Trip Meters. Each In Dash Speedometer also has the ability to have a GPS Antenna plug into the gauge without a converter.

7 Color 85mm Diesel Tachometer Gauge

Tachometer

RPM Tachometers read in your choice of 3,000 or 5,000 RPM Diesel Tach or 8,000 or 10,000 RPM gasoline increments. These RPM tach gauges are optimal for any driver building a custom dashboard or replacing a stock tachometer. Time your shift perfectly and guard against unnecessary transmission wear to improve engine performance.


Recommended 2-1/16" Gauges

Black 7 Color Series Oil Pressure Gauge

Oil Pressure Gauge

Oil Pressure Gauge reads vehicle engine oil pressure from 0 to 100 PSI with unrivaled accuracy to let you know immediately if levels are where they should be. Monitor your vehicle’s oil pressure in real time ensuring the bearings, crankshaft and other critical engine parts stay properly lubricated.

Black 7 Color Series Water Coolant Temperature Gauge

Water Temp Gauge

Water Temperature Gauge reads your vehicle’s coolant temperature from 100° to 300° Fahrenheit to catch any unusual dips or spikes. This coolant temp gauge helps you make sure that your vehicle’s engine doesn’t overheat with responsive readings that deliver instant feedback.

Black 7 Color Series Fuel Level Gauge

Fuel Level Gauge

Fuel Level Gauge accurately reads the amount of fuel in your vehicle’s tank in standard increments of Empty, 1/4, 1/2, 3/4, and Full. The back of this automotive fuel tank gauge has a Resistance Adjuster so you can select from 9 different OHM Resistance Levels for your specific application.

Black 7 Color Series Volt Gauge

Volt Gauge

Volt Gauge monitors your vehicle’s electrical system from 8 to 18 volts, measuring the levels of your vehicle’s power supply to make sure it is providing a proper charge. This auto volt gauge will alert you instantly if there are any issues with the battery, alternator and other electrical systems.

Black 7 Color Series Clock Gauge

Clock Gauge

Clock Gauge features illuminated red hour and needle hands. Replace the factory clock gauge and upgrade to a bright LED display, while keeping an analog look which is consistent with the original. Clock gauges are an integral part of the C10 factory dash and this version will fit in seamlessly with your modified cluster.


2nd Gen Chevrolet C10 Replacement Panels

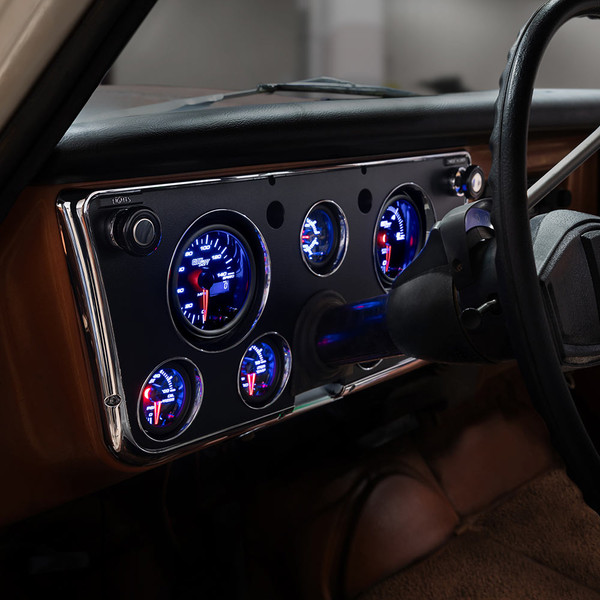

Replacement 67-72 C10 Dash Panel Cluster

Matte Black & Chrome Design

GlowShift Cluster Dashboard Panels for the 1967-1972 Chevy C10 are specifically made to replace the original cluster trim. The design features a painted matte cluster and chrome finish with embossed text for the headlights and wiper washer. Add (2) 3-3/8” (85mm) gauges and (5) 2-1/16” (52mm) gauges, making this replacement panel an optimal choice for any driver building a custom dash cluster or replacing stock gauges. 85mm Reducer Rings are included to install 3-3/8” (85mm) Speedometer and Tachometer Gauges which are in stock for the 3-3/4” slots.

Green Turn Signals and Hardware

Green LED Turn Signals

(2) Green LED Turn Signals and Custom Fitted Mounting Hardware are also included with each dash panel gauge pod. The green turn signals are easily mounted in the designated turn signal cutouts and feature red and black power wires that connect to the truck's factory wiring harness. The included mounting hardware securely holds the pod with seven aftermarket gauges attached in place using screws.

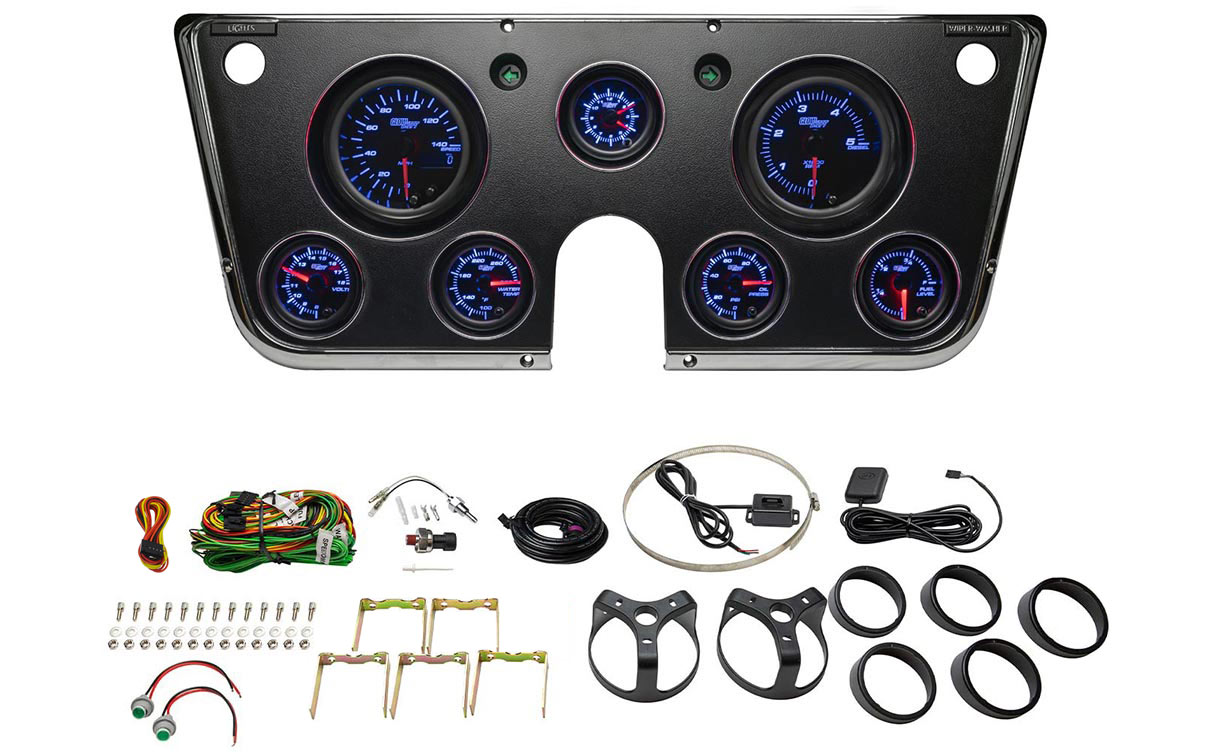

7 Gauge Set for 2nd Generation Chevy C10

Replacement 67-72 C10 Dash Panel Cluster Package Parts Replacement 67-72 C10 Dash Panel Cluster Package Parts

This Chevrolet C10 dash gauge set for diesel-swapped engines comes with required sensors depending on the specific C10 gauges you select. The RPM Diesel Tach Gauge and Speedo Gauge each feature a 2’ Power Harness with a 6’ Signal Wire. Mounting Hardware and Mounting Brackets are also provided in addition to Instructions that walk you through the entire process. Included Gauge Visors will help block out sun glare as you’re viewing gauge readings.


Custom Gauge Set Wiring

Power and sensor harnesses included with this 7 gauge set seamlessly snap into the back of their respective gauges by utilizing Plug and Play Connectivity. The Power Wiring Kits feature Ground, Switched 12v, Constant 12v, and Headlight connections. With extended wire lengths you’ll have added flexibility as you install the dashboard panel C10 gauge pod and automotive gauge set.

Diesel-Swapped 2nd Gen C10 Custom Package

Build a custom gauge and pod set for your diesel-swapped 2nd Generation Chevrolet C10 diesel combining C10 replacement panels and C10 gauges. If your factory C10 dash panel has been worn or damaged over time, you can upgrade to this modern replacement. You can also swap out faulty stock C10 gauges and upgrade them to the ultra-bright LED displays featured in the 7 Color Series. This diesel dash gauge set will enhance the interior of box body/square body C10, C20, K10, K20 and additional Chevy/GMC CK trucks and SUVs in the Second Gen 1967-1972 year range.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.


Fitment Details

Year Make Model
1967 Chevrolet, GMC C10, C15, C20, C25, K10, K15, K20, K25
1968 Chevrolet, GMC C10, C15, C20, C25, K10, K15, K20, K25
1969 Chevrolet, GMC C10, C15, C20, C25, K10, K15, K20, K25
1970 Chevrolet, GMC C10, C15, C20, C25, K10, K15, K20, K25
1971 Chevrolet, GMC C10, C15, C20, C25, K10, K15, K20, K25
1972 Chevrolet, GMC C10, C15, C20, C25, K10, K15, K20, K25
Oil Pressure Water (Coolant) Temperature Volt Gauge Fuel Level Clock
Gauge Types

Select Your Gauges

Select your gauges from a variety of different gauge types below which are available for this custom 7 Color Series Gauge Package. You can also reference our Tech Picks at the beginning of this list for our top recommendations that are specific to this vehicle. With gauges made to monitor a wide range of engine applications, GlowShift is sure to have the gauge types you’re looking for as part of this custom package.

Tech Pick
Water (Coolant) Temperature
Water (Coolant) Temperature
  • Reads Coolant Temperature from 100 - 300° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Sensor & Power Wire Harnesses
Tech Pick

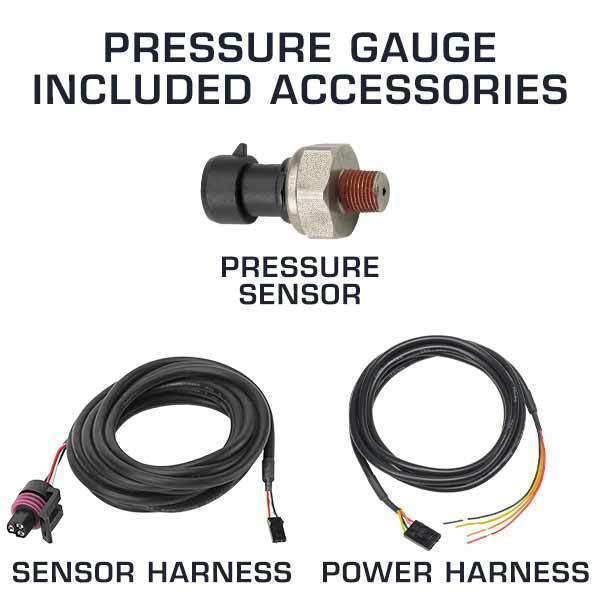

Oil Pressure
Oil Pressure
  • Reads Oil Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
Volt Gauge
Volt Gauge
  • Reads Vehicle Electrical System Voltages from 8 - 18 DC Volts
  • 2' Power Wire Harness
Tech Pick
Fuel Level
Fuel Level
  • Reads Vehicle’s Fuel Level from Empty, 1/4, 1/2, 3/4 & Full
  • 2’ Power Harness with 6' Sensor Lead Wire
Tech Pick
Clock
Clock
  • Analog Clock Gauge with Hour & Minute Needles
  • 2' Power Wire Harness
Tech Pick
30 Boost/Vacuum
30 PSI Boost/Vacuum
  • Reads Boost from 0 - 30 PSI
  • Reads Vacuum from (-30) - 0 inHG
  • 6' of Silicone Hose with Clamps
  • Restricted T-Fitting
  • Mechanically Driven
Tech Pick
15 Boost/Vacuum
15 PSI Boost/Vacuum
  • Reads Boost from 0 - 15 PSI
  • Reads Vacuum from (-30) - 0 inHG
  • 6' of Silicone Hose with Clamps
  • Restricted T-Fitting
  • Mechanically Driven
Tech Pick
45 Boost/Vacuum
45 PSI Boost/Vacuum
  • Reads Boost from 0 - 45 PSI
  • Reads Vacuum from (-30) - 0 inHG
  • 6' of Silicone Hose with Clamps
  • Restricted T-Fitting
  • Mechanically Driven
Tech Pick
20 PSI Boost
20 PSI Boost
  • Reads Boost from 0 - 20 PSI
  • 9' of Nylon Hose
  • 1/8-27 NPT Brass Compression Fittings
  • Mechanically Driven
Tech Pick
35 PSI Boost
35 PSI Boost
  • Reads Boost from 0 - 35 PSI
  • 9' of Nylon Hose
  • 1/8-27 NPT Brass Compression Fittings
  • Mechanically Driven
Tech Pick
60 PSI Boost
60 PSI Boost
  • Reads Boost from 0 - 60 PSI
  • 9' of Nylon Hose
  • 1/8-27 NPT Brass Compression Fittings
  • Mechanically Driven
Tech Pick
100 PSI Boost
100 PSI Boost
  • Reads Boost from 0 - 100 PSI
  • 9' of Nylon Hose
  • 1/8-27 NPT Brass Compression Fittings
  • Mechanically Driven
Tech Pick
1500° F Pyrometer EGT
1500° F Pyrometer EGT
  • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
  • 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • 6' Sensor & 2' Power Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector
Tech Pick
2400° F Exhaust Gas Temperature
2400° F Exhaust Gas Temperature
  • Reads Exhaust Temperature from 0 - 2400° Fahrenheit
  • 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • 6' Sensor & 2' Power Wire Harnesses
Tech Pick
Vacuum Gauge
Vacuum Gauge
  • Reads Vacuum from (-30) - 0 inHG
  • 6' of Clear PVC Hose
  • Restricted T-Fitting
  • Mechanically Driven
Tech Pick
Transmission Temperature
Transmission Temperature
  • Reads Transmission Temperature from 80 - 260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Sensor & Power Wire Harnesses
  • Recommended For Vehicles with Automatic Transmission
Tech Pick
Oil Temperature
Oil Temperature
  • Reads Oil Temperature from 100 - 300° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Sensor & Power Wire Harnesses
Tech Pick
30 PSI Fuel Pressure
30 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 30 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
100 PSI Fuel Pressure
100 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
Rail Pressure
Rail Pressure
  • Reads Fuel Rail Pressure from 0 - 30,000 PSI
  • Compatible with 2003-2018 Dodge Ram 5.9L & 6.7L Cummins Engines
  • Compatible with 2002-2016 GM 6.6L Duramax Engine
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
HPOP Gauge
HPOP Gauge
  • Reads HPOP from 0 - 4,000 PSI
  • Compatible with 7.3L & 6.0L Ford Power Stroke
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
60 PSI Exhaust Pressure
60 PSI Exhaust Pressure
  • Reads Drive Pressure from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 5’ of 1/4” Copper Cooling Tubing
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
100 PSI Exhaust Pressure
100 PSI Exhaust Pressure
  • Reads Drive Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 5’ of 1/4” Copper Cooling Tubing
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
Nitrous Pressure
Nitrous Pressure
  • Reads NOS Pressure from 0 - 1,600 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
Narrowband Air/Fuel Ratio
Narrowband Air/Fuel Ratio
  • Reads & Indicates Lean, Rich & Optimal AFR
  • 2' Power Harness with 6' Sensor Lead Wire
Tech Pick
Needle Wideband Air/Fuel Ratio
Needle Wideband Air/Fuel Ratio
  • Reads Air/Fuel Ratio from 10 - 20 AFR
  • Wideband Oxygen Sensor
  • Wideband Controller Unit with Data Logging
  • Weld-In Sensor Bung
  • Power & Sensor Wire Harnesses
Tech Pick
Digital Wideband Air/Fuel Ratio
Digital Wideband Air/Fuel Ratio
  • Reads Air/Fuel Ratio from 10.0 - 20.0 AFR
  • 7 Color LED Digital Display
  • Wideband Oxygen Sensor
  • Digital Wideband Controller Unit with Data Logging
  • Weld-In Sensor Bung
  • Power & Sensor Wire Harnesses
Tech Pick
Dual Digital Wideband Air/Fuel Ratio
Dual Digital Wideband Air/Fuel Ratio
  • Reads Left & Right Bank Air/Fuel Ratio from 10.0 - 20.0 AFR
  • 7 Color LED Digital Display
  • 2 Wideband Oxygen Sensors
  • 2 Digital Wideband Controller Units with Data Logging
  • 2 Weld-In Sensor Bungs
  • Power & Sensor Wire Harnesses
Tech Pick
Tachometer
Tachometer
  • Reads Vehicle’s RPM from 0 - 10,000
  • 1 - 10 Cylinder Setting Switch on Back of Gauge
  • 2' Power Wire Harness
  • Compatible with Gasoline Vehicles Only
Tech Pick
Air Pressure
Air Pressure
  • Reads Air Pressure from 0 - 200 PSI
  • 2' Power Wire Harness
  • Mechanically Driven
Tech Pick
Dual Needle Air Pressure
Dual Needle Air Pressure
  • Reads Air Pressure from 0 - 200 PSI
  • (2) 1/8-27 NPT Electronic Pressure Sensors
  • (2) 9’ Sensor & 2' Power Wire Harnesses
Tech Pick
Differential Temperature
Differential Temperature
  • Reads Diff Temperature from 100 - 250° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 17-1/2’ Sensor & 2' Power Wire Harness
Tech Pick
Dual Intake Temperature
Dual Intake Temperature
  • Reads Hot & Cold Sides of Intake from 0 - 300° Fahrenheit
  • (2) 3/8-18 NPT Electronic Temperature Sensors
  • (2) 9' Sensor & 2' Power Wire Harnesses
Add-Ons

Optional Installation Accessories

Looking for an adapter that helps to simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. GlowShift carries a wide variety of accessories to help with the installation process for your gauge package. Choose from a diverse selection of adapters, wiring harnesses and much more that will cover everything you need and make the process even easier as you install your gauges.

GPS Speedometer Sensor
GPS Speedometer Sensor
  • Uses GPS Technology to Acquire Vehicle’s Driving Speed
  • Waterproof GPS Antenna Mounts on Top of the Roof or Trunk - 9-1/2’ of Wire
  • Plugs Directly Into the Back of the Gauge
Diesel Tachometer Signal Adapter
Diesel Tachometer Signal Adapter
  • Adapts the Signal of Stock & Aftermarket Diesel Tachometers
  • Mounts to the Alternator with Adjustable Steel Strap
  • Easy to Program
Tachometer Signal Filter
Tachometer Signal Filter
  • Transforms Poor, Weak or Disordered Pulse Signals & Corrects Them
  • Used for Single Coil & Point Style Coil Ignition Systems
Tachometer Signal Filter
HEI Tachometer Signal Filter
  • Converts High Voltage Signal to a More Manageable Voltage
  • Specifically Designed for High Energy Ignition Systems
Oil Filter Sandwich Adapter
Oil Filter Sandwich Adapter
  • Quick & Easy Solution to Install Multiple Sensors to Vehicle’s Oil Filter
  • Used for Oil Pressure & Oil Temperature Sensors
  • Features (4) 1/8-27 NPT Thread Ports & Port Plugs
  • Includes O-Ring for Leak-Free Seal
Fuel Level Sensor
Adjustable Fuel Level Sensor
  • Compatible with Any Car or Truck with a 240-33 Ohm Fuel Tank
  • Adjustable for 5"-27" Tank Depths
  • Slim Design with a Float for Accurate & Reliable Readings
  • Includes Adjustable Fuel Level Sensor with 3' of Wiring, (1) Mounting Bracket, (1) Gasket, (5) Bolts, (5) Nuts & Installation Instructions
Fuel Level Sensor
Fuel Level Sensor
  • Compatible with Any Car or Truck with a 240-33 Ohm Fuel Tank
  • 9" Sensor Size Recommended
  • Slim One-Piece Design with a Float for Accurate & Reliable Readings
  • Includes Fuel Level Sensor with 3' of Wiring, (1) Mounting Bracket, (1) Gasket, (5) Bolts, (5) Nuts & Installation Instructions
Instructions

Installation Guides

This 7 Color Series Cluster Dashboard Panel Gauge Package features an installation video that provides a complete step-by-step tutorial along with useful tips on how to install this gauge package. You can also check out our Support Center to view specific installation instructions for gauges, gauge pods, add-on accessories and more.

Watch the Installation Video
Download and Print Instructions

GlowShift Support Center
