94-97 Dodge Ram Cummins Custom Gauge Package
  • 94-97 Dodge Ram Cummins Custom Gauge Package
  • 1994 - 1997  Dodge Ram Cummins Custom Gauge Package

7 Color Series Triple Gauge Package for 1994-1997 Dodge Ram Cummins

3 product reviews | Write A Review
SKU:
GS-349-7C-PKG

Maximum Purchase:
99 unit(s)
$169.99 $349.99 (You save $180.00)

  • Same Day ShippingPlace Order by 3PM Eastern

  • One Year
    Limited Warranty

  • Free Installation Support

  • Free Shipping Over $50Contiguous USA

Gauge Package Features:

7 Color Series Gauges
  • Select 3 Gauges from our Black 7, Tinted 7 & White 7 Color Gauge Series
  • 7 Color LED Backlit Illumination with Color Recall Technology
  • Multiple Automatic Color Changing Modes
  • Includes all Senders and Installation Hardware
  • One Year Limited Warranty and Lifetime Technical Support
1994-1997 Dodge Ram Triple Pod
  • Full Size Black Triple Pillar Pod
  • Holds (3) 2 1/16" (52mm) Gauges
  • Crafted from the Highest Quality ABS Plastic Available
  • Includes Mounting Hardware & Instructions
  • One Year Limited Warranty & Free Lifetime Technical Support

GlowShift 7 Color Series Gauges:

Custom Gauge Package

GlowShift’s Custom 7 Color Series Gauge Package allows you to select (3) 2 1/16" (52mm) gauges from our Black 7, Tinted 7 or White 7 Color Gauge Series, as well as including a vehicle specific triple pillar pod to mount the gauges to your factory A-pillar. Each electronically driven 7 Color Gauge utilizes electronic sensors and probes, as well as stepper motor technology to ensure extremely smooth needle movement and accurate gauge readings. 7 Color LED through dial lighting allows you to change the color of your gauge to blue, green, red, teal, white, purple or yellow and the color recall feature will remember the color the gauge was on prior to powering your vehicle down. Connecting your gauges to your headlight switch will allow the gauge to dim 30% for easier gauge monitoring during the night. GlowShift includes all sending units, mounting hardware, installation instructions, as well as free lifetime technical support and a one year limited warranty with each Custom 7 Color Gauge Package purchased. Listed below are the gauge types available with this custom gauge package, as well as optional add on gauge accessories.

Note: A Snubber Valve is required when installing a 30 PSI Fuel Pressure Gauge into a 1986-2013 Dodge Ram Cummins. The Snubber Valve regulates, normalizes and eliminates fuel pressure spikes that are present during the initial ignition and startup on the Dodge Cummins Diesel Engine through the use of a regulator. High pressure fuel system spikes during startup are harmful and may cause early and unexpected failure of electronic fuel pressure sensors and/or sending units for fuel pressure gauges.


Cummins Diesel Gauge Recommendation:

MaxTow 60psi Boost Gauge
60PSI Boost Gauge
  • Mechanically Driven
  • Reads Boost from 0- 60PSI
  • Includes 6 feet of Vacuum Hose
  • Includes Barbed Fitting
1500° Pyrometer EGT Gauge
1500° Pyrometer EGT Gauge
  • Includes K-Type Thermocouple Probe
  • Includes Power & Sensor Wire Harness
  • Reads Exhaust Temperature from 0-1500 Degrees Fahrenheit
MaxTow Trans Temp Gauge
Transmission Temperature Gauge
  • Includes electronic temperature sensor
  • Includes power & sensor wire harness
  • Reads Transmission Temperature from 80-260 Degrees Fahrenheit
  • Recommended For Vehicles with Automatic Transmission
MaxTow 30psi Fuel Pressure Gauge
30PSI Fuel Pressure Gauge
  • Includes electronic fuel pressure sensor
  • Includes power & sensor wire harness
  • Reads Fuel Pressure from 0-30 PSI
Snubber Valve
Snubber Valve
  • Regulates Fuel Pressure Spike at Startup
  • Used with Fuel Pressure Gauge
Transmission Test Port Extender
Transmission Test Port Extender
  • Extends Transmission Test Port
  • Ensures Transmission Temperature Sensor does not Damage Transmission
  • Installs into Factory Transmission Test Port
Drill and Tap Set
1/8 NPT Drill and Tap Kit
  • Drill and Tap Exhaust and/or Intake Manifold
  • 1/8 NPT Tap
  • Size R High Speed Drill Bit
Expandable Ciruit
Expandable Circuit
  • Powers 12v Accessories from Vehicle's Fuse Panel
  • Use 1 Circuit to Power Gauges from Constant Power Source
  • Use 1 Circuit to Power Gauges from Switched Power Source
  • CANNOT be Used for Dimming Feature

Gasoline Truck Gauge Recommendation:

2400 Exhaust Temperature Gauge
2400° Exhaust Temperature
  • Includes Electronic Exhaust Temperature Probe and Wire Harness
  • Reads Exhaust Temperature from 0-2400 Degrees Fahrenheit
100 PSI Fuel Pressure Gauge
100 PSI Fuel Pressure
  • Includes Electronic 100 PSI Pressure Sender and Wire Harness
  • Reads Fuel Pressure from 0-100 PSI
  • Snubber Valve Recommended
Transmission Temperature Gauge
Transmission Temperature
  • Includes Electronic Temperature Sender and Wire Harness
  • Reads Transmission Temperature from 80-260 Degrees Fahrenheit
  • Recommended For Vehicles with Automatic Transmission
  • Transmission Test Port Extender Recommended
Water Temperature Gauge
Water Temperature
  • Includes Electronic Temperature Sender and Wire Harness
  • Reads Coolant Temperature from 100-300 Degrees Fahrenheit
Triple Pillar Pod Options:

1994-1997 Dodge Ram Triple Pod

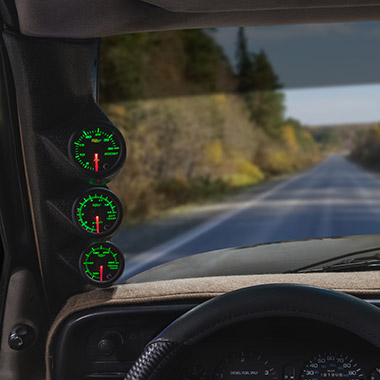

The included black triple pillar pod is specifically designed for the 1994-1997 Dodge Ram and is easily mounted to your existing A-pillar giving your Ram a custom fit and finish. This pod holds (3) 2 1/16" (52mm) gauges, is crafted from the highest quality ABS plastic allowing it to withstand cracking, fading, and warping. An optional 3 gauge wiring harness is available to add to this custom gauge package, and will make the wiring of your gauges significantly easier. This 3 gauge wiring harness is 7 feet in length, and features easy to use color coded wiring along with spliced power, ground, and memory wires for all of your gauges. GlowShift includes a one year limited warranty and lifetime technical support with every custom gauge package that is purchased.

Fits: 1994, 1995, 1996, 1997 Dodge Ram Truck, 1500, 2500, 3500
Make
Dodge
Model
Ram
Gauge Series
Tinted 7 Color Series
Gauge Series
Black 7 Color Series
Gauge Series
White 7 Color Series
Pod
Triple
Color
Black
Size
52mm
Year Range
1994 - 1997
Year
1994
Year
1995
Year
1996
Year
1997
pdf
http://glowshift.com/Install-Guides/Dodge/94-97-Dodge-Ram/index.html
How To Install 94-97 Dodge Ram Cummins 12v Gauges 27:18

This video will show you how to install your GlowShift 7 Color Series Diesel Gauge Set into a 94-97 Dodge Ram Cummins 5.9L 12Valve 6BT diesel truck. These gauges that will be installed in this video are a 60 PSI Boost Gauge, 1500 Degree EGT Pyrometer Gauge, Transmission Temperature Gauge and 30psi Fuel Pressure Gauge. If you have any questions regarding your installation or installed them differently you can leave them in the comments section below! For More Information Please Visit: http://www.glowshiftdirect.com/94-97-Dodge-Ram-Cummins-Gauge-Pods.aspx?sitelink=YouTube

How To Install 94-97 Dodge Ram Cummins 12v Gauges

This video will show you how to install your GlowShift 7 Color Series Diesel Gauge Set into a 94-97 Dodge Ram Cummins 5.9L 12Valve 6BT diesel truck. These gauges that will be installed in this video are a 60 PSI Boost Gauge, 1500 Degree EGT Pyrometer Gauge, Transmission Temperature Gauge and 30psi Fuel Pressure Gauge. If you have any questions regarding your installation or installed them differently you can leave them in the comments section below! For More Information Please Visit: http://www.glowshiftdirect.com/94-97-Dodge-Ram-Cummins-Gauge-Pods.aspx?sitelink=YouTube

Product Reviews

3 product reviews
Write A Review

  1. A few complaints

    Well I purchased the product and I gotta say overall pretty good item. However the installation of the mini expandable fuse links and the 3 gauge wiring kit kinda sucked. Let’s start with fuseable links, if you follow the locations it suggests in book they are incorrect for the year of my truck, I figured out A different location so no big deal. Secondly the fuseable links came with a non heat shrink butt connector, get rid of that crap connector and use a heat shrink, all I have to complain about that. Now for the 3 gauge wiring kit, what a mess get rid of the junk crimpable wire nut and the 3 small wires and just use a heat shrink butt connector with the wires form gauges keep it simple.

    Posted by on

  2. Great

    Good product easy to install and was shipped in great time

    Posted by on

  3. Amazing

    Great product. Wish they would have mentioned the YouTube video in the installation book. Also I wish they could have included a volt meter. But they showed 2 fuse sockets to choose in the video so that also worked. All in all great product and great quality.

    Posted by on
