MaxTow Quad Dashboard Gauge Package for 1986-1993 Dodge Ram Cummins

SKU:
MT-D18-DV-PKG
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

$442.99
$389.99
(You save $53.00 )

UPC:
842559126912
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow's Double Vision® Series Quad Dashboard Gauge Package was made for the 1986-1993 Dodge Ram 12v Cummins 1st Generation. Experience complete customization when you select from 15 gauges for this 4-gauge set which comes with all required sensors. This package also includes a black quad gauge dash pod that mounts the gauges to the dashboard for easy viewing. With the innovative Double Vision® Gauge Series, you’ll experience both digital and analog readouts on your choice of several unique ultra-bright LED displays.


Gauge Series Details

Multiple color and style combinations are available for complete customization of your high-performance 2-1/16” (52mm) gauges. The Double Vision® Gauge Series gives you the classic look of an analog gauge with an illuminated red needle while simultaneously displaying an easy-to-read digital numeric readout. Choose from either a black or white gauge face and a blue or green LED display. These gauges feature stepper motor technology which allows for smooth needle movement and extremely accurate gauge readings. You’ll also have the option of three daytime and three nighttime dimming modes with three customizable brightness settings (low, medium, high) for each. Choose from a variety of different gauge types to fully customize your gauge package. MaxTow also includes all sensors, wiring, mounting hardware and a one-year limited warranty. Get ready to hit the road and Tow to the Max®!

MaxTow Gauge Series
High Performance Gauges
  • Gauges Measure 2-1/16” (52mm)
  • Depth Measures 1-5/16”
  • Magnified Lens
  • Power and Sensor Wires
  • Mounting Hardware
MaxTow Gauge Series
Double Vision® Gauge Series
  • Digital and Analog Readings
  • Black or White Gauge Face
  • Ultra-Bright Blue or Green LED Display
  • Illuminated Red Needle
  • Stepper Motor Technology
MaxTow Gauge Series
6 Dimming Modes
  • Daytime and Nighttime Dimming Modes
  • 3 Customizable Brightness Settings for Each
  • Continue to Easily View Readings
  • Select with Button on Gauge Face
  • Gauge Displays Last Setting When Reactivated
MaxTow Gauge Series
Plug and Play Connectivity
  • Plug and Play Connectors on Power & Sensor Wires
  • Both Wires Easily Snap Into the Back of the Gauge
  • Extended Wire Lengths For Installation
  • Quick and Easy Install
  • Even Faster Readouts with an Electronic Gauge

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Dodge Ram Cummins. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

60 PSI Boost Gauge
60 PSI Boost
  • Reads Boost from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5’ Power Wire Harnesses
1500° F Pyrometer EGT Gauge
1500° F Pyrometer EGT
  • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
  • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • Includes 5' Power & 6' Sensor Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector
Transmission Temperature Gauge
Transmission Temperature
  • Reads Transmission Temperature from 80 - 260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
30 PSI Fuel Pressure
30 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 30 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses

Pod Details

The included black quad gauge dashboard pod is made with a custom molded mounting plate to fit the factory dash of any Dodge Ram 1st Gen Cummins. With this dash pod you can horizontally mount (4) 2-1/16” (52mm) gauges and quickly access readings from this strategic and convenient location. This Cummins pod is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. It can also be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish. Fits: 86, 87, 88, 89, 90, 91, 92, 93 Dodge Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350

Pillar Pods
  • Holds (4) 2-1/16” (52mm) Gauges
  • Black Dashboard Pod
  • Made from ABS Plastic
  • Withstands Cracking, Fading and Warping

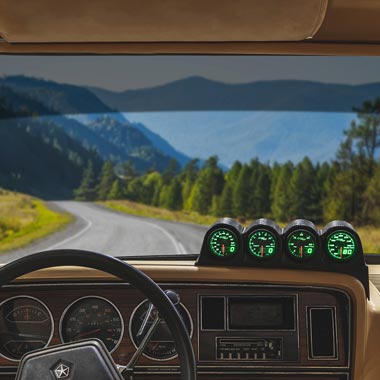

Pillar Pod Installed
  • Easily View Readings
  • Mount to Your Cummins Dashboard
  • Sits on Curve at the End of the Dash
  • Professional Fit and Finish
Pillar Pod Fitting
  • Custom Molded Mounting Plate
  • Easy Installation
  • Drill to Install
  • Includes Mounting Hardware

Fitment Details

Year Make Model Engine
1986 Dodge Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 All Engines
1987 Dodge Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 All Engines
1988 Dodge Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 All Engines
1989 Dodge Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 12 Valve Cummins
1990 Dodge Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 12 Valve Cummins
1991 Dodge Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 12 Valve Cummins
1992 Dodge Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 12 Valve Cummins
1993 Dodge Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 12 Valve Cummins
1/8-27 NPT Drill & Tap Set
1/8-27 NPT Drill & Tap Set
  • Used for Installing EGT Probe, Boost Fittings or Boost Sensor
  • Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
  • Includes Size R Drill Bit & 1/8 NPT Tap
Banjo Bolt Adapter for 12 Valve Cummins
Banjo Bolt Adapter for 12 Valve Cummins VE PUMP
  • Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
  • Replaces the Factory Banjo Bolt
  • Includes 2 Crush Washers for Secure Fit
  • Female 1/8-27 NPT Thread for Sensor
  • Fits 1989-1993 Dodge Ram 12 Valve Cummins with VE PUMP
Snubber Valve
Snubber Valve
  • Regulates, Normalizes & Eliminates Fuel Pressure Spikes During Startup
  • Protects Pressure Sensor from Spikes/Water Hammer Effect
  • Installs Between Fuel Filter Housing & Sensor
  • High-Quality Brass Design – Built to Last
  • Male & Female 1/8-27 NPT Threads
Test Port Adapter for A727
Test Port Adapter for A727
  • Quick & Easy Install of Temperature Sensor to Transmission Test Port
  • Threads onto Temperature Sensor for Protection from Internal Transmission Parts
  • No Modifications to Transmission Necessary
  • Female 1/8-27 NPT Thread for Sensor
  • Fits Dodge Ram Cummins with A727 Transmission
1/2 Transmission Cooler Line T-Fitting Adapter
1/2” Transmission Cooler Line T-Fitting Adapter
  • Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line
  • Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
  • Female 1/8-27 NPT Thread on T-Fitting for Sensor
Oil Filter Sandwich Adapter
Oil Filter Sandwich Adapter
  • Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter
  • Used for Oil Pressure & Oil Temperature Sensors
  • Features a 1”-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs
  • Includes O-Ring for Leak-Free Seal
  • Fits 1989-2018 Dodge Ram 5.9L 6.7L Cummins
Expandable Circuit
Expandable Circuit
  • Quick & Easy Way to Power Gauges Directly from the Fuse Panel
  • Used for Constant & Switched 12 Volt Power for Gauges
  • Includes 4 Amp Fuse for Circuit Protection
MaxTow 4 Gauge Power Wire Harness
MaxTow 4 Gauge Power Wire Harness
  • Used to Easily Power All 4 Gauges from 1 Harness that Connects to Power
  • Daisy Chain Feature with Each Connector Plugging into Each Gauge
  • Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod
  • 6-1/2’ of Total Wire
60 PSI Boost 1500° F Pyrometer EGT Transmission Temperature 30 PSI Fuel Pressure

Installation Guides

This MaxTow Series Quad Gauge Package comes with product instructions that provide complete details on how to install your gauges and pod for the 1986-1993 Dodge Ram 12v Cummins 1st Generation. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of gauges and pods.


GlowShift Support Center

Gauge Types

Select Your Gauges

Select your gauges from a variety of different gauge types below which are available for this MaxTow Double Vision® Series Gauge Package. You can also reference our Tech Picks at the beginning of this list for our top recommendations that are specific to this vehicle. With gauges made to monitor a wide range of engine applications, MaxTow is sure to have the types of gauge you’re looking for as part of this custom package.

Tech Pick
30 PSI Boost/Vacuum
30 PSI Boost/Vacuum
  • Reads Boost from 0 - 30 PSI
  • Reads Vacuum & Compression Levels from -30 - 0 inHG
  • 3' Hose & T-Fitting
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
35 PSI Boost
35 PSI Boost
  • Reads Boost from 0 - 35 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
60 PSI Boost
60 PSI Boost
  • Reads Boost from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5’ Power Wire Harnesses
Tech Pick
100 PSI Boost
100 PSI Boost
  • Reads Boost from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5’ Power Wire Harnesses
Tech Pick
Needle Wideband Air/Fuel Ratio
Wideband Air/Fuel Ratio
  • Reads Air/Fuel Ratio from 10.0 - 20.0
  • Wideband Oxygen Sensor
  • Digital Wideband Controller Unit with Data Logging
  • Weld-In Sensor Bung
  • Power & Sensor Wire Harnesses
Tech Pick
Oil Pressure
Oil Pressure
  • Reads Oil Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Oil Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
Volt Gauge
Volt Gauge
  • Reads Vehicle Electrical System Voltages from 8 - 18 DC Volts
  • 5' Power Wire Harness
Tech Pick
Water (Coolant) Temperature
Water (Coolant) Temperature
  • Reads Water Temperature from 100 - 280° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
Tech Pick
Oil Temperature
Oil Temperature
  • Reads Oil Temperature from 100 - 280° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
Tech Pick
1500° F Pyrometer EGT
1500° F Pyrometer EGT
  • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
  • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • Includes 5' Power & 6' Sensor Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector
Tech Pick
2200° F Exhaust Gas Temperature
2200° F Exhaust Gas Temperature
  • Reads Exhaust Temperature from 200 - 2200° Fahrenheit
  • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • Includes 5' Power & 6' Sensor Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector
Tech Pick
Tachometer
Tachometer
  • Reads Vehicle’s RPM from 0 - 10,000
  • 1 - 10 Cylinder Setting Switch on Back of Gauge
  • 9’ Source & 5' Power Wire Harnesses
Tech Pick
15 PSI Fuel Pressure
15 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 15 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
30 PSI Fuel Pressure
30 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 30 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
100 PSI Fuel Pressure
100 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
Transmission Temperature
Transmission Temperature
  • Reads Transmission Temperature from 80 - 260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
Tech Pick
Air Pressure
Air Pressure
  • Reads Air Pressure from 0 - 200 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
Nitrous Pressure
Nitrous Pressure
  • Reads NOS Pressure from 0 - 1,600 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
Rail Pressure
Rail Pressure
  • Reads Fuel Rail Pressure from 0 - 30,000 PSI
  • 9' Sensor & 5' Power Wire Harnesses
  • Compatible with 2004-2018 Dodge Ram 5.9L & 6.7L Cummins Engines
  • Compatible with 2002-2016 GM 6.6L Duramax Engine
Tech Pick
HPOP Gauge
HPOP Gauge
  • Reads HPOP from 0 - 4,000 PSI
  • 9' Sensor & 5' Power Wire Harnesses
  • Compatible with 7.3L & 6.0L Ford Power Stroke
Tech Pick
Differential Temperature
Differential Temperature
  • Reads Diff Temperature from 100 - 250° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 18' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
Tech Pick
Coolant Pressure
Coolant Pressure
  • Reads Coolant Pressure from 0 - 35 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
Intake Temperature
Intake Temperature
  • Reads Intake Temperature from 0 - 300° Fahrenheit
  • 3/8-18 NPT Electronic Air Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
Tech Pick
Ambient Air Temperature
Ambient Air Temperature
  • Reads Outside Air Temperature from -20 - 120° Fahrenheit
  • Electronic Air Temperature Sensor
  • 18' Sensor & 5' Power Harnesses
Tech Pick
60 PSI Exhaust Pressure
60 PSI Exhaust Pressure
  • Reads Drive Pressure from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 5’ of 1/4” Copper Cooling Tubing
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
100 PSI Exhaust Pressure
100 PSI Exhaust Pressure
  • Reads Drive Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 5’ of 1/4” Copper Cooling Tubing
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
Fuel Level
Fuel Level
  • Reads Truck’s Fuel Level from Empty, 1/4, 1/2, 3/4 & Full & 0 - 100%
  • 9' Sensor & 5' Power Wire Harnesses
  • Compatible with Gasoline & Diesel Fuel
Add-Ons

Optional Installation Accessories

Looking for an adapter that helps to simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. GlowShift carries a wide variety of accessories to help with the installation process for your gauge package. Choose from a diverse selection of adapters, wiring harnesses and much more that will cover everything you need and make the process even easier as you install your gauges.

Instructions
