10 Color Digital BAR Boost/Vacuum Gauge


In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty


GlowShift 10 Color Digital Series BAR Boost/Vacuum Gauges are electronically driven gauges that read turbo boost vac pressure from -0.9 to 3.0 BAR with unrivaled accuracy. Essential for any car or truck running a turbo or supercharger, this digital BAR boost gauge displays critical pressure levels to avoid potentially serious engine damage. Each BAR vacuum boost gauge comes with a Boost Pressure Sensor, 6' of Nylon Vacuum Hose, a T-fitting and more for installation.

10 Color Digital Series 10 Color Digital Series

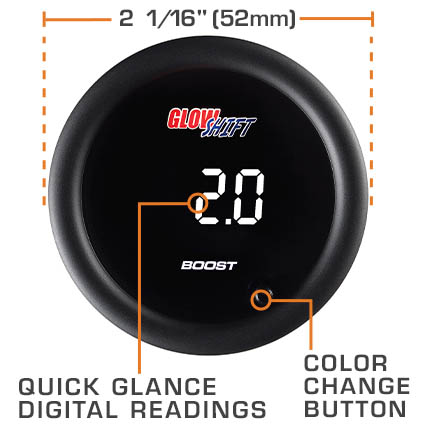

The 10 Color Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Set the display to one of 10 available colors. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.


10 Color Digital Series Features

10 Color Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series.

10 Color Options

10 Color Digital Series Color Options

The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors.

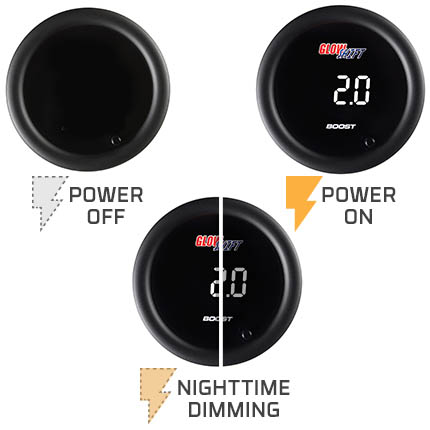

10 Color Digital Series Backlighting

LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on.

What's Included

  • 2-1/16” (52mm) Digital Bar Boost/Vacuum Gauge
  • Electronic Boost Pressure Sensor
  • 6’ Pressure Sensor Harness
  • 6’ Silicone Hose - 1/8” Inner Diameter
  • 1/8” T-Fitting
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Electronic Sensor

10 Color Digital Boost/Vacuum Sensor

This BAR boost and vacuum gauge comes with an Electronic Boost Pressure Sensor. Install by cutting any boost line and inserting the T-fitting between the cut lines. Once in place, attach the line to the sensor with the Air Filter also connected.


10 Color Digital Boost/Vacuum Wiring

A 2’ Power Harness and 6’ Pressure Sensor Harness are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation.

Mounting Bracket

10 Color Digital Boost/Vacuum Mounting Hardware

A Mounting Bracket is included with hardware which attaches the bracket to the back of the BAR boost gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Why Do I Need A BAR Boost/Vacuum Gauge?

BAR boost gauges are essential for any driver because they will monitor boost pressure levels which can change over time if you’re making modifications to your vehicle. They also provide readings on the levels of vacuum in your engine. This can be extremely useful for tuning your turbo or supercharged engine. Plus you’ll have the added benefit of monitoring for any poor-performance indicators.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

Tech Specs
Gauge Series: 10 Color Digital Series
Brand: GlowShift
Gauge Type: Boost/Vacuum
Range of Reading: -0.9 - 3.0 BAR
Face Color: Black
Size: 52mm
Lens: Tinted
Backlighting Color: 10 Colors
Sending Unit: Electronic
Measurement Unit: Metric
Display: Digital

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
