10 Color Digital Dual Pyrometer EGT Gauge

SKU:
GS-TCD08-Dual
$219.99

UPC:
842559121368
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • Extended Holiday Returns

    Extended Holiday ReturnsACCEPTED UNTIL JANUARY 31ST

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

GlowShift 10 Color Digital Series Dual Pyrometer Exhaust Gas Temperature Gauges deliver readings on car and truck exhaust manifold temperatures from 200° to 2200° Fahrenheit with pinpoint accuracy. This dual EGT gauge is optimal for monitoring the left and right banks of V6/V8 twin turbo and non-turbo applications, or the pre and post-turbo locations of the exhaust manifold for more specific performance temperatures. Each dual EGT gauge kit includes (2) 1/8-27 NPT EGT Probes with 3’ of Steel Braided Cable, (2) 6’ Steel Braided Sensor Harnesses with Waterproof Connectors and more for installation.

10 Color Digital Series 10 Color Digital Series

The 10 Color Dual Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Experience 2 customizable displays with bold, easy to read, quick glance digital readouts. Users have the ability to set each of the displays with any combination of the featured 10 colors to quickly identify each reading. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.

Features

10 Color Digital Series Features

10 Color Dual Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series.

10 Color Options

10 Color Digital Series Color Options

The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors.

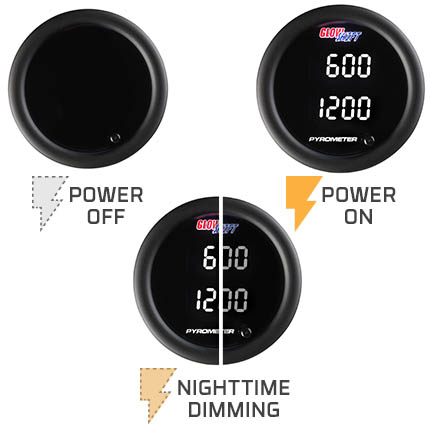

Backlighting

10 Color Digital Series Backlighting

LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on.

What's Included

  • 2-1/16” (52mm) Digital Dual Pyrometer EGT Gauge
  • (2) 1/8-27 NPT Type K Thermocouple EGT Probes with Waterproof Connectors
  • EGT Probes Include 3’ of Stainless Steel Braided Cable
  • (2) 6’ Stainless Steel Braided Sensor Harnesses with Waterproof Connectors
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

EGT Probes

10 Color Digital Exhaust Gas Temperature Sensor

The 2 included 1/8-27 NPT Type K Thermocouple EGT Probes with Waterproof Connectors deliver extremely accurate readings on exhaust gas temperature levels. Each probe also features 3’ of steel braided cable and installs directly to the exhaust manifold.

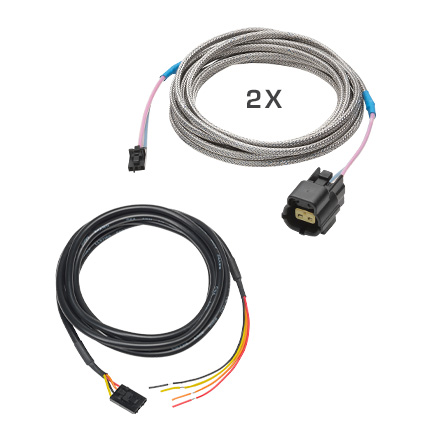

Wiring

10 Color Digital Pyrometer EGT Gauge Wiring

The 2’ Power Harness and (2) 6’ EGT Probe Harnesses with waterproof connectors utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation.

Mounting Bracket

10 Color Digital Pyrometer EGT Gauge Mounting Hardware

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Dual Digital EGT Pyrometer Installation Methods

Installing the (2) EGT Probes to the left and right banks of your V6 or V8 application allows you to see if the exhaust gas temperatures are running similar between both. This is vital in identifying any issues before they occur if one side is running hotter or cooler than the other. We recommend this method if your vehicle is running a twin turbo or non-turbo engine. If you’re looking to keep a close eye on how efficient your turbo and exhaust is performing, install the EGT Probes at the pre and post-turbo locations of the manifold. Doing this allows you to monitor the exhaust gas temperatures entering and leaving the turbo.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

  • Drill & Tap the Exhaust Manifold to 1/8-27 NPT to Install the EGT Probe
  • Includes 1/8” Drill Bit & 1/8-27 Tap
Tech Specs
Gauge Series: 10 Color Digital Series
Brand: GlowShift
Gauge Type: Exhaust Gas Temperature
Range of Reading: 200 - 2200° F
Face Color: Black
Size: 52mm
Lens: Tinted
Backlighting Color: 10 Colors
Sending Unit: Electronic
Measurement Unit: Standard
Display: Digital
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
