10 Color Digital Pyrometer EGT Gauge

SKU:
GS-TCD08
$129.99

UPC:
842559100097
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

GlowShift 10 Color Digital Series Pyrometer Exhaust Gas Temperature Gauges are electronically driven and read your engine’s exhaust temperature from 200° to 2200° Fahrenheit. Essential for virtually any car or truck, an EGT pyrometer gauge allows you to closely monitor and make sure temperatures aren’t running too hot which could result in major damage and costly repairs. This digital exhaust gas temperature gauge includes a Type K Thermocouple EGT Probe with 6’ of Stainless Steel Braided Cable and more for installation.

10 Color Digital Series 10 Color Digital Series

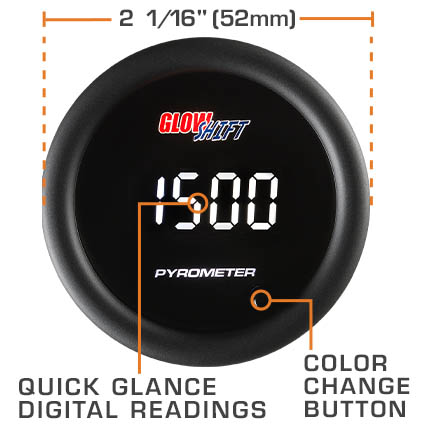

The 10 Color Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Set the display to one of 10 available colors. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.

Features

10 Color Digital Series Features

10 Color Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series.

10 Color Options

10 Color Digital Series Color Options

The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors.

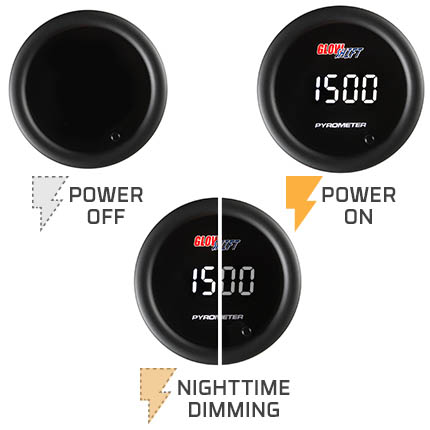

Backlighting

10 Color Digital Series Backlighting

LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on.

What's Included

  • 2-1/16” (52mm) Digital Pyrometer EGT Gauge
  • Type K Thermocouple EGT Probe with 1/8-27 NPT Threads
  • 6’ Stainless Steel Braided Cable for Probe
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

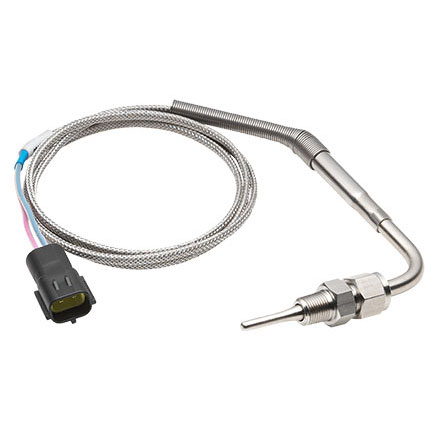

EGT Probe

10 Color Digital Exhaust Gas Temperature Sensor

This digital exhaust gas temperature gauge kit comes with a Type K Thermocouple EGT Probe. There are two common types of installation methods. We recommend installing the probe pre-turbo for the most accurate reading.

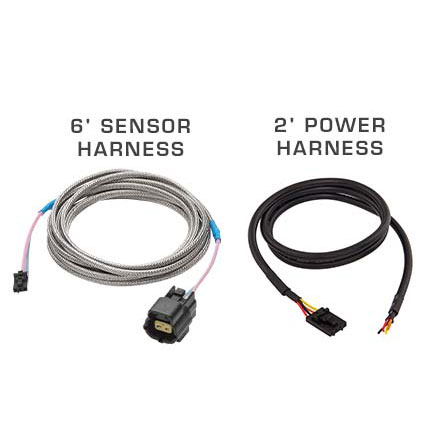

Wiring

10 Color Digital Pyrometer EGT Gauge Wiring

A 2’ Power Harness and 6’ Stainless Steel Braided Cable with Bullet-Style Connectors are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the gauge. Extended lengths give you added flexibility.

Mounting Bracket

10 Color Digital Pyrometer EGT Gauge Mounting Hardware

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Ultra-Bright LED Digital Pyrometers

Take readings from 200° to 2200° Fahrenheit using an ultra-bright LED digital pyrometer gauge when a range of 1500° isn’t enough. This is often seen with modified turbo diesels, big turbo builds that use a lot of fuel, and some race applications that require higher readouts because of how the car or truck runs. GlowShift’s digital EGT gauge will deliver readings with pinpoint accuracy and enhance the inside of your vehicle at the same time. Install to the A-pillar, dash or another location and start monitoring exhaust gas temperatures.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

  • Drill & Tap the Exhaust Manifold to 1/8-27 NPT to Install the EGT Probe
  • Includes 1/8” Drill Bit & 1/8-27 Tap
Tech Specs
Gauge Series: 10 Color Digital Series
Brand: GlowShift
Gauge Type: Exhaust Gas Temperature
Range of Reading: 200 - 2200° F
Face Color: Black
Size: 52mm
Lens: Tinted
Backlighting Color: 10 Colors
Sending Unit: Electronic
Measurement Unit: Standard
Display: Digital
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
