3in1 Series Single Gauge Package for 1992-1997 Ford F-Series

0 Reviews Write A Review
SKU:
GS-608-3G-PKG
$209.99
UPC:
842559129760
  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • One Year Limited Warranty

    One Year
    Limited Warranty

  • Free In-House Support

    Free In-House Support

Overview

Give yourself the monitoring power of three different gauges combined into one with GlowShift’s 3in1 Diesel Combo Gauge Series for any 1992-1997 OBS Ford F-Series F-250 and F-350 with 7.3L Power Stroke engine. Choose between seven different 2-3/8” (60mm) combination gauges which feature simultaneous analog and digital displays, providing critical feedback on important Power Stroke applications. You’ll have access to a unique set of Boost, EGT, Temperature or Pressure level readouts depending on which gauge you select. This gauge package also includes a 60mm black single pillar pod which provides you with the convenience of quick-glance readings from the F-Series truck’s factory A-pillar, covering less of the A-pillar while also keeping the dashboard clear.


Gauge Series Details

GlowShift’s 3in1 Gauge Series comes standard with a cutting-edge design that includes your choice of either a black or white gauge face and magnified clear lens. The illuminated red needle sweeps 270° and is powered by stepper motor technology, giving you an effective combination of incredibly accurate gauge readings with extremely smooth needle movement. GlowShift’s 10 Color through dial LED lighting system allows you to select and change the color of the analog display by simply pressing the button located along the front of the gauge. The 10 ultra-bright LED solid color modes include: Blue, Green, Red, Teal, Yellow, Purple, Pink, Amber, Orange and White. Easily cycle through the 10 Solid Color Settings and 2 Color Cycle Modes that utilize all of these powerful LED colors.

3 in 1 Series Gauge Face
  • An ultra-bright analog display with an illuminated red needle delivers extremely accurate readings for the primary gauge application that you select.
  • A bright blue digital display provides simultaneous readings on the second and third applications that you select for your gauge.
  • Choose between either a black or white gauge face, depending on which style you prefer for your gauge as well as the available LED color options.
  • Equipped with a clear magnified lens that showcases the bright display, this gauge will provide you with sharp, clear and easily accessible readings.

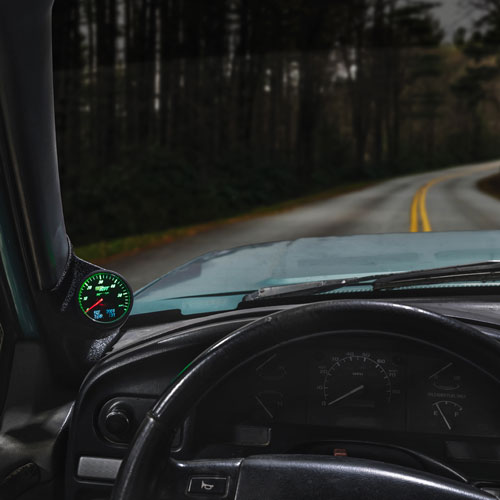

3 in 1 Series Installed
  • Using the hardware provided, the included single pillar gauge pod is an overlay which is mounted to the factory A-pillar, utilizing a strategic position for your gauge.
  • The included pod is a partial pillar mount gauge pod which only covers a smaller portion of the factory A-pillar as opposed to the entire length.
  • The installation process is easy and can be completed with a few steps since the pod is an overlay and takes up only part of the factory A-pillar.
  • This single pillar gauge pod is custom made for your truck, giving it a factory look along with providing a professional fit and finish.

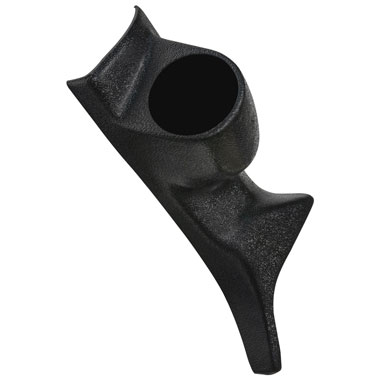

3 in 1 Series 60mm Pod
  • This gauge pod was specifically designed to hold one of GlowShift’s 2-3/8” (60mm) 3in1 Gauges.
  • The 1992-1997 Ford F-Series 3in1 pillar gauge pod is available in black.
  • Includes mounting hardware to secure the pod to the factory A-pillar.
  • Made from extremely durable ABS plastic, making it strong and built to last.
3 in 1 Series Dimming Feature
  • Daytime and Nighttime Dimming Modes are available for the brightness level of your gauge.
  • 3 brightness settings are available for each to get just the right amount of lighting.
  • Continue to easily view readings and experience this gauge’s powerful LED display.
  • With built-in color recall capability, the gauge will display the last color setting in use.
3 in 1 Series 10 Colors
  • Customize the analog display with GlowShift’s 10 Color LED Through Dial Lighting feature.
  • Easily scan the 10 Solid Color Settings to match your factory dash or create a unique look.
  • Choose between Blue, Red, Green, Teal, Purple, White, Yellow, Pink, Amber and Orange.
  • Two Color Cycle Modes are also available which navigate all featured color options.

Sensor & Wiring Layout

All wiring required for the installation of GlowShift’s 3in1 Gauges is provided with this gauge package, and only a few straightforward steps are involved in making each of the connections. The power wire and sensor wires feature modular connectors that easily snap into the back of the gauge, ensuring the connections are completely secure. The EGT and Temperature sensor wires also feature waterproof connectors for those respective sensor connections. With the extended wiring lengths you’ll also have additional flexibility during the install. All mounting and installation hardware is also included with each gauge. GlowShift provides installation instructions and free lifetime tech support to help with any questions you might have along the way.

3 in 1 Series Wiring

Fitment Details

All gauges, pods, sensors, adapters and optional accessories that are available with this gauge package were designed to work with any 1992-1997 OBS Ford F-Series F-250 and F-350 with 7.3L Power Stroke engine.

Year Make Model Engine
1992 Ford F-Series F-150, F-250 & F-350 7.3L IDI
1993 Ford F-Series F-150, F-250 & F-350 7.3L IDI
1994 Ford F-Series F-150, F-250 & F-350 7.3L Power Stroke
1995 Ford F-Series F-150, F-250 & F-350 7.3L Power Stroke
1996 Ford F-Series F-150, F-250 & F-350 7.3L Power Stroke
1997 Ford F-Series F-250 & F-350 (Does NOT Fit 1997 F-150) 7.3L Power Stroke
1/8-27 NPT Drill & Tap Set
1/8-27 NPT Drill & Tap Set
  • Used for Installing EGT Probe, Boost Fittings or Boost Sensor
  • Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
  • Includes Size R Drill Bit & 1/8 NPT Tap
MAP Line T-Fitting Adapter
MAP Line T-Fitting Adapter
  • Quick & Easy Install of Boost Hose or Sensor into the 3/16” MAP Line
  • Cut the Line, Insert the T-Fitting & Secure with Included Clamps
  • Avoid Drilling & Tapping the Intake Manifold
  • Female 1/8-27 NPT Thread for Fittings/Sensor
  • Fits 1992-1997 Ford F-Series 7.3L Power Stroke
Expandable Circuit
Expandable Circuit
  • Quick & Easy Way to Power Gauges Directly from the Fuse Panel
  • Used for Constant & Switched 12 Volt Power for Gauges
  • Includes 4 Amp Fuse for Circuit Protection

Installation Guides

This 3in1 Series Gauge Package comes with product instructions that provide complete details on how to install your gauges and pod for the 1992-1997 OBS Ford F-Series F-250 and F-350 with 7.3L Power Stroke engine. You can also visit our set of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift gauges, pods and more.

Download and Print the PDF 92 - 97 Ford F-Series Install Guide
Gauge Types

Select Your Gauges

Choose between (7) innovative gauges that combine several critical engine functions for expert monitoring of your diesel truck. You’ll receive readings on pressure, temperature levels and more with pinpoint accuracy, ensuring that your truck is operating at peak efficiency. Combined with the stylish look of these 3in1 gauges, your diesel truck will be fully outfitted with both form and function anytime you head out on the open road.

Analog 60 PSI Boost | Digital EGT & Temperature Analog 60 PSI Boost | Digital EGT & Temperature
  • Analog Boost Reading from 0 - 60 PSI
  • Digital EGT Reading from 200° - 2200° F
  • Digital Temperature Reading from 68° - 302° F
  • Choose to Monitor Transmission, Coolant or Oil Temperature
  • 1/8-27 NPT Pressure Sensor with 8’ Sensor Wire Harness
  • 1/8-27 NPT EGT Probe with 3’ Braided Steel Cable & 6’ Sensor Wire Harness with Waterproof Connectors
  • 1/8-27 NPT Temperature Sensor with 8’ Sensor Wire Harness
  • 3’ Power Wire Harness
Analog 60 PSI Boost | Digital EGT & Pressure Analog 60 PSI Boost | Digital EGT & Pressure
  • Analog Boost Reading from 0 - 60 PSI
  • Digital EGT Reading from 200° - 2200° F
  • Digital Pressure Reading from 0 - 150 PSI
  • Choose to Monitor Fuel or Oil Pressure
  • (2) 1/8-27 NPT Pressure Sensors with 8’ Sensor Wire Harnesses
  • 1/8-27 NPT EGT Probe with 3’ Braided Steel Cable & 6’ Sensor Wire Harness with Waterproof Connectors
  • 3’ Power Wire Harness
Analog 1500° EGT | Digital Boost & Temperature Analog 1500° EGT | Digital Boost & Temperature
  • Analog EGT Reading from 100° - 1500° F
  • Digital Boost Reading from 0 - 60 PSI
  • Digital Temperature Reading from 68° - 302° F
  • Choose to Monitor Transmission, Coolant or Oil Temperature
  • 1/8-27 NPT EGT Probe with 3’ Braided Steel Cable & 6’ Sensor Wire Harness with Waterproof Connectors
  • 1/8-27 NPT Pressure Sensor with 8’ Sensor Wire Harness
  • 1/8-27 NPT Temperature Sensor with 8’ Sensor Wire Harness
  • 3’ Power Wire Harness
Analog 1500° EGT | Digital Boost & Pressure Analog 1500° EGT | Digital Boost & Pressure
  • Analog EGT Reading from 100° - 1500° F
  • Digital Boost Reading from 0 - 60 PSI
  • Digital Pressure Reading from 0 - 150 PSI
  • Choose to Monitor Fuel or Oil Pressure
  • 1/8-27 NPT EGT Probe with 6’ Braided Steel Cable & 2’ Sensor Wire Harness
  • (2) 1/8-27 NPT Pressure Sensors with 8’ Sensor Wire Harnesses
  • 3’ Power Wire Harness
Add-Ons

Optional Installation Accessories

Looking for an adapter that helps to simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. GlowShift carries a wide variety of accessories to help with the installation process for your gauge package. Choose from a diverse selection of adapters, wiring harnesses and much more that will cover everything you need and make the process even easier as you install your gauges.
