3in1 White Analog EGT w/ Digital Boost & Temperature Gauge

SKU:
GS-3G-07
$399.99
$189.99
(You save $210.00 )

UPC:
842559101070
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • Extended Holiday Returns

    Extended Holiday ReturnsACCEPTED UNTIL JANUARY 31ST

  • Delivery By Christmas

    Delivery By ChristmasCONTIGUOUS US ONLY

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

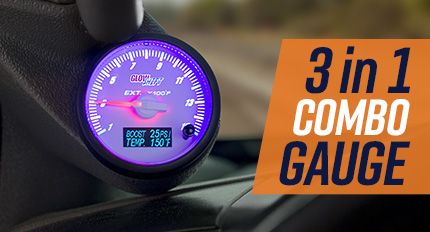

GlowShift 3in1 White Analog EGT w/ Digital Boost & Temp Gauges are combination gauges that allow you to accurately monitor critical engine readings. This 3in1 gauge is essential for any diesel vehicle that demands more output for driving long distances, towing heavy cargo and more. Each 2-3/8” (60mm) combo gauge features an analog pyrometer reading from 100° to 1500° Fahrenheit and a blue digital boost pressure readout from 0 to 60 PSI. A second blue digital readout has the option of transmission, oil, or coolant temperature readings from 68° to 302° Fahrenheit.

3in1 Combo Diesel Gauge Series 3in1 Combo Diesel Gauge Series

GlowShift’s White Analog 3in1 Gauge Series features a white gauge dial and magnified clear lens. The illuminated red needle sweeps 270° and is powered by stepper motor technology, giving you a combination of incredibly accurate readings with extremely smooth needle movement. With a depth of 1.32” and an LED display measuring 1.05” x 0.43”, this gauge combo has an ultra-thin design so that it can be easily mounted inside your vehicle. The 10 Color through dial LED lighting system allows you to select and change the color of the analog display by simply pressing the button on the front of the gauge. The 10 ultra-bright LED solid color modes include Blue, Green, Red, Teal, Yellow, Purple, Pink, Amber, Orange and White.

3 Readings In 1

3in1 Series Features

Take Up Less Space Inside Your Vehicle and Spend Less Time on Installation By Combining 3 Separate Gauges Into 1 Unit. With this 2-3/8” (60mm) Diesel Combo Gauge You Can View Analog Readings and 2 Digital Readings Simultaneously.

10 Color LED Lighting

3in1 Series Color Options

The 10 Solid Color Modes Include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. Easily Cycle Through the 10 Solid Color Settings and 2 Color Cycle Modes with a Color Recall Feature Also Built In.

Brightness Control

3in1 Series Backlighting

By Connecting the Orange Wire of the Gauge to the Factory Headlight Switch, You Can Change the Brightness Levels with 3 Daytime Modes and 3 Nighttime Modes. Adjust the Level of Brightness on the Display for Better Visibility When Driving.

What's Included

  • 2-3/8” (60mm) Diesel Combo 3in1 Gauge
  • Type K Thermocouple EGT Probe with 1/8-27 NPT Threads
  • 3’ Steel Braided Cable with Waterproof Connector for EGT Probe
  • 6’ Sensor Harness with Waterproof Connector for EGT Probe
  • Electronic 1/8-27 NPT Boost Pressure Sensor
  • 8’ Pressure Sensor Harness for Boost Sensor
  • Electronic 1/8-27 NPT Temperature Sensor
  • 8’ Temperature Sensor Harness for Temp Sensor
  • 3’ Power Harness
  • 2-3/8” (60mm) Dashboard Mounting Pod
  • Dash Pod Mounting Hardware
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Gauge Visor
  • Installation Instructions

Sensors Included

3in1 Gauge Sensors Included

This 3in1 GlowShift Gauge Comes with a 1/8-27 NPT Type K Thermocouple Exhaust Gas Temperature Probe; a 1/8-27 NPT Electronic Boost Pressure Sensor; and a 1/8-27 NPT Electronic Temperature Sensor.

Wiring Harnesses

3in1 Gauge Wire Harnesses Included

8’ Sensor Wires are Included with the Boost Sensor and Temperature Sensor. The EGT Probe Has 3’ of Steel Braided Cable and a 6’ Sensor Wire with Waterproof Connectors. The 3’ Power Harness and All Sensor Wires Have Plug and Play Modular Connectors.

Dash Mounting Pod

Included Dash Mounting Pod

Mount the 3in1 Gauge to Virtually Any Vehicle’s Dashboard with the Included 2-3/8” Dash Mounting Pod. Mounting Hardware is Included for a Seamless Install So You Can Monitor Key Readings from an Optimal Location.

3in1 Combo Diesel Gauge Series Parts & Wiring Schematic

Monitor Key Readings With A Diesel Combo Gauge

If you’re putting added stress on your diesel engine it’s critical to make sure it is performing at its best. With GlowShift 3in1 combo gauges you can stay on top of three important readings simultaneously with effortless quick-glance monitoring. These gauges are your first line of defense when you notice any unusual spikes or dips in temperature and pressure levels that need to be addressed immediately. With bold, ultra-bright LED readouts you’ll be able to clearly view key readings anytime of day or night.

Benefits Of A 3in1 Gauge

GlowShift 3in1 diesel combo gauges give you the monitoring ability of a boost gauge, pyrometer EGT gauge and temperature gauge wrapped up into an easy-to-use allin1 gauge. You can also customize the temp setting to use it as a trans temp gauge, oil temp gauge or coolant temp gauge. This combination gauge gives drivers everything they want with a complete set of options for three individual gauges incorporated into one. Easily scroll through features while being provided with three critical readings.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

  • Drill & Tap the Exhaust Manifold to 1/8-27 NPT to Install the EGT Probe
  • Includes 1/8” Drill Bit & 1/8-27 Tap
Tech Specs
Gauge Series: 3in1 Gauge Series
Brand: GlowShift
Face Color: White
Size: 60mm
Lens: Clear
Backlighting Color: 10 Colors
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
