7 Color Series Cluster Dashboard Panel Gauge Package for 1973-1987 Chevrolet C10

SKU:
GS-DASH-01-7C-PKG
$549.99

UPC:
842559128893
Maximum Purchase:
99 units
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

GlowShift's 7 Color Series 6-Gauge Cluster Dashboard Panel Gauge Package was made for the 1973-1987 Chevrolet C-10, C-20 and C-30 with Chevy Small-Block engine. This package includes 3-3/4" Speedometer and Tachometer Gauges that fit perfectly in the 2 larger gauge holes, as well as your choice of 4 additional 2-1/16" Gauges that mount into the smaller gauge holes to the left side of the pod. Experience complete customization when you select from over 20 gauges for this 6-gauge set, which comes with all required sensors. With GlowShift’s 7 Color Gauge Series, you’ll experience the option of 7 different colors featured on an ultra-bright LED analog gauge display to create your own style for your C10's custom dash.


Gauge Series Details

A wide variety of unique color and style settings are available for complete customization of your ultra high-performance 2-1/16” (52mm) and 3-3/4” (95mm) gauges. Choose from a black or white gauge face, and utilize 7 ultra-bright solid color display options that will allow you to create a new style of lighting for your C-10's custom dashboard. These gauges also include microprocessor controlled stepper motor technology, selectable 7 color LED through dial lighting, a magnified tinted or clear lens depending on your selection, and an illuminated red needle that sweeps 270°. GlowShift also includes all sensors, wiring, mounting hardware and a one-year limited warranty with each purchase.

7 Color Gauge Series
7 Color Gauge Series
  • Choose from Black, White or Tinted Series
  • Black or White Gauge Face
  • Clear or Tinted Magnified Lens
  • Ultra-Bright Analog LED Display
  • Stepper Motor Technology
7 Color Gauge Series
Custom Factory Dash Lighting
  • 7 Color LED Through Dial Lighting
  • 7 Solid Color Settings
  • Blue, Red, Green, Teal, Purple, White & Yellow
  • Two Color Cycle Modes
  • Remembers Last Color Setting
7 Color Gauge Series
Nighttime Dimming
  • Dimmer Wire Dims Gauge 30%
  • Reduce Brightness When Driving at Night
  • Continue to Easily View your Readings
  • Works When your Headlights are Turned On
  • Activate with a Simple Connection

3-3/4" Speedometer & Tachometer Gauges

Every truck needs a Speedometer and Tachometer Gauge, so for this Gauge Package, we're including them as part of the gauge selection process. These two gauges mount into the larger 3-3/4" (95mm) holes that are located at the same spot as the factory Speedometer and Tachometer Gauges. The Speedometer Gauge reads up to 140 MPH, while the Tachometer reads up to 10,000 RPM.

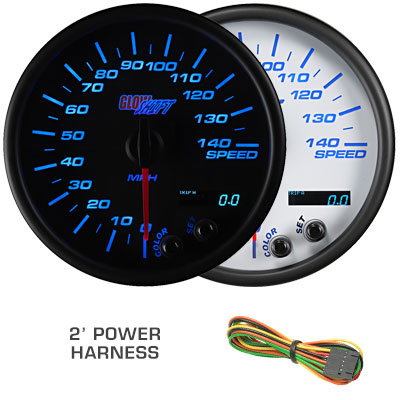

Speedometer Gauge
Speedometer
  • Reads Vehicle’s Driving Speed from 0 - 140 MPH
  • Resettable Trip Meter
  • Fine Tune Vehicle's Speed Range
  • 2’ Power Harness with 6' Signal Wire

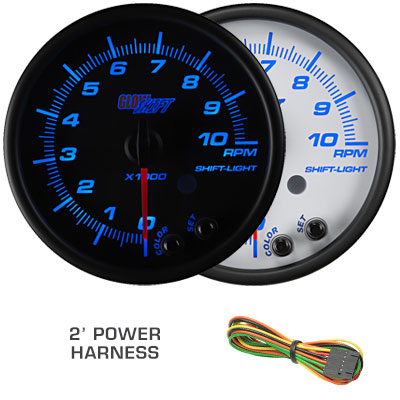

Tachometer Gauge
Tachometer
  • Reads Vehicle’s RPM from 0 - 10,000
  • 1 - 10 Cylinder Setting Switch on Back of Gauge
  • External Shift Light Matches Color on Gauge
  • 2' Power Wire Harness

Tech Picks

Our Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Chevy C-10. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

Oil Pressure Gauge
Oil Pressure
  • Reads Oil Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9’ Sensor & 2’ Power Wire Harnesses
Water Temp Gauge
Water (Coolant) Temperature
  • Reads Coolant Temperature from 100 - 300° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Sensor & Power Wire Harnesses
Voltmeter Gauge
Volt Gauge
  • Reads Vehicle Electrical System Voltages from 8 - 18 DC Volts
  • 2' Power Wire Harness
Fuel Level Gauge
Fuel Level
  • Reads Vehicle’s Fuel Level from Empty, 1/4, 1/2, 3/4 & Full
  • 2’ Power Harness with 6' Sensor Lead Wire

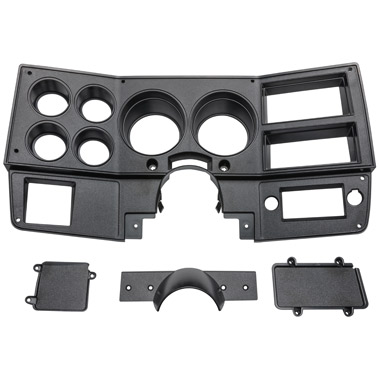

Cluster Dashboard Panel Pod Details

The included 6-Gauge Cluster Dashboard Panel Pod is made specifically for the 3rd Generation C-10 box body and square body full size pickups, including C-20 and C-30 models from 1973-1987. This gauge pod holds (2) 3-3/4” (95mm) Speedometer & Tachometer Gauges, as well as (4) 2-1/16” (52mm) gauges, making it perfect for anyone looking to build a custom dash cluster or replace stock gauges. This 6-Gauge Cluster Dashboard Pod has a factory texture for factory mounting and can be used with A/C and Non A/C trucks. Each C10 gauge pod is manufactured using premium quality ABS plastic to withstand cracking, fading and warping. They can also be painted with ABS plastic paint for a custom fit and finish. Mounting hardware is included with installation instructions that walk you through the process step by step. Fits: 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87 Chevrolet C-10, C-20, C-30.

Cluster Dashboard Pod
  • Holds (2) 3-3/4" (95mm) Gauges
  • Holds (4) 2-1/16" (52mm) Gauges
  • Manufactured from ABS Plastic
  • Includes Steering Column Cover & 2 Block-Off Panels for Non-A/C Trucks

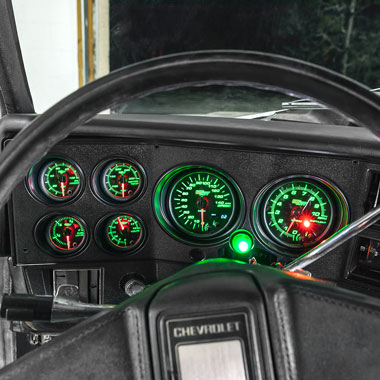

Dash Pod Installed
  • 6-Gauge Cluster Dashboard Panel
  • Complete Factory Replacement
  • Matches the Factory Interior
  • Professional Fit and Finish

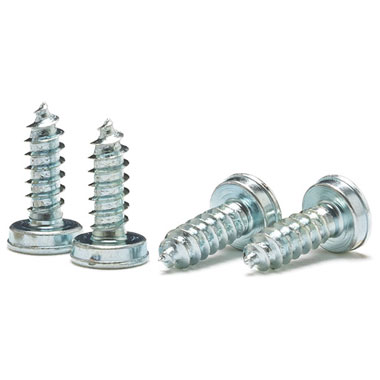

Pod Hardware
  • Screws Included for Block-Off Panel Installation
  • Easily Mounts to Factory Dash Location with Existing Factory Screws
  • Installs Through Pre-Drilled Holes on Pod
  • No Drilling Required

Fitment Details

Year Make Model Engine
1973 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1974 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1975 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1976 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1977 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1978 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1979 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1980 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1981 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1982 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1983 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1984 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1985 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1986 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
1987 Chevrolet, GMC C10, C15, C20, C25, C30, C35, K10, K15, K20, K25, K30, K35 305/350 Chevy Small-Block
GPS Speedometer Sensor Kit
GPS Speedometer Sensor Kit
  • Uses GPS Technology to Acquire Vehicle’s Driving Speed
  • Included Waterproof GPS Antenna Mounts on Top of the Roof or Trunk - 9-1/2’ of Wire
  • Included GPS Signal Harness Connects to GPS Antenna & Speedometer Gauge Wire Harness - 3’ of Wire
Tachometer Signal Filter
Tachometer Signal Filter
  • Transforms Poor, Weak or Disordered Pulse Signals & Corrects Them
  • Used for Single Coil & Point Style Coil Ignition Systems
Oil Filter Sandwich Adapter
Oil Filter Sandwich Adapter
  • Quick & Easy Solution to Install Multiple Sensors to Vehicle’s Oil Filter
  • Used for Oil Pressure & Oil Temperature Sensors
  • Features (4) 1/8-27 NPT Thread Ports & Port Plugs
  • Includes O-Ring for Leak-Free Seal
Fuel Level Sensor
Fuel Level Sensor
  • Compatible with Any Car or Truck with a 240-33 Ohm Fuel Tank
  • 6", 8", 10" 12" Sensor Sizes Available
  • Slim One-Piece Design with a Float for Accurate & Reliable Readings
  • Includes Fuel Level Sensor with 3' of Wiring, (1) Mounting Bracket, (1) Gasket, (5) Bolts, (5) Nuts & Installation Instructions
Expandable Circuit
Expandable Circuit
  • Quick & Easy Way to Power Gauges Directly from the Fuse Panel
  • Used for Constant & Switched 12 Volt Power for Gauges
  • Includes 4 Amp Fuse for Circuit Protection
Oil Pressure Water (Coolant) Temperature Volt Gauge Fuel Level

Installation Guides

This 7 Color Series Cluster Dashboard Panel Gauge Package features an installation video that provides a complete step-by-step tutorial along with useful tips on how to install this gauge package. You can also check out our Support Center to view specific installation instructions for gauges, gauge pods, add-on accessories and more.

Watch the Installation Video
Download and Print Instructions

GlowShift Support Center

Gauge Types

Select Your Gauges

Select your gauges from a variety of different gauge types below which are available for this custom 7 Color Series Gauge Package. You can also reference our Tech Picks at the beginning of this list for our top recommendations that are specific to this vehicle. With gauges made to monitor a wide range of engine applications, GlowShift is sure to have the gauge types you’re looking for as part of this custom package.

Tech Pick
30 Boost/Vacuum
30 PSI Boost/Vacuum
  • Reads Boost from 0 - 30 PSI
  • Reads Vacuum from (-30) - 0 inHG
  • 6' of Silicone Hose with Clamps
  • Restricted T-Fitting
  • Mechanically Driven
Tech Pick
15 Boost/Vacuum
15 PSI Boost/Vacuum
  • Reads Boost from 0 - 15 PSI
  • Reads Vacuum from (-30) - 0 inHG
  • 6' of Silicone Hose with Clamps
  • Restricted T-Fitting
  • Mechanically Driven
Tech Pick
45 Boost/Vacuum
45 PSI Boost/Vacuum
  • Reads Boost from 0 - 45 PSI
  • Reads Vacuum from (-30) - 0 inHG
  • 6' of Silicone Hose with Clamps
  • Restricted T-Fitting
  • Mechanically Driven
Tech Pick
20 PSI Boost
20 PSI Boost
  • Reads Boost from 0 - 20 PSI
  • 9' of Nylon Hose
  • 1/8-27 NPT Brass Compression Fittings
  • Mechanically Driven
Tech Pick
35 PSI Boost
35 PSI Boost
  • Reads Boost from 0 - 35 PSI
  • 9' of Nylon Hose
  • 1/8-27 NPT Brass Compression Fittings
  • Mechanically Driven
Tech Pick
60 PSI Boost
60 PSI Boost
  • Reads Boost from 0 - 60 PSI
  • 9' of Nylon Hose
  • 1/8-27 NPT Brass Compression Fittings
  • Mechanically Driven
Tech Pick
100 PSI Boost
100 PSI Boost
  • Reads Boost from 0 - 100 PSI
  • 9' of Nylon Hose
  • 1/8-27 NPT Brass Compression Fittings
  • Mechanically Driven
Tech Pick
1500° F Pyrometer EGT
1500° F Pyrometer EGT
  • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
  • 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • 6' Sensor & 2' Power Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector
Tech Pick
2400° F Exhaust Gas Temperature
2400° F Exhaust Gas Temperature
  • Reads Exhaust Temperature from 0 - 2400° Fahrenheit
  • 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • 6' Sensor & 2' Power Wire Harnesses
Tech Pick
Vacuum Gauge
Vacuum Gauge
  • Reads Vacuum from (-30) - 0 inHG
  • 6' of Clear PVC Hose
  • Restricted T-Fitting
  • Mechanically Driven
Tech Pick
Transmission Temperature
Transmission Temperature
  • Reads Transmission Temperature from 80 - 260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Sensor & Power Wire Harnesses
  • Recommended For Vehicles with Automatic Transmission
Tech Pick
Water (Coolant) Temperature
Water (Coolant) Temperature
  • Reads Coolant Temperature from 100 - 300° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Sensor & Power Wire Harnesses
Tech Pick
Oil Temperature
Oil Temperature
  • Reads Oil Temperature from 100 - 300° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Sensor & Power Wire Harnesses
Tech Pick
30 PSI Fuel Pressure
30 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 30 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
100 PSI Fuel Pressure
100 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
Oil Pressure
Oil Pressure
  • Reads Oil Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
Rail Pressure
Rail Pressure
  • Reads Fuel Rail Pressure from 0 - 30,000 PSI
  • Compatible with 2003-2018 Dodge Ram 5.9L & 6.7L Cummins Engines
  • Compatible with 2002-2016 GM 6.6L Duramax Engine
  • 9-1/2' Sensor & 2' Power Wire Harnesses
Tech Pick
HPOP Gauge
HPOP Gauge
  • Reads HPOP from 0 - 4,000 PSI
  • Compatible with 7.3L & 6.0L Ford Power Stroke
  • 9-1/2' Sensor & 2' Power Wire Harnesses
Tech Pick
60 PSI Exhaust Pressure
60 PSI Exhaust Pressure
  • Reads Drive Pressure from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 5’ of 1/4” Copper Cooling Tubing
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
100 PSI Exhaust Pressure
100 PSI Exhaust Pressure
  • Reads Drive Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 5’ of 1/4” Copper Cooling Tubing
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
Nitrous Pressure
Nitrous Pressure
  • Reads NOS Pressure from 0 - 1,600 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 2' Power Wire Harnesses
Tech Pick
Volt Gauge
Volt Gauge
  • Reads Vehicle Electrical System Voltages from 8 - 18 DC Volts
  • 2' Power Wire Harness
Tech Pick
Narrowband Air/Fuel Ratio
Narrowband Air/Fuel Ratio
  • Reads & Indicates Lean, Rich & Optimal AFR
  • 2' Power Harness with 6' Sensor Lead Wire
Tech Pick
Needle Wideband Air/Fuel Ratio
Needle Wideband Air/Fuel Ratio
  • Reads Air/Fuel Ratio from 10 - 20 AFR
  • Wideband Oxygen Sensor
  • Wideband Controller Unit with Data Logging
  • Weld-In Sensor Bung
  • Power & Sensor Wire Harnesses
Tech Pick
Digital Wideband Air/Fuel Ratio
Digital Wideband Air/Fuel Ratio
  • Reads Air/Fuel Ratio from 10.0 - 20.0 AFR
  • 7 Color LED Digital Display
  • Wideband Oxygen Sensor
  • Digital Wideband Controller Unit with Data Logging
  • Weld-In Sensor Bung
  • Power & Sensor Wire Harnesses
Tech Pick
Dual Digital Wideband Air/Fuel Ratio
Dual Digital Wideband Air/Fuel Ratio
  • Reads Left & Right Bank Air/Fuel Ratio from 10.0 - 20.0 AFR
  • 7 Color LED Digital Display
  • 2 Wideband Oxygen Sensors
  • 2 Digital Wideband Controller Units with Data Logging
  • 2 Weld-In Sensor Bungs
  • Power & Sensor Wire Harnesses
Tech Pick
Tachometer
Tachometer
  • Reads Vehicle’s RPM from 0 - 10,000
  • 1 - 10 Cylinder Setting Switch on Back of Gauge
  • 2' Power Wire Harness
  • Compatible with Gasoline Vehicles Only
Tech Pick
Air Pressure
Air Pressure
  • Reads Air Pressure from 0 - 200 PSI
  • 2' Power Wire Harness
  • Mechanically Driven
Tech Pick
Dual Needle Air Pressure
Dual Needle Air Pressure
  • Reads Air Pressure from 0 - 200 PSI
  • (2) 1/8-27 NPT Electronic Pressure Sensors
  • (2) 9’ Sensor & 2' Power Wire Harnesses
Tech Pick
Differential Temperature
Differential Temperature
  • Reads Diff Temperature from 100 - 250° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 17-1/2’ Sensor & 2' Power Wire Harness
Tech Pick
Dual Intake Temperature
Dual Intake Temperature
  • Reads Hot & Cold Sides of Intake from 0 - 300° Fahrenheit
  • (2) 3/8-18 NPT Electronic Temperature Sensors
  • (2) 9' Sensor & 2' Power Wire Harnesses
Tech Pick
Fuel Level
Fuel Level
  • Reads Vehicle’s Fuel Level from Empty, 1/4, 1/2, 3/4 & Full
  • 2’ Power Harness with 6' Sensor Lead Wire
Tech Pick
Clock Gauge
Clock Gauge
  • Analog Clock Gauge with Hour & Minute Hands
  • 2' Power Wire Harness
Add-Ons

Optional Installation Accessories

Looking for an adapter that helps to simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. GlowShift carries a wide variety of accessories to help with the installation process for your gauge package. Choose from a diverse selection of adapters, wiring harnesses and much more that will cover everything you need and make the process even easier as you install your gauges.

Instructions
