Essential Gauges for Your Custom Build
GlowShift’s Black 7 Color Gauge Custom Dashboard Set takes the guessing game out of which gauges to install to your custom instrument cluster build, narrowing it down to the most important gauges necessary for any car. This gauge set features vital gauges such as a 3-3/4” Speedometer and Tachometer, in addition to 2-1/16” Fuel Level, Water Temperature, Oil Pressure and Volt Gauges. Also included is an all-in-1 6 gauge power wire harness that dramatically helps ease the installation and wiring process. Below is a breakdown of each gauge and its features included with this set.
Black 7 Color Series Features

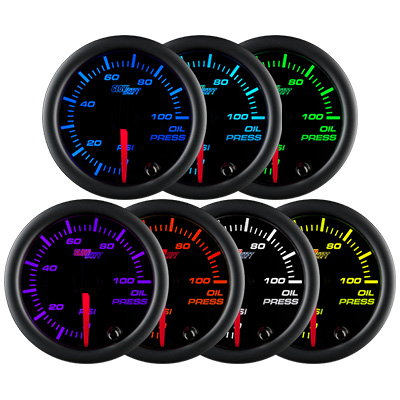

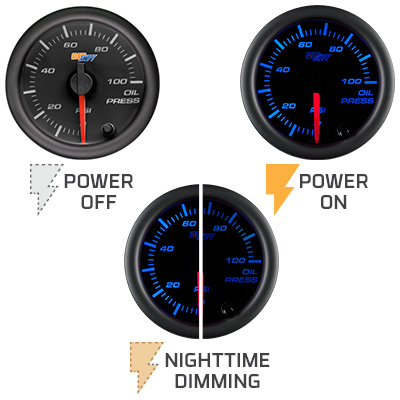

Each gauge features a black gauge face with a clear lens that provides a sleek style. The featured 7 color through dial lighting allows you to select from 7 different solid colors to create a new identity for your custom build anytime you want. By pressing the button on the gauge face, users can select solid colors such as blue, green, red, white, purple, yellow and teal, as well as 2 color cycle modes that utilize all of the featured colors. Connecting these gauges to the factory headlight switch source allows the gauges to dim 30% for an easier viewing experience when driving at night. Each gauge includes the mounting hardware necessary to install each gauge to your custom instrument cluster mount.
GlowShift includes installation instructions, free lifetime technical support and a one year limited warranty with each purchase.

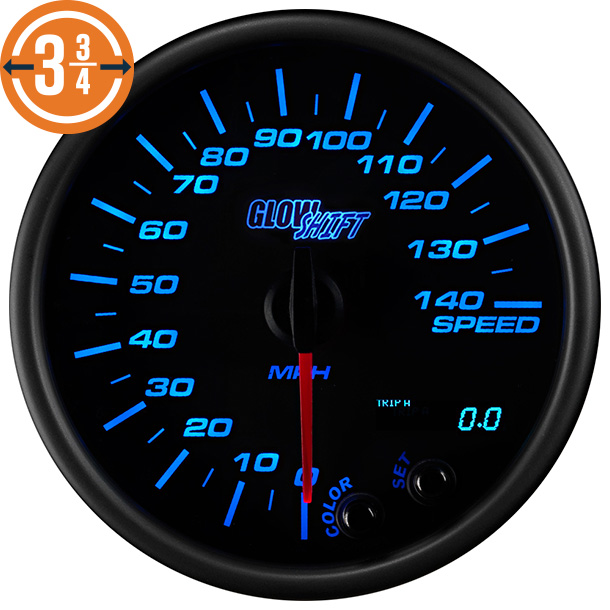

The Speedometer Gauge reads your vehicle’s driving speed from 0-140 MPH. This speedometer features a digital display with 2 resettable trip meters, an in-dash mounting bracket and wiring harness to power the gauge. Adding GlowShift’s GPS Speedometer Sensor Kit allows you to acquire MPH readings through a painless plug-and-play installation. Note: This speedometer does not feature an odometer, but does feature 2 resettable trip meters.

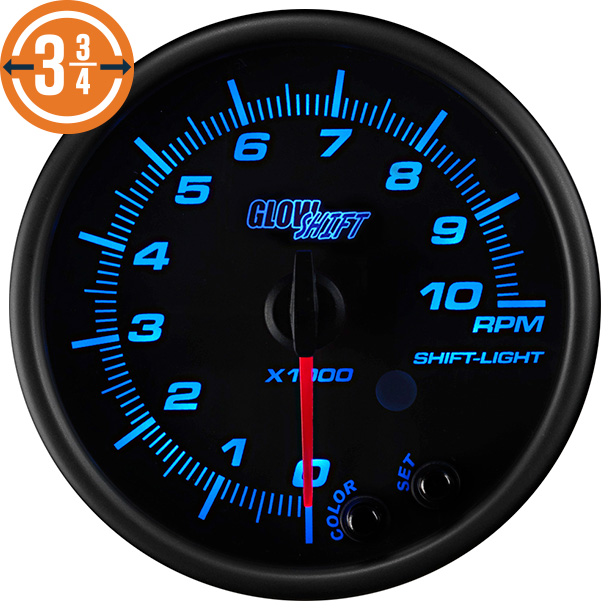

The Tachometer Gauge reads from 0-10,000 RPM. The included external shift light easily plugs into the back of the gauge and alerts you with a blue LED when it is the appropriate time to shift. This gauge also includes an in-dash mounting bracket and signal harness that allows you to acquire RPM readings. This can be installed to any 1-10 cylinder gas powered vehicle. Note: Our Tachometers are only designed for a gasoline, single coil application. For multiple coil applications, the use of a multiple coil or aftermarket ignition system adapter is required. Vehicles equipped with High Energy Ignition Systems (HEI) will require GlowShift’s HEI Signal Filter.
Fuel Level Gauge

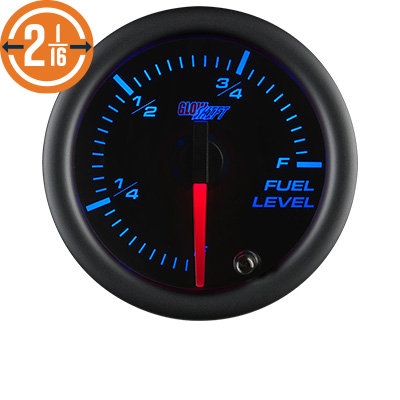

The Fuel Level Gauge reads the amount of fuel in the tank in standard increments of Empty, 1/4, 1/2, 3/4, and Full. The back of the gauge resistance adjuster allows you to select from 9 different OHM resistance levels. If you are unsure about which OHM resistance level to choose for your vehicle, please contact a GlowShift Technical Support Specialist.
Water Temperature Gauge
The Water Temperature Gauge reads your vehicle’s coolant temperature from 100°-300° Fahrenheit. The included 1/8-27 NPT temperature sensor installs directly to a factory port that allows you to gain access to those readings. Additional installation options are available such as GlowShift's Water Sender Hose Attachments that allow you to splice into the upper radiator hose to gain those coolant temperature readings.
Oil Pressure Gauge

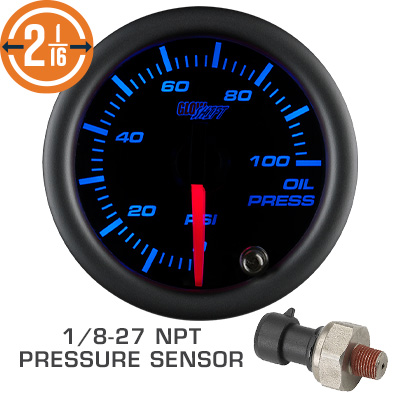

The Oil Pressure Gauge reads engine oil pressure from 0-100 PSI. The included 1/8-27 NPT pressure sensor installs to any oil gallery port to gain readings directly from the source. Additional installation options are available such as using GlowShift’s Oil Filter Sandwich Adapter or a T-Fitting Adapter that allows you to “tee” off an existing port to gain these vital pressure readings.

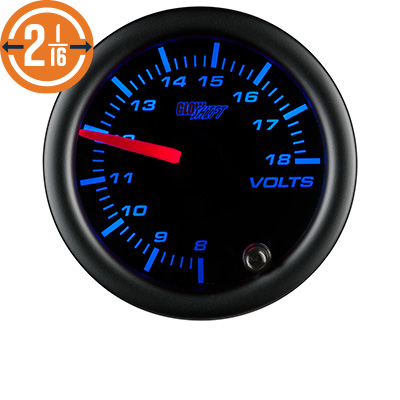

The Volt Gauge reads your battery’s voltage readings from 8-18V and monitors the health of your battery.
GPS Speedometer Sensor Kit
Tachometer Signal Filter
Fuel Level Sensor
Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.
