Black & Blue MaxTow 1500° F Pyrometer EGT Gauge

SKU:
MT-BDV08_1500
$212.99
$139.99
(You save $73.00 )

UPC:
842559100486
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow’s Double Vision™ Series 1500° F Pyrometer EGT Gauge is electronically driven diesel gauge that includes a type K thermocouple EGT probe that reads and displays your truck’s exhaust gas temperature from 0 to 1500° Fahrenheit with unmatched accuracy.

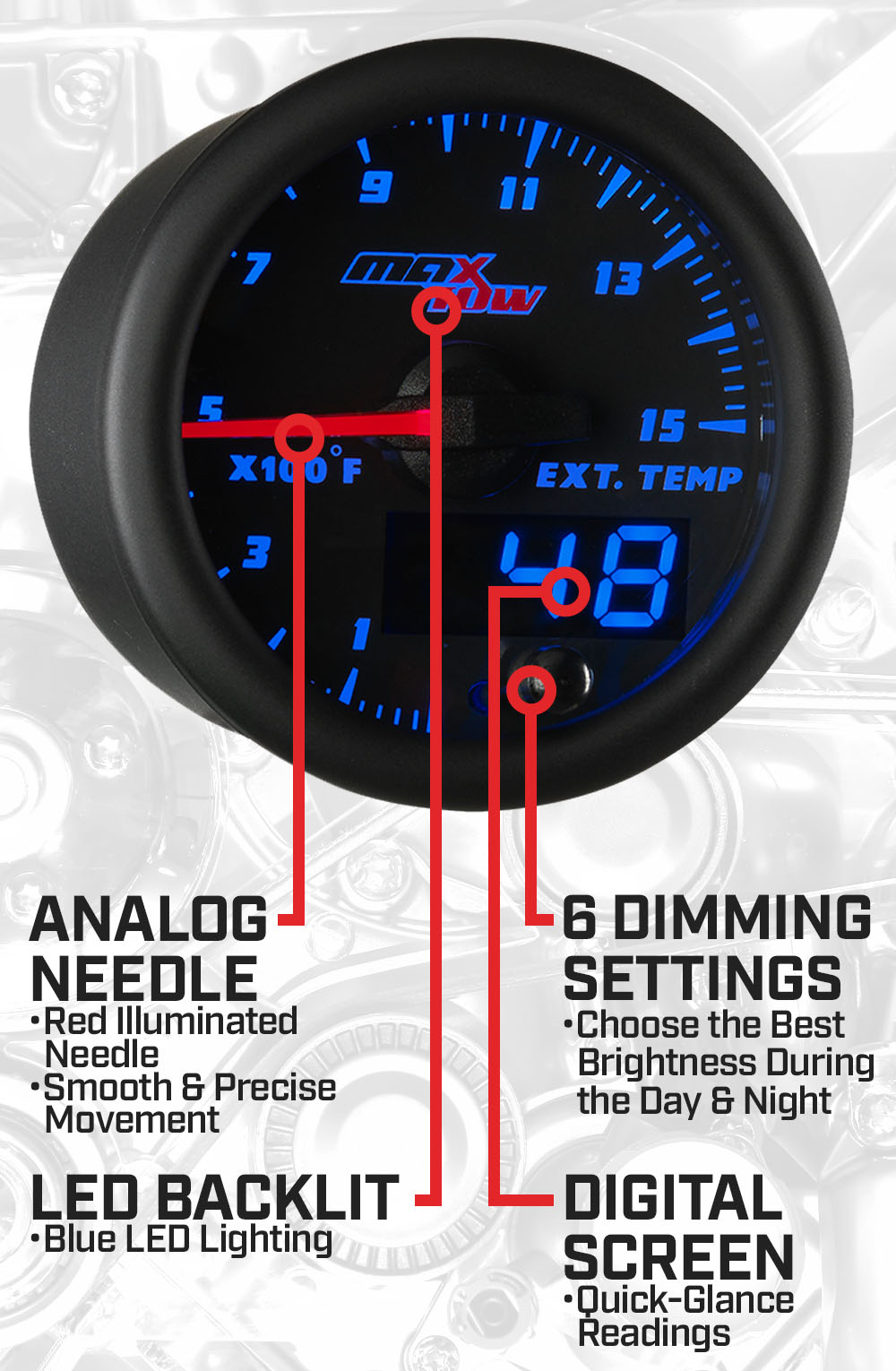

You asked for it and we listened! MaxTow’s Black & Blue Double Vision™ Gauge Series features a black gauge face with dual readout displays which include an analog reading with an illuminated red needle and a quick glance digital display; both of which are illuminated by ultra-bright blue LED lighting. Each 2-1/16” (52mm) analog and digital pyrometer gauge is driven by stepper motor technology which allows for exceptionally smooth needle movement that keeps up with the changing statistics of the engine. This diesel pyrometer gauge also features daytime and nighttime dimming modes with 3 customizable settings for each mode. This feature offers multiple dimming options allowing you to set your preference when hitting the road during the day or at night! The included brightness recall function remembers the previous brightness setting that was enabled before powering the truck down so you won’t have to reset it every time you turn the truck on!

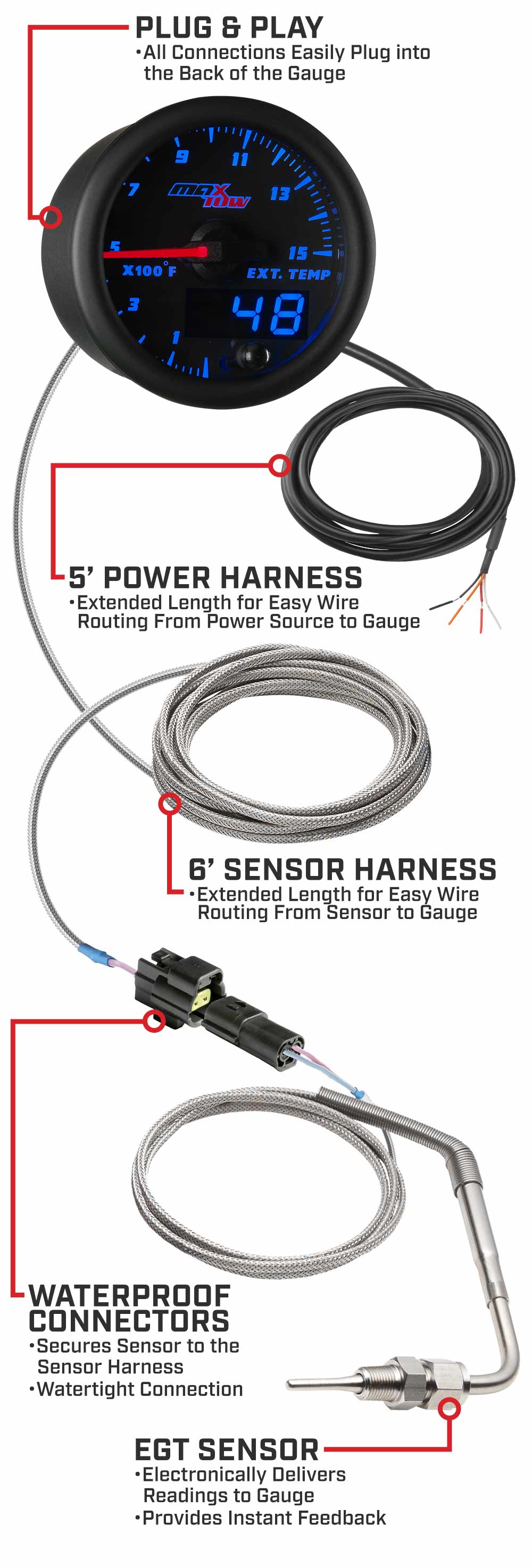

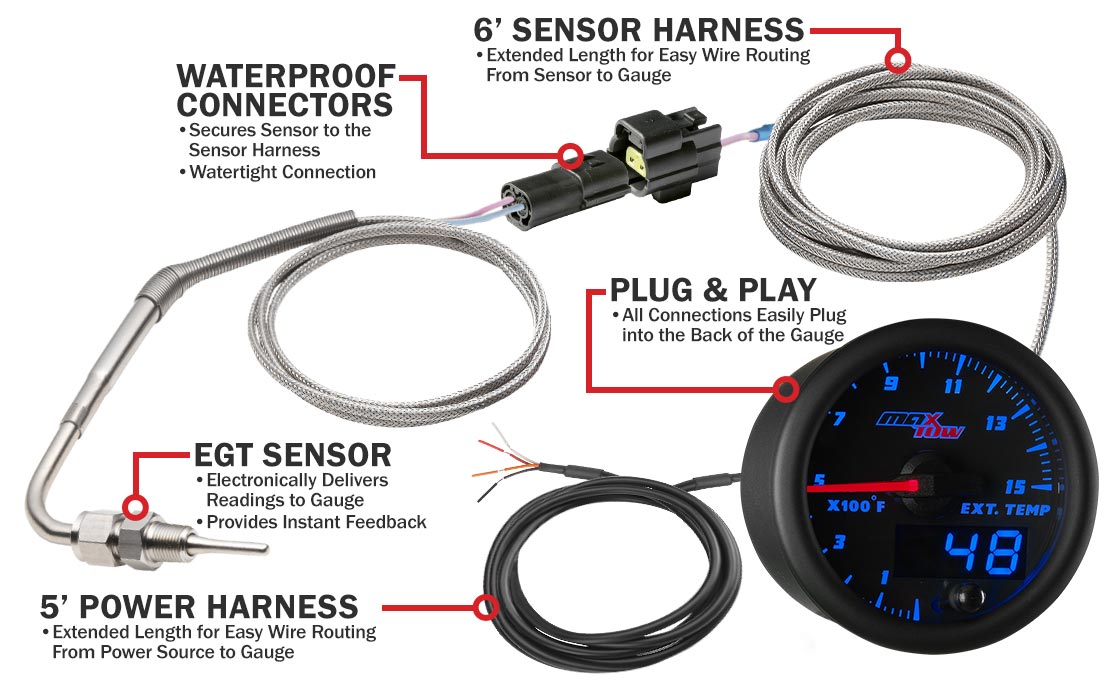

This MaxTow analog and digital pyrometer gauge features a type K thermocouple EGT probe with 3’ of steel braided cable and 1/8-27 NPT threads that installs directly to the exhaust manifold using a Drill & Tap Kit. This EGT gauge also features a waterproof connector that plugs into the 6’ braided steel sensor harness and allows for a watertight connection. The 6’ sensor harness and 5’ power harness feature plug and play connectors and extended wire lengths, assuring that you’ll have more than enough wire for a quick and easy installation. All gauge mounting hardware and installation instructions come standard with every diesel pyrometer digital and analog gauge purchased, as well as a One Year Limited Warranty and Free Lifetime Technical Support. Get ready to hit the road and Tow to the Max™!

  • 2-1/16" (52mm) Black Face Gauge with a Magnified Lens
  • Exhaust Gas Temperature Reading from 0 to 1500° Fahrenheit
  • 1/8-27 NPT Type K Thermocouple EGT Probe with Waterproof Connector
  • EGT Probe Includes 3' of Steel Braided Cable
  • 6' Steel Braided Sensor Harness with Waterproof Connector
  • Double Vision Display Feature with Analog and Digital Readings
  • Blue LED Through Dial Lighting with a Red Illuminated Needle
  • Daytime Dimming Mode with 3 Customizable Brightness Settings
  • Nighttime Dimming Mode with 3 Customizable Brightness Settings
  • 5' Power Wire
  • Gauge Depth Measures 1-5/16"
  • Mounting Hardware
  • Installation Instructions
  • One Year Limited Warranty
  • Free Lifetime Technical Support
  • Drill & Tap the Exhaust Manifold to 1/8-27 NPT to Install the EGT Probe
  • Includes 1/8” Drill Bit & 1/8-27 Tap
Tech Specs
Gauge Series: Black & Blue MaxTow Series
Brand: MaxTow
Gauge Type: Exhaust Gas Temperature
Range of Reading: 0 - 1500° F
Face Color: Black
Size: 52mm
Lens: Clear
Backlighting Color: Blue
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
