Black & Blue MaxTow High Pressure Oil Pressure HPOP Gauge

SKU:
MT-BDV21
$186.99
$89.99
(You save $97.00 )

UPC:
842559100172
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow Black & Blue Double Vision™ High Pressure Oil Pressure HPOP Gauges closely monitor the high pressure that enters the oil pumps of Ford 6.0 Powerstroke and 7.3 Powerstroke diesel engines. This HPOP pressure gauge is electronically driven, reading from 0 to 4,000 PSI by connecting the sensor wires to the factory Injector Control Pressure Sensor (ICP Sensor) for readings delivered with pinpoint accuracy. Get ready to hit the road and Tow to the Max™

Black & Blue Double Vision HPOP Gauge Black & Blue Double Vision HPOP Gauge

This Powerstroke high pressure oil pressure gauge kit comes with everything required for installation. Included you’ll receive Sensor and Power Wiring Harnesses, Mounting Hardware and more. Detailed Installation Instructions walk you through the high pressure oil pump gauge install step by step.

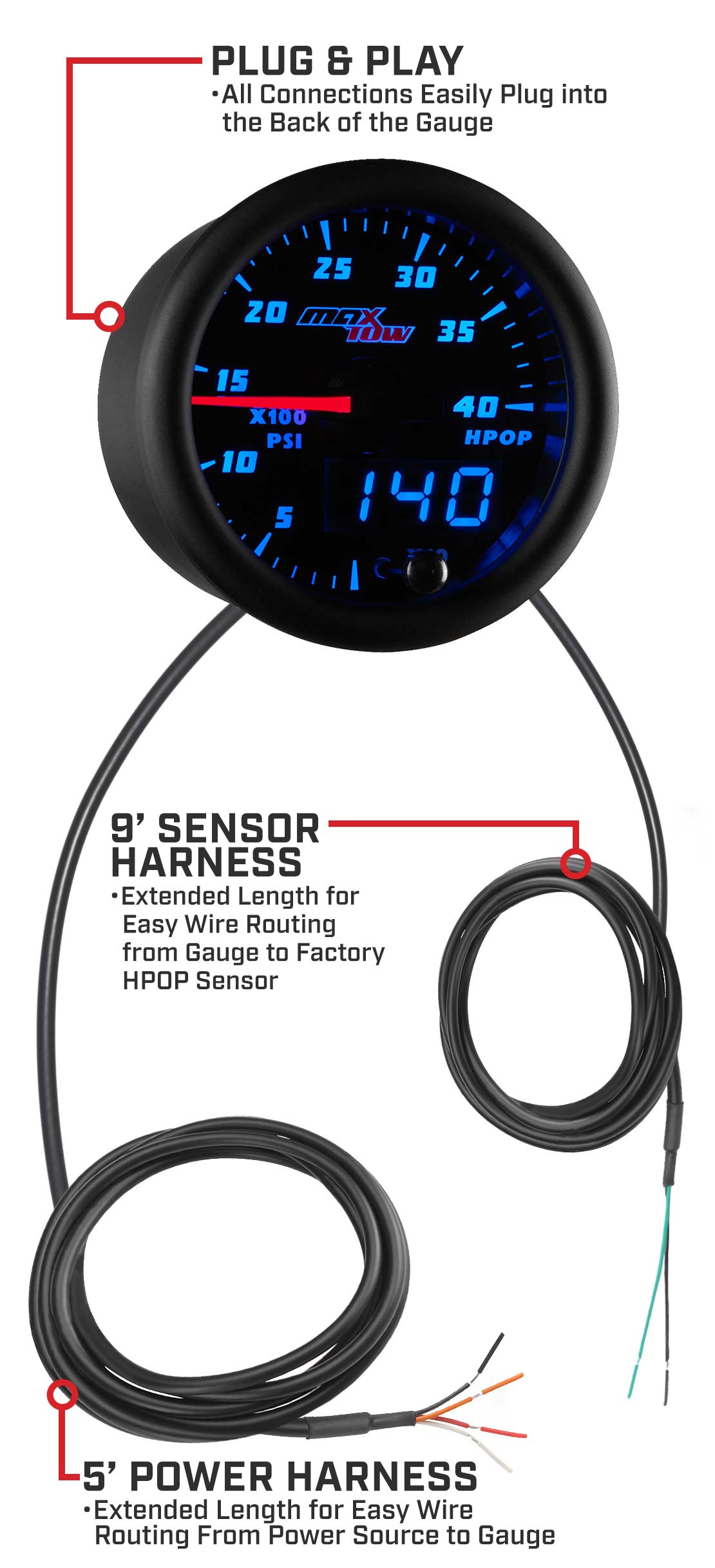

HPOP Gauge Wiring

Black & Blue Double Vision High Pressure Oil Pressure Gauge Parts & Wiring Black & Blue Double Vision High Pressure Oil Pressure Gauge Parts & Wiring

MaxTow 6.0 & 7.3 Powerstroke HPOP Gauges feature sensor and power harnesses with extended lengths for added flexibility during installation. The sensor harness is 9’ and the power harness is 5’, assuring you’ll have more than enough wiring for a seamless install. Easily attach both harnesses to the back of this HPOP pressure gauge for Ford Powerstroke trucks by utilizing Plug and Play connectors.

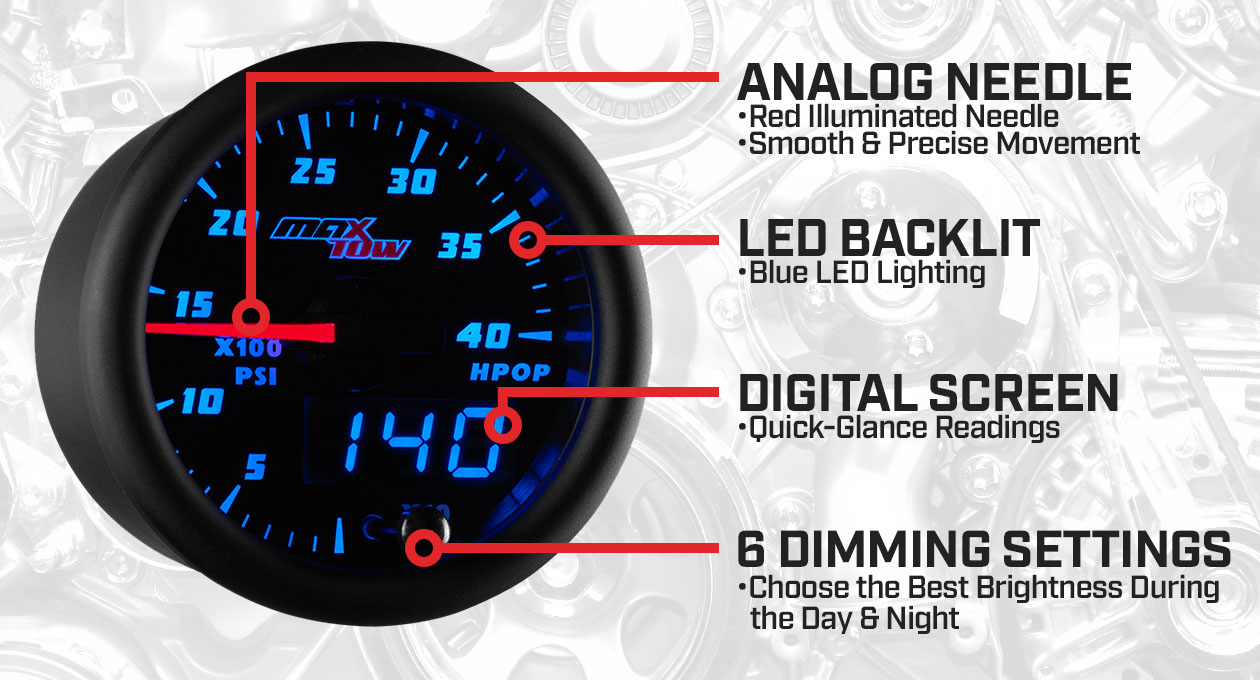

Double Vision™ Series Features

Black & Blue Double Vision HPOP Gauge Features Black & Blue Double Vision HPOP Gauge Features

MaxTow Black & Blue Double Vision™ Gauges feature a black gauge dial and blue LED display with an illuminated red needle. Get the classic look of an analog gauge combined with a blue digital numerical readout. This 2-1/16” (52mm) gauge is equipped with stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. Brightness Recall retains the previous brightness setting before the truck is powered down.

Wiring Harnesses

MaxTow Plug & Play Wire Harnesses

The 9' Sensor Harness Connects Directly to Your Ford Powerstroke’s Factory Injector Control Pressure Sensor (ICP Sensor) for Extremely Accurate Readings. The 5’ Power Wire Includes Both Power and Ground Connections. Easily Attach Included Wiring Harnesses to the Back of the Gauge with Plug and Play Connectors.

Mounting Bracket

MaxTow Mounting Bracket

A U-Shaped Gauge Mounting Bracket Is Included with a Stud Kit that Attaches the Bracket to the Back of the HPOP Gauge. This Bracket Delivers a Secure Fit for Any In-Dash Mount.

Dimming Modes

MaxTow Double Vision Dimming Modes

Each HPOP Pressure Gauge Is Equipped with 3 Daytime and 3 Nighttime Dimming Modes. Customize the Brightness Level for Optimal Viewing of Readings Anytime of Day or Night.

What's Included

  • 2-1/16” (52mm) HPOP Gauge
  • 9’ Sensor Harness
  • 5’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Ford 6.0 Powerstroke & 7.3 Powerstroke HPOP Gauge

It’s important to monitor a Powerstroke diesel engine’s HPOP because it is what drives the injectors to supply fuel to the engine. A weak or defective HPOP could starve the injectors for fuel and lead to system failure. An upgraded HPOP may be required if the injectors or fuel system are upgraded to ensure sufficient fuel is feeding the engine. HPOP works by receiving oil from the low pressure oil pump in order to drive the injectors, and the internal computer then tells the injectors exactly when to fire. HPOP pressure can be anywhere within a 500 to 3,000 PSI range. This Ford Powerstroke 6.0 & 7.3 HPOP Gauge delivers those readings so you’ll be alerted to any fluctuations. This High Pressure Oil Pump Gauge Is Only Recommended for Ford 6.0 Powerstroke and 7.3 Powerstroke.

Pigtail Wiring Harness

Adding the Powerstroke HPOP Gauge Pigtail Wiring Harness eliminates the need to splice into factory wiring to receive accurate high pressure oil pressure readings. At a length of 6” with 9” sensor and ground lead wires, this harness installs to the Injector Control Pressure Sensor (ICP Sensor).

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our Gauges, Pods and Accessories.

  • Quick & Easy Installation Without Having to Splice or Cut into Factory Wires
  • Connects Directly to Injector Control Pressure (ICP) Sensor
  • Fits 1994-1997 7.3L Power Stroke
  • Fits 1999-2002 7.3L Power Stroke
  • Fits 2003-2007 6.0L Power Stroke
Tech Specs
Gauge Series: Black & Blue MaxTow Series
Brand: MaxTow
Gauge Type: HPOP
Range of Reading: 0 - 4,000 PSI
Face Color: Black
Size: 52mm
Lens: Clear
Backlighting Color: Blue
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
