MaxTow’s Double Vision™ Series 15 PSI Fuel Pressure Gauge is an electronically driven gauge that includes an electronic fuel pressure sensor which reads and displays fuel pressure levels from 0 to 15 PSI with incredible accuracy. This gauge was specifically designed for those who are running low pressure high pressure injection pumps or those whose vehicles are equipped with carburetors and need accurate fuel pressure readings.

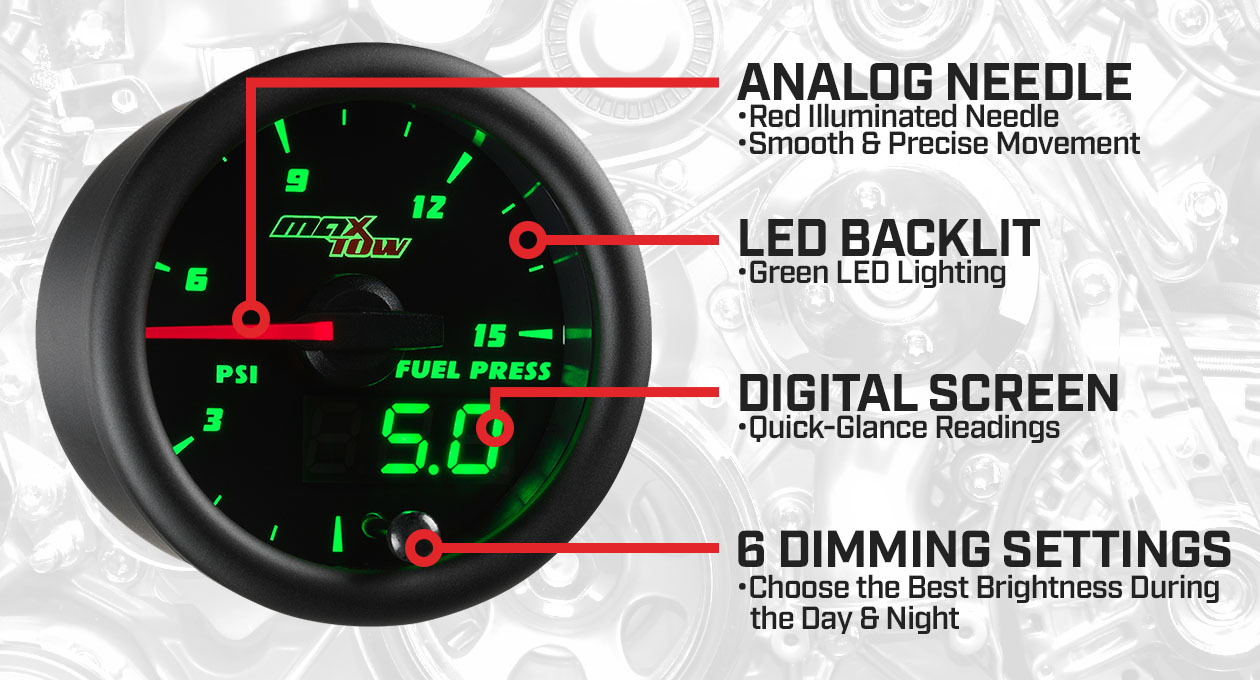

MaxTow’s Double Vision Gauge Series features a green digital LED display, as well as an illuminated red needle, which will give you the classic look of an analog gauge while also giving you an easy to read green LED numerical readout. The Double Vision Gauge Series outperforms the competition by offering multiple options and added convenience when it comes to monitoring your trucks most vital functions! This 2-1/16" (52mm) 15 PSI fuel pressure gauge features stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate, ensuring your truck’s vital parts are functioning properly. Our diesel fuel pressure gauge also features innovative daytime and nighttime dimming modes with three customizable brightness settings (low, medium, high) for each mode, giving you multiple dimming options that allow you to your set your individual preference when hitting the road during the day or the late hours of the night! The included brightness recall function will remember the previous brightness setting you had on before powering your vehicle down so you won’t have to reset it every time you turn your vehicle on.

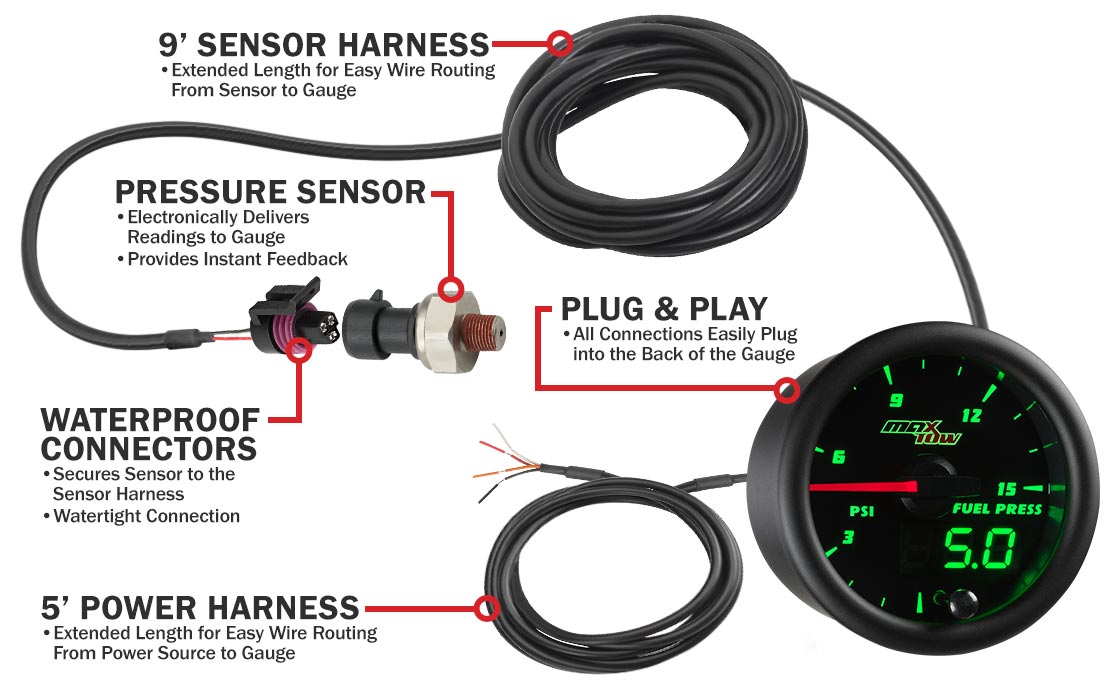

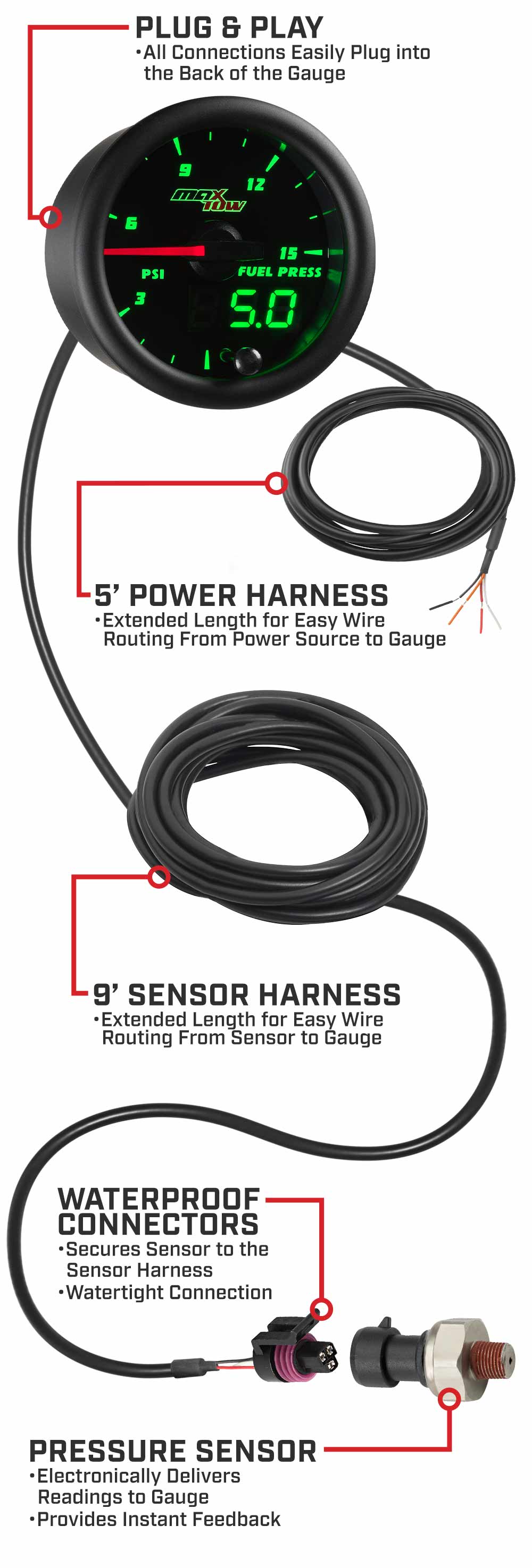

MaxTow’s 15 PSI Electronic Fuel Pressure Sensor features a 1/8 NPT threads allowing it to be installed directly to your fuel filter housing or by using an adapter, and the wire harnesses for both power (5 ft) and fuel pressure sensor (9 ft) connections assure that you’ll have more than enough wire for an easy installation. All gauge mounting hardware and installation instructions come standard with every electronic fuel pressure gauge purchased, as well as a one year limited warranty and free lifetime technical support. Get ready to hit the road and Tow to the Max™!
Note: This gauge includes a 1/8-27 NPT thread size on the sensor and your vehicle may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require additional threading adapters, please contact a GlowShift Technical Support Specialist.
Dodge Cummins Note: A Snubber Valve is required when installing a 15 PSI Fuel Pressure Gauge into a Dodge Ram Cummins. The Snubber Valve regulates, normalizes and eliminates fuel pressure spikes that are present during the initial ignition and startup on the Dodge Cummins Diesel Engine through the use of a regulator. High pressure fuel system spikes during startup are harmful and may cause early and unexpected failure of electronic fuel pressure sensors and/or sending units for fuel pressure gauges.
GM Duramax Note: If you are installing this gauge to a GM Duramax engine, an aftermarket lift pump is required for this gauge to function properly.
Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.
