MaxTow’s Double Vision™ Black & Green High Pressure Oil Pressure HPOP Gauge allows you to closely monitor the high pressure that enters the oil pumps of your Ford Power Stroke 7.3L or 6.0L diesel engine. This gauge is electronically driven and reads your truck’s HPOP from 0 to 4,000 PSI by simply connecting the sensor wires to the factory injector control pressure sensor (ICP sensor) for extremely accurate readings directly from the source.
Why is monitoring HPOP important for Power Stroke engines? It’s important to monitor the Power Stroke diesel engine’s HPOP because it is what drives the injectors to supply the fuel to the engine. A weak or defective HPOP could starve the injectors for fuel and lead to fuel system failure. An upgraded HPOP may be required if the injectors or fuel system is upgraded to ensure sufficient fuel feeding the engine. The HPOP works by receiving oil from the low pressure oil pump in order to drive the injectors, and then the internal computer tells the injectors exactly when to fire. HPOP pressures can be anywhere within the 500 to 3,000 PSI range.

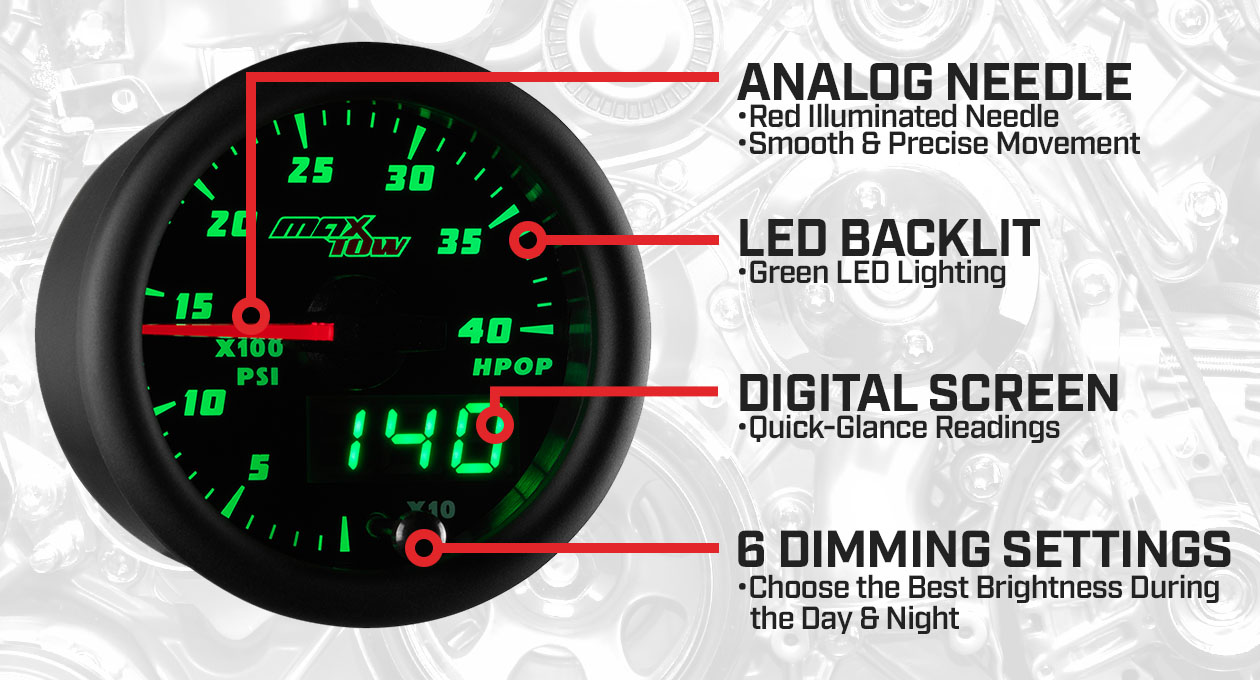

The Double Vision™ Gauge Series features an analog display using an illuminated red needle combined with a green digital LED readout, giving you the classic gauge style with quick glance digital readings. This 2 1/16” (52mm) HPOP gauge features stepper motor technology that allows for extremely smooth needle movement that keeps up with the changing pressures of the truck. Each MaxTow gauge comes standard with daytime and nighttime dimming modes with three customizable brightness settings for each mode, providing multiple options to fit your preference when hitting the road during the day or the late hours of the night! The brightness recall function remembers the previous setting the gauge was on before powering the truck down so you won’t have to set it every time!

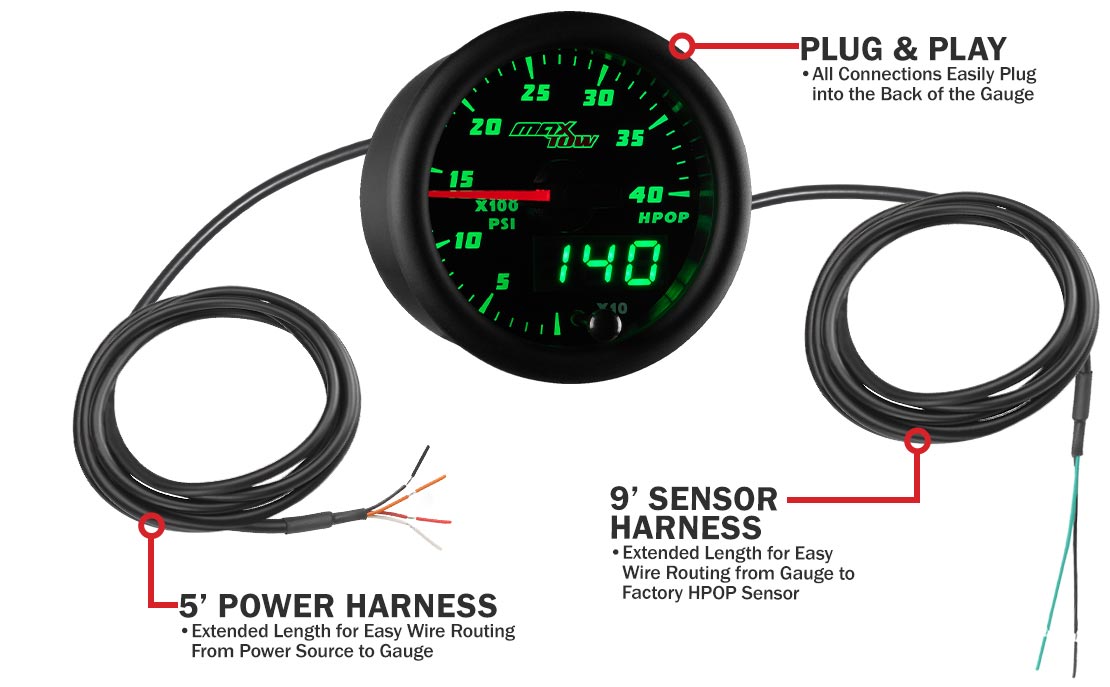

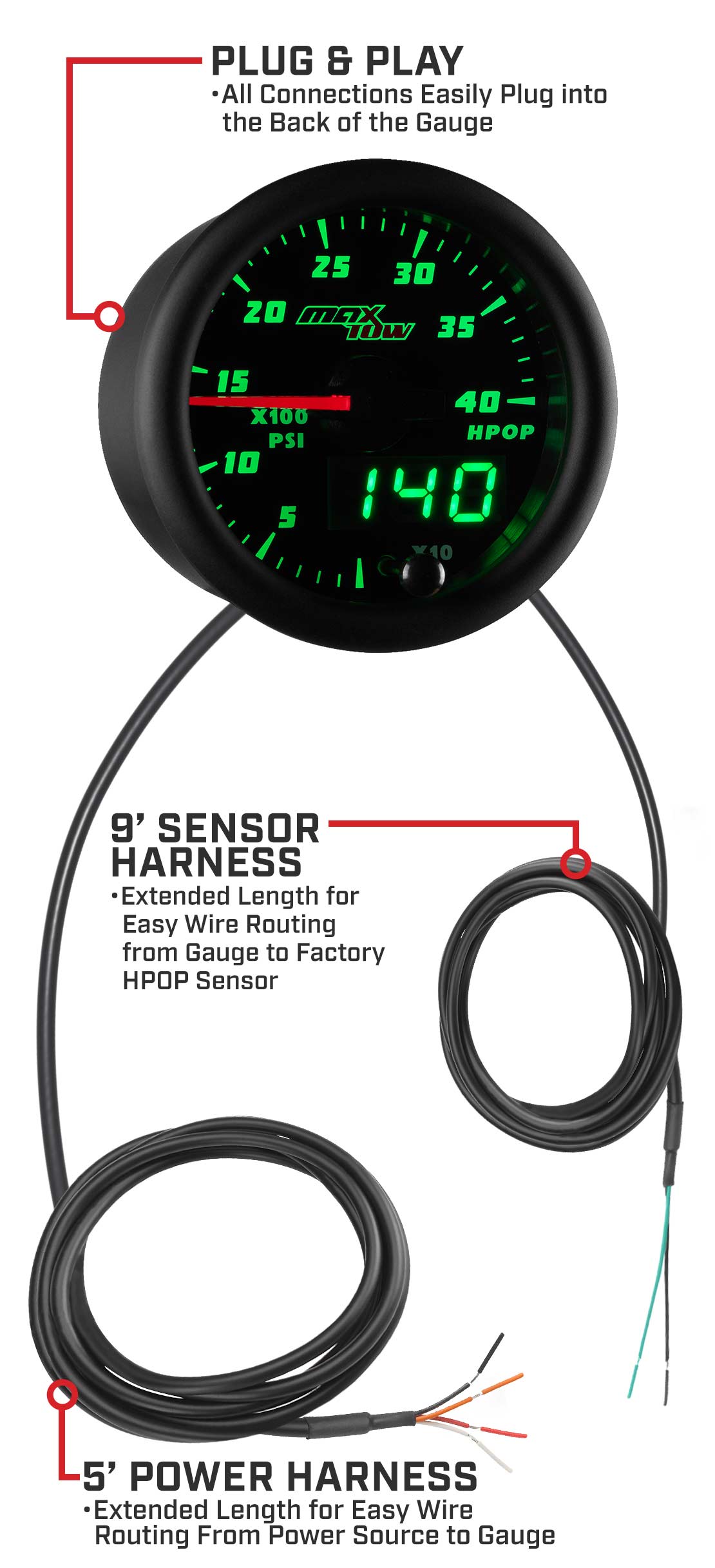

MaxTow’s HPOP Gauge includes a 9’ sensor harness that installs to the ICP sensor and a 5’ power harness that connects to the power source of the truck. Each gauge also includes a gauge visor that eliminates any glare from the sun and a mounting bracket that will hold the gauge in place in any type of gauge pod. MaxTow includes installation instructions, free lifetime technical support and a one year limited warranty with each purchase. Get ready to hit the road and Tow to the Max™!
Adding the HPOP Gauge Wiring Pigtail Harness eliminates the need to splice into any factory wiring to receive high pressure oil pressure readings. This gauge harness installs to the injector control pressure sensor (ICP sensor) to provide accurate readings from the source. This HPOP harness features a length of 6” with 9” sensor and ground lead wires.
Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.
