Elite 10 Color Series Dual Gauge Package for 1999-2007 Ford Super Duty Power Stroke

1 Review Write A Review
SKU:
GS-2205-ET-PKG
$399.99
$184.99
(You save $215.00 )
UPC:
842559107034
Maximum Purchase:
99 units
  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • One Year Limited Warranty

    One Year
    Limited Warranty

  • Free In-House Support

    Free In-House Support

Overview

Build a customizable GlowShift dual gauge package for any 1999-2007 Ford Super Duty F-250/F-350 with a 6.0L or 7.3L Power Stroke. This package features the Elite 10 Color Gauge Series, which includes 10 different solid color options and an ultra-bright analog LED gauge display. You’ll also have the choice of 2 gauges from a wide and diverse selection, with many gauges including their required sensor. As part of this gauge package you will also select a black, factory color matched gray, or factory color matched tan full size dual pillar gauge pod which mounts to the Super Duty’s factory A-pillar for a custom fit and finish.


Gauge Series Details

With the Elite 10 Color Gauge Series you can choose between 10 solid color options to set the preferred color of your gauge display. These 2-1/16” (52mm) gauges feature a streamlined design with a flat gauge face and powerful magnified lens. Choose between either the Black or White Elite 10 Color Gauge Series, which come with the choice of a black or white gauge dial and magnified tinted or clear lens, respectively. This series also has an easy-to-read ultra-bright LED analog display with selectable 10 color through dial LED lighting. Built-in stepper motor technology also allows for incredibly smooth movement of the illuminated red needle, resulting in extremely accurate readings. In addition to the solid color settings, you will have (2) Color Cycle Modes which cycle through all solid color options. Color Fade Mode slowly navigates and fades through each of the options. Additional features include a Color Recall capability so that your gauge will remember the last color setting used before it was turned off. The adjustable high and low warning functions will alert you visually or with an optional audible tone, ensuring levels are not running too high or too low. And the peak recall function will provide you with instant feedback on your last peak value. For even better visibility at nighttime, there is an easy-to-use Dimming Feature which dims the gauge 30% at night for clearer viewing. GlowShift also includes sensors, wiring, mounting hardware and a one-year limited warranty with each purchase.

Elite 10 Color Gauge Series
Elite 10 Color Series
  • Black or White Gauge Dial
  • Clear or Tinted Magnified Lens
  • 7/8” Depth for Lens
  • Illuminated Red Needle
Elite 10 Color Gauge Series
Customizable Color Display
  • Ultra-Bright LED Lighting
  • 10 Solid Color Settings
  • Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber
  • Color Cycle & Color Fade Modes
Elite 10 Color Gauge Series
Nighttime Dimming
  • Dimmer Wire Dims Gauge 30%
  • Reduce Brightness When Driving at Night
  • Works When your Headlights are Turned On
  • Activate with a Simple Connection
Elite 10 Color Gauge Series
High and Low Warning Function
  • High and Low Readouts
  • Set Your Preferred Levels
  • Audible Tone or Visual Alert
  • Easy to Program
Elite 10 Color Gauge Series
Peak Recall Ability
  • Peak Setting Mode
  • Recalls Last Peak Value
  • Quick Intuitive Feedback
  • Optional Feature
Elite 10 Color Gauge Series
Wiring for Installation
  • 2’ Power Harness with Each Gauge
  • Plug ‘n Play Connectors
  • Gauges Daisy-Chain Together
  • Power All Gauges Thru 1

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your 99-07 Ford Super Duty. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your diesel engine.

60 PSI Boost Gauge
60 PSI Boost
  • Reads Boost from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 6' Sensor Wire Harness
1500° F Pyrometer EGT
1500° F Pyrometer EGT
  • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
  • 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • 2' Power & 6' Sensor Wire Harnesses
Transmission Temperature
Transmission Temperature
  • Reads Transmission Temperature from 80 - 260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Power & 8' Sensor Wire Harnesses
  • Recommended For Vehicles with Automatic Transmission
100 PSI Fuel Pressure
100 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 6' Sensor Wire Harnesses

Pillar Pod Details

The included full size, factory matched dual pillar pod is made specifically for the 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine. Select from black, gray or tan, and this pod can be effectively mounted to your existing A-pillar. This pillar gauge pod holds (2) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. It can also be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish. Fits: 99, 00, 01, 02, 03, 04, 05, 06, 07 Ford Super Duty, F-250, F-350

Pillar Pods
  • Holds (2) 2-1/16” (52mm) Gauges
  • Choose Between Black, Gray or Tan
  • Made from ABS Plastic
  • Withstands Cracking, Fading and Warping

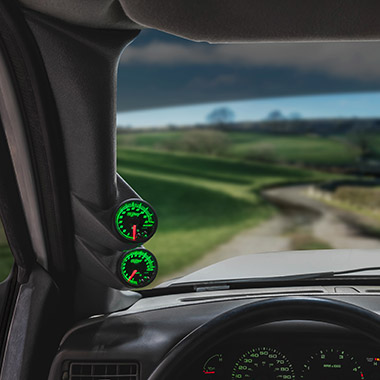

Pillar Pod Installed
  • Overlay of Factory A-pillar
  • Full Length Gauge Pod
  • Deeper Gauge Sits Perfectly
  • Enhances the Wider Bezel Gauge Feature
Pillar Pod Fitting
  • Push-In Fasteners
  • Color Matched to Pod
  • Drill to Install
  • Easy to Install Pod

Fitment Details

Year Make Model Engine
1999 Ford Super Duty, F-250 & F-350 7.3L Power Stroke
2000 Ford Super Duty, F-250 & F-350 7.3L Power Stroke
2001 Ford Super Duty, F-250 & F-350 7.3L Power Stroke
2002 Ford Super Duty, F-250 & F-350 7.3L Power Stroke
2003 Ford Super Duty, F-250 & F-350 6.0L Power Stroke
2004 Ford Super Duty, F-250 & F-350 6.0L Power Stroke
2005 Ford Super Duty, F-250 & F-350 6.0L Power Stroke
2006 Ford Super Duty, F-250 & F-350 6.0L Power Stroke
2007 Ford Super Duty, F-250 & F-350 6.0L Power Stroke
1/8-27 NPT Drill & Tap Set
1/8-27 NPT Drill & Tap Set
  • Used for Installing EGT Probe, Boost Fittings or Boost Sensor
  • Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
  • Includes Size R Drill Bit & 1/8 NPT Tap
MAP Line T-Fitting Adapter
MAP Line T-Fitting Adapter
  • Quick & Easy Install of Boost Hose or Sensor into the 3/16” MAP Line
  • Cut the Line, Insert the T-Fitting & Secure with Included Clamps
  • Avoid Drilling & Tapping the Intake Manifold
  • Female 1/8-27 NPT Thread for Fittings/Sensor
  • Fits 1999-2002 Ford 7.3L Power Stroke
  • Fits 2003-2007 Ford 6.0L Power Stroke
Air Intake Heater Boost Plug Adapter
Air Intake Heater Boost Plug Adapter
  • Quick & Easy Install of Boost Hose or Sensor to the Air Intake
  • Remove the Restrictive Heater Plug & Thread Adapter in its Place
  • No Drilling or Tapping Required
  • Female 1/8-27 NPT Thread for Fittings/Sensor
  • Fits 1999.5-2002 Ford Super Duty 7.3L Power Stroke
  • Fits 2001-2004 GM 6.6L Duramax
Fuel Pressure Adapter for Ford 7.3L Power Stroke
Fuel Pressure Adapter for Ford 7.3L Power Stroke
  • Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
  • No Need to Cut Factory Fuel Lines
  • Replaces Pressure Port Fitting
  • Features O-Ring for Leak-Free Seal
  • Female 1/8-27 NPT Thread for Sensor
  • Fits 1999-2002 Ford 7.3L Power Stroke
Fuel Pressure Adapter for Ford 6.0L Power Stroke
Fuel Pressure Adapter for Ford 6.0L Power Stroke
  • Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
  • No Need to Cut Factory Fuel Lines
  • Replaces Pressure Port Fitting
  • Features O-Ring for Leak-Free Seal
  • Female 1/8-27 NPT Thread for Sensor
  • Fits 2003-2007 Ford 6.0L Power Stroke
1/2 Transmission Cooler Line T-Fitting Adapter
1/2” Transmission Cooler Line T-Fitting Adapter
  • Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line
  • Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
  • Female 1/8-27 NPT Thread on T-Fitting for Sensor
3/8 Transmission Cooler Line T-Fitting Adapter
3/8” Transmission Cooler Line T-Fitting Adapter
  • Allows Installation of Temperature Sensor to the 3/8” Transmission Cooler Line
  • Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
  • Female 1/8-27 NPT Thread on T-Fitting for Sensor
Expandable Circuit
Expandable Circuit
  • Quick & Easy Way to Power Gauges Directly from the Fuse Panel
  • Used for Constant & Switched 12 Volt Power for Gauges
  • Includes 4 Amp Fuse for Circuit Protection
60 PSI Boost 1500° F Pyrometer EGT Transmission Temperature 100 PSI Fuel Pressure

Instruction Options

This Elite 10 Color Series Dual Gauge Package comes with an installation guide which is available online and in print and was made specifically for any 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine.

Watch the 7.3L Installation Video
Watch the 6.0L Installation Video
Download and Print the PDF 1999-2007 Ford Powerstroke  Install Guide
Gauge Types

Select Your Gauges

Select your gauges from a variety of different gauge types below which are available for this custom Elite 10 Color Gauge Series Package. You can also reference our Tech Picks at the beginning of this list for our top recommendations that are specific to this vehicle. With gauges made to monitor a wide range of engine applications, GlowShift is sure to have the gauge types you’re looking for to create a customized package.

Tech Pick
30 PSI Boost/Vacuum
30 PSI Boost/Vacuum
  • Reads Boost from 0 - 30 PSI
  • Reads Vacuum from (-30) - 0 inHG
  • Electronic Sensor, 6' Clear PVC Hose, T-Fitting & Filter
  • 2' Power & 6' Sensor Wire Harnesses
Tech Pick
60 PSI Boost
60 PSI Boost
  • Reads Boost from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 6' Sensor Wire Harness
Tech Pick
1500° F Pyrometer EGT
1500° F Pyrometer EGT
  • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
  • 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • 2' Power & 6' Sensor Wire Harnesses
Tech Pick
2200° F Exhaust Gas Temperature
2200° F Exhaust Gas Temperature
  • Reads Exhaust Temperature from 200 - 2200° Fahrenheit
  • 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • 2' Power & 6' Sensor Wire Harnesses
Tech Pick
Transmission Temperature
Transmission Temperature
  • Reads Transmission Temperature from 80 - 260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Power & 8' Sensor Wire Harnesses
  • Recommended For Vehicles with Automatic Transmission
Tech Pick
Water (Coolant) Temperature
Water (Coolant) Temperature
  • Reads Coolant Temperature from 100 - 280° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Power & 8' Sensor Wire Harnesses
Tech Pick
Oil Temperature
Oil Temperature
  • Reads Oil Temperature from 100 - 280° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Power & 8' Sensor Wire Harnesses
Tech Pick
30 PSI Fuel Pressure
30 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 30 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 6' Sensor Wire Harnesses
Tech Pick
100 PSI Fuel Pressure
100 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 6' Sensor Wire Harnesses
Tech Pick
Oil Pressure
Oil Pressure
  • Reads Oil Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 6' Sensor Wire Harnesses
Tech Pick
Nitrous Pressure
Nitrous Pressure
  • Reads NOS Pressure from 0 - 1,600 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 6' Sensor Wire Harnesses
Tech Pick
Volt Gauge
Volt Gauge
  • Reads Vehicle Electrical System Voltages from 8 - 18 DC Volts
  • 1' Power Wire Harness
Tech Pick
Vacuum Gauge
Vacuum Gauge
  • Reads Vacuum from (-30) - 0 inHG
  • Electronic Sensor, 6' Clear PVC Hose, T-Fitting & Filter
  • 2' Power & 6' Sensor Wire Harnesses
Tech Pick
Narrowband Air/Fuel Ratio
Narrowband Air/Fuel Ratio
  • Reads & Indicates Lean, Rich & Optimal AFR
  • 2' Power & 6' Sensor Wire Harness
Tech Pick
Wideband Air/Fuel Ratio
Wideband Air/Fuel Ratio
  • Reads Air/Fuel Ratio from 10 - 20 AFR
  • Analog Needle
  • Wideband Oxygen Sensor
  • Digital Wideband Controller Unit with Data Logging
  • Weld-In Sensor Bung
  • Power & Sensor Wire Harnesses
Tech Pick
Tachometer
Tachometer
  • Reads Vehicle’s RPM from 0 - 10,000
  • 1 - 10 Cylinder Setting Switch on Back of Gauge
  • 2' Power Wire Harness
Tech Pick
Fuel Level
Fuel Level
  • Reads Fuel Level from Empty, ¼, ½, ¾ & Full
  • 2' Power & 6' Sensor Wire Harnesses
Add-Ons

Optional Installation Accessories

Looking for an adapter that helps to simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. GlowShift carries a wide variety of accessories to help with the installation process for your gauge package. Choose from a diverse selection of adapters, wiring harnesses and much more that will cover everything you need and make the process even easier as you install your gauges.

Instructions

Product Reviews

  • Boost/trans temp gauges
    3

    Posted by Sean on May 06, 2019

    Installed gauges last week. They work as advertised. Instructions were well written. However, the trans sensor wires were about 1' too short. Just a pain in the butt, but not a deal breaker. Then I cut into the extension to splice in some 16 gauge wire, however the glowshift wire is super thin, 20ga or less. Too small to work with typical electrical crimp fittings. So I decided to solder it. Then the insulation was so cheap that it started melting up the wire before the solder melted. I've been performing electrical work on cars, trucks, and boats for 20 years and have decent tools. Next criticism is the dimming mode. 30% is not nearly enough. They're way too bright at night. Maybe that's why they created the tinted series?
