2007-2013 GMC Sierra Duramax Custom Elite Gauge Package
  • 2007-2013 GMC Sierra Duramax Custom Elite Gauge Package
  • 2007-2013 GMC Sierra Duramax Custom Elite Gauge Package

Elite 10 Color Series Triple Gauge Package for 2007-2013 GMC Sierra Duramax

| Write A Review
SKU:
GS-380.1-ET-PKG

Maximum Purchase:
99 unit(s)
$249.99 $399.99 (You save $150.00)

  • Same Day ShippingPlace Order by 3PM Eastern

  • One Year
    Limited Warranty

  • Free Installation Support

  • Free Shipping Over $50Contiguous USA

Gauge Package Features:

Elite 10 Color Series Gauges
  • Three Elite 10 Color Series Gauges with choice of Black Face
    with a Tinted Lens or White Face with a Clear Lens
  • Gauge Specific Sensors, Probes and Instructions
  • All Pod Mounting Hardware
  • Free Lifetime Technical Support
  • One Year Limited Warranty
2007-2013 GMC Sierra Triple Pillar Pod
  • Full Size Tan Triple Pillar Pod w Speaker Cut Out
  • Holds (3) 2 1/16" (52mm) Gauges
  • Holds Factory A-Pillar Speaker
  • Crafted from the Highest Quality ABS Plastic Available
  • Includes Mounting Hardware & Instructions
  • One Year Limited Warranty & Free Lifetime Technical Support
GlowShift Elite 10 Color Series Gauges:

Custom Gauge Package

This GlowShift Custom Elite Series Gauge Package includes three 2 1/16th inch (52mm) Elite 10 Color Series Gauges that are available in two different options which include a black face gauge with a tinted lens or a white face gauge with a clear lens. GlowShift’s Elite 10 Color Series Gauges utilize electronic sensors and probes ensuring all readings are extremely accurate, as well as stepper motor technology which allows for smooth and precise needle movement. Also included with the Elite Gauge Series is a peak recall function that gives you instant vehicle feedback and programmable high and low warnings that will alert you visually and/or audibly if you reach high or low danger levels. Every 10 Color Series Gauge features an illuminated red needle that will sweep 270 degrees for maximum accuracy, as well as our ten color LED technology that allows you to change the backlighting color of the gauge to match your factory dash or to add a custom look to your interior. Ten solid backlight colors are available, as well as a color cycle and color fade mode, and a color recall feature is built into each gauge letting it remember the last color setting the gauge was on prior to turning the vehicle off. Listed below are the gauge types available with this package, as well as included gauge accessories.

NOTE: DURAMAX ENGINE MUST HAVE AFTERMARKET LIFT PUMP INSTALLED FOR FUEL PRESSURE GAUGE TO WORK

GM Duramax Gauge Recommendation:

Elite 10 Color 60 PSI Boost Gauge
60PSI Boost Gauge
  • Electronically Driven
  • Reads Boost from 0 - 60 PSI
  • Electronic Pressure Sensor
  • Includes 6ft. Sensor Harness
1500° Pyrometer EGT Gauge
1500° Pyrometer EGT Gauge
  • Electronically Driven
  • Reads Exhaust Gas Temperature from 0 - 1500 Degrees Fahrenheit
  • Includes Electronic EGT Probe
  • Includes 6ft. Steel Braided Thermocouple Wire
Transmission Temperature Gauge
Transmission Temperature Gauge
  • Electronically Driven
  • Reads Transmission Temperature from 80 - 260 Degrees Fahrenheit
  • Includes Electronic Temperature Sensor
  • Includes 6ft. Sensor Harness
  • Recommended For Vehicles with Automatic Transmission
Elite 100psi Fuel Pressure Gauge
30PSI Fuel Pressure Gauge
  • Electronically Driven
  • Reads Fuel Pressure from
    0 - 30 PSI
  • Includes Electronic Pressure Sensor
  • Includes 6ft. Sensor Harness

Gasoline Truck Gauge Recommendation:

2200 Exhaust Temperature Gauge
2200° Exhaust Temperature
  • Electronically Driven
  • Reads Exhaust Gas Temperature from 0 - 2200 Degrees Fahrenheit
  • Includes Electronic EGT Probe
  • Includes 6ft. Steel Braided Thermocouple Wire
100 PSI Fuel Pressure Gauge
100 PSI Fuel Pressure
  • Electronically Driven
  • Reads Fuel Pressure from
    0 - 100 PSI
  • Includes Electronic Pressure Sensor
  • Includes 6ft. Sensor Harness
Transmission Temperature Gauge
Transmission Temperature
  • Includes Electronic Temperature Sender and Wire Harness
  • Reads Transmission Temperature from 80-260 Degrees Fahrenheit
  • Recommended For Vehicles with Automatic Transmission
Water Temperature Gauge
Water Temperature
  • Electronically Driven
  • Reads Water Temperature from 100 - 280 Degrees Fahrenheit
  • Includes Electronic Temperature Sensor
  • Includes 6ft. Sensor Harness
Triple Pillar Pod Options:

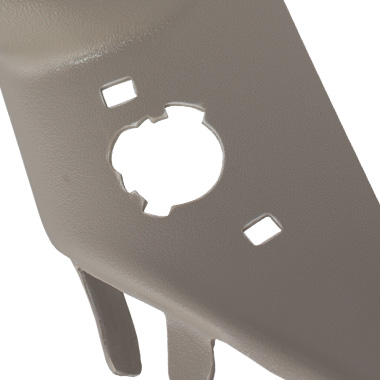

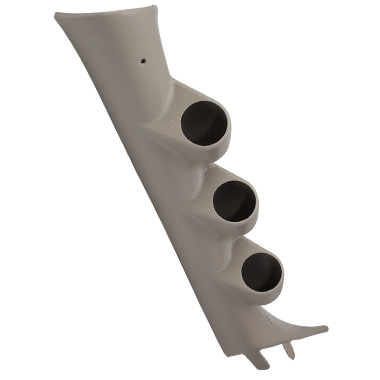

2007-2013 GMC Sierra Triple Pillar Pod

The included tan triple pillar pod is specifically designed for the 2007-2013 GMC Sierra Duramax, Excluding 2007 Classic, and will replace your existing A-pillar for a custom fit and factory look. This pod holds three 52mm or 2 1/16th inch gauges, as well as your factory A-pillar speaker and is crafted from the highest quality ABS plastic allowing it to withstand cracking, fading, and warping. GlowShift includes a one year limited warranty and lifetime technical support with every custom gauge package that is purchased.

Fits: 2007, 2008, 2009, 2010, 2011, 2012, 2013 GMC Sierra
Excluding 2007 GMC Sierra Classic Body Style
1/8-27 NPT Drill & Tap Set
1/8-27 NPT Drill & Tap Set
  • Used for Installing EGT Probe, Boost Fittings or Boost Sensor
  • Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
  • Includes Size R Drill Bit & 1/8 NPT Tap
Fuel Pressure Adapter for 6.6L Duramax
Fuel Pressure Adapter for 6.6L Duramax
  • Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
  • Aftermarket Lift Pump is Required for Fuel Pressure Gauges
  • Replaces the Factory Bleeder Screw
  • Features O-Ring for Leak-Free Seal
  • Female 1/8-27 NPT Thread for Sensor
  • Fits 2001-2017 GM Duramax 6.6L
Fuel Rail Adapter for Chevrolet LS Engines
Fuel Rail Adapter for Chevrolet LS Engines
  • Quick & Easy Install of Fuel Pressure Sensor to Fuel Rail
  • Replaces the Schrader Valve
  • Includes 90° Brass Fitting to Ensure Proper Clearance
  • Female 1/8-27 NPT Thread for Sensor
  • Fits Any GM 5.3L/6.0L LS1, LS2, LS3, LS6 & LT1 Engines
Test Port Adapter for GM Allison 1000
Test Port Adapter for GM Allison 1000
  • Quick & Easy Install of Temperature Sensor to Transmission Test Port
  • Threads onto Temperature Sensor for Protection from Internal Transmission Parts
  • Includes O-Ring for Leak-Free Seal
  • No Modifications to Transmission Necessary
  • Female 1/8-27 NPT Thread for Sensor
  • Fits 2000-2017 Chevy Silverado/GMC Sierra
Transmission Cooler Line T-Fitting Adapter for GM Allison 1000
Transmission Cooler Line T-Fitting Adapter for GM Allison 1000
  • Allows Installation of Temperature Sensor to the 5/8” Transmission Cooler Line
  • Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
  • Female 1/8-27 NPT Thread on T-Fitting for Sensor
  • Fits 2000-2013 Chevy Silverado/GMC Sierra
Expandable Circuit
Expandable Circuit
  • Quick & Easy Way to Power Gauges Directly from the Fuse Panel
  • Used for Constant & Switched 12 Volt Power for Gauges
  • Includes 4 Amp Fuse for Circuit Protection
Make
GMC
Model
Sierra
Gauge Series
Elite 10 Color Series
Gauge Series
White Elite 10 Color Series
Pod
Triple
Color
Tan
Size
52mm
Year Range
2007 - 2013
Year
2007
Year
2008
Year
2009
Year
2010
Year
2011
Year
2012
Year
2013
GoogleTitle
GlowShift 07-13 GMC 6.6 LML LMM Duramax Sierra 2500 3500 Diesel Gauge Set - Triple Pillar Pod & Mounting Kit - 2-1/16" | 52mm - Elite 10 Color Package
