Elite 10 Color Series Triple Gauge Package for 2008-2010 Ford Super Duty Power Stroke

SKU:
GS-375-ET-PKG
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

$399.99
$259.99
(You save $140.00 )

UPC:
842559108628
Maximum Purchase:
99 units
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

Build a customizable GlowShift triple gauge package for any 2008-2010 Ford Super Duty F-250/F-350 with a 6.4L Power Stroke. This package features the Elite 10 Color Gauge Series, which includes 10 different solid color options and an ultra-bright analog LED gauge display. You’ll also have the choice of 3 gauges from a wide and diverse selection, with many gauges including their required sensor. As part of this gauge package you will also select a black or factory color matched gray triple pillar gauge pod which mounts to the Super Duty’s factory A-pillar for a custom fit and finish.


Gauge Series Details

The Elite 10 Color Gauge Series includes ultra-bright LED analog gauges that feature a streamlined design with a flat gauge face, black gauge dial, magnified tinted lens and illuminated red needle. With selectable 10 color through dial lighting for the easy-to-read display, you can choose between 10 solid color options to create a custom look. The 10 solid colors include Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber. Built-in stepper motor technology allows for incredibly smooth movement, resulting in extremely accurate readings. In addition to the solid color settings, you will also have (2) Color Cycle Modes which cycle through all of the solid color options. Color Fade Mode slowly navigates and fades through each of the colors. Additional features include a Color Recall capability so that your gauge will remember the last color setting used before it was turned off. Adjustable High and Low Warning functions will alert you visually or with an optional audible tone, ensuring levels are not running too high or too low. Peak Recall provides you with instant feedback on your last peak value. For even better visibility at night, there is an easy-to-use Dimming Feature which dims the gauge 30% for clearer viewing.

Elite 10 Color Gauge Series
Elite 10 Color Series
  • Black Gauge Dial
  • Tinted Magnified Lens
  • 7/8” Depth for Lens
  • Illuminated Red Needle
Elite 10 Color Gauge Series
Customizable Color Display
  • Ultra-Bright LED Lighting
  • 10 Solid Color Settings
  • Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber
  • Color Cycle & Color Fade Modes
Elite 10 Color Gauge Series
Nighttime Dimming
  • Dimmer Wire Dims Gauge 30%
  • Reduce Brightness When Driving at Night
  • Works When your Headlights are Turned On
  • Activate with a Simple Connection
Elite 10 Color Gauge Series
High and Low Warning Function
  • High and Low Readouts
  • Set Your Preferred Levels
  • Audible Tone or Visual Alert
  • Easy to Program
Elite 10 Color Gauge Series
Peak Recall Ability
  • Peak Setting Mode
  • Recalls Last Peak Value
  • Quick Intuitive Feedback
  • Optional Feature
Elite 10 Color Gauge Series
Wiring for Installation
  • 2’ Power Harness with Each Gauge
  • Plug ‘n Play Connectors
  • Gauges Daisy-Chain Together
  • Power All Gauges Thru 1

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your 08-10 Ford Super Duty. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your diesel engine.

60 PSI Boost Gauge
60 PSI Boost
  • Reads Boost from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 6' Sensor Wire Harness
1500° F Pyrometer EGT
1500° F Pyrometer EGT
  • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
  • 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • 2' Power & 6' Sensor Wire Harnesses
Transmission Temperature
Transmission Temperature
  • Reads Transmission Temperature from 80 - 260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Power & 8' Sensor Wire Harnesses
  • Recommended For Vehicles with Automatic Transmission
100 PSI Fuel Pressure
Oil Pressure
  • Reads Oil Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 6' Sensor Wire Harnesses

Pillar Pod Details

The included full size, factory matched triple pillar pod is made specifically for the 2008-2010 Ford Super Duty Power Stroke F-250 and F-350 with a 6.4L Power Stroke Diesel V8. Select from black or gray and this pod can be effectively mounted to your factory A-pillar. This pillar gauge pod holds (3) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. The gray pod features a UV protective coating that preserves the color from exposure to sunlight so that it always matches the factory trim of the truck. The black pod can be painted using ABS plastic paint for a fully custom fit and finish. Fits: 08, 09, 10 Ford Super Duty, F-250, F-350.

Pillar Pods
  • Holds (3) 2-1/16” (52mm) Gauges
  • Black or Gray Pillar Pod
  • Made from ABS Plastic
  • Withstands Cracking, Fading and Warping

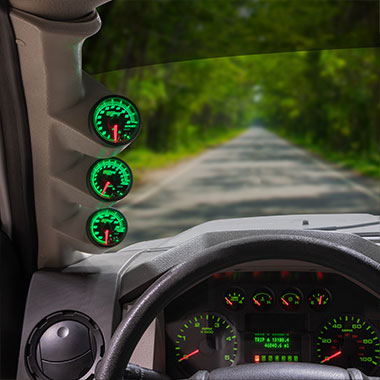

Pillar Pod Installed
  • Overlay of Factory A-Pillar
  • Full Length Gauge Pod
  • Match to Your Factory Interior
  • Professional Fit and Finish
Pillar Pod Hardware
  • Push-In Fasteners
  • Color Matched to Pod
  • Drill to Install
  • Easy to Install Pod

Fitment Details

Year Make Model Engine
2008 Ford Super Duty, F-250 & F-350 6.4L Power Stroke
2009 Ford Super Duty, F-250 & F-350 6.4L Power Stroke
2010 Ford Super Duty, F-250 & F-350 6.4L Power Stroke
1/8-27 NPT Drill & Tap Set
1/8-27 NPT Drill & Tap Set
  • Used for Installing EGT Probe, Boost Fittings or Boost Sensor
  • Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
  • Includes Size R Drill Bit & 1/8 NPT Tap
Expandable Circuit
Expandable Circuit
  • Quick & Easy Way to Power Gauges Directly from the Fuse Panel
  • Used for Constant & Switched 12 Volt Power for Gauges
  • Includes 4 Amp Fuse for Circuit Protection
60 PSI Boost 1500° F Pyrometer EGT Transmission Temperature Oil Pressure

Installation Guides

This Elite 10 Color Series Triple Gauge Package comes with an installation guide which is available online and in print for the 2008-2010 Ford Super Duty Power Stroke F-250 and F-350 with a 6.4L Power Stroke Diesel V8. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift gauges and pods.

Watch the Installation Video
Download and Print the PDF 08 - 10 Ford Super Duty 6.4L Power Stroke Install Guide
Gauge Types

Select Your Gauges

Select your gauges from a variety of different gauge types below which are available for this custom Elite 10 Color Gauge Series Package. You can also reference our Tech Picks at the beginning of this list for our top recommendations that are specific to this vehicle. With gauges made to monitor a wide range of engine applications, GlowShift is sure to have the gauge types you’re looking for to create a customized package.

Tech Pick
30 PSI Boost/Vacuum
30 PSI Boost/Vacuum
  • Reads Boost from 0 - 30 PSI
  • Reads Vacuum from (-30) - 0 inHG
  • Electronic Sensor, 6' Clear PVC Hose, T-Fitting & Filter
  • 2' Power & 6' Sensor Wire Harnesses
Tech Pick
60 PSI Boost
60 PSI Boost
  • Reads Boost from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 9' Sensor Wire Harness
Tech Pick
1500° F Pyrometer EGT
1500° F Pyrometer EGT
  • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
  • 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • 2' Power & 6' Sensor Wire Harnesses
Tech Pick
2200° F Exhaust Gas Temperature
2200° F Exhaust Gas Temperature
  • Reads Exhaust Temperature from 200 - 2200° Fahrenheit
  • 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • 2' Power & 6' Sensor Wire Harnesses
Tech Pick
Transmission Temperature
Transmission Temperature
  • Reads Transmission Temperature from 80 - 260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Power & 8' Sensor Wire Harnesses
  • Recommended For Vehicles with Automatic Transmission
Tech Pick
Water (Coolant) Temperature
Water (Coolant) Temperature
  • Reads Coolant Temperature from 100 - 280° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Power & 8' Sensor Wire Harnesses
Tech Pick
Oil Temperature
Oil Temperature
  • Reads Oil Temperature from 100 - 280° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 2' Power & 8' Sensor Wire Harnesses
Tech Pick
30 PSI Fuel Pressure
30 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 30 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 9' Sensor Wire Harnesses
Tech Pick
100 PSI Fuel Pressure
100 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 9' Sensor Wire Harnesses
Tech Pick
Oil Pressure
Oil Pressure
  • Reads Oil Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 9' Sensor Wire Harnesses
Tech Pick
Nitrous Pressure
Nitrous Pressure
  • Reads NOS Pressure from 0 - 1,600 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 2' Power & 9' Sensor Wire Harnesses
Tech Pick
Volt Gauge
Volt Gauge
  • Reads Vehicle Electrical System Voltages from 8 - 18 DC Volts
  • 1' Power Wire Harness
Tech Pick
Vacuum Gauge
Vacuum Gauge
  • Reads Vacuum from (-30) - 0 inHG
  • Electronic Sensor, 6' Clear PVC Hose, T-Fitting & Filter
  • 2' Power & 6' Sensor Wire Harnesses
Tech Pick
Narrowband Air/Fuel Ratio
Narrowband Air/Fuel Ratio
  • Reads & Indicates Lean, Rich & Optimal AFR
  • 2' Power & 6' Sensor Wire Harness
Tech Pick
Wideband Air/Fuel Ratio
Wideband Air/Fuel Ratio
  • Reads Air/Fuel Ratio from 10 - 20 AFR
  • Analog Needle
  • Wideband Oxygen Sensor
  • Digital Wideband Controller Unit with Data Logging
  • Weld-In Sensor Bung
  • Power & Sensor Wire Harnesses
Tech Pick
Tachometer
Tachometer
  • Reads Vehicle’s RPM from 0 - 10,000
  • 1 - 10 Cylinder Setting Switch on Back of Gauge
  • 2' Power Wire Harness
Tech Pick
Fuel Level
Fuel Level
  • Reads Fuel Level from Empty, ¼, ½, ¾ & Full
  • 2' Power & 6' Sensor Wire Harnesses
Add-Ons

Optional Installation Accessories

Looking for an adapter that helps to simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. GlowShift carries a wide variety of accessories to help with the installation process for your gauge package. Choose from a diverse selection of adapters, wiring harnesses and much more that will cover everything you need and make the process even easier as you install your gauges.
