MaxTow Dual Gauge Package for 1999-2007 Ford Super Duty Power Stroke

MaxTow's Double Vision® Series Full Size Dual Gauge Package was made for the 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with a 6.0L or 7.3L Power Stroke engine. Experience complete customization when you select from 15 gauges for this 2-gauge set which comes with all required sensors. This package also includes your choice between a tan or gray Ford Super Duty full size dual pillar pod. With the innovative Double Vision® Gauge Series, you’ll experience both digital and analog readouts on your choice of several unique ultra-bright LED displays.

Gauge Series Details

Multiple color and style combinations are available for complete customization of your high-performance 2-1/16” (52mm) gauges. The Double Vision® Gauge Series gives you the classic look of an analog gauge with an illuminated red needle while simultaneously displaying an easy-to-read digital numeric readout. Choose from either a black or white gauge face and a blue or green LED display. These gauges feature stepper motor technology which allows for smooth needle movement and extremely accurate gauge readings. You’ll also have the option of three daytime and three nighttime dimming modes with three customizable brightness settings (low, medium, high) for each. Choose from a variety of different gauge types to fully customize your gauge package. MaxTow also includes all sensors, wiring, mounting hardware and a one-year limited warranty. Get ready to hit the road and Tow to the Max®!

High Performance Gauges Gauges Measure 2-1/16” (52mm) Depth Measures 1-5/16” Magnified Lens Power and Sensor Wires Mounting Hardware

Double Vision® Gauge Series Digital and Analog Readings Black or White Gauge Face Ultra-Bright Blue or Green LED Display Illuminated Red Needle Stepper Motor Technology

6 Dimming Modes Daytime and Nighttime Dimming Modes 3 Customizable Brightness Settings for Each Continue to Easily View Readings Select with Button on Gauge Face Gauge Displays Last Setting When Reactivated

Plug and Play Connectivity Plug and Play Connectors on Power & Sensor Wires Both Wires Easily Snap Into the Back of the Gauge Extended Wire Lengths For Installation Quick and Easy Install Even Faster Readouts with an Electronic Gauge

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Ford Super Duty. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

60 PSI Boost Reads Boost from 0 - 60 PSI 1/8-27 NPT Electronic Pressure Sensor 9' Sensor & 5’ Power Wire Harnesses

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable Includes 5' Power & 6' Sensor Wire Harnesses Waterproof EGT Probe to Sensor Harness Connector

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 9' Sensor & 5' Power Harnesses Waterproof Sensor to Sensor Harness Connector

100 PSI Fuel Pressure Reads Fuel Pressure from 0 - 100 PSI 1/8-27 NPT Electronic Fuel Pressure Sensor 9' Sensor & 5' Power Wire Harnesses

Pillar Pod Details

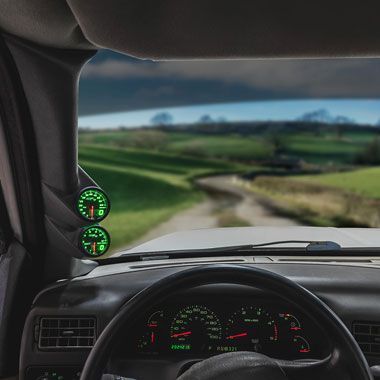

The included full size, factory matched dual pillar pod is made specifically for the 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine. Select from gray or tan, and this pod can be effectively mounted to your existing A-pillar. This pillar gauge pod holds (2) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. It can also be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish. Fits: 99, 00, 01, 02, 03, 04, 05, 06, 07 Ford Super Duty, F-250, F-350

Holds (2) 2-1/16” (52mm) Gauges Choose Between Gray or Tan Made from ABS Plastic Withstands Cracking, Fading and Warping

Overlay of Factory A-pillar Full Length Gauge Pod Match to Your Factory Interior Professional Fit and Finish

Push-In Fasteners Color Matched to Pod Drill to Install Easy to Install Pod

Fitment Details

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	MAP Line T-Fitting Adapter Quick & Easy Install of Boost Hose or Sensor into the 3/16” MAP Line Cut the Line, Insert the T-Fitting & Secure with Included Clamps Avoid Drilling & Tapping the Intake Manifold Female 1/8-27 NPT Thread for Fittings/Sensor Fits 1999-2002 Ford 7.3L Power Stroke Fits 2003-2007 Ford 6.0L Power Stroke	Air Intake Heater Boost Plug Adapter Quick & Easy Install of Boost Hose or Sensor to the Air Intake Remove the Restrictive Heater Plug & Thread Adapter in its Place No Drilling or Tapping Required Female 1/8-27 NPT Thread for Fittings/Sensor Fits 1999.5-2002 Ford Super Duty 7.3L Power Stroke Fits 2001-2004 GM 6.6L Duramax	Fuel Pressure Adapter for Ford 7.3L Power Stroke Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing No Need to Cut Factory Fuel Lines Replaces Pressure Port Fitting Features O-Ring for Leak-Free Seal Female 1/8-27 NPT Thread for Sensor Fits 1999-2002 Ford 7.3L Power Stroke
Fuel Pressure Adapter for Ford 6.0L Power Stroke Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing No Need to Cut Factory Fuel Lines Replaces Pressure Port Fitting Features O-Ring for Leak-Free Seal Female 1/8-27 NPT Thread for Sensor Fits 2003-2007 Ford 6.0L Power Stroke	1/2” Transmission Cooler Line T-Fitting Adapter Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor	3/8” Transmission Cooler Line T-Fitting Adapter Allows Installation of Temperature Sensor to the 3/8” Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor	HPOP Gauge Wiring Pigtail Harness Quick & Easy Installation Without Having to Splice or Cut into Factory Wires Connects Directly to Injector Control Pressure (ICP) Sensor Plug & Play Fits 1999-2002 7.3L Power Stroke Fits 2003-2007 6.0L Power Stroke
Water Temp Adapter for Ford 6.0L Power Stroke Quick & Easy Install of Water Temp Sensor to the Engine Block Remove the Block Off Plug & Thread in the Adapter No Major Modifications Required Female 1/8-27 NPT Thread for Temp Sensor Fits 2003-2007 Ford 6.0L Power Stroke	Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features a 1-1/2"-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal Fits 1994-2003 Ford Super Duty 7.3L Power Stroke	Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes 4 Amp Fuse for Circuit Protection	MaxTow 2 Gauge Power Wire Harness Used to Easily Power 2 Gauges from 1 Harness that Connects to Power Daisy Chain Feature with Each Connector Plugging into Each Gauge Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod 6-1/2’ of Total Wire

Instruction Options

This Double Vision® Series Full Size Dual Gauge Package comes with product instructions that provide complete details on how to install your gauges and pod for the 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine. You can also view installation videos which include step-by-step tutorials and useful tips on how to install several MaxTow products.

Watch the 7.3L Installation Video

Watch the 6.0L Installation Video

Download and Print the PDF
