MaxTow's Double Vision® Series Quad Gauge Package was made for the 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with a 6.0L or 7.3L Power Stroke engine. Experience complete customization when you select from 15 gauges for this 4-gauge set which comes with all required sensors. This package also includes your choice between a black, tan or gray Ford Super Duty quad pillar pod. With the innovative Double Vision® Gauge Series, you’ll experience both digital and analog readouts on your choice of several unique ultra-bright LED displays.
Gauge Series Details
Multiple color and style combinations are available for complete customization of your high-performance 2-1/16” (52mm) gauges. The Double Vision® Gauge Series gives you the classic look of an analog gauge with an illuminated red needle while simultaneously displaying an easy-to-read digital numeric readout. Choose from either a black or white gauge face and a blue or green LED display. These gauges feature stepper motor technology which allows for smooth needle movement and extremely accurate gauge readings. You’ll also have the option of three daytime and three nighttime dimming modes with three customizable brightness settings (low, medium, high) for each. Choose from a variety of different gauge types to fully customize your gauge package. MaxTow also includes all sensors, wiring, mounting hardware and a one-year limited warranty. Get ready to hit the road and Tow to the Max®!
High Performance Gauges
Gauges Measure 2-1/16” (52mm)
Depth Measures 1-5/16”
Magnified Lens
Power and Sensor Wires
Mounting Hardware
Double Vision® Gauge Series
Digital and Analog Readings
Black or White Gauge Face
Ultra-Bright Blue or Green LED Display
Illuminated Red Needle
Stepper Motor Technology
6 Dimming Modes
Daytime and Nighttime Dimming Modes
3 Customizable Brightness Settings for Each
Continue to Easily View Readings
Select with Button on Gauge Face
Gauge Displays Last Setting When Reactivated
Plug and Play Connectivity
Plug and Play Connectors on Power & Sensor Wires
Both Wires Easily Snap Into the Back of the Gauge
Extended Wire Lengths For Installation
Quick and Easy Install
Even Faster Readouts with an Electronic Gauge
Diesel Tech Picks
Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Ford Super Duty. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.
60 PSI Boost
Reads Boost from 0 - 60 PSI
1/8-27 NPT Electronic Pressure Sensor
9' Sensor & 5’ Power Wire Harnesses
1500° F Pyrometer EGT
Reads Exhaust Temperature from 0 - 1500° Fahrenheit
Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
Includes 5' Power & 6' Sensor Wire Harnesses
Waterproof EGT Probe to Sensor Harness Connector
Transmission Temperature
Reads Transmission Temperature from 80 - 260° Fahrenheit
1/8-27 NPT Electronic Temperature Sensor
9' Sensor & 5' Power Harnesses
Waterproof Sensor to Sensor Harness Connector
100 PSI Fuel Pressure
Reads Fuel Pressure from 0 - 100 PSI
1/8-27 NPT Electronic Fuel Pressure Sensor
9' Sensor & 5' Power Wire Harnesses

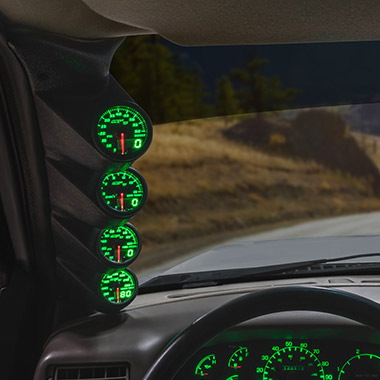

Pillar Pod Details
The included full size, factory matched quad pillar pod is made specifically for the 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine. Select from black, gray or tan, and this pod can be effectively mounted to your existing A-pillar. This pillar gauge pod holds (4) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. It can also be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish.
Fits: 99, 00, 01, 02, 03, 04, 05, 06, 07 Ford Super Duty, F-250, F-350
Holds (4) 2-1/16” (52mm) Gauges
Choose Between Black, Gray or Tan
Made from ABS Plastic
Withstands Cracking, Fading and Warping
Overlay of Factory A-pillar
Full Length Gauge Pod
Match to Your Factory Interior
Professional Fit and Finish
Push-In Fasteners
Color Matched to Pod
Drill to Install
Easy to Install Pod
Fitment Details
Year
Make
Model
Engine
1999
Ford
Super Duty, F-250 & F-350
7.3L Power Stroke
2000
Ford
Super Duty, F-250 & F-350
7.3L Power Stroke
2001
Ford
Super Duty, F-250 & F-350
7.3L Power Stroke
2002
Ford
Super Duty, F-250 & F-350
7.3L Power Stroke
2003
Ford
Super Duty, F-250 & F-350
6.0L Power Stroke
2004
Ford
Super Duty, F-250 & F-350
6.0L Power Stroke
2005
Ford
Super Duty, F-250 & F-350
6.0L Power Stroke
2006
Ford
Super Duty, F-250 & F-350
6.0L Power Stroke
2007
Ford
Super Duty, F-250 & F-350
6.0L Power Stroke
1/8-27 NPT Drill & Tap Set
Used for Installing EGT Probe, Boost Fittings or Boost Sensor
Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
Includes Size R Drill Bit & 1/8 NPT Tap
MAP Line T-Fitting Adapter
Quick & Easy Install of Boost Hose or Sensor into the 3/16” MAP Line
Cut the Line, Insert the T-Fitting & Secure with Included Clamps
Avoid Drilling & Tapping the Intake Manifold
Female 1/8-27 NPT Thread for Fittings/Sensor
Fits 1999-2002 Ford 7.3L Power Stroke
Fits 2003-2007 Ford 6.0L Power Stroke
Air Intake Heater Boost Plug Adapter
Quick & Easy Install of Boost Hose or Sensor to the Air Intake
Remove the Restrictive Heater Plug & Thread Adapter in its Place
No Drilling or Tapping Required
Female 1/8-27 NPT Thread for Fittings/Sensor
Fits 1999.5-2002 Ford Super Duty 7.3L Power Stroke
Fits 2001-2004 GM 6.6L Duramax
Fuel Pressure Adapter for Ford 7.3L Power Stroke
Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
No Need to Cut Factory Fuel Lines
Replaces Pressure Port Fitting
Features O-Ring for Leak-Free Seal
Female 1/8-27 NPT Thread for Sensor
Fits 1999-2002 Ford 7.3L Power Stroke
Fuel Pressure Adapter for Ford 6.0L Power Stroke
Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
No Need to Cut Factory Fuel Lines
Replaces Pressure Port Fitting
Features O-Ring for Leak-Free Seal
Female 1/8-27 NPT Thread for Sensor
Fits 2003-2007 Ford 6.0L Power Stroke
1/2” Transmission Cooler Line T-Fitting Adapter
Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line
Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
Female 1/8-27 NPT Thread on T-Fitting for Sensor
3/8” Transmission Cooler Line T-Fitting Adapter
Allows Installation of Temperature Sensor to the 3/8” Transmission Cooler Line
Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
Female 1/8-27 NPT Thread on T-Fitting for Sensor
HPOP Gauge Wiring Pigtail Harness
Quick & Easy Installation Without Having to Splice or Cut into Factory Wires
Connects Directly to Injector Control Pressure (ICP) Sensor
Plug & Play
Fits 1999-2002 7.3L Power Stroke
Fits 2003-2007 6.0L Power Stroke
Water Temp Adapter for Ford 6.0L Power Stroke
Quick & Easy Install of Water Temp Sensor to the Engine Block
Remove the Block Off Plug & Thread in the Adapter
No Major Modifications Required
Female 1/8-27 NPT Thread for Temp Sensor
Fits 2003-2007 Ford 6.0L Power Stroke
Oil Filter Sandwich Adapter
Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter
Used for Oil Pressure & Oil Temperature Sensors
Features a 1-1/2"-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs
Includes O-Ring for Leak-Free Seal
Fits 1994-2003 Ford Super Duty 7.3L Power Stroke
Expandable Circuit
Quick & Easy Way to Power Gauges Directly from the Fuse Panel
Used for Constant & Switched 12 Volt Power for Gauges
Includes 4 Amp Fuse for Circuit Protection
MaxTow 4 Gauge Power Wire Harness
Used to Easily Power All 4 Gauges from 1 Harness that Connects to Power
Daisy Chain Feature with Each Connector Plugging into Each Gauge
Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod
6-1/2’ of Total Wire
60 PSI Boost1500° F Pyrometer EGTTransmission Temperature100 PSI Fuel Pressure
Instruction Options
This Double Vision® Series Quad Gauge Package comes with product instructions that provide complete details on how to install your gauges and pod for the 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine. You can also view installation videos which include step-by-step tutorials and useful tips on how to install several MaxTow products.
Select your gauges from a variety of different gauge types below which are available for this MaxTow Double Vision® Series Gauge Package. You can also reference our Tech Picks at the beginning of this list for our top recommendations that are specific to this vehicle. With gauges made to monitor a wide range of engine applications, MaxTow is sure to have the types of gauge you’re looking for as part of this custom package.
Tech Pick
30 PSI Boost/Vacuum
Reads Boost from 0 - 30 PSI
Reads Vacuum & Compression Levels from -30 - 0 inHG
3' Hose & T-Fitting
9' Sensor & 5' Power Wire Harnesses
Tech Pick
35 PSI Boost
Reads Boost from 0 - 35 PSI
1/8-27 NPT Electronic Pressure Sensor
9' Sensor & 5' Power Wire Harnesses
Tech Pick
60 PSI Boost
Reads Boost from 0 - 60 PSI
1/8-27 NPT Electronic Pressure Sensor
9' Sensor & 5’ Power Wire Harnesses
Tech Pick
100 PSI Boost
Reads Boost from 0 - 100 PSI
1/8-27 NPT Electronic Pressure Sensor
9' Sensor & 5’ Power Wire Harnesses
Tech Pick
Wideband Air/Fuel Ratio
Reads Air/Fuel Ratio from 10.0 - 20.0
Wideband Oxygen Sensor
Digital Wideband Controller Unit with Data Logging
Weld-In Sensor Bung
Power & Sensor Wire Harnesses
Tech Pick
Oil Pressure
Reads Oil Pressure from 0 - 100 PSI
1/8-27 NPT Electronic Oil Pressure Sensor
9' Sensor & 5' Power Wire Harnesses
Tech Pick
Volt Gauge
Reads Vehicle Electrical System Voltages from 8 - 18 DC Volts
5' Power Wire Harness
Tech Pick
Water (Coolant) Temperature
Reads Water Temperature from 100 - 280° Fahrenheit
1/8-27 NPT Electronic Temperature Sensor
9' Sensor & 5' Power Harnesses
Waterproof Sensor to Sensor Harness Connector
Tech Pick
Oil Temperature
Reads Oil Temperature from 100 - 280° Fahrenheit
1/8-27 NPT Electronic Temperature Sensor
9' Sensor & 5' Power Harnesses
Waterproof Sensor to Sensor Harness Connector
Tech Pick
1500° F Pyrometer EGT
Reads Exhaust Temperature from 0 - 1500° Fahrenheit
Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
Includes 5' Power & 6' Sensor Wire Harnesses
Waterproof EGT Probe to Sensor Harness Connector
Tech Pick
2200° F Exhaust Gas Temperature
Reads Exhaust Temperature from 200 - 2200° Fahrenheit
Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
Includes 5' Power & 6' Sensor Wire Harnesses
Waterproof EGT Probe to Sensor Harness Connector
Tech Pick
Tachometer
Reads Vehicle’s RPM from 0 - 10,000
1 - 10 Cylinder Setting Switch on Back of Gauge
9’ Source & 5' Power Wire Harnesses
Tech Pick
15 PSI Fuel Pressure
Reads Fuel Pressure from 0 - 15 PSI
1/8-27 NPT Electronic Fuel Pressure Sensor
9' Sensor & 5' Power Wire Harnesses
Tech Pick
30 PSI Fuel Pressure
Reads Fuel Pressure from 0 - 30 PSI
1/8-27 NPT Electronic Fuel Pressure Sensor
9' Sensor & 5' Power Wire Harnesses
Tech Pick
100 PSI Fuel Pressure
Reads Fuel Pressure from 0 - 100 PSI
1/8-27 NPT Electronic Fuel Pressure Sensor
9' Sensor & 5' Power Wire Harnesses
Tech Pick
Transmission Temperature
Reads Transmission Temperature from 80 - 260° Fahrenheit
1/8-27 NPT Electronic Temperature Sensor
9' Sensor & 5' Power Harnesses
Waterproof Sensor to Sensor Harness Connector
Tech Pick
Air Pressure
Reads Air Pressure from 0 - 200 PSI
1/8-27 NPT Electronic Pressure Sensor
9' Sensor & 5' Power Wire Harnesses
Tech Pick
Nitrous Pressure
Reads NOS Pressure from 0 - 1,600 PSI
1/8-27 NPT Electronic Pressure Sensor
9' Sensor & 5' Power Wire Harnesses
Tech Pick
Rail Pressure
Reads Fuel Rail Pressure from 0 - 30,000 PSI
9' Sensor & 5' Power Wire Harnesses
Compatible with 2004-2018 Dodge Ram 5.9L & 6.7L Cummins Engines
Compatible with 2002-2016 GM 6.6L Duramax Engine
Tech Pick
HPOP Gauge
Reads HPOP from 0 - 4,000 PSI
9' Sensor & 5' Power Wire Harnesses
Compatible with 7.3L & 6.0L Ford Power Stroke
Tech Pick
Differential Temperature
Reads Diff Temperature from 100 - 250° Fahrenheit
1/8-27 NPT Electronic Temperature Sensor
18' Sensor & 5' Power Harnesses
Waterproof Sensor to Sensor Harness Connector
Tech Pick
Coolant Pressure
Reads Coolant Pressure from 0 - 35 PSI
1/8-27 NPT Electronic Pressure Sensor
9' Sensor & 5' Power Wire Harnesses
Tech Pick
Intake Temperature
Reads Intake Temperature from 0 - 300° Fahrenheit
3/8-18 NPT Electronic Air Temperature Sensor
9' Sensor & 5' Power Harnesses
Waterproof Sensor to Sensor Harness Connector
Tech Pick
Ambient Air Temperature
Reads Outside Air Temperature from -20 - 120° Fahrenheit
Electronic Air Temperature Sensor
18' Sensor & 5' Power Harnesses
Tech Pick
60 PSI Exhaust Pressure
Reads Drive Pressure from 0 - 60 PSI
1/8-27 NPT Electronic Pressure Sensor
5’ of 1/4” Copper Cooling Tubing
9' Sensor & 5' Power Wire Harnesses
Tech Pick
100 PSI Exhaust Pressure
Reads Drive Pressure from 0 - 100 PSI
1/8-27 NPT Electronic Pressure Sensor
5’ of 1/4” Copper Cooling Tubing
9' Sensor & 5' Power Wire Harnesses
Tech Pick
Fuel Level
Reads Truck’s Fuel Level from Empty, 1/4, 1/2, 3/4 & Full & 0 - 100%
Looking for an adapter that helps to simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. GlowShift carries a wide variety of accessories to help with the installation process for your gauge package. Choose from a diverse selection of adapters, wiring harnesses and much more that will cover everything you need and make the process even easier as you install your gauges.
