Tinted 7 Color Dual Intake Temperature Gauge

SKU:
GS-T720
$199.99
$112.99
(You save $87.00 )
UPC:
842559102596
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • One Year Limited Warranty

    One Year
    Limited Warranty

  • Free In-House Support

    Free In-House Support

Overview

GlowShift’s Tinted 7 Color Series Dual Intake Temperature Gauge enables you to monitor the efficiency of your vehicle’s intercooler system with two independent analog needles that read from 0 to 300° Fahrenheit. This 2-1/16” (52mm) dual intercooler air temperature gauge will measure the hot air being forced into your intercooler and the cool air being pushed into the engine.

Tinted 7 Color Series Tinted 7 Color Series

GlowShift’s Tinted 7 Color Gauge Series comes standard with a cutting-edge design that includes a black gauge face, analog display, illuminated red and green needles and low profile magnified tinted lens. You can also choose between 7 different color options for the LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your car or truck by adding a gauge that delivers readings with pinpoint accuracy at the same time.

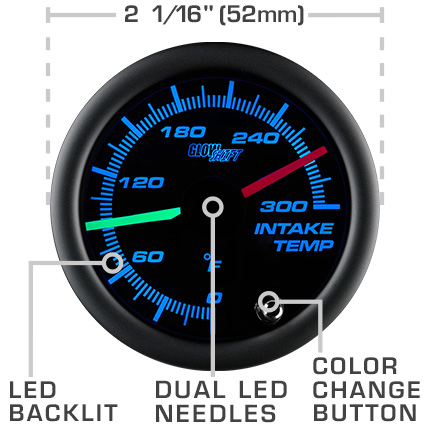

Features

Tinted 7 Color Series Features

The illuminated needles that this gauge is equipped with sweep 270° and are powered by stepper motor technology, giving you an effective combination of incredibly precise gauge readings and extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge.

7 Color Options

Tinted 7 Color Series Color Options

Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle.

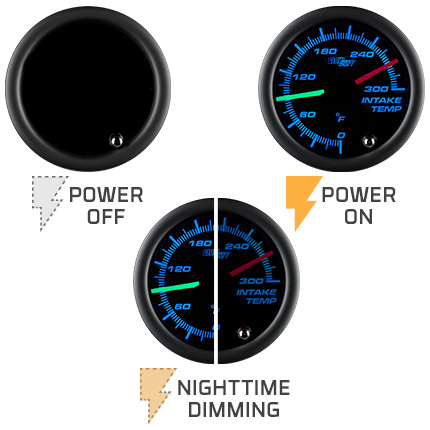

Backlighting

Tinted 7 Color Series Backlighting

This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look amazing courtesy of the black gauge dial and magnified tinted lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you’ll be able to dim the gauge 30% when the headlights are on. This feature will help you to reduce brightness and glare while viewing readings at night.

What's Included

  • 2-1/16” (52mm) Dual Intake Temperature Gauge
  • (2) 3/8-18 NPT Electronic Temperature Sensors
  • (2) Sets Of Bullet-Style Wire Connectors
  • (2) 9’ Sensor Harnesses
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Sensors

Tinted 7 Color Dual Air Intake Temp Wiring

The Electronic Intake Temperature Sensors with 3/8-18 NPT Male Threads can be installed directly to Pre-Intercooler and Post-Intercooler locations, respectively. Take readings from 0 to 300° Fahrenheit with unrivaled accuracy.

Wiring

Tinted 7 Color Dual Air Intake Temp Wiring

A 2’ Power Harness and 9’ Pressure Sensor Harnesses are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation.

Mounting Bracket

Tinted 7 Color Dual Air Intake Temp Mounting Hardware

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Who Needs A Dual Intake Manifold Temperature Gauge?

GlowShift’s intercooler temp gauge was made for any car or truck, monitoring the performance of a gas or diesel engine’s intercooler. An intercooler’s responsibility is cooling hot intake air. This will result in increased power and better engine performance in turbocharged and supercharged engines. Using the best intercooler air temp gauge available to monitor these temperatures will help you ensure that your engine’s intercooler is working optimally.

Optional Weld-In Bungs

Adding the 3/8-18 NPT Weld-In Bung Set allows you to install and thread the Dual Air Intake Gauge Sensors to the pre and post locations of your vehicle’s intercooler. This set features (2) 3/8-18 NPT aluminum thread adapters that are easily welded to the intercooler pipe.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

  • Drill & Tap the Hot & Cold Side of Intercooler Pipe to Install Dual Intake Temperature Sensors
  • Includes 3/8” Drill Bit & 3/8-18 Tap
  • Allows Installation of Dual Intake Temperature Sensors to Intercooler Pipe
  • Includes (2) 3/8-18 NPT Aluminum Weld-In Bungs
Tech Specs
Gauge Series: Tinted 7 Color Series
Brand: GlowShift
Gauge Type: Intake Temperature
Range of Reading: 0 - 300° F
Face Color: Black
Size: 52mm
Lens: Tinted
Backlighting Color: 7 Colors
Sending Unit: Electronic
Measurement Unit: Standard
Display: Analog
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
