GlowShift’s Tinted 7 Color Series High Pressure Oil Pressure HPOP Gauge is electronically driven and reads a truck’s HPOP level from 0 to 4,000 PSI with unrivaled accuracy. Installation involves simply connecting the HPOP Gauge’s sensor wires to the factory Injector Control Pressure Sensor (ICP Sensor). This gauge is a must-have if you’re running a Ford Power Stroke 7.3L or 6.0L diesel engine and you’re looking to monitor the high pressure entering the oil pumps. It is also recommended only for these Power Stroke engines.
Tinted 7 Color Gauge Series

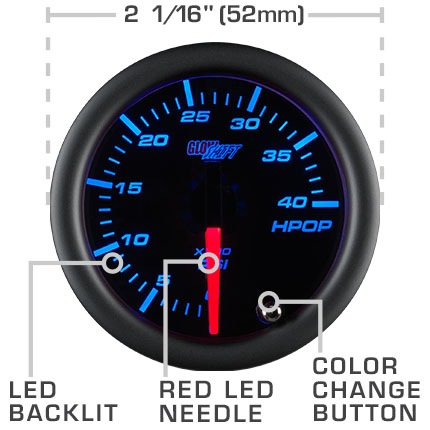

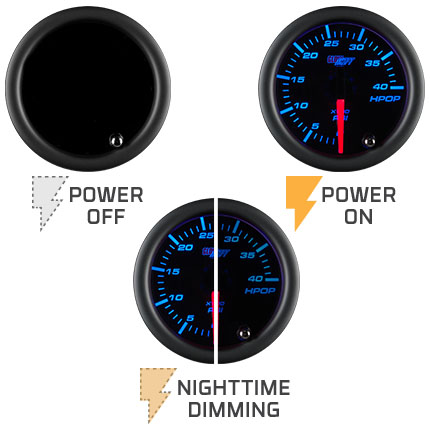

GlowShift’s Tinted 7 Color Gauge Series comes standard with a cutting-edge design that includes a black gauge face, low profile magnified tinted lens and illuminated red and green needles. Whether your gauge is on or off, it will look amazing courtesy of this tinted lens feature which is at the heart of the series and gives your gauge a unique, stealth-like appearance. The Tinted 7 Color Gauge Series comes with the ultra-bright LED solid color modes Blue, Green, Red, Teal, Yellow, Purple and White. Also featured is GlowShift’s 7 Color through dial lighting system which allows you to select and change the color of your gauge lighting display by simply pressing the button located along the front of the high pressure oil pressure gauge. Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes that utilize all of these powerful LED colors. Through these options, you can adjust the color of the gauge to match your truck’s factory dash lights, or you can customize the color and add your own personal touch and style to the inside of your truck. Plus with the Color Memory feature, you won’t have to reset the color of your gauge every time you turn on your vehicle. Your gauge will reflect your most recent color setting the next time it is active. By connecting the orange wire of your gauge to the factory headlight switch, you’ll be able to dim your gauge 30% when your headlights are turned on to reduce the brightness while driving at night.
Why Is HPOP on a Power Stroke Important?
HPOP is integral to a Power Stroke diesel engine because it’s what drives the injectors to supply fuel to the engine. The HPOP system receives oil from the low pressure oil pump in order to drive injectors. The truck’s computer system will then tell the injectors exactly when to fire. Pressure levels can be anywhere within the range of 500 to 3,000 PSI. Having a weak or defective HPOP could starve the injectors for fuel and lead to other fuel system failures. An upgraded HPOP may be required if fuel injectors for the fuel system have been upgraded, ensuring there is a sufficient amount of fuel feeding the engine. A high pressure oil pump gauge will keep you alerted in the event that HPOP levels aren’t optimal. It is also a great option for replacing an HPOP test gauge.
Parts for Installation
GlowShift’s HPOP gauge comes with a wiring harness that includes power, ground and sensor connections and easily snaps into the back of the gauge using Plug and Play Connectors. Wiring for the engine bay is 9.5’ long and the power wire is 2’ long. You’ll also receive a gauge visor which attaches to the gauge and helps prevent sun glare while taking readings. Mounting hardware is also included, along with detailed instructions that will walk you through the entire installation process step-by-step.
Additional Wiring Harness:
GlowShift’s HPOP Gauge Wiring Pigtail Harness eliminates the need to splice into any factory wiring in order to receive readings. This gauge harness installs directly to the injector control pressure sensor, providing extremely accurate readings. The harness features a length of 6” with 9” sensor and ground lead wires.
Note: This engine oil pressure gauge, high pressure specifically, is recommended ONLY for the 7.3L and 6.0L Ford Power Stroke.
GlowShift includes a one year limited warranty and free lifetime tech support with every purchase.
HPOP Gauge Wiring Pigtail Harness
Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.
