White 7 Color 100 PSI Boost Gauge

SKU:
GS-W701_100
$199.99
$56.99
(You save $143.00 )
UPC:
842559121276
Maximum Purchase:
99 units
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • Extended Holiday Returns

    Extended Holiday ReturnsACCEPTED UNTIL JANUARY 31ST

  • Delivery By Christmas

    Delivery By ChristmasCONTIGUOUS US ONLY

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

GlowShift’s White 7 Color Series 100 PSI Boost Gauge is essential for the serious diesel truck driver who knows that 60 pounds of boost just isn’t enough. This 2-1/16” (52mm) high-performance diesel gauge reads boost pressure from 0 to 100 PSI and is a great resource for monitoring where vacuum compression levels are not necessary. You’ll be able to effectively take readings with a turbo boost gauge which also ensures that your turbo is performing at optimal levels and does not overboost causing critical engine damage..

White 7 Color Series White 7 Color Series

GlowShift’s White 7 Color Gauge Series comes standard with a cutting-edge design that includes a white gauge dial, analog display and magnified clear lens. You can also choose between 7 different color options for the LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your vehicle and take accurate readings at the same time.

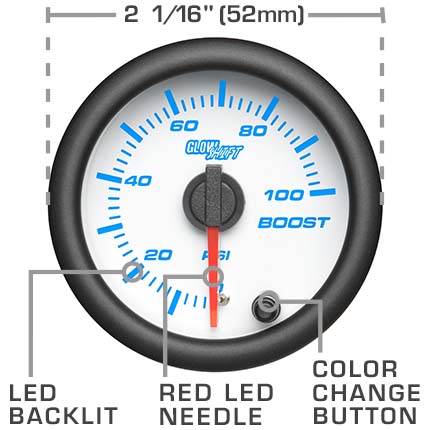

Features

White 7 Color Series Features

The gauge’s illuminated red needle sweeps 270° and is powered by stepper motor technology. You’ll get an effective combination of incredibly precise gauge readings with extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge.

7 Color Options

White 7 Color Series Color Options

Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle.

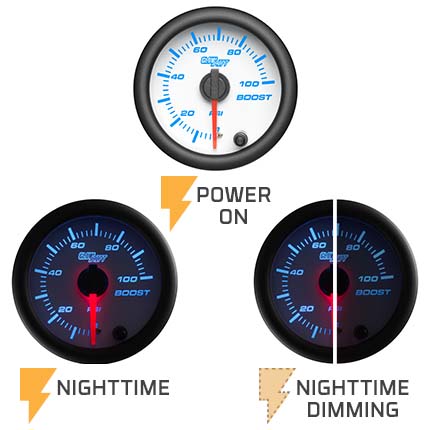

Backlighting

White 7 Color Series Backlighting

This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look great courtesy of the white gauge face and magnified lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you can dim the gauge 30% when the headlights are on.

What's Included

  • 2-1/16” (52mm) 100 PSI Boost Gauge
  • 9’ of Boost Hose
  • 1/8-27 NPT Brass Compression Fittings
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Hose & Fittings

White 7 Color Boost Sensor

This mechanical boost gauge kit comes with everything required for your boost gauge install. You’ll receive 9’ of Boost Hose and Ferrule Fittings, allowing you to drill and tap your intake manifold for extremely accurate gauge readings.

Wiring

White 7 Color Boost Wiring

The included 2’ Power Harness is attached to the back of the gauge. Wires are included for Power, Ground, and a Dimming feature. The extended wire length also provides added flexibility during installation.

Mounting Bracket

White 7 Color Boost Mounting Hardware

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Who Was The 100 PSI Boost Gauge Made For?

GlowShift’s 100 PSI Boost Gauge was made for anyone driving diesel trucks that generate high levels of boost pressure. You’ll see this many times in racing applications with large single turbos, track trucks, pulling trucks and drag trucks that demand a lot of power. If your engine is up to the task of supporting higher boost levels, or if it has been modified for higher efficiency and greater output, then this is the gauge for you.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

Tech Specs
Gauge Series: White 7 Color Series
Brand: GlowShift
Gauge Type: Boost
Range of Reading: 0 - 100 PSI
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: 7 Colors
Sending Unit: Mechanical
Measurement Unit: Standard
Display: Analog
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
