White 7 Color 200 PSI Air Pressure Gauge

(You save $53.00 )

Maximum Purchase:
99 units
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty


GlowShift’s White 7 Color Series 200 PSI Air Pressure Gauge was made for any vehicle with air brakes, air horns or an aftermarket air suspension system installed. This mechanical air pressure gauge reads from 0 to 200 PSI with the included 1/8-27 NPT male fitting that is located on the back of the gauge.

White 7 Color Series White 7 Color Series

GlowShift’s White 7 Color Gauge Series comes standard with a cutting-edge design that includes a white gauge dial, analog display and magnified clear lens. You can also choose between 7 different color options for the LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your vehicle and take accurate readings at the same time.


White 7 Color Series Features

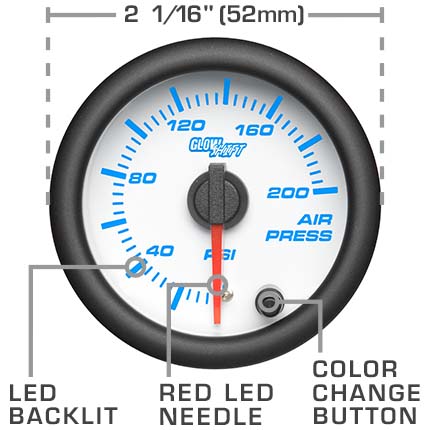

The gauge’s illuminated red needle sweeps 270° and is powered by stepper motor technology. You’ll get an effective combination of incredibly precise gauge readings with extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge.

7 Color Options

White 7 Color Series Color Options

Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle.

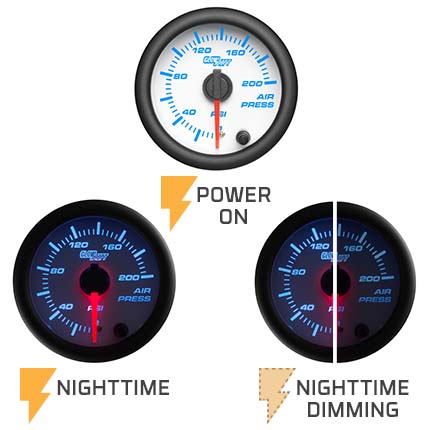

White 7 Color Series Backlighting

This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look great courtesy of the white gauge face and magnified lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you can dim the gauge 30% when the headlights are on.

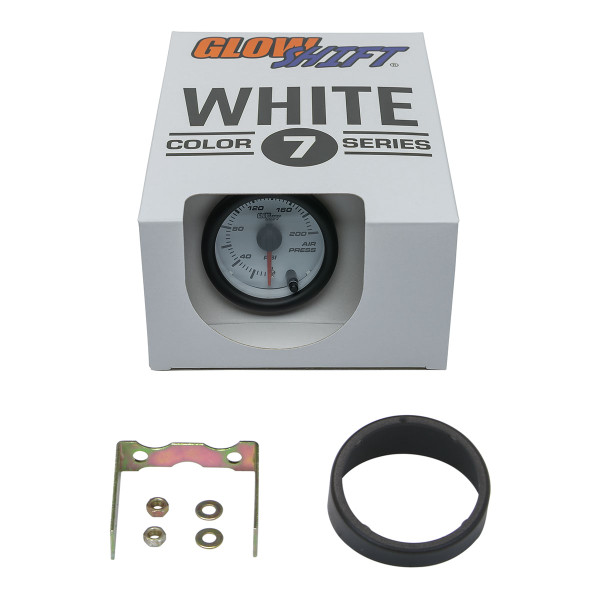

What's Included

  • 2-1/16” (52mm) Air Pressure Gauge
  • 1/8-27 NPT Pressure Fitting On Back Of Gauge
  • 2’ Power Harness Attached To Gauge
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Fitting & Wiring

White 7 Color Air Pressure Wiring

The 1/8-27 NPT male pressure fitting located on the back of the gauge is set up for installing an aftermarket air pressure sensor or a hose kit for delivering accurate readings directly from the pressure source. The included 2’ Power Harness is attached to the back of the gauge. Wires are included for Power, Ground, and a Dimming feature.

Mounting Bracket

White 7 Color Air Pressure Mounting Hardware

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Gauge Visor

White 7 Color Air Pressure Gauge Visor

The gauge visor is used to protect against sun glare so that you’ll have a clear view of readings during the day. This visor easily slips onto the gauge with the wider portion positioned at the top.

Mechanical Air Pressure Gauge Benefits

A truck or car air pressure gauge is a significant addition to any vehicle for several key reasons. Having precise, readily-available readings can be extremely beneficial for drivers, especially when aftermarket air systems have been installed and your vehicle is involved in strenuous activities like towing large hauls over long distances. Rather than realizing there’s a problem after you’ve lost a significant amount of pressure, a mechanical air pressure gauge will provide you with accurate readings in real time to demonstrate whether levels are slowly decreasing or running too low to begin with.

Air Horns and Air Leveling Kits

An air pressure gauge will monitor the pressure levels in an air horn to make sure it is receiving enough pressure. These gauges play an extremely important role with air leveling kits as well. A truck, for example, is designed for safe towing and hauling. However, when fully loaded, that weight can shift and throw off the truck’s balance, even affecting steering and breaking. Air leveling kits -- also known as air suspension kits, air springs, air bags and helper bags -- act as additional support for a truck, reinforcing the weight of the load you’re carrying.

Add-On Install Hose Kit

Please note that this gauge does not include an air hose. However, GlowShift’s Air Pressure Gauge Install Hose Kit is available separately and comes with everything needed for the installation. Included is a 1/4” OD - 25’ SAE J844 Black Nylon Air Brake Tubing Hose; 1/4-18 NPT Male to 1/4" Push Connector; 1/8-27 NPT Female to 1/4" Push Connector; and a 1/8-27 NPT Female 90° Adapter to 1/4" Push Connector which makes it easier for the back of the gauge to fit into a pillar pod.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

  • Easy Installation of Mechanical Air Pressure Gauge Directly to Air Tank
  • Includes 1/4” OD - 25’ SAE J844 Black Nylon Air Brake Tubing Hose & Thread Adapters
  • 1/8-27 NPT Female Straight Thread Adapter or 1/8-27 NPT Female 90° Thread Adapter Connects 1/4” Hose to the Back of the Gauge
  • 1/4-18 NPT Male Thread Adapter Connects 1/4” Hose to the Air Tank
Tech Specs
Gauge Series: White 7 Color Series
Brand: GlowShift
Gauge Type: Air Pressure
Range of Reading: 0 - 200 PSI
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: 7 Colors
Sending Unit: Mechanical
Measurement Unit: Standard
Display: Analog

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
