White 7 Color 2400° F Exhaust Gas Temperature EGT Gauge

White 7 Color 2400° F Exhaust Gas Temperature Gauge

2 product reviews | Write A Review
SKU:
GS-W708

Maximum Purchase:
99 unit(s)
$119.99 $299.99 (You save $180.00)

  • Same Day ShippingPlace Order by 3PM Eastern

  • One Year
    Limited Warranty

  • Free Installation Support

  • Free Shipping Over $50Contiguous USA

GlowShift’s White 7 Color Series 2400° F Pyrometer EGT Gauge is essential for any gas or diesel powered vehicle that has either a stock or aftermarket turbo or supercharger. This gauge allows you to closely monitor your engine temperature, making sure that it is not running too hot which could potentially result in engine damage. With simple Plug and Play connectors for the power and sensor harnesses, this exhaust gas temperature gauge will effectively take readings from 0 to 2400° Fahrenheit.

The White 7 Color Gauge Series
GlowShift’s White 7 Color Gauge Series comes standard with features including a white gauge face, magnified clear lens and illuminated red needle. Stepper motor technology gives this pyrometer gauge the perfect combination of extremely accurate gauge readings along with incredibly smooth needle movement. The White 7 Color Gauge Series includes the ultra-bright LED solid color modes Blue, Green, Red, Teal, Yellow, Purple and White. Also included is GlowShift’s 7 Color Lighting System which allows you to select and change the color of your gauge lighting display by simply pressing the button located along the front of the gauge. With the 7 Solid Color Settings and 2 Color Cycle Modes that utilize all of the radiant LED colors, you can customize the color of this EGT pyrometer gauge and add your own personal touch and style to the inside of your vehicle. Plus with the Color Memory option, you won’t have to reset the color of your gauge every time you turn on your vehicle. Your gauge will reflect your most recent color setting the next time it is active. By connecting the orange wire of your gauge to the factory headlight switch, you’ll be able to dim your gauge 30% when your headlights are turned on to reduce the brightness of your gauges while driving at night.

Why Do I Need A 2400 EGT Gauge?
While 1500° EGT gauges are used for many diesel trucks, the 2400° gauge is for diesels that need extra monitoring power where the 1500° range isn’t enough. This is often seen with modified turbo diesels including race trucks and pulling trucks. Examples are big turbo builds with a lot of fuel, and some race truck applications that require higher readouts because of how the truck runs.

2400 EGT exhaust gas temperature gauges are also used for gas engine applications, most commonly on trucks. While they can be used on cars, it is not very common except for situations involving turbo cars, for example, which will have the biggest need for an EGT gauge since the turbo runs off of the exhaust.

These gauges are designed to monitor much higher exhaust gas temperature readings, often in scenarios where much greater amounts of stress are being placed on your engine. Gas engines will burn hotter than diesel engines, causing the exhaust to become hotter as well. The 2400 also applies more to racing-based and similar applications where you’re looking to put a much greater deal of stress on your engine. In this case, the 2400 is ideal in ensuring that your engine is operating at full capacity and remaining within proper parameters.

Another reason to install a 2400 involves the size of the exhaust. Typically: the bigger the exhaust, the cooler it will run. This factor causes gas applications to run hotter because the exhaust in most cases is smaller than a diesel exhaust.

Pyrometer EGT Gauge Install Parts
This EGT gauge kit comes with everything required for installation, and the probe and power connections are made utilizing seamless Plug and Play Connectivity to make the process even easier. Included is a ⅛-27 NPT Type K Thermocouple EGT Probe with Waterproof Connector that features 3’ of steel braided cable and ⅛-27 NPT threads, and installs directly to the exhaust manifold using GlowShift’s Drill & Tap Kit. This gauge also comes with a 2’ power harness, and 6’ steel braided sensor harness with waterproof connector that plugs into the connector of the probe for a total of 9’ of available wire, protecting the connection from any water or moisture. Additionally, you’ll receive a Gauge Visor, mounting hardware and installation instructions as part of this gauge package.

GlowShift Guarantee
GlowShift includes a one year limited warranty and lifetime tech support with every purchase.

What’s Included:
  • 2-1/16” (52mm) Gauge with White Gauge Face and Magnified Clear Lens
  • ⅛-27 NPT Type K Thermocouple EGT Probe with Waterproof Connector
  • EGT Probe Includes 3’ of Stainless Steel Braided Cable
  • 6’ Stainless Steel Braided Sensor Harness with Waterproof Connector
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Hardware
  • Installation Instructions
  • Free Lifetime Technical Support
  • One Year Limited Warranty

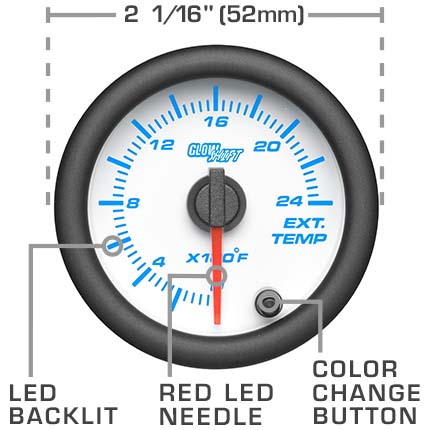

Gauge Features:
  • Exhaust Gas Temperature Readings from 0 to 2400° Fahrenheit
  • 7 Solid Color Settings: Blue, Green, Red, Teal, Yellow, Purple & White
  • 2 Color Cycle Modes
  • Stepper Motor Technology
  • Retains Last Color Setting

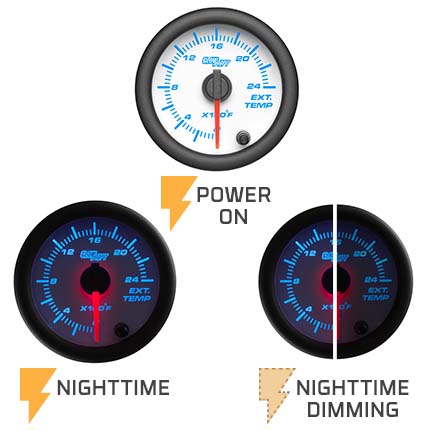

  • Dim Your Gauge 30% at Night
  • Gauge Depth Measures 1-1/2”
1/8 NPT Drill & Tap Set
1/8 NPT Drill & Tap Set
  • Drill & Tap the Exhaust Manifold to 1/8-27 NPT to Install the EGT Probe
  • Includes 1/8” Drill Bit & 1/8-27 Tap
Gauge Series
White 7 Color Series
Brand
GlowShift
Gauge Type
Exhaust Gas Temperature
Range of Reading
0 - 2400° F
Face Color
White
Size
52mm
Lens
Clear
Backlighting Color
7 Colors
Sending Unit
Electronic
Measurement Unit
Standard
Display
Analog
pdf
http://glowshift.com/instructions/7-Color-Series/GS-708.pdf
GoogleTitle
GlowShift 2400F Pyrometer Exhaust Temperature Gauge Kit - EGT Probe - 52mm - White 7 Color - White Gauge Face w/ Clear Lens - 7 Color LED Dial
GlowShift's White 7 Color Gauge Series 00:57

For More Information Please Visit: http://www.glowshiftdirect.com/white-7-color-gauges.aspx GlowShift's White 7 Color Gauge Series features our ground breaking seven color LED technology that allows you to select from a 7 solid color options, as well as 2 color cycle modes. This series features a white gauge face with stepper motor technology, a dimmer function, a clear, magnified lens, a red illuminated needle and color recall technology. Each gauge is 52mm or 2 1/16 inches in diameter and includes proper mounting and installation hardware. GlowShift offers a 1 year limited warranty and free technical support on all White 7 Color gauges.

GlowShift's White 7 Color Gauge Series

For More Information Please Visit: http://www.glowshiftdirect.com/white-7-color-gauges.aspx GlowShift's White 7 Color Gauge Series features our ground breaking seven color LED technology that allows you to select from a 7 solid color options, as well as 2 color cycle modes. This series features a white gauge face with stepper motor technology, a dimmer function, a clear, magnified lens, a red illuminated needle and color recall technology. Each gauge is 52mm or 2 1/16 inches in diameter and includes proper mounting and installation hardware. GlowShift offers a 1 year limited warranty and free technical support on all White 7 Color gauges.

How To Install An EGT Gauge

GlowShift's 7 Color Pyrometer EGT Gauges are essential for any vehicle that is driving long distances or pulling heavy loads and allow you to closely monitor your engine's temperature to ensure that it's not running too hot which could result in engine failure. Our White 7 Color Exhaust Gas Temperature Gauges come standard with incredible features including microprocessor controlled stepper motor technology which allows for extremely accurate gauge readings and incredibly smooth needle movement, selectable 7 color LED through dial lighting, a white gauge face with a magnified clear lens, as well as an illuminated red needle that sweeps 270 degrees. For More Information Please Visit: http://www.glowshiftdirect.com/7-color-series-1500-f-pyrometer-egt-gauges.aspx
