White 7 Color Analog E85 Wideband Air/Fuel Ratio Gauge

SKU:
GS-W702-E85
$199.99

UPC:
842559129470
Maximum Purchase:
99 units
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

GlowShift’s White 7 Color Series E85 Needle Wideband Air/Fuel Ratio Gauge was made for any driver looking to install an analog wideband gauge calibrated specifically for an Ethanol 85 fuel type. This gauge is essential for closely monitoring and fine-tuning a performance vehicle’s air-to-fuel ratios from 6 ~ 12 AFR quality values. By monitoring the output you’ll be able to determine how rich or lean your engine is running at any given time with pinpoint accuracy. Additional benefits of this E85 wideband gauge include increased power and better engine performance.

White 7 Color Series White 7 Color Series

GlowShift’s White 7 Color Gauge Series comes standard with a cutting-edge design that includes a white gauge dial, analog display and magnified clear lens. You can also choose between 7 different color options for the LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your vehicle and take accurate readings at the same time.

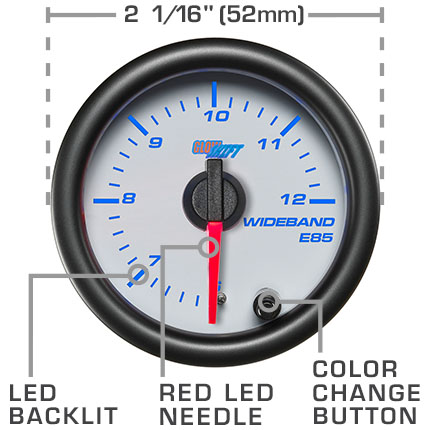

Features

White 7 Color Series Features

The gauge’s illuminated red needle sweeps 270° and is powered by stepper motor technology. You’ll get an effective combination of incredibly precise gauge readings with extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge.

7 Color Options

White 7 Color Series Color Options

Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle.

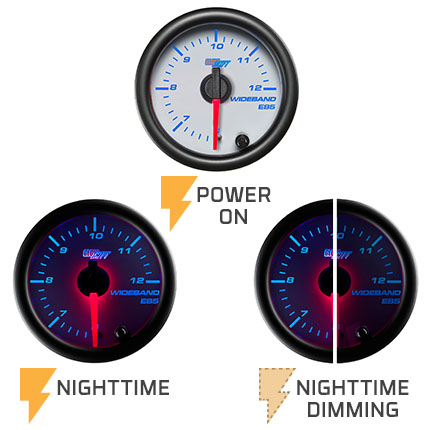

Backlighting

White 7 Color Series Backlighting

This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look great courtesy of the white gauge face and magnified lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you can dim the gauge 30% when the headlights are on.

What's Included

  • 2-1/16” (52mm) Analog E85 Air/Fuel Ratio Gauge
  • LSU 4.9 Wideband Oxygen Sensor
  • 12 Volt Wideband Controller with Data Logging Output
  • Mild Steel Weld-In Sensor Bung with Plug
  • 10’ Sensor Harness
  • 7’ Controller-to-Gauge Wire Harness
  • 3’ Data Logging Harness
  • 5’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Oxygen Sensor & Bung

White 7 Color Analog Wideband Air Fuel Wiring

Install the Wideband Oxygen Sensor to the exhaust pipe with the included Mild Steel Weld-In Bung and you’ll be able to determine if your car or truck’s Air-to-Fuel Ratio is Rich (6 ~ 6.9 AFR), Optimal (7 ~ 10 AFR) or Lean (10.1 ~ 12 AFR). The Wideband Oxygen Sensor includes a 30 day manufacturer’s warranty. GlowShift does not warranty this oxygen sensor after that 30 day time frame.

Control Box & Wiring

White 7 Color Analog Wideband Air Fuel Mounting Hardware

GlowShift's Wideband Air/Fuel Ratio Controller Unit features a data logging capability that allows you to connect it to any engine management system to log real time data for more precise tuning.

Mounting Bracket

White 7 Color Analog Wideband Air Fuel Mounting Hardware

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Do I Need An E85 Needle Wideband AFR Gauge?

An Ethanol 85 wideband gauge is for anyone with a high performance vehicle running on E85 that is looking to get the most out of their engine while ensuring engine health and safety. E85 is a blend of 85% ethanol fuel and 15% gasoline that’s used in high octane engines tuned on Ethanol 85 for maximized performance and fuel economy. Whatever type of application you have, adding this gauge will ensure that you have the proper air to fuel mix so you can achieve peak performance and avoid major setbacks including a loss of power or potential engine damage.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

  • Allows Easy Installation of Oxygen Sensor to Exhaust Pipe - No Welding Required
  • Compatible With 1-3/4"-2" Exhaust Pipes
  • Adapter Features M18 1.5 Thread for Oxygen Sensor
  • Includes Exhaust Gasket & Hardware
  • Allows Easy Installation of Oxygen Sensor to Exhaust Pipe - No Welding Required
  • Compatible With 2-1/4"-2-1/2" Exhaust Pipes
  • Adapter Features M18 1.5 Thread for Oxygen Sensor
  • Includes Exhaust Gasket & Hardware
  • Allows Easy Installation of Oxygen Sensor to Exhaust Pipe - No Welding Required
  • Compatible With 2-3/4"-3" Exhaust Pipes
  • Adapter Features M18 1.5 Thread for Oxygen Sensor
  • Includes Exhaust Gasket & Hardware
  • Allows Easy Installation of Oxygen Sensor to Exhaust Pipe - No Welding Required
  • Compatible With 3-1/4"-3-1/2" Exhaust Pipes
  • Adapter Features M18 1.5 Thread for Oxygen Sensor
  • Includes Exhaust Gasket & Hardware
Tech Specs
Gauge Series: White 7 Color Series
Brand: GlowShift
Gauge Type: E85 Wideband
Range of Reading: 6 - 12 AFR
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: 7 Colors
Sending Unit: Electronic
Measurement Unit: Standard
Display: Analog
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
