White 7 Color Dual Intake Temperature Gauge

1 Review Write A Review
SKU:
GS-W720
$149.99
$99.99
(You save $50.00 )
UPC:
842559103142
  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • One Year Limited Warranty

    One Year
    Limited Warranty

  • Free In-House Support

    Free In-House Support

Overview

GlowShift’s White 7 Color Series Dual Intake Temperature Gauge enables you to monitor the efficiency of your vehicle’s intercooler system with two independent analog needles that read from 0 to 300° Fahrenheit. This 2-1/16” (52mm) dual intercooler air temperature gauge will measure the hot air being forced into your intercooler and the cool air being pushed into the engine.

White 7 Color Gauge Series
The White 7 Color Gauge Series comes standard with a cutting-edge design that includes a white gauge face, low profile magnified clear lens, and illuminated red and green needles that sweep 270 degrees. This gauge also comes equipped with stepper motor technology which gives both needles the perfect combination of incredibly accurate readings and extremely smooth needle movement for effective monitoring of dual intake temperatures. The White 7 Color Gauge Series comes with the ultra-bright LED solid color modes Blue, Green, Red, Teal, Yellow, Purple and White. Also featured is GlowShift’s 7 Color through dial lighting system which allows you to select and change the color of your gauge lighting display by simply pressing the button located along the front of this intake air temperature gauge. Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes that utilize all of these powerful LED colors. Through these options, you can adjust the color of the gauge to match your vehicle’s factory dash lights, or you can customize the color and add your own personal touch and style to the inside of your car or truck. Plus with the Color Memory feature, you won’t have to reset the color of your gauge every time you turn on your vehicle. Your gauge will reflect your most recent color setting the next time it is active. By connecting the orange wire of your gauge to the factory headlight switch, you’ll be able to dim your gauge 30% when your headlights are turned on to reduce the brightness while driving at night.

Who Needs An Intake Temperature Gauge?
GlowShift’s intercooler temp gauge was made for any car or truck, monitoring the performance of a gas or diesel engine’s intercooler. Utilizing two electronic air temperature sensors, this gauge gives you the ability to monitor air temperatures both entering and leaving. An intercooler’s responsibility is cooling hot intake air. This will result in increased power and better engine performance in turbocharged and supercharged engines. Using the best intercooler air temp gauge available to monitor these temperatures will alert you as to whether your engine’s intercooler is working optimally.

Intercooler Temperature Gauge Installation
This gauge kit comes with parts required for installation as well as accessories that will help you to get the most out of your gauge. Included with this intake manifold temperature gauge are (2) 3/8-18 NPT Electronic Temperature Sensors, each with a 2’ Sensor Harness that has Plug and Play Connectors which easily snap into the back of the gauge; Bullet Connectors for quick connections to the respective sensors; and a 2’ Power Harness that includes both power and ground wires and also has Plug and Play Connectors that easily snap into the back of the gauge. A gauge visor attaches to your gauge and reduces the amount of sun glare as you’re taking readings. All mounting hardware required for installation is included as well. Detailed instructions provided offer a comprehensive step-by-step guide to help walk you through the entire process.

Optional Weld-In Bungs
Adding the 3/8-18 NPT Weld-In Bung Set allows you to install and thread the Dual Air Intake Gauge Sensors to the pre and post locations of your vehicle’s intercooler. This set features (2) 3/8-18 NPT aluminum thread adapters that are easily welded to the intercooler pipe.

GlowShift Guarantee
GlowShift includes a one year limited warranty and free lifetime tech support with every purchase.

What’s Included:
  • 2-1/16” (52mm) Dual Intake Temperature Gauge
  • (2) 3/8-18 NPT Electronic Temperature Sensors
  • (2) 2’ Sensor Harnesses
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Hardware
  • Installation Instructions
  • Free Lifetime Technical Support
  • One Year Limited Warranty
Gauge Features:
  • Low Profile Magnified Clear Lens
  • White Gauge Face
  • Illuminated Red and Green Needles
  • Dual Intake Temperature Readings from 0 to 300° Fahrenheit

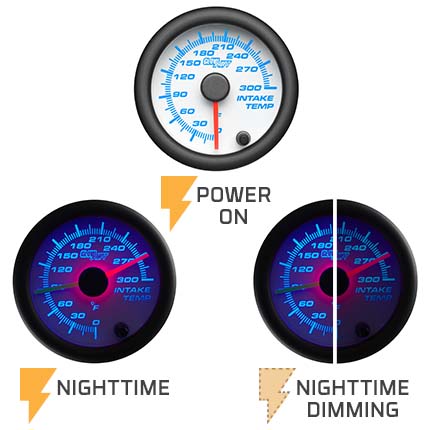

  • 7 Color LED Through Dial Lighting
  • Stepper Motor Technology
  • 7 Solid Color Settings: Blue, Green, Red, Teal, Yellow, Purple & White
  • 2 Color Cycle Modes
  • Dim Your Gauge 30% at Night
  • Retains Last Color Setting
  • Gauge Depth Measures 2 3/4”
3/8-18 NPT Weld-In Bung Set
3/8-18 NPT Weld-In Bung Set
  • Allows Installation of Dual Intake Temperature Sensors to Intercooler Pipe
  • Includes (2) 3/8-18 NPT Aluminum Weld-In Bungs
3/8-18 NPT Drill & Tap Kit
3/8-18 NPT Drill & Tap Kit
  • Drill & Tap the Hot & Cold Side of Intercooler Pipe to Install Dual Intake Temperature Sensors
  • Includes 3/8” Drill Bit & 3/8-18 Tap
Tech Specs
Gauge Series: White 7 Color Series
Brand: GlowShift
Gauge Type: Intake Temperature
Range of Reading: 0 - 300° F
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: 7 Colors
Sending Unit: Electronic
Measurement Unit: Standard
Display: Analog
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center

Product Reviews

  • great gauge
    5

    Posted by tony d. on Aug 20, 2017

    fantastic- great gauge at a great price- easy hook up - the sensor was the right size and thread to screw into my gt40 intake right behind the throttle body - nice lit and easy to see- need to weld a bung before my intercooler to see the before temps but all i needed was engine temp for now -AND its a local nj company !
