White 7 Color Dual Needle Air Pressure Gauge

SKU:
GS-W713-DN
$199.99
$119.99
(You save $80.00 )
UPC:
842559103067
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • Extended Holiday Returns

    Extended Holiday ReturnsACCEPTED UNTIL JANUARY 31ST

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

GlowShift’s White 7 Color Series Dual Needle Air Pressure Gauge features two separate needles that allow you to closely monitor your vehicle’s changing suspension conditions from 0 to 200 PSI. Monitoring and adjusting your suspension’s air pressure is extremely important since it directly affects the way your vehicle rides, and this dual needle air suspension gauge will let you know when to add more pressure for road imperfections or when to release pressure for a custom lowered look.

White 7 Color Series White 7 Color Series

GlowShift’s White 7 Color Dual Gauge Series comes standard with a cutting-edge design that includes a white gauge face and magnified clear lens. The illuminated red and green needles sweep 270° and are powered by stepper motor technology, giving an effective combination of incredibly accurate gauge readings with extremely smooth needle movement. The White 7 Color Gauge Series comes with the ultra-bright LED solid color modes Blue, Green, Red, Teal, Yellow, Purple and White.

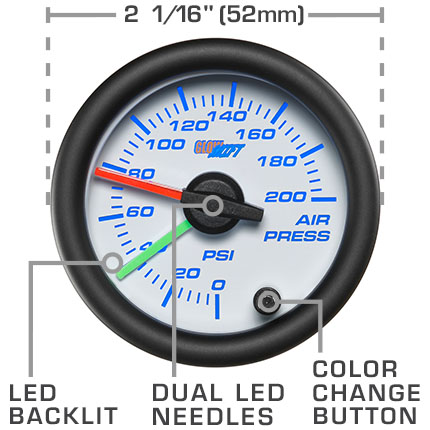

Features

White 7 Color Series Features

This analog gauge is equipped with illuminated red and green needles that sweep 270° and are powered by stepper motor technology, giving an effective combination of incredibly accurate gauge readings and extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge.

7 Color Options

White 7 Color Series Color Options

Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle.

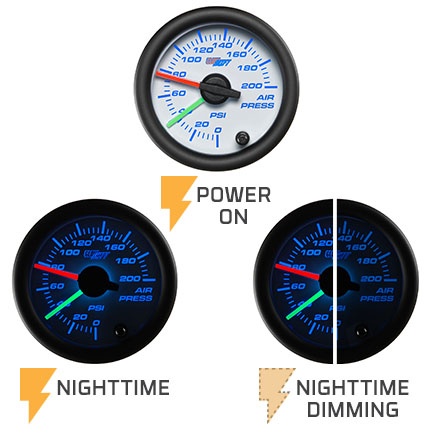

Backlighting

White 7 Color Series Backlighting

This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look amazing courtesy of the white gauge dial and magnified clear lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you’ll be able to dim the gauge 30% when the headlights are on. This feature will help you to reduce brightness and glare while viewing readings at night.

What's Included

  • 2-1/16” (52mm) Dual Analog Air Pressure Gauge
  • (2) 1/8-27 NPT Electronic Pressure Sensors
  • (2) 9’ Sensor Harnesses
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Sensors

White 7 Color Dual Air Pressure Wiring

The Electronic Air Pressure Sensors with 1/8-27 NPT Male Threads are compact and can be installed in several different ways to monitor the front and rear or left and right air bags at the same time.

Wiring

White 7 Color Dual Air Pressure Wiring

The 9’ Sensor & 2' Power Harnesses utilizes Plug and Play Connectivity to easily snap into the modular connector on the back of the gauge. The extended wire length gives you added flexibility during the installation process.

Mounting Bracket

White 7 Color Dual Air Pressure Mounting Hardware

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Benefits of a Dual Needle Setup

Get twice the impact with GlowShift’s dual air pressure gauges for trucks and cars, which give you the ability to monitor two air pressure applications at the same time. A dual needle gauge is ideal in a multi-valve setup with left air pressure systems versus right, front versus back, or a tank PSI versus system PSI. In the case of air leveling systems you can have kits installed for different parts of your vehicle. If you have two rear air bags, for example, you can monitor both left and right air bags simultaneously.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

Tech Specs
Gauge Series: White 7 Color Series
Brand: GlowShift
Gauge Type: Air Pressure
Range of Reading: 0 - 200 PSI
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: 7 Colors
Sending Unit: Electronic
Measurement Unit: Standard
Display: Analog
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
