White 7 Color Transmission Temperature Gauge

White 7 Color Transmission Temperature Gauge

3 product reviews | Write A Review
SKU:
GS-W712

Maximum Purchase:
99 unit(s)
$52.99 $128.99 (You save $76.00)

  • Same Day ShippingPlace Order by 3PM Eastern

  • One Year
    Limited Warranty

  • Free Installation Support

  • Free Shipping Over $50Contiguous USA

GlowShift’s White 7 Color Series Transmission Temperature Gauge is essential for any vehicle with an automatic transmission, especially diesel trucks that are towing heavy loads. This gauge allows you to closely monitor the temperature of your transmission, ensuring that it does not overheat causing significant damage. By connecting to the included electronic temperature sensor, this trans temp gauge will effectively take readings from 80° to 260° Fahrenheit.

The White 7 Color Gauge Series
GlowShift’s White 7 Color Gauge Series comes standard with features including a white gauge face, magnified clear lens and illuminated red needle. Stepper motor technology gives this pyrometer gauge the perfect combination of extremely accurate gauge readings along with incredibly smooth needle movement. The White 7 Color Gauge Series includes the ultra-bright LED solid color modes Blue, Green, Red, Teal, Yellow, Purple and White. Also included is GlowShift’s 7 Color Lighting System which allows you to select and change the color of your gauge lighting display by simply pressing the button located along the front of the gauge. With the 7 Solid Color Settings and 2 Color Cycle Modes that utilize all of the radiant LED colors, you can customize the color of this EGT pyrometer gauge and add your own personal touch and style to the inside of your vehicle. Plus with the Color Memory option, you won’t have to reset the color of your gauge every time you turn on your vehicle. Your gauge will reflect your most recent color setting the next time it is active. By connecting the orange wire of your gauge to the factory headlight switch, you’ll be able to dim your gauge 30% when your headlights are turned on to reduce the brightness of your gauges while driving at night.

Why Is Transmission Temperature So Important?
One of the major factors in reducing the life of a vehicle’s transmission is overheating, and one of the main reasons a truck transmission overheats is due to the strain of towing larger and heavier amounts of cargo. Your trans temp gauge will monitor transmission temperatures during a larger haul and alert you in the event of temperature spikes. Another issue is older transmission fluid. Older transmission fluid will be less effective at performing its primary functions, one of the most important of which is keeping the system cool. The typical range for transmission fluid temperature is between 175° and 225°, and keeping within that average range is vital to your engine and transmission’s long term performance. This is where transmission temperature gauges come into play, which work by monitoring the temperature of your car or truck’s transmission by measuring the transmission fluid’s temperature. By having a trans temp gauge, you’ll be kept one step ahead of any possible issues involving overheating that could potentially seize your transmission.

Trans Temp Gauge Install Parts
This transmission temperature gauge kit comes with items required for the installation process and operation of your gauge. Included is an Electronic Transmission Temperature Sensor with ⅛-27 NPT Male Threads which is easily installed to your transmission test port or by replacing the stock sensor. You will also receive a 2’ power harness, a Gauge Visor, mounting hardware and installation instructions as part of this gauge package.

Note: This gauge includes a 1/8-27 NPT thread size on the sensor and your vehicle may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require additional threading adapters.

What’s Included:

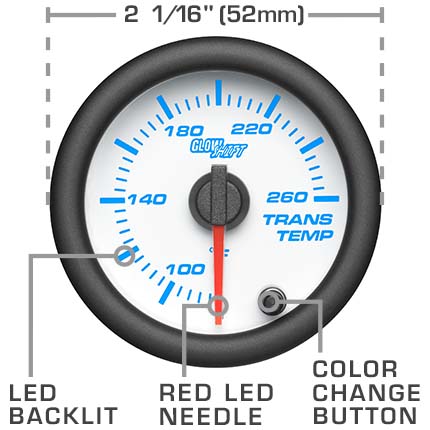

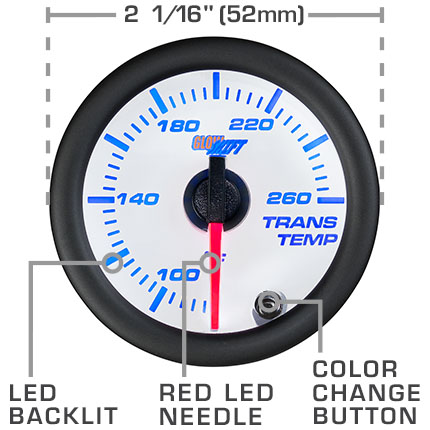

  • 2-1/16” (52mm) Gauge with White Gauge Face and Magnified Clear Lens
  • Electronic Transmission Temperature Sensor with ⅛-27 NPT Male Threads
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Hardware
  • Installation Instructions
  • Free Lifetime Technical Support
  • One Year Limited Warranty
Gauge Features:
  • Transmission Temperature Readings from 80° to 260° Fahrenheit
  • 7 Solid Color Settings: Blue, Green, Red, Teal, Yellow, Purple & White
  • 2 Color Cycle Modes
  • Stepper Motor Technology
  • Retains Last Color Setting

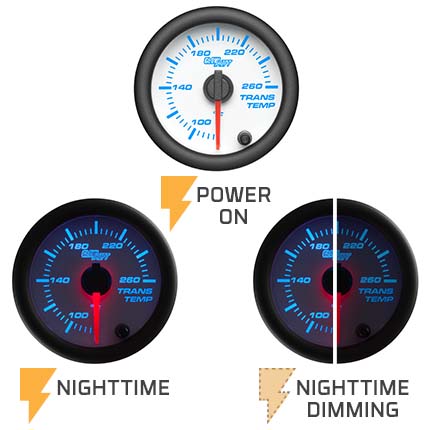

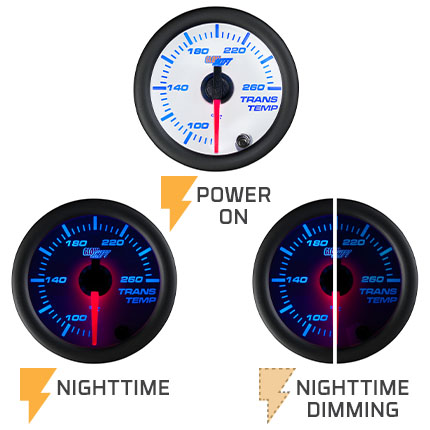

  • Dim Your Gauge 30% at Night
  • Gauge Depth Measures 1-1/2”
7 Color Series Extended Wire Harness
7 Color Series Extended Wire Harness
  • Extends Gauge Power Wires to 3’ & Sensor Wires to 9’ in Length
  • Replaces Shorter Length Harness Included with Gauge
Gauge Series
White 7 Color Series
Brand
GlowShift
Gauge Type
Transmission Temperature
Range of Reading
80 - 260° F
Face Color
White
Size
52mm
Lens
Clear
Backlighting Color
7 Colors
Sending Unit
Electronic
Measurement Unit
Standard
Display
Analog
pdf
http://glowshift.com/instructions/7-Color-Series/GS-712.pdf
GoogleTitle
GlowShift 260F Transmission Temperature Gauge Kit - Electronic Sensor - 52mm - White 7 Color - White Gauge Face w/ Clear Lens - 7 Color LED Dial
GlowShift's White 7 Color Gauge Series 00:57

For More Information Please Visit: http://www.glowshiftdirect.com/white-7-color-gauges.aspx GlowShift's White 7 Color Gauge Series features our ground breaking seven color LED technology that allows you to select from a 7 solid color options, as well as 2 color cycle modes. This series features a white gauge face with stepper motor technology, a dimmer function, a clear, magnified lens, a red illuminated needle and color recall technology. Each gauge is 52mm or 2 1/16 inches in diameter and includes proper mounting and installation hardware. GlowShift offers a 1 year limited warranty and free technical support on all White 7 Color gauges.

GlowShift's White 7 Color Gauge Series

For More Information Please Visit: http://www.glowshiftdirect.com/white-7-color-gauges.aspx GlowShift's White 7 Color Gauge Series features our ground breaking seven color LED technology that allows you to select from a 7 solid color options, as well as 2 color cycle modes. This series features a white gauge face with stepper motor technology, a dimmer function, a clear, magnified lens, a red illuminated needle and color recall technology. Each gauge is 52mm or 2 1/16 inches in diameter and includes proper mounting and installation hardware. GlowShift offers a 1 year limited warranty and free technical support on all White 7 Color gauges.

How To Install A Transmission Temperature Gauge

GlowShift's 7 Color Series Transmission Temperature Gauge is perfect for any vehicle with an automatic transmission; especially diesel trucks tow heavy loads. This transmission temperature gauge allows you to easily monitor the temperature of your transmission, ensuring that is does not overheat and cause major damage. GlowShift's Transmission Temperature Gauge reads your transmission temperature from 100 to 300 degrees Fahrenheit with the included 1/8th NPT electronic temperature sensor. GlowShift stands behind all of its products by including free lifetime technical support and a one year limited warranty with every gauge purchase. For More Information Please Visit: http://www.glowshiftdirect.com/7-color-series-transmission-temperature-gauges.aspx

Product Reviews

3 product reviews
Write A Review

  1. Good product

    I love this gauge install went pretty easy. I purchased the extended wiring harness which was nice but the main power and switched power leads were still to short for my setup. That doesn't at all effect my opinion. The only negatives that I had was the wiring is very thin, it's plenty sufficient for its purpose but it's just a pain to splice cause it's so thin. My other negative was the mounting clamp screws didn't have enough length to install the little visor that came with the gauge. Not a big deal, otherwise I love the gauge and it works great. Thank you glow shift for the awesome affordable product, I will be buying more gauges from you in the future.

    Posted by on

  2. Great product

    My son and I installed a GlowShift white trans temp gauge yesterday. While the installation was successful there were some issues along the way that had more to do with the fact that the tow vehicle is a 1998 Ford E-150 van than the gauge itself. Of course the next one I do will be a piece of cake!!(haha). I like the gauge colors but I find some are quite difficult to read with polarized sunglasses on. I wish there was a way to dim the gauge even further than the gauge's own dimming feature. Other than that the gauge indicated the tranny was performing perfectly and that was a relief since I had no idea what was happening with the tranny. I'm very happy with the gauge and would recommend it to anyone looking for a great sexy looking gauge.

    Posted by on

  3. bad gauge?

    my transmission temperture gauge was acting funny, i called support and within minutes they told me it was a sending unit. They sent out a new one and the gauge works perfect.

    Posted by on
