White & Blue MaxTow 100 PSI Boost Gauge

SKU:
MT-WBDV01_100
$136.99
$112.99
(You save $24.00 )

UPC:
842559110485
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

Features & Functionality
MaxTow’s White & Blue 100 PSI Boost Gauge is the perfect addition to any high performance diesel truck built for serious power that’s running higher boost levels and exceeds 1,000 horsepower. This diesel boost gauge reads from 0 to 100 PSI with the included 1/8-27 NPT electronic boost pressure sensor that installs directly to the intake manifold. Whether you’re sled pulling or pushing your truck to its limits, this is the monitoring tool you need.

White & Blue Double Vision™ Series

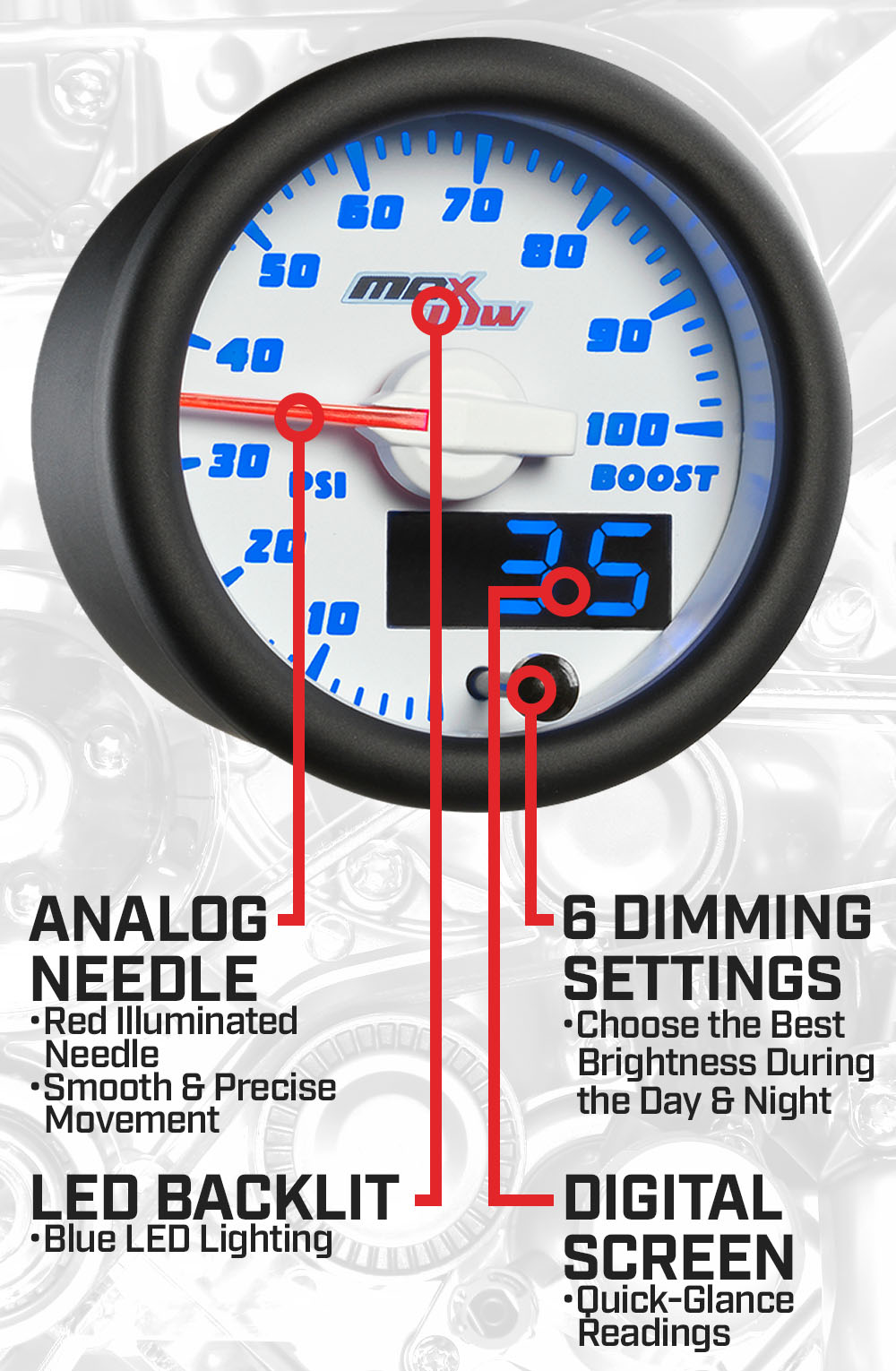

The White & Blue Double Vision Gauge Series features a white gauge face with dual readout displays that includes the classic look of an analog gauge with a quick glance digital readout. Each White & Blue MaxTow Gauge is backlit by blue LED lighting that matches the factory cluster lights of your Chevrolet or GMC truck. This 2-1/16” (52mm) is driven by stepper motor technology that allows for extremely smooth needle movement. This diesel truck boost gauge also includes daytime and nighttime dimming modes with 3 customizable brightness settings for each mode. This feature offers multiple brightness settings allowing you to set the gauge to your preference whether you’re hitting the road during the day or at night! The included brightness recall function remembers the previous setting that was enabled before powering the truck down so you won’t have to set it every time you turn the truck on.

What's Included

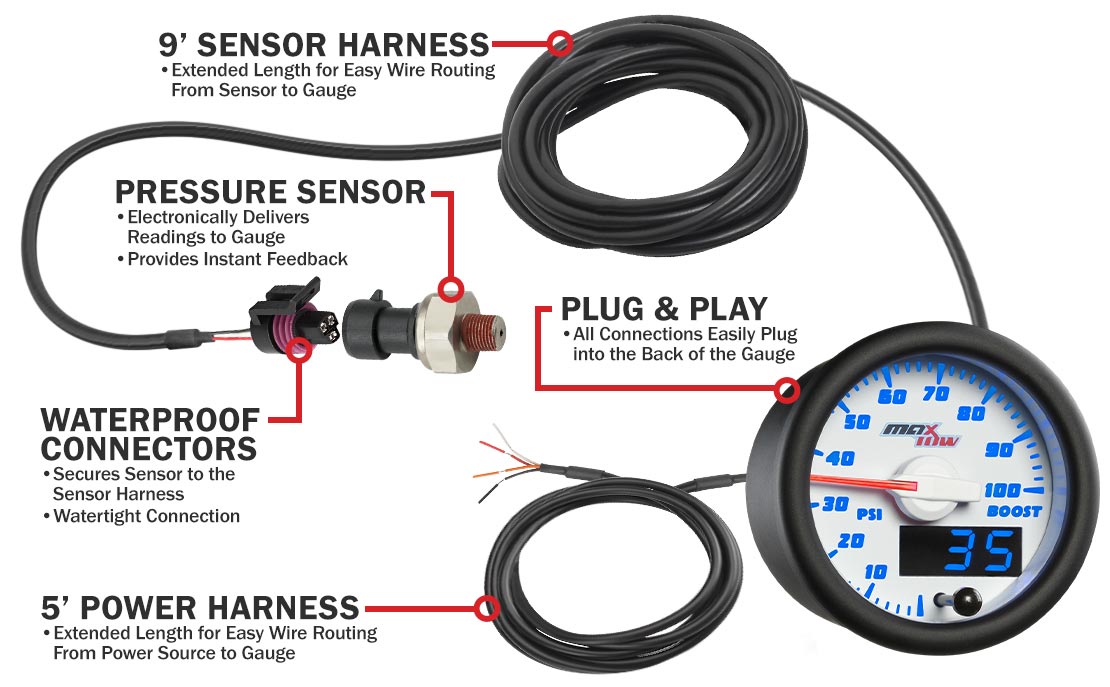

Each MaxTow 100 PSI Boost Gauge includes a 1/8-27 NPT electronic boost pressure sensor, 9’ sensor harness and a 5’ power harness that feature plug-and-play connectors for a quick and easy installation. This gauge also includes step-by-step installation instructions, a mounting bracket with mounting hardware and a gauge visor.

MaxTow's Guarantee
MaxTow includes free lifetime technical support and a one year limited warranty with each purchase.

Note: This gauge includes a 1/8-27 NPT thread size on the pressure sensor and your truck may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require a threading adapter, please contact a GlowShift Technical Support Specialist.

  • 2-1/16” (52mm) White Face Gauge with a Magnified Lens
  • Boost Reading from 0 to 100 PSI
  • Electronic Boost Pressure Sensor with 1/8-27 NPT Threads
  • Double Vision Display Feature with Analog and Digital Readings
  • Blue LED Through Dial Lighting with a Red Illuminated Needle
  • Daytime Dimming Mode with 3 Customizable Brightness Settings
  • Nighttime Dimming Mode with 3 Customizable Brightness Settings
  • 9' Sensor Harness
  • 5' Power Harness
  • Gauge Depth Measures 1-5/16"
  • Gauge Visor
  • Mounting Bracket
  • Mounting Hardware
  • Installation Instructions
  • Free Lifetime Technical Support
  • One Year Limited Warranty
Tech Specs
Gauge Series: White & Blue MaxTow Series
Brand: MaxTow
Gauge Type: Boost
Range of Reading: 0 - 100 PSI
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Blue
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.
