White & Blue MaxTow 2200° F Exhaust Gas Temperature Gauge

SKU:
MT-WBDV08
$212.99
$129.99
(You save $83.00 )
UPC:
842559100790
  • Extended Holiday Returns

    Extended Holiday ReturnsACCEPTED UNTIL JANUARY 31ST

  • Delivery By Christmas

    Delivery By ChristmasCONTIGUOUS US ONLY

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow’s White Double Vision™ Series 2200° F Exhaust Gas Temperature Gauge is electronically driven truck gauge that includes a type K thermocouple EGT probe that reads and displays your truck’s exhaust gas temperature from 200° to 2200° Fahrenheit with unmatched accuracy.

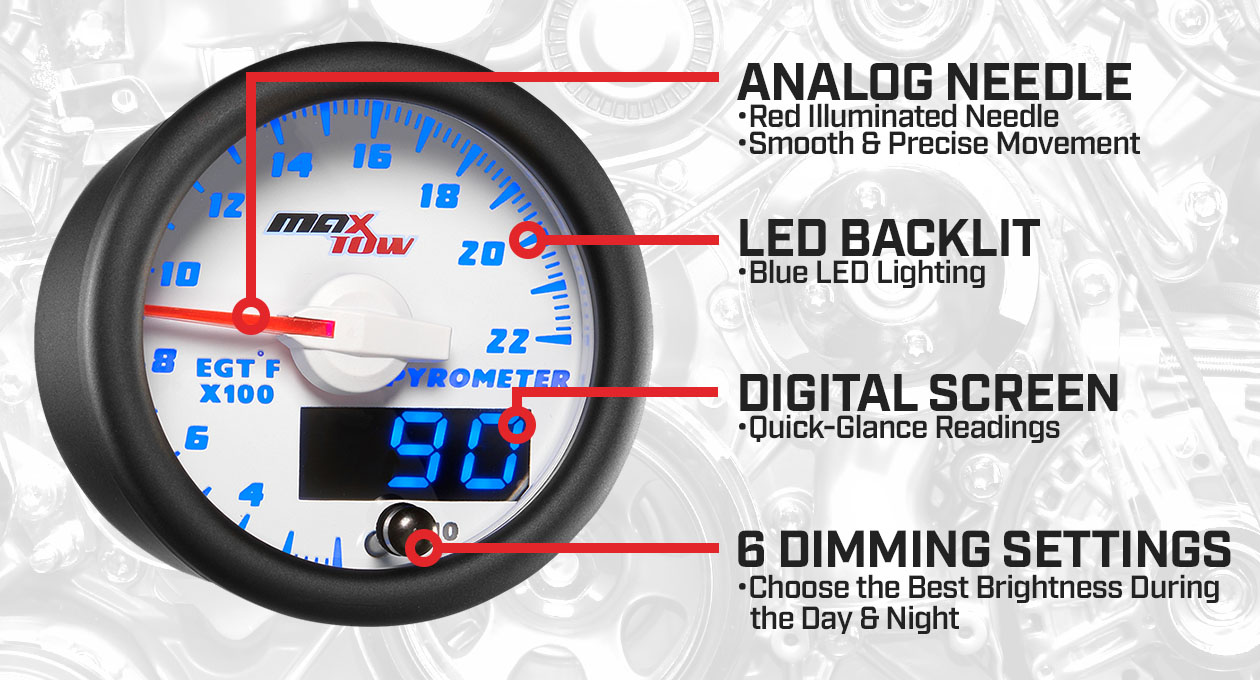

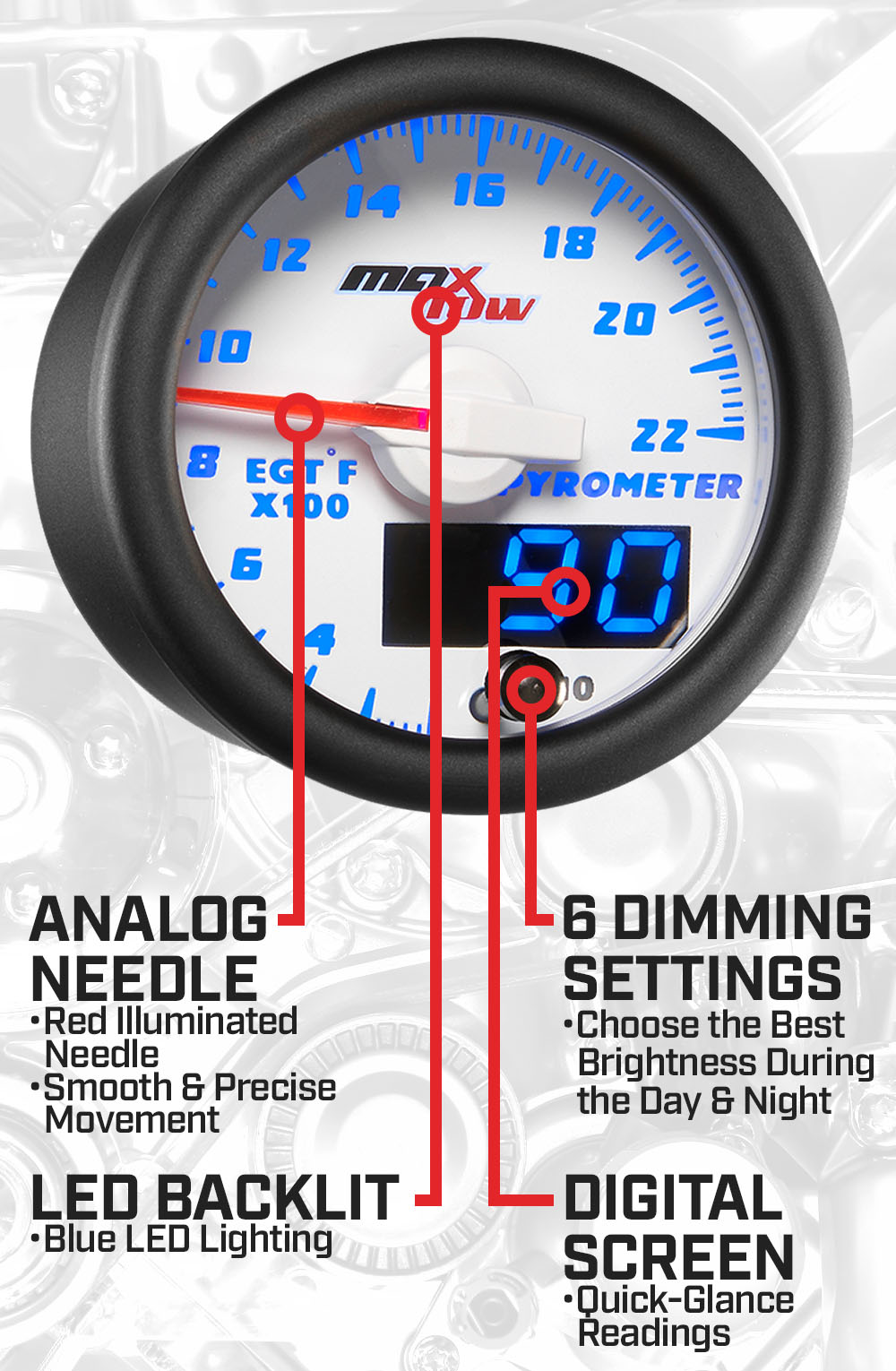

You asked for it and we listened! MaxTow’s White & Blue Double Vision™ Gauge Series features a white gauge face with dual readout displays which include an analog reading with an illuminated red needle and a quick glance digital display; both of which are illuminated by ultra-bright blue LED lighting. Each 2-1/16” (52mm) gauge is driven by stepper motor technology which allows for exceptionally smooth needle movement that keeps up with the changing statistics of the engine. This exhaust gas temperature gauge also features daytime and nighttime dimming modes with 3 customizable settings for each mode. This feature offers multiple dimming options allowing you to set your preference when hitting the road during the day or at night! The included brightness recall function remembers the previous brightness setting that was enabled before powering the truck down so you won’t have to reset it every time you turn the truck on!

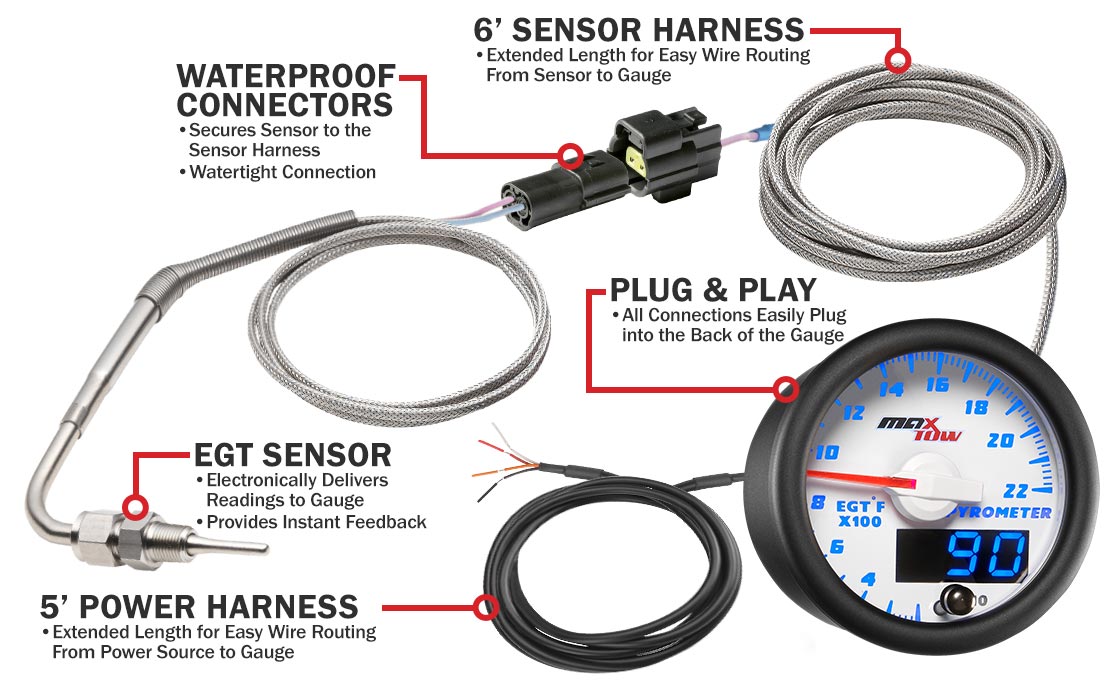

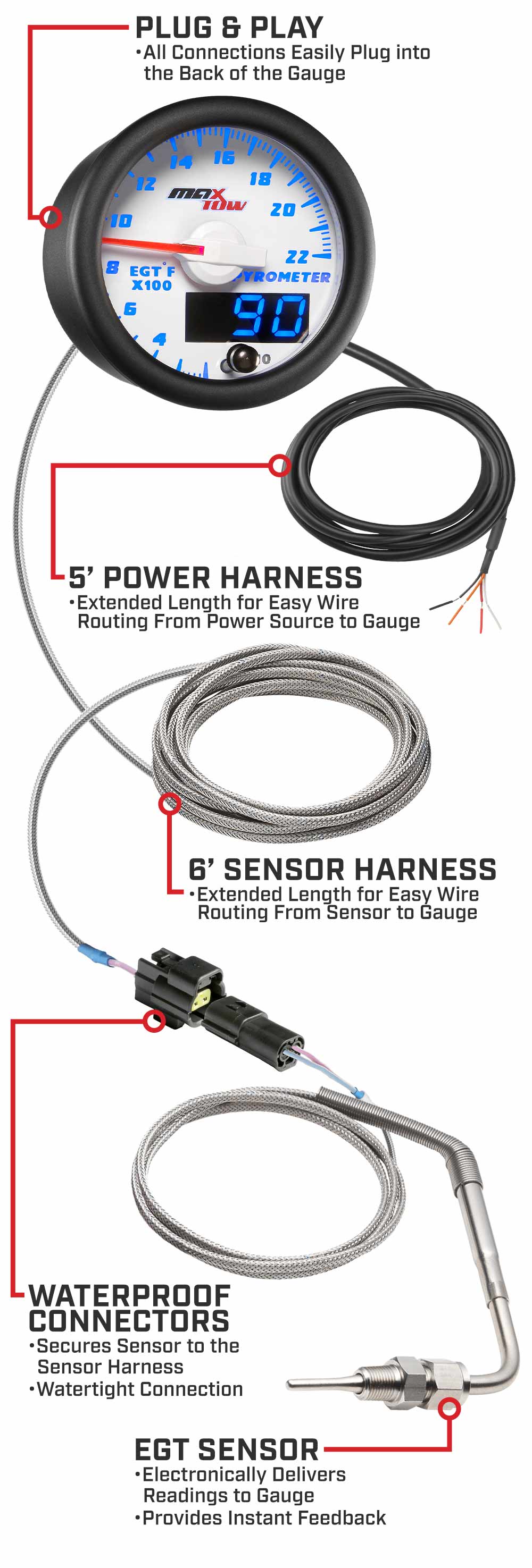

This MaxTow pyrometer gauge features a type K thermocouple EGT probe with 3’ of steel braided cable and 1/8-27 NPT threads that installs directly to the exhaust manifold using a Drill & Tap Kit. This EGT gauge also features a waterproof connector that plugs into the 6’ braided steel sensor harness and allows for a watertight connection. The 6’ sensor harness and 5’ power harness feature plug and play connectors and extended wire lengths, assuring that you’ll have more than enough wire for a quick and easy installation. All gauge mounting hardware and installation instructions come standard with every diesel pyrometer gauge purchased, as well as one year limited warranty and free lifetime technical support. Get ready to hit the road and Tow to the Max™!

  • 2-1/16" (52mm) White Gauge Face with a Magnified Lens
  • Exhaust Gas Temperature Reading from 200° to 2200° Fahrenheit
  • 1/8-27 NPT Type K Thermocouple EGT Probe with Waterproof Connector
  • EGT Probe Includes 3' of Steel Braided Cable
  • 6' Steel Braided Sensor Harness with Waterproof Connector
  • Double Vision Display Feature with Analog and Digital Readings
  • Blue LED Through Dial Lighting with a Red Illuminated Needle
  • Daytime Mode with 3 Customizable Brightness Settings
  • Nighttime Mode with 3 Customizable Brightness Settings
  • 5' Power Wire
  • Gauge Depth Measures 1-5/16"
  • Mounting Hardware
  • Installation Instructions
  • One Year Limited Warranty
  • Free Lifetime Technical Support
1/8 NPT Drill & Tap Set
1/8 NPT Drill & Tap Set
  • Drill & Tap the Exhaust Manifold to 1/8-27 NPT to Install the EGT Probe
  • Includes 1/8” Drill Bit & 1/8-27 Tap
Tech Specs
Gauge Series: White & Blue MaxTow Series
Brand: MaxTow
Gauge Type: Exhaust Gas Temperature
Range of Reading: 200 - 2200° F
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Blue
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
