White & Blue MaxTow High Pressure Oil Pressure HPOP Gauge

SKU:
MT-WBDV21
$186.99
$89.99
(You save $97.00 )

UPC:
842559100189
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow’s Double Vision™ White & Blue High Pressure Oil Pressure Gauge is electronically driven and reads your truck’s HPOP from 0 to 4,000 PSI by simply connecting the sensor wires to the factory injector control pressure sensor (ICP sensor). This HPOP gauge allows you to closely monitor the high pressure that enters the oil pumps of your Ford Power Stroke 7.3L or 6.0L diesel engine.

If you’re driving a Ford Power Stroke, an HPOP gauge is important for you! The HPOP in a Power Stroke engine is what drives the injectors to supply the fuel to the engine. Monitoring the HPOP is important because a weak or defective HPOP could starve the injectors for fuel and lead to fuel system failure. If the injectors or fuel system has been upgraded, an upgraded HPOP may be required to ensure there is sufficient fuel feeding to the engine. The HPOP works by receiving oil from the low pressure oil pump in order to drive the injectors, and then the internal computer tells the injectors exactly when to fire. HPOP pressures can be anywhere within the 500 to 3,000 PSI range.

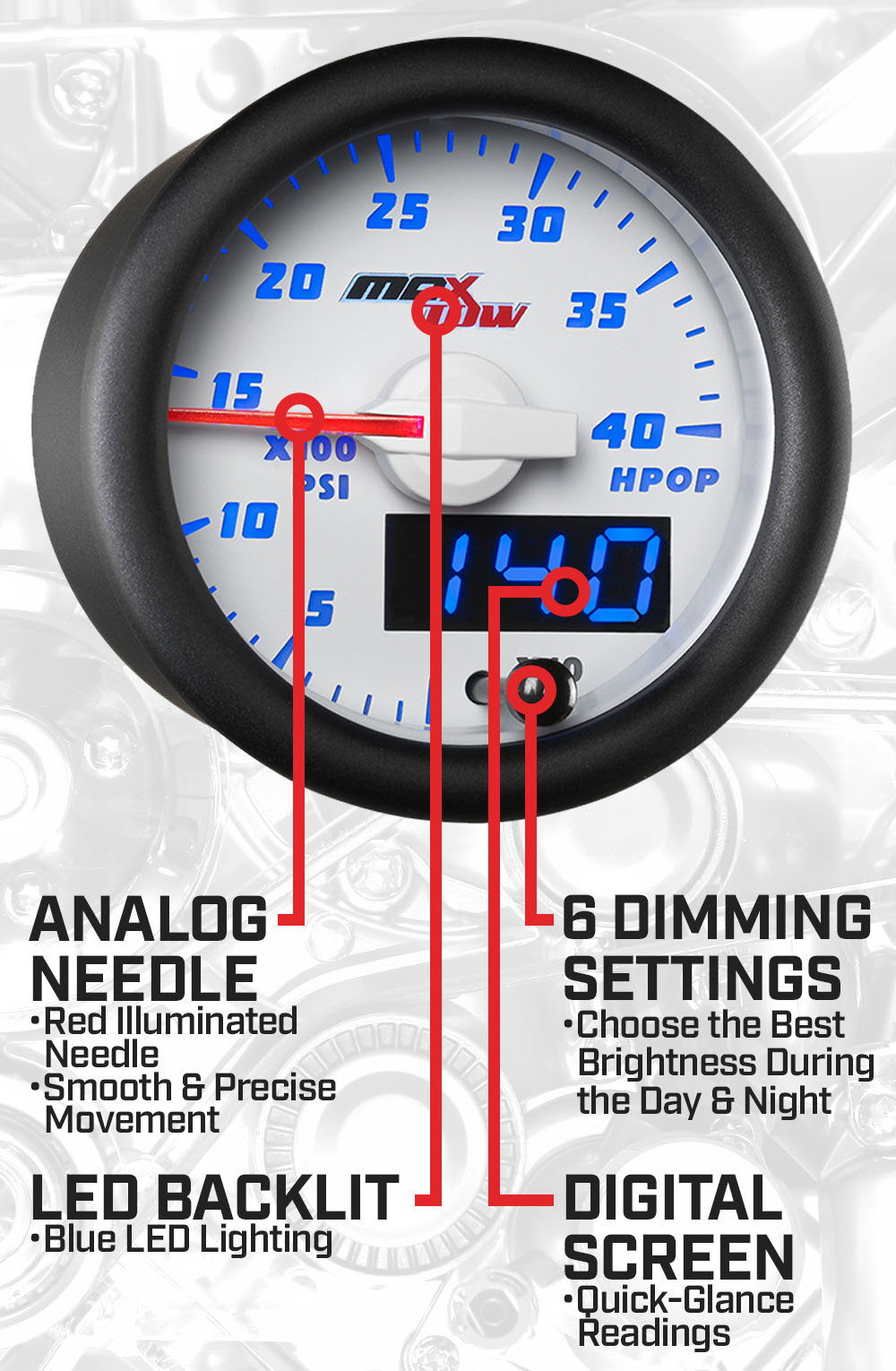

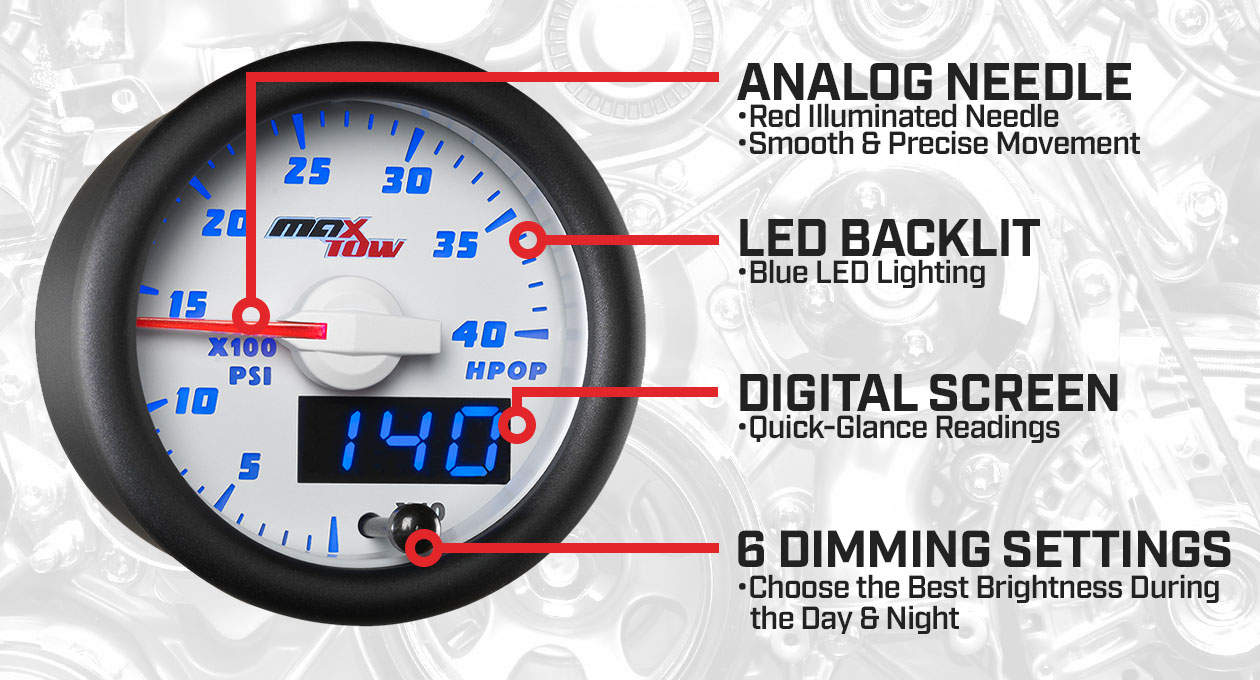

The Double Vision™ Gauge Series features an analog display using an illuminated red needle combined with a blue digital LED readout, giving you the classic gauge style with quick glance digital readings. This 2 1/16” (52mm) HPOP gauge features stepper motor technology that allows for extremely smooth needle movement that keeps up with the changing pressures of the truck. Each MaxTow gauge comes standard with daytime and nighttime dimming modes with three customizable brightness settings for each mode, providing multiple options to fit your preference when hitting the road during the day or the late hours of the night! The brightness recall function remembers the previous setting the gauge was on before powering the truck down so you won’t have to set it every time!

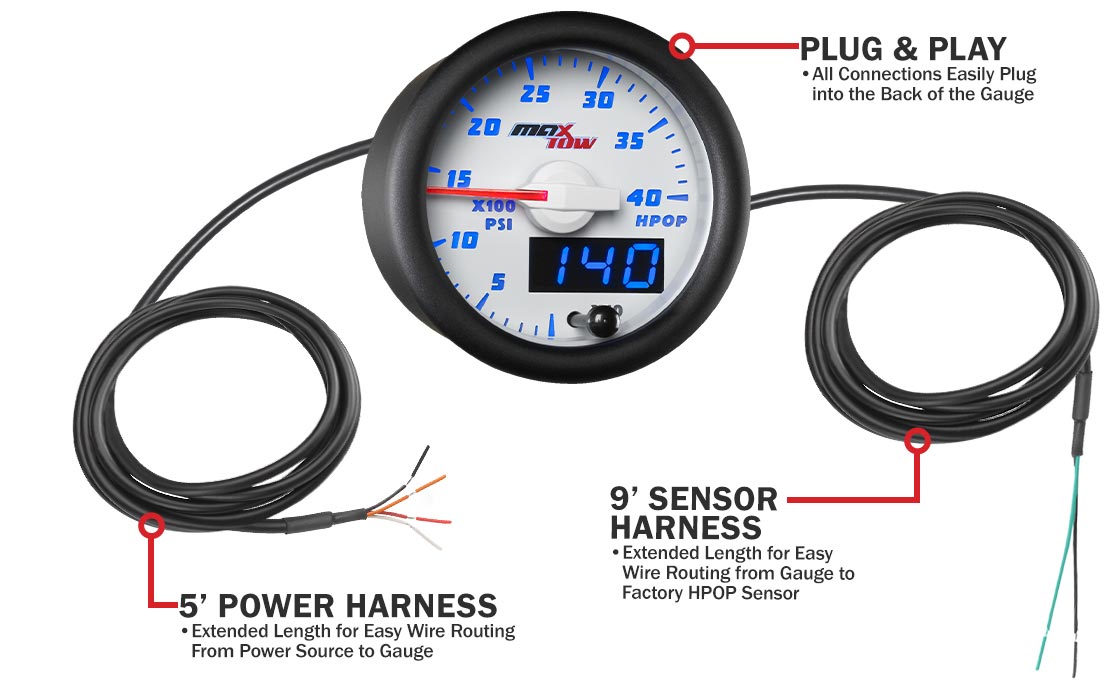

MaxTow’s HPOP Gauge includes a 9’ sensor harness that installs to the ICP sensor and a 5’ power harness that connects to the power source of the truck. Each gauge also includes a gauge visor that eliminates any glare from the sun and a mounting bracket that will hold the gauge in place in any type of gauge pod. MaxTow includes installation instructions, free lifetime technical support and a one year limited warranty with each purchase. Get ready to hit the road and Tow to the Max™!

Adding the HPOP Gauge Wiring Pigtail Harness eliminates the need to splice into any factory wiring to receive high pressure oil pressure readings. This gauge harness installs to the injector control pressure sensor (ICP sensor) to provide accurate readings from the source. This HPOP harness features a length of 6” with 9” sensor and ground lead wires.

  • 2 1/16” (52mm) White Face Gauge with Magnified Clear Lens
  • HPOP Readings from 0 to 4,000 PSI
  • Recommended for 7.3L & 6.0L Ford Power Stroke Only
  • Double Vision™ Display Feature with Analog and Digital Readings
  • Blue LED Through Dial Lighting with a Red Illuminated Needle
  • Daytime Dimming Mode with 3 Customizable Brightness Settings
  • Nighttime Dimming Mode with 3 Customizable Brightness Settings
  • 9' Sensor Harness
  • 5' Power Harness
  • Gauge Visor
  • Mounting Hardware
  • Installation Instructions
  • Free Lifetime Technical Support
  • One Year Limited Warranty
  • Quick & Easy Installation Without Having to Splice or Cut into Factory Wires
  • Connects Directly to Injector Control Pressure (ICP) Sensor
  • Fits 1994-1997 7.3L Power Stroke
  • Fits 1999-2002 7.3L Power Stroke
  • Fits 2003-2007 6.0L Power Stroke
Tech Specs
Gauge Series: White & Blue MaxTow Series
Brand: MaxTow
Gauge Type: HPOP
Range of Reading: 0 - 4,000 PSI
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Blue
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
