White & Blue MaxTow Oil Pressure Gauge

(You save $72.00 )

In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty


MaxTow White & Blue Double Vision™ Truck Oil Pressure Gauges are electronically driven diesel gauges that read and display your truck’s oil pressure levels from 0 to 100 PSI with unrivaled accuracy. Closely monitor your engine's oil pressure in real time, ensuring the bearings, crankshaft and other critical engine parts stay properly lubricated. Get ready to hit the road and Tow to the Max™

White & Blue Double Vision Oil Pressure Gauge White & Blue Double Vision Oil Pressure Gauge

This truck oil pressure gauge kit comes with everything required for installation. Included you’ll receive an Electronic Oil Pressure Sensor, Wiring Harnesses, Mounting Hardware and more. Detailed Installation Instructions walk you through the oil pressure gauge install step by step. Add this truck oil pressure gauge to virtually any mid-size of full-size pickup to catch unusual dips or spikes in pressure levels.

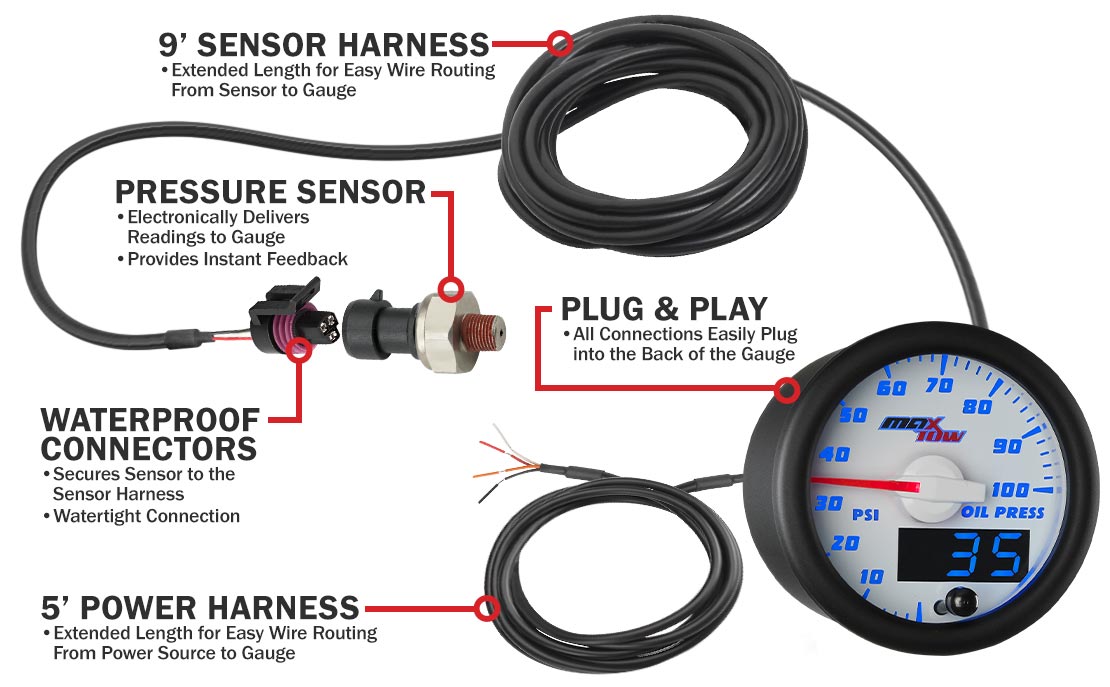

Oil Pressure Gauge Parts & Wiring

White & Blue Double Vision Oil Pressure Gauge Parts & Wiring White & Blue Double Vision Oil Pressure Gauge Parts & Wiring

MaxTow truck oil pressure gauges feature sensor and power harnesses with extended lengths for added flexibility during installation. The sensor harness is 9’ and the power harness is 5’, assuring you’ll have more than enough wiring for a seamless install. Easily attach both harnesses to the back of this automotive oil pressure gauge for trucks by utilizing Plug and Play connectors.

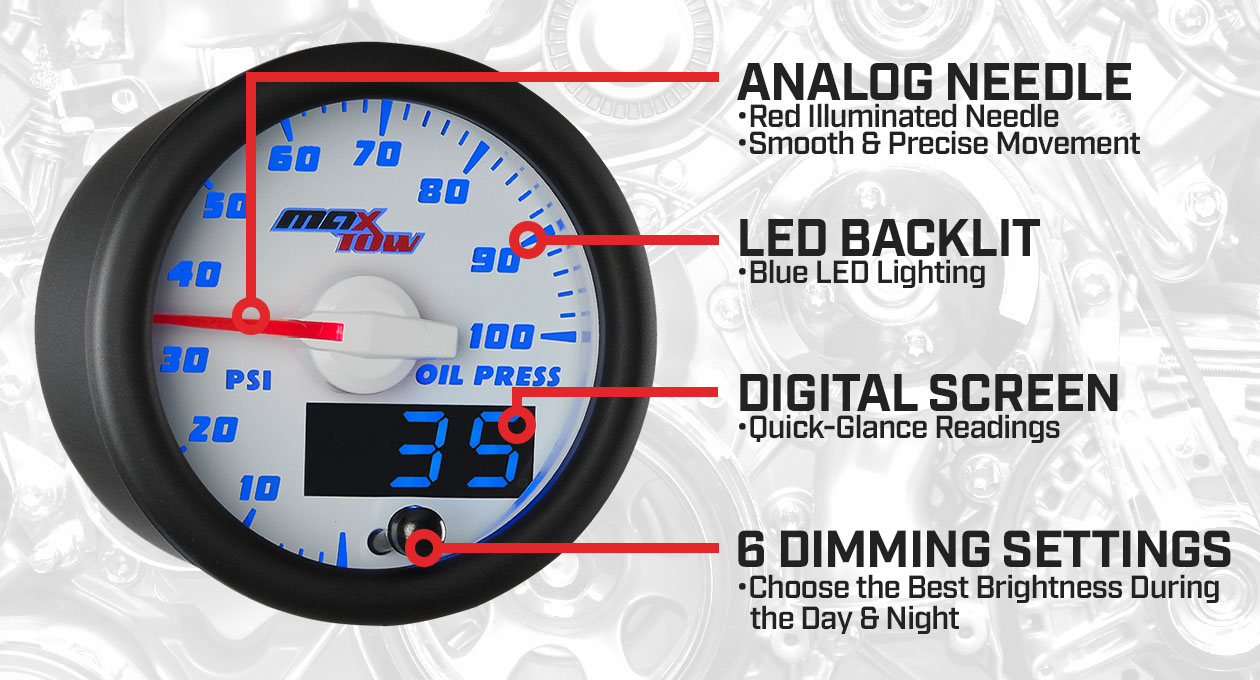

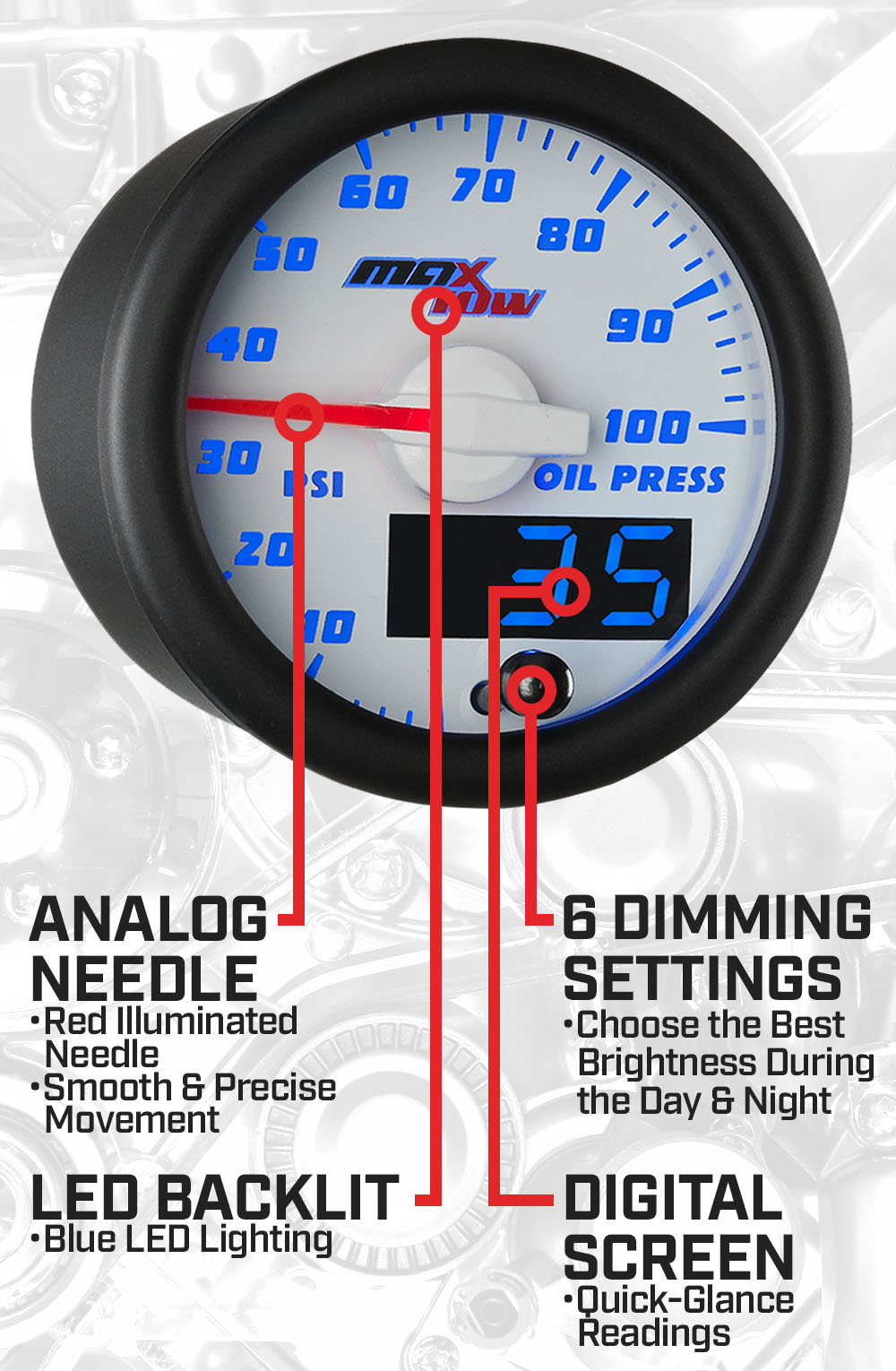

Double Vision™ Series Features

White & Blue Double Vision Oil Pressure Gauge Features White & Blue Double Vision Oil Pressure Gauge Features

MaxTow White & Blue Double Vision™ Gauges feature a white gauge dial and blue LED display with an illuminated red needle. Get the classic look of an analog gauge combined with a blue digital numerical readout. This 2-1/16” (52mm) gauge is equipped with stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. Brightness Recall retains the previous brightness setting before the truck is powered down.

Oil Pressure Sensor

MaxTow Electronic Pressure Sensor

The Oil Pressure Gauge Includes a 1/8-27 NPT Electronic Sensor that Can Be Installed to the Engine Block, Oil Cooler, or By Using a T-Fitting on an Oil Line.

Wiring Harnesses

MaxTow Plug & Play Wire Harnesses

Included are a 9’ Oil Pressure Sensor Wire and 5’ Power Wire. Easily Connect Both Wiring Harnesses to the Back of the Gauge with Plug and Play Connectors.

Dimming Modes

MaxTow Double Vision Dimming Modes

This Truck Oil Pressure Gauge Is Equipped with 3 Daytime and 3 Nighttime Dimming Modes. Customize the Brightness Level for Optimal Viewing of Readings Anytime of Day or Night.

What's Included

  • 2-1/16” (52mm) Oil Pressure Gauge
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9’ Sensor Harness
  • 5’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Oil Pressure Gauge In Trucks

A truck oil pressure gauge can be an early alert to any issues with your application’s oil pressure levels. If your oil pressure light comes on it could point to engine trouble after it is already too late. With an oil pressure gauge in trucks, you can monitor levels at all times to ensure they’re optimal. An electric oil pressure gauge gives you the ability to quickly determine if levels are dipping, or if they’re running too high.

Sensor Thread Note

This automotive oil pressure gauge includes a 1/8-27 NPT thread size on the sensor which your truck may not be equipped with. As a result, an additional threading adapter could be required for installation of the sensor. If you are unsure if your application requires additional threading adapters, please contact a GlowShift Technical Support Specialist.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our Gauges, Pods and Accessories.

Tech Specs
Gauge Series: White & Blue MaxTow Series
Brand: MaxTow
Gauge Type: Oil Pressure
Range of Reading: 0 - 100 PSI
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Blue
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
