White & Green MaxTow 60 PSI Boost Gauge

SKU:
MT-WDV01_60
$136.99
$89.99
(You save $47.00 )
UPC:
842559100882
  • Extended Holiday Returns

    Extended Holiday ReturnsACCEPTED UNTIL JANUARY 31ST

  • Delivery By Christmas

    Delivery By ChristmasCONTIGUOUS US ONLY

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow’s White Double Vision™ Series 60 PSI Boost Gauge is an electronically driven diesel truck gauge that will read and display your truck’s boost pressure levels from 0 to 60 PSI with the included electronic boost sensor, giving you unrivaled accuracy while eliminating the need for running a lengthy vacuum hose and t-fitting.

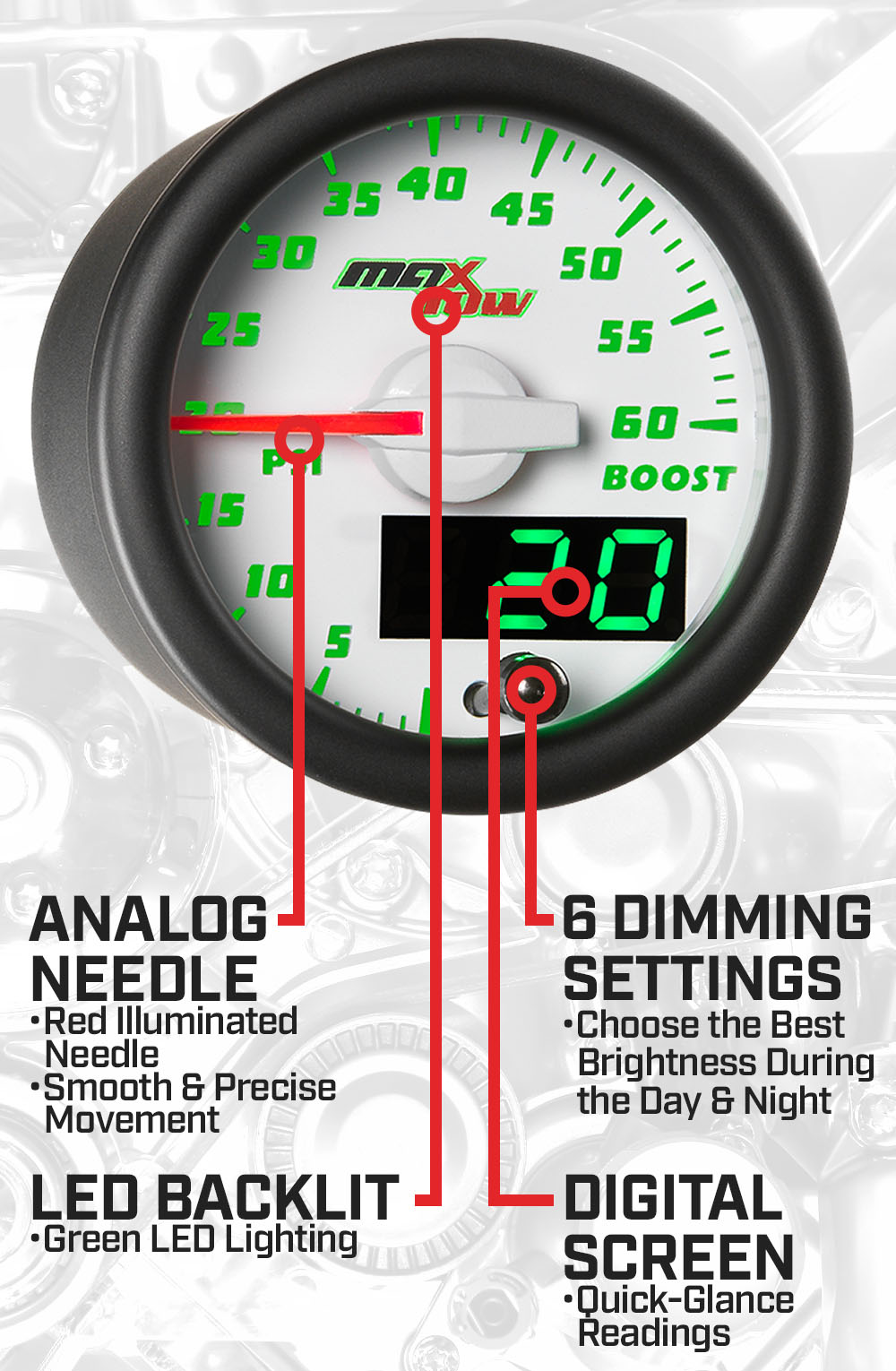

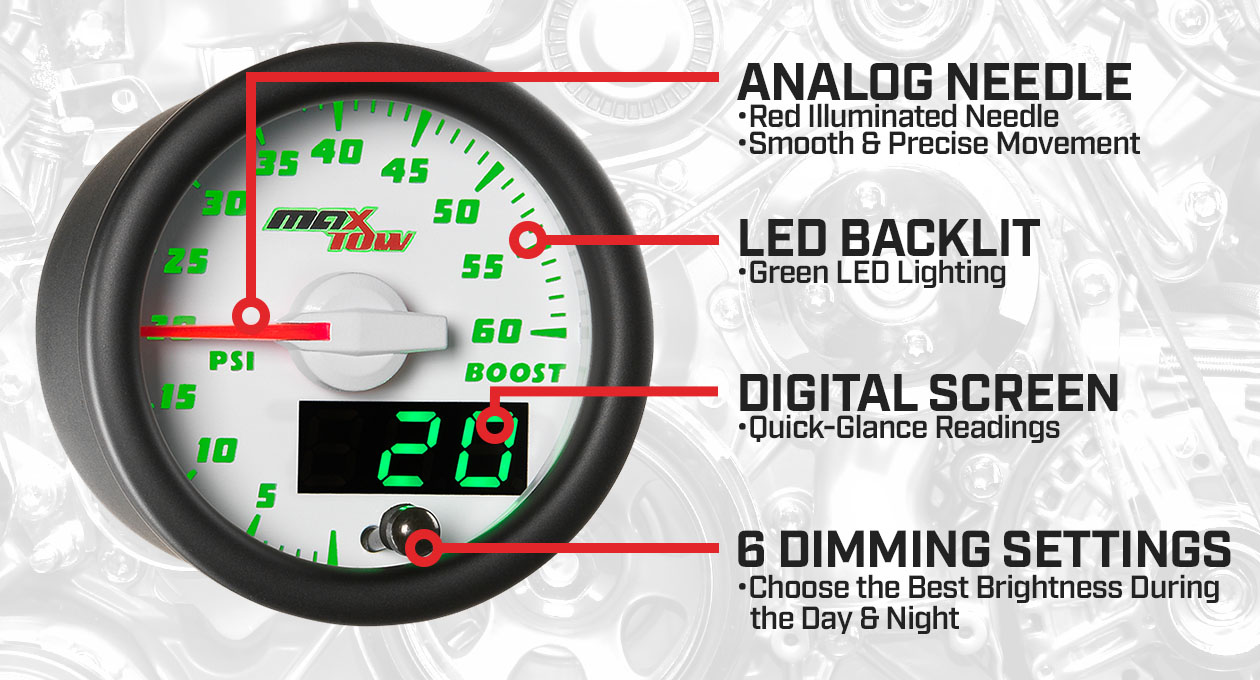

MaxTow’s White Double Vision Gauge Series features a green LED display and an illuminated red needle, which gives you the classic look of an analog gauge as well as an easy to read green digital numerical readout. The Double Vision Gauge Series outperforms the competition by offering multiple options and added convenience when it comes to monitoring your truck’s most vital functions! This 2 1/16" (52mm) boost gauge outperforms the competition by featuring stepper motor technology which allows for exceptionally smooth needle movement and extremely precise gauge readings. No matter how much your truck is shaking or pulling, the needle is unaffected and delivers the accurate results you’re looking for. This diesel 60 PSI boost gauge also features innovative daytime and nighttime modes with three customizable brightness settings for each mode. The three daytime brightness settings (d1, d2, d3) allow you to easily view your gauge readings without being affected by the sunlight, while the three nighttime brightness settings (n1, n2, n3) allow up to a 50% more subtle glow for your gauge while driving during later hours. Another feature of the nighttime mode is that the illuminated red needle will match the brightness level of the gauge for easier viewing at night. The included brightness recall function will remember the previous brightness setting you had before powering your vehicle down so you won’t have to reset it every time you turn on your vehicle.

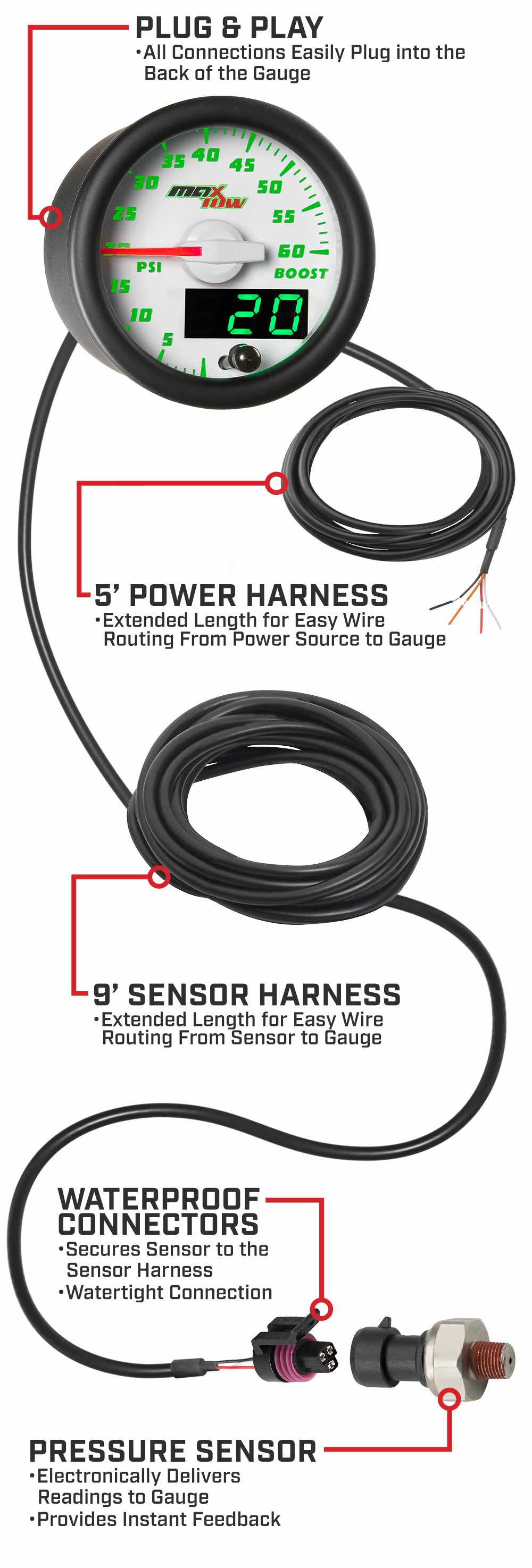

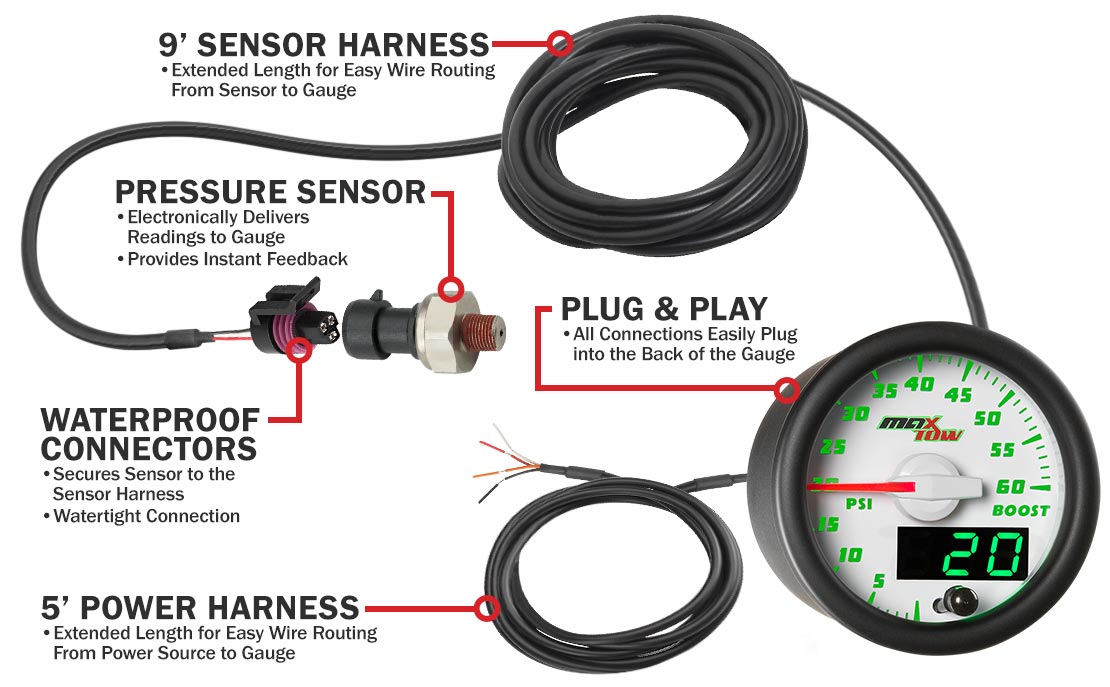

Every White MaxTow diesel boost gauge features extended wire harnesses for both power (5') and boost pressure sensor (9') connections, assuring that you’ll have more than enough wire for a quick and easy installation. All gauge mounting hardware and installation instructions come standard with every diesel boost pressure gauge purchased, as well as a one year limited warranty and free lifetime technical support. Get ready to hit the road and Tow to the Max™

Note: This gauge includes a 1/8-27 NPT thread size on the sensor and your vehicle may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require additional threading adapters, please contact a GlowShift Technical Support Specialist.

  • 2 1/16" (52mm) White Gauge Face with a Magnified Lens
  • Boost Reading from 0 to 60 PSI
  • Electronic Boost Pressure Sensor with 1/8-27 NPT Threads
  • Double Vision Display Feature with Analog and Digital Readings
  • Green LED Through Dial Lighting with a Red Illuminated Needle
  • Daytime Mode with 3 Customizable Brightness Settings
  • Nighttime Mode with 3 Customizable Brightness Settings
  • 9' Boost Pressure Sensor Wire
  • 5' Power Wire
  • Gauge Depth Measures 1 5/16"
  • Gauge Visor
  • Mounting Hardware
  • Installation Instructions
  • Free Lifetime Technical Support
  • One Year Limited Warranty
Tech Specs
Gauge Series: White & Green MaxTow Series
Brand: MaxTow
Gauge Type: Boost
Range of Reading: 0 - 60 PSI
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Green
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
