White & Green MaxTow Differential Temperature Gauge

SKU:
MT-WDV22
$89.99

UPC:
842559125380
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow White & Green Double Vision™ Truck Differential Temperature Gauges are electronically driven and read from 100° to 250° Fahrenheit. Diff Temp Gauges are an essential monitoring tool for the temperature of gear oil in the rear differential of your truck. These temps directly affect the performance of the transmission and rear differential, and high temperatures could lead to premature wear and costly repairs. Get ready to hit the road and Tow to the Max™

White & Green Double Vision Differential Temperature Gauge White & Green Double Vision Differential Temperature Gauge

This rear differential temperature gauge kit for trucks comes with everything required for installation. Included you’ll receive an Electronic Temperature Sensor with a Waterproof Connector, Wiring Harnesses, Mounting Hardware and more. Detailed Installation Instructions walk you through the diff temp gauge install step by step. Add this gauge to virtually any mid-size or full-size pickup.

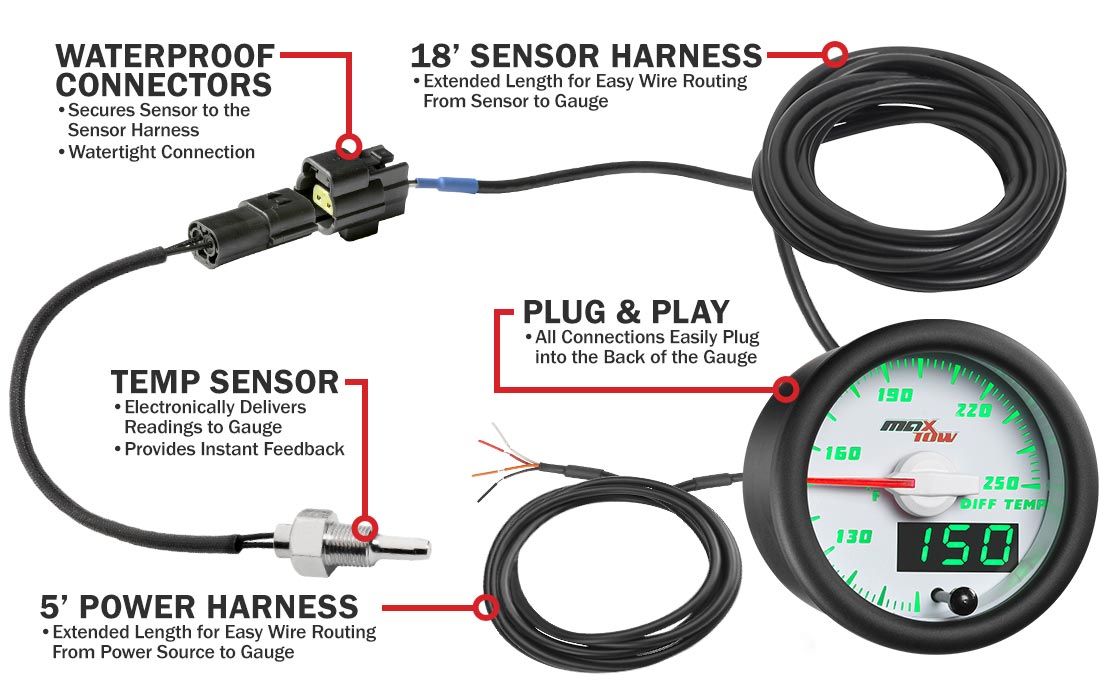

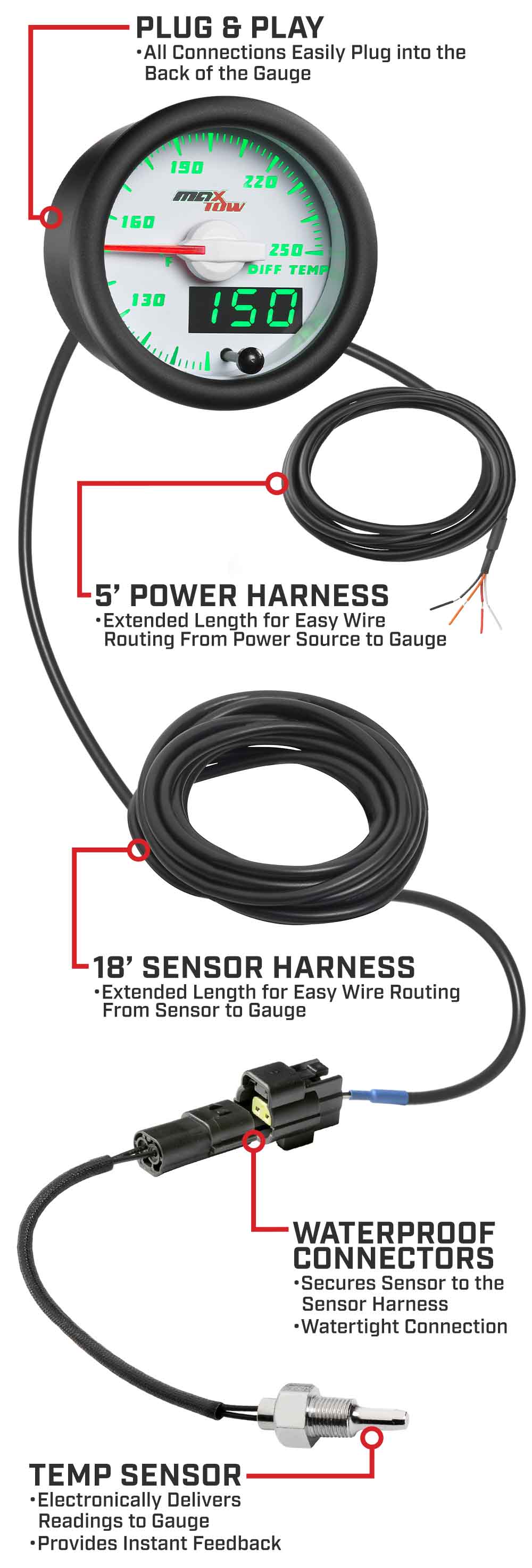

Diff Temp Gauge Parts & Wiring

White & Green Double Vision Diff Temperature Gauge Parts & Wiring White & Green Double Vision Diff Temperature Gauge Parts & Wiring

MaxTow Double Vision™ Differential Temp Gauges for trucks feature sensor and power harnesses with extended lengths for added flexibility during installation. The sensor harness is 18’ with a waterproof connector and the power harness is 5’, assuring you’ll have more than enough wiring for a seamless install. Easily attach both harnesses to the back of this differential temperature gauge for trucks by utilizing Plug and Play connectors.

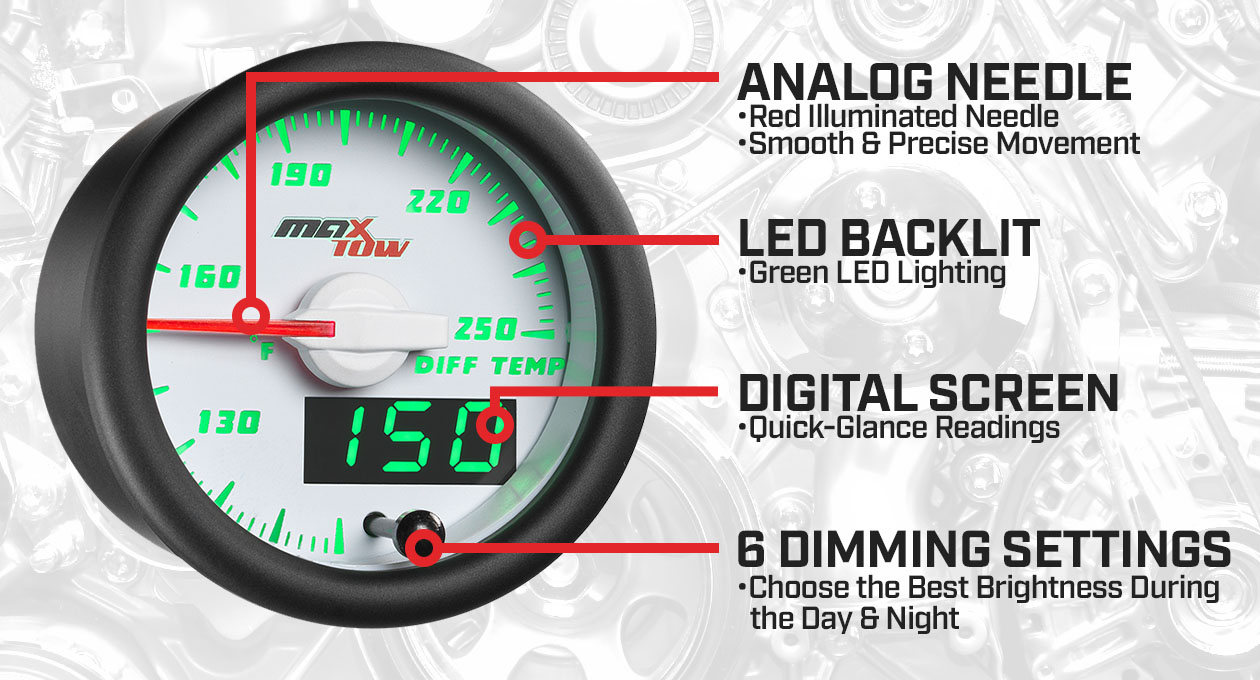

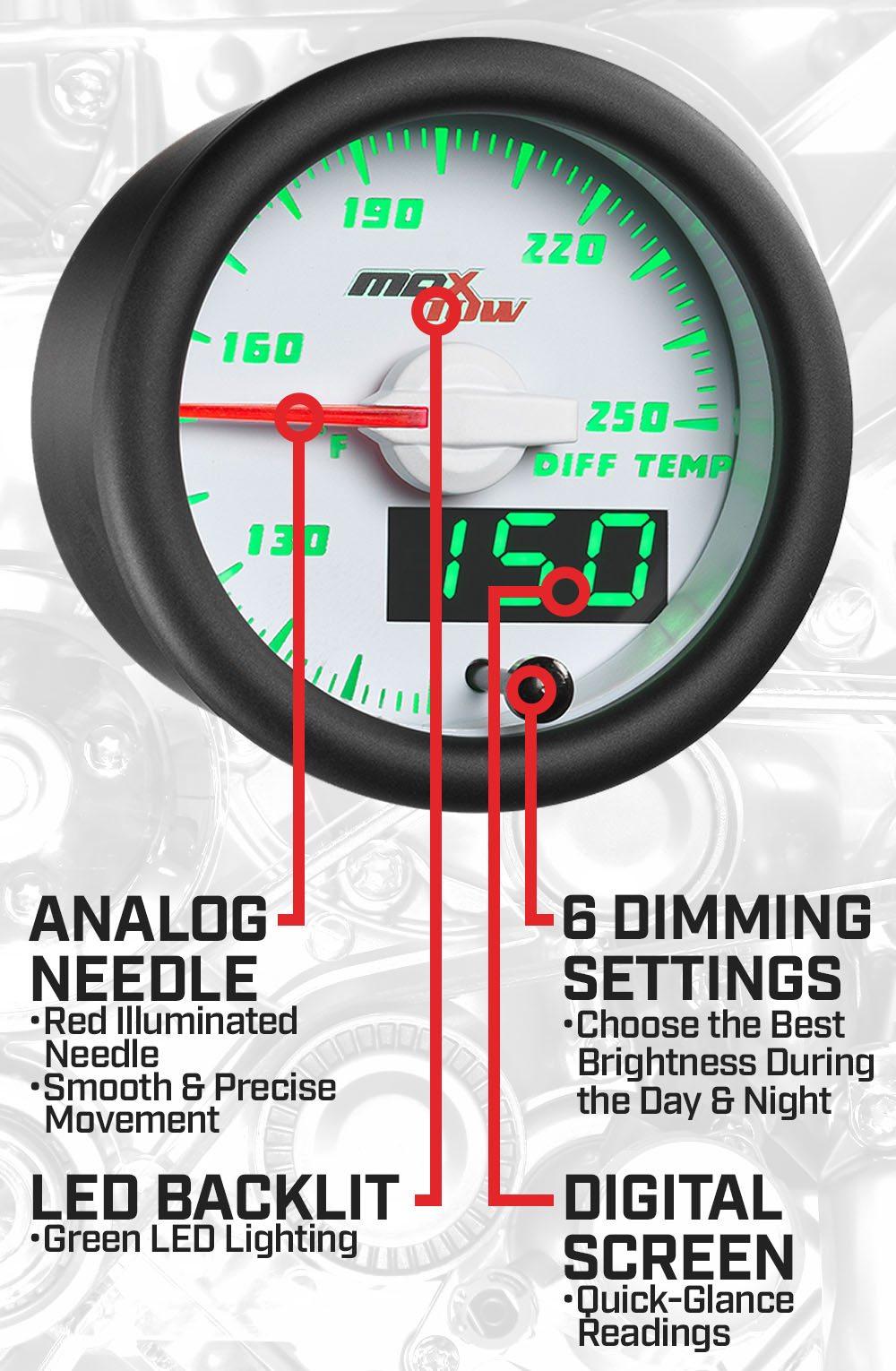

Double Vision™ Series Features

White & Green Double Vision Rear Differential Temperature Gauge Features White & Green Double Vision Rear Differential Temperature Gauge Features

MaxTow White & Green Double Vision™ Gauges feature a white gauge dial and green LED display with an illuminated red needle. Get the classic look of an analog gauge combined with a green digital numerical readout. This 2-1/16” (52mm) gauge is equipped with stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. Brightness Recall retains the previous brightness setting before the truck is powered down.

Temp Sensor & Bung

MaxTow Electronic Temperature Sensor

The Diff Temp Gauge Includes a 1/8-27 NPT Electronic Temperature Sensor with a Waterproof Connector that Can Be Installed Directly into the Rear of the Differential Cover with the Included Weld-In Bung.

Wiring Harnesses

MaxTow Plug & Play Wire Harnesses

Included are an 18’ Temperature Sensor Wire with a Waterproof Connector and 5’ Power Wire. Easily Connect Both Wiring Harnesses to the Back of the Gauge with Plug and Play Connectors.

Dimming Modes

MaxTow Double Vision Dimming Modes

Each Differential Temp Gauge Is Equipped with 3 Daytime and 3 Nighttime Dimming Modes. Customize the Brightness Level for Optimal Viewing of Readings Anytime of Day or Night.

What's Included

  • 2-1/16” (52mm) Differential Temperature Gauge
  • 1/8-27 NPT Temperature Sensor with Waterproof Connector
  • 1/8-27 NPT Weld-In Bung
  • 18' Sensor Wire Harness with Waterproof Connector
  • 5’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Differential Temperature Gauge For Trucks

Knowing your differential temperature can be especially useful for trucks that are putting additional pressure on the engine by covering long distances or towing heavy loads. MaxTow axle temperature gauges provide you with extremely accurate, at-a-glance readings that will alert you in the event your differential temperature is dipping too low or running too high. Monitor your Powerstroke, Cummins, Duramax and other diesel trucks from 100° to 250° Fahrenheit with this rear differential temperature gauge.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our Gauges, Pods and Accessories.

Tech Specs
Gauge Series: White & Green MaxTow Series
Gauge Type: Differential Temperature
Range of Reading: 100 - 250° F
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Green
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
