White & Green MaxTow Fuel Level Gauge

SKU:
MT-WDV15
$99.99
$89.99
(You save $10.00 )

UPC:
842559101001
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow White & Green Double Vision™ Truck Fuel Level Gauges read from Empty to Full in standard increments with pinpoint accuracy. Each gauge can easily be set to the factory OHM level on the factory sensor during installation. This electronic fuel tank level gauge is optimal for any driver looking to build a custom dash or replace their stock fuel tank gauge. Start monitoring fuel levels on an ultra-bright analog and digital LED display that also enhances your truck’s interior. Get ready to hit the road and Tow to the Max™

White & Green Double Vision Fuel Level Gauge White & Green Double Vision Fuel Level Gauge

This fuel level gauge kit comes with everything required for installation. Included you’ll receive Sensor and Power Wiring Harnesses, a Mounting Bracket, Mounting Hardware and more. Detailed Installation Instructions walk you through the fuel level gauge install step by step. Install this fuel tank gauge for trucks to virtually any mid-size or full-size pickup.

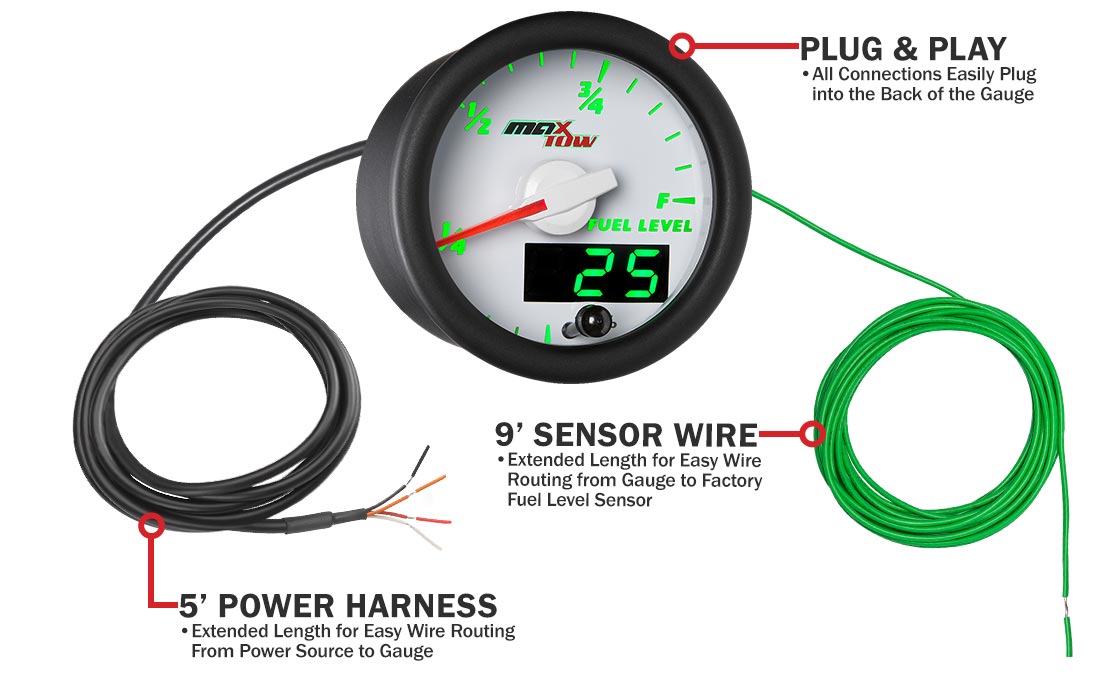

Fuel Level Gauge Parts & Wiring

White & Green Double Vision Fuel Level Gauge Parts & Wiring White & Green Double Vision Fuel Level Gauge Parts & Wiring

MaxTow Truck Fuel Tank Level Gauges feature sensor and power harnesses with extended lengths for added flexibility during installation. The sensor harness is 9’ and the power harness is 5’, assuring you’ll have more than enough wiring for a seamless install. Easily attach both harnesses to the back of the gauge by utilizing Plug and Play connectors.

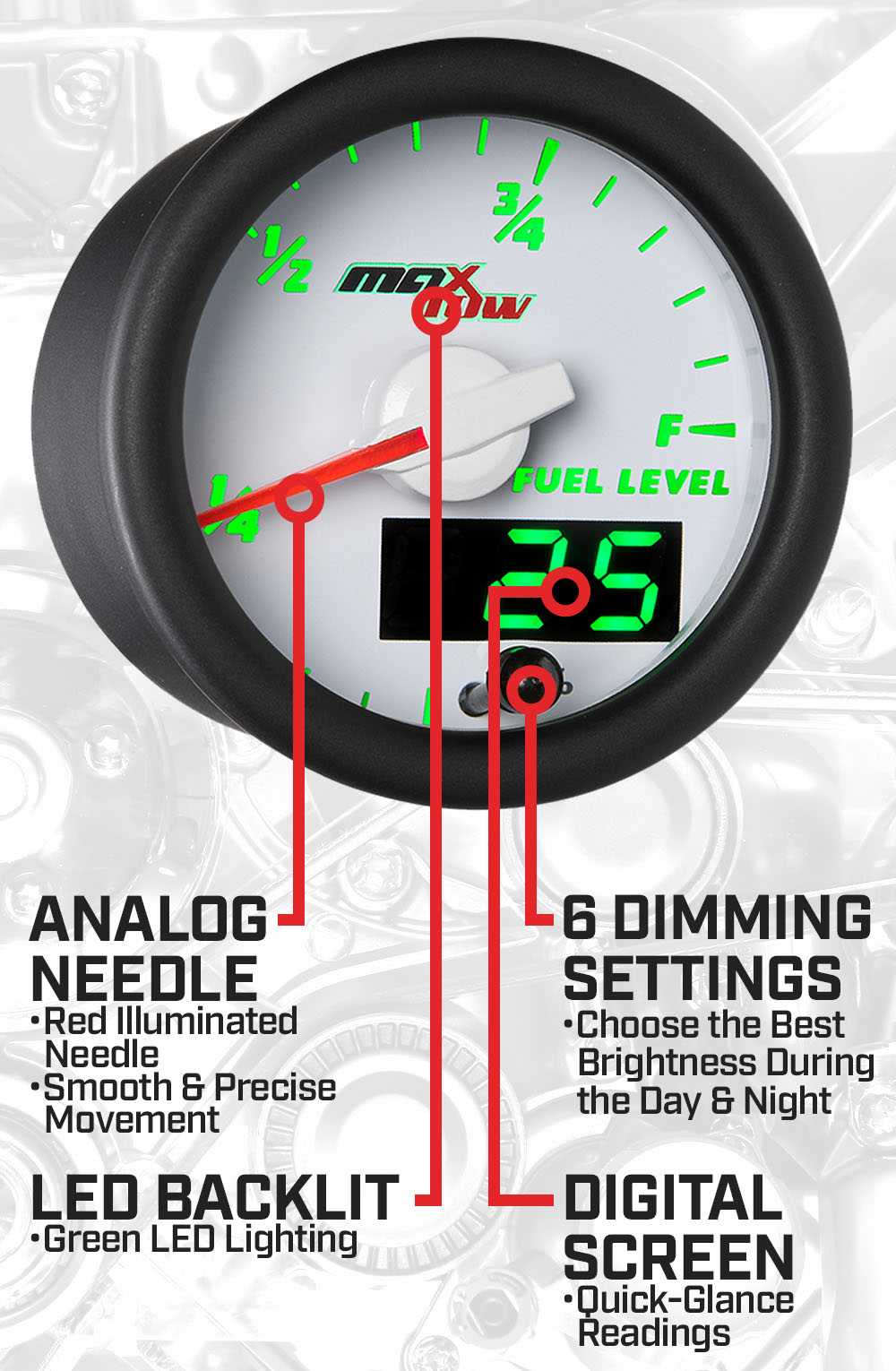

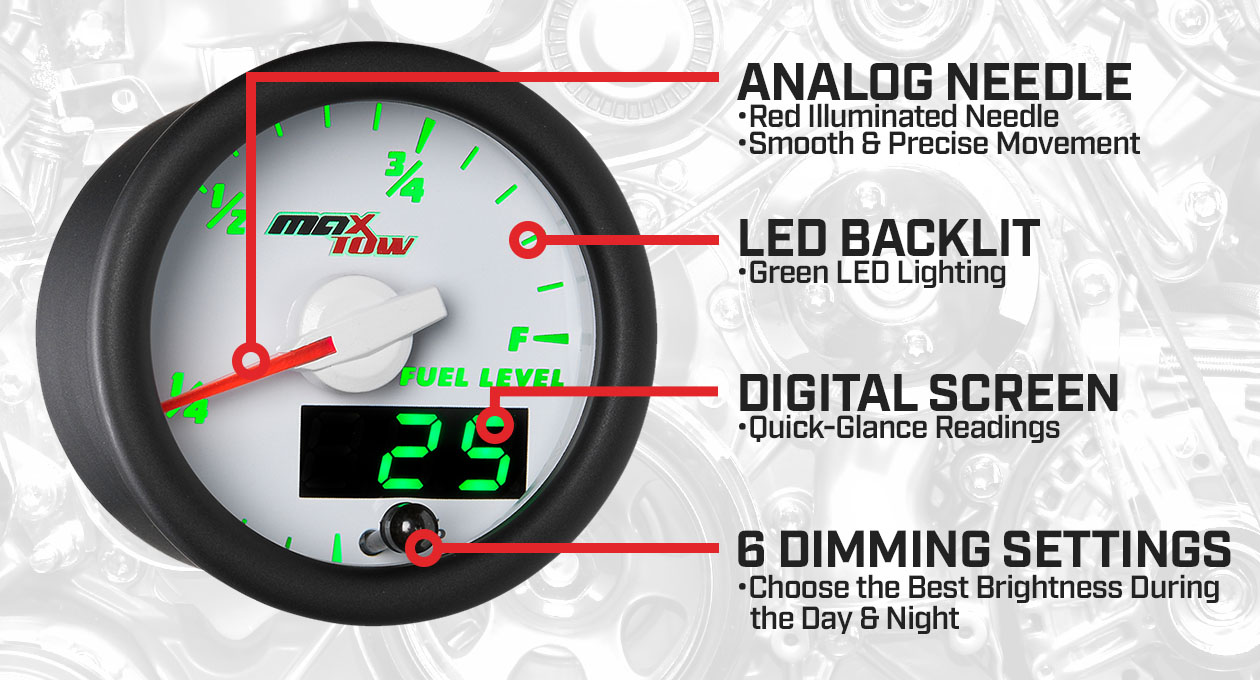

Double Vision™ Series Features

White & Green Double Vision Fuel Level Gauge Features White & Green Double Vision Fuel Level Gauge Features

MaxTow White & Green Double Vision™ Gauges feature a white gauge dial and green LED display with an illuminated red needle. Get the classic look of an analog gauge combined with a green digital numerical readout. This 2-1/16” (52mm) gauge is equipped with stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. Brightness Recall retains the previous brightness setting before the truck is powered down.

Wiring Harnesses

MaxTow Plug & Play Wire Harnesses

Route the 9’ Green Fuel Level Sensor Harness from the Fuel Level Gauge to Your Truck’s Fuel Level Sensor Signal Wire, Splicing Them Together Using a Butt Connector. The 5’ Power Wire Includes Both Power and Ground Connections. Easily Attach Included Wiring Harnesses to the Back of the Gauge with Plug and Play Connectors.

Mounting Bracket

MaxTow Mounting Bracket

A U-Shaped Gauge Mounting Bracket Is Included with a Stud Kit that Attaches the Bracket to the Back of the Fuel Level Gauge. This Bracket Delivers a Secure Fit for Any In-Dash Mount.

Dimming Modes

MaxTow Double Vision Dimming Modes

Each Truck Fuel Tank Gauge Is Equipped with 3 Daytime and 3 Nighttime Dimming Modes. Customize the Brightness Level for Optimal Viewing of Readings Anytime of Day or Night.

What's Included

  • 2-1/16” (52mm) Fuel Level Gauge
  • 9’ Green Sensor Harness
  • 5’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

MaxTow’s Truck Fuel Gauge Is Compatible with the Following OHM Resistance Levels:

  • 0Ω (E) - 30Ω (F)
  • 0Ω (E) - 90Ω (F)
  • 0Ω (E) - 120Ω (F)
  • 10Ω (E) - 180Ω (F)
  • 16Ω (E) - 158Ω (F)
  • 40Ω (E) - 250Ω (F)
  • 73Ω (E) - 10Ω (F)
  • 107.5Ω (E) - 7Ω (F)
  • 131Ω (E) - 12Ω (F)
  • 240Ω (E) - 33Ω (F)

Adjustable Electronic Fuel Level Gauge

Different types of fuel level sensors may be needed depending on the OHM output and the type of truck. However, MaxTow’s fuel tank level gauge is compatible with several OHM Resistance Levels. You can also adjust the OHM reading from your stock sensor for many of the most common engine types. Having this compatibility allows drivers to either configure to their stock fuel level sensor or an aftermarket sensor. With a MaxTow analog and digital fuel level gauge kit you can match a wide range of truck models.

Aftermarket Fuel Level Gauge For Trucks

Aftermarket fuel tank gauges are for any truck owner who has replaced their stock fuel tank or upgraded to an aftermarket fuel cell. They are also for anyone with a new fuel pump and fuel sender unit that needs a gauge to match. With this analog and digital fuel level gauge you can also adjust your truck’s OHM reading for a variety of different fuel sender setups. Depending on your fuel level sensor, you can adjust the gauge accordingly to read the OHMs on your truck’s tank.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our Gauges, Pods and Accessories.

  • Compatible with Any Car or Truck with a 240-33 Ohm Fuel Tank
  • Adjustable for 5"-27" Tank Depths
  • Slim Design with a Float for Accurate & Reliable Readings
  • Includes Adjustable Fuel Level Sensor with 3' of Wiring, (1) Mounting Bracket, (1) Gasket, (5) Bolts, (5) Nuts & Installation Instructions
  • 8" Fuel Level Sensor for Any Car or Truck with 240-33 Ohm Fuel Tank
  • Slim One-Piece Design with a Float for Accurate & Reliable Readings
  • Includes Fuel Level Sensor with 3' of Wiring, (1) Mounting Bracket, (1) Gasket, (5) Bolts, (5) Nuts & Installation Instructions
  • 10" Fuel Level Sensor for Any Car or Truck with 240-33 Ohm Fuel Tank
  • Slim One-Piece Design with a Float for Accurate & Reliable Readings
  • Includes Fuel Level Sensor with 3' of Wiring, (1) Mounting Bracket, (1) Gasket, (5) Bolts, (5) Nuts & Installation Instructions
  • 12" Fuel Level Sensor for Any Car or Truck with 240-33 Ohm Fuel Tank
  • Slim One-Piece Design with a Float for Accurate & Reliable Readings
  • Includes Fuel Level Sensor with 3' of Wiring, (1) Mounting Bracket, (1) Gasket, (5) Bolts, (5) Nuts & Installation Instructions
Tech Specs
Gauge Series: White & Green MaxTow Series
Brand: MaxTow
Gauge Type: Fuel Level
Range of Reading: E, 1/4, 1/2, 3/4, F
Range of Reading: 0 - 100%
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Green
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.
