White & Green MaxTow Intake Temperature Gauge

SKU:
MT-WDV20
$109.99

UPC:
842559128565
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow White & Green Double Vision™ Truck Intake Temperature Gauges help improve the performance of your diesel engine by measuring the temperature of air entering the intercooler from 0 to 300° Fahrenheit. This intake temp gauge monitors air temperatures to ensure your intercooler is working efficiently. If temps are too high your intercooler could be blocked or damaged. Benefits of an intercooler air temp gauge for trucks include better horsepower, increased engine performance, and optimal fuel efficiency. Get ready to hit the road and Tow to the Max™

White & Green Double Vision Differential Temperature Gauge White & Green Double Vision Differential Temperature Gauge

This intake manifold temperature gauge kit for trucks comes with everything required for installation. Included you’ll receive an Electronic Intake Air Temperature Sensor with a Waterproof Connector, Wiring Harnesses, Mounting Hardware and more. Detailed Installation Instructions walk you through the intake temp gauge install step by step. Add this gauge to virtually any mid-size or full-size pickup.

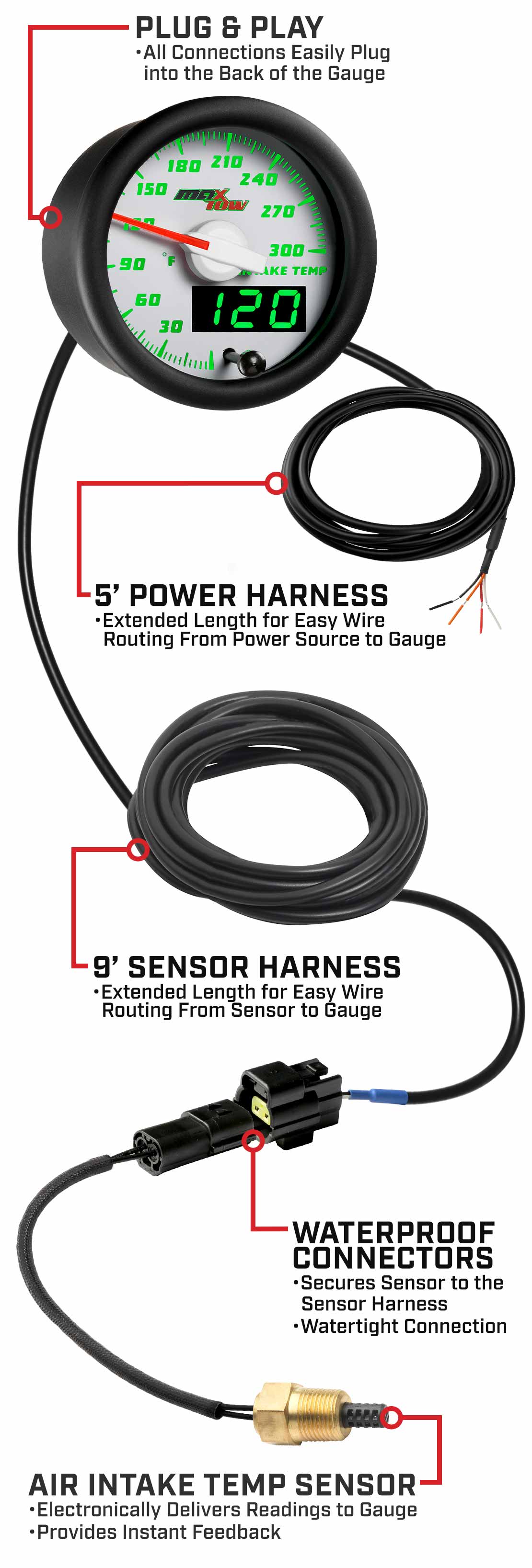

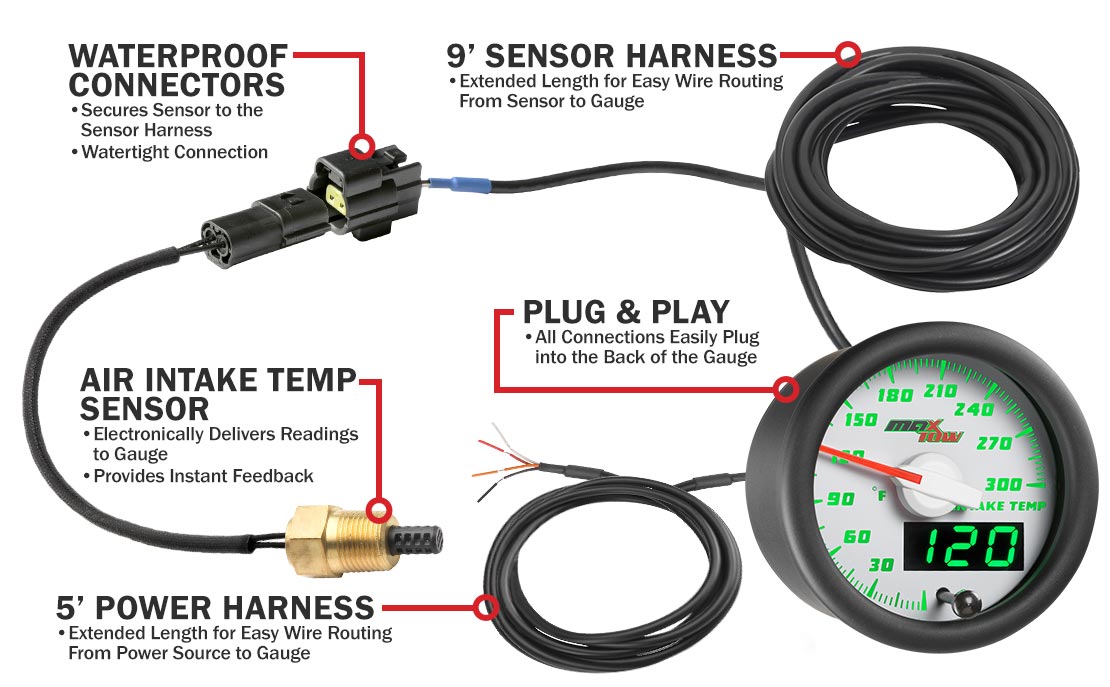

Intake Temp Gauge Parts & Wiring

White & Green Double Vision Diff Temperature Gauge Parts & Wiring White & Green Double Vision Diff Temperature Gauge Parts & Wiring

MaxTow Double Vision™ Intercooler Temperature Gauges for trucks feature sensor and power harnesses with extended lengths for added flexibility during installation. The sensor harness is 9’ with a waterproof connector and the power harness is 5’, ensuring you’ll have more than enough wiring for a seamless install. Easily attach both harnesses to the back of this intake air temperature gauge for trucks by utilizing Plug and Play connectors.

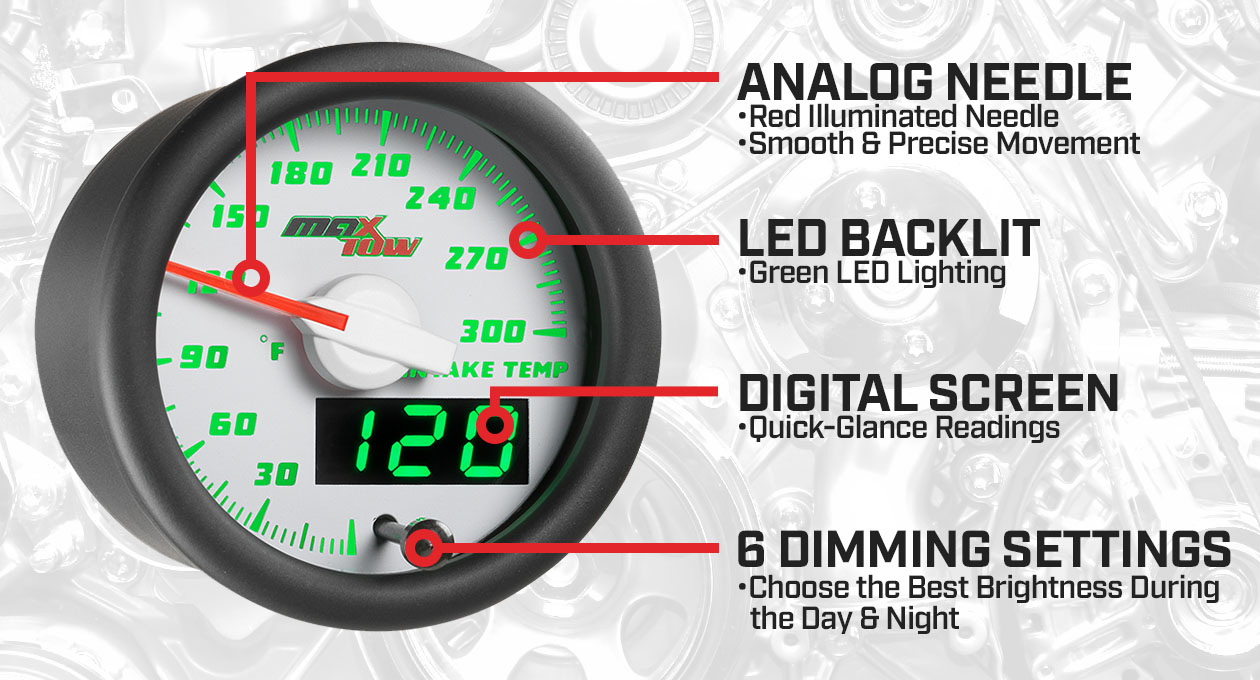

Double Vision™ Series Features

White & Green Double Vision Rear Differential Temperature Gauge Features White & Green Double Vision Rear Differential Temperature Gauge Features

MaxTow White & Green Double Vision™ Gauges feature a white gauge dial and green LED display with an illuminated red needle. Get the classic look of an analog gauge combined with a green digital numerical readout. This 2-1/16” (52mm) gauge is equipped with stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. Brightness Recall retains the previous brightness setting before the truck is powered down.

Temp Sensor

MaxTow Electronic Temperature Sensor

This Gauge Has a 3/8-18 NPT Electronic Intake Air Temperature Sensor with a Waterproof Connector that Can Be Installed Pre-Intercooler, Post-Intercooler or to the Air Intake Pipe.

Wiring Harnesses

MaxTow Plug & Play Wire Harnesses

Included are a 9’ Temperature Sensor Wire with a Waterproof Connector and 5’ Power Wire. Easily Connect Both Wiring Harnesses to the Back of the Gauge with Plug and Play Connectors.

Dimming Modes

MaxTow Double Vision Dimming Modes

Each Intercooler Temp Gauge Is Equipped with 3 Daytime and 3 Nighttime Dimming Modes. Customize the Brightness Level for Optimal Viewing of Readings Anytime of Day or Night.

What's Included

  • 2-1/16” (52mm) Intake Temperature Gauge
  • 3/8-18 NPT Electronic Air Temperature Sensor with Waterproof Connector
  • 9' Sensor Wire Harness with Waterproof Connector
  • 5’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Intake Temperature Gauge For Trucks

MaxTow Intake Manifold Temperature Gauges are made for any driver who expects more from their truck and wants to maximize their diesel engine’s output. If your application involves racing, driving long distances or towing heavy cargo, this intake air temp gauge is for you. Over time these forms of driving will impact your engine, and one of the indicators that your engine may be experiencing too much strain is if the intake air temperature is high. Monitor to ensure that your intercooler is being properly cooled so that your engine continues to perform at its peak.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our Gauges, Pods and Accessories.

  • Drill & Tap the Hot & Cold Side of Intercooler Pipe to Install Dual Intake Temperature Sensors
  • Includes 3/8” Drill Bit & 3/8-18 Tap
  • Allows Installation of Dual Intake Temperature Sensors to Intercooler Pipe
  • Includes (2) 3/8-18 NPT Aluminum Weld-In Bungs
Tech Specs
Gauge Series: White & Green MaxTow Series
Brand: MaxTow
Gauge Type: Intake Temperature
Range of Reading: 0 - 300° F
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Green
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.
