10 Color Digital Dual BAR Pressure Gauge

SKU:
GS-TCD-DP-Bar
$199.99

UPC:
842559130315
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

GlowShift 10 Color Digital Series BAR Dual Pressure Gauges monitor any combination of Boost, Oil Pressure and Fuel Pressure simultaneously from 0 to 7.0 BAR. This incredibly responsive BAR pressure gauge is electronically driven and features (2) customizable LED displays with bold, easy to read, quick glance digital numerical readouts. Included you’ll receive (2) 1/8-27 NPT Electronic Pressure Sensors, (2) 9’ Pressure Sensor Harnesses, Mounting Hardware and more for installation.

10 Color Digital Series 10 Color Digital Series

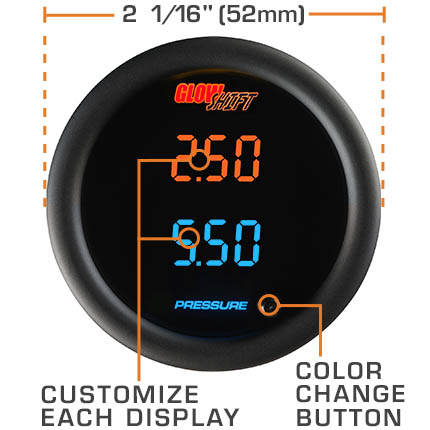

The 10 Color Dual Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Experience 2 customizable displays with bold, easy to read, quick glance digital readouts. Users have the ability to set each of the displays with any combination of the featured 10 colors to quickly identify each reading. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.

Features

10 Color Digital Series Features

10 Color Dual Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series.

10 Color Options

10 Color Digital Series Color Options

The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors.

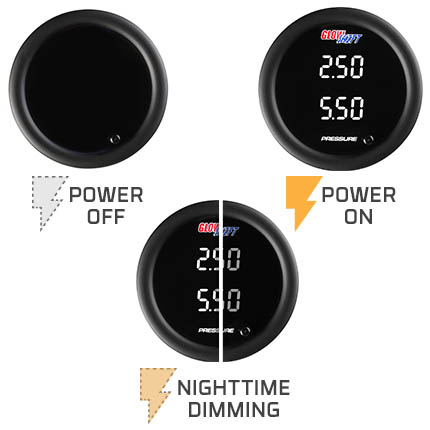

Backlighting

10 Color Digital Series Backlighting

LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on.

What's Included

  • 2-1/16” (52mm) Digital Dual Bar Pressure Gauge
  • (2) 1/8-27 NPT Electronic Pressure Sensors
  • (2) 9’ Pressure Sensor Harnesses
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Sensors

10 Color Digital Dual Pressure Sensors

This dual digital pressure gauge comes with (2) 1/8-27 NPT Electronic Pressure Sensors. To install and connect the sensors to your car or truck, detailed instructions are provided that walk you through the process step by step. Your vehicle may not come equipped with the same thread size as the sensor and a thread adapter may be required for installation.

Wiring

10 Color Digital Dual Pressure Wiring

A 2’ Power Harness and (2) 9’ Sensor Harnesses are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation.

Mounting Bracket

10 Color Digital Dual Pressure Mounting Hardware

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Dual BAR Pressure Gauge Monitoring Options

Monitoring your turbocharged or supercharged vehicle’s boost pressure is critical so you don’t overboost and potentially cause major engine damage. Monitoring oil pressure helps keep an eye on the changing oil pressure levels of your car or truck, ensuring that the bearings, crankshaft and other vital engine parts stay properly lubricated. Staying on top of fuel pressure is key to horsepower, fuel pump and fuel injector performance. Each pressure sensor takes care of all the hard work by keeping a close eye on these changing pressure levels.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

Tech Specs
Gauge Series: 10 Color Digital Series
Brand: GlowShift
Gauge Type: Boost
Gauge Type: Oil Pressure
Gauge Type: Fuel Pressure
Gauge Type: Combo
Range of Reading: 0 - 7.0 BAR
Face Color: Black
Size: 52mm
Lens: Tinted
Backlighting Color: 10 Colors
Sending Unit: Electronic
Measurement Unit: Metric
Display: Digital
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
