Black 7 Color 3-3/4" On-Dash Tachometer Gauge

SKU:
GS-C709
$164.99
$82.99
(You save $82.00 )

UPC:
842559101407
Maximum Purchase:
99 units
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

GlowShift’s Black 7 Color Series 3-3/4" On-Dash Tachometer Gauge offers multiple ultra-high performance features, making it perfect for anyone with a 1 through 10 cylinder gas powered vehicle. This tachometer reads from 0 to 10,000 RPM with incredible accuracy and ensures you are shifting at the appropriate time, also protecting against unnecessary transmission wear.

Black 7 Color Series Black 7 Color Series

GlowShift’s Black 7 Color Gauge Series comes standard with a cutting-edge design that includes a black gauge dial, analog display and magnified clear lens. You can also choose between 7 different color options for the LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your vehicle and take accurate readings at the same time.

Features

Black 7 Color Series Features

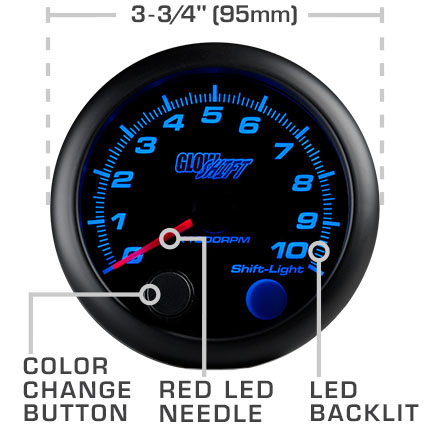

The gauge’s illuminated red needle sweeps 270° and is powered by stepper motor technology. You’ll get an effective combination of incredibly precise gauge readings with extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge.

7 Color Options

Black 7 Color Series Color Options

Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle.

Backlighting

Black 7 Color Series Backlighting

This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look great courtesy of the black gauge face and magnified lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you can dim the gauge 30% when the headlights are on.

What's Included

  • 3-3/4” (95mm) Tachometer Gauge
  • 2’ Power & 6’ Signal Wire
  • 3-3/4” On-Dash Mounting Bracket
  • Adhesive Tape
  • Mounting Bracket Hardware
  • Installation Instructions

Shift Light

Black 7 Color Tachometer Wiring

To set the shift point, press and hold the “Adjustment” knob on the gauge face for 5 seconds until the needle displays the current set shift point. Twist “Adjustment” knob to increase or decrease the RPM settings.

On-Dash Mount

Black 7 Color Tachometer Gauge Visor

The On-Dash Mounting Bracket comes with hardware and can be installed to your car or truck’s dashboard, or any flat surface in your vehicle. The Tachometer easily fits and will remain fully secured as you take readings.

Wiring

Black 7 Color Tachometer Wiring

The 2’ Power Harness utilizes Plug and Play Connectivity to easily snap into the modular connector on the back of the gauge. Wires are included for Power, Ground, and a Dimming feature. The 6’ Signal Wire attaches directly to the Tachometer Signal.

GlowShift 3-3/4” Tachometer That Works With Gasoline Engines

GlowShift’s jumbo tachometers are a great addition to any vehicle with a gas engine. A tach gauge’s measurements show the rate of rotation of an engine’s crankshaft while also usually indicating a safe range of rotation speeds. Among the many benefits is helping a driver choose the best throttle and gear settings depending on the type of road conditions. Some engines produce most of their torque at lower RPMs, and experience lower torque as RPMs increase. Other motors must spin very quickly to produce the most power, which can often be seen in smaller gasoline engines. By knowing at which RPM rate your engine produces the most power using a tachometer gauge, you’ll be able to get better performance out of your vehicle.

Note For Multiple Coil Systems

Our Tachometers are only designed for a gasoline, single coil application. For multiple coil applications, the use of a multiple coil or aftermarket ignition system adapter is required. Vehicles equipped with High Energy Ignition Systems (HEI) will require GlowShift’s HEI Signal Filter.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

  • Transforms Poor, Weak or Disordered Pulse Signals & Corrects Them
  • Used for Single Coil & Point Style Coil Ignition Systems
  • Specifically Designed for Vehicles with High Energy Ignition Systems
  • Converts High Voltage Signal to a More Manageable Voltage for the Tachometer Gauge
Tech Specs
Gauge Series: Black 7 Color Series
Brand: GlowShift
Gauge Type: Tachometer
Range of Reading: 0 - 10,000 RPM
Face Color: Black
Size: 95mm
Lens: Clear
Backlighting Color: 7 Colors
Sending Unit: Electronic
Measurement Unit: Standard
Display: Analog
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
