Black & Green MaxTow 60 PSI Exhaust Pressure Gauge

SKU:
MT-DV23-60
$129.99

UPC:
842559130995
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow Black & Green Double Vision™ 60 PSI Exhaust Pressure Gauges measure how much exhaust pressure is driving your truck’s turbo in comparison to the amount of boost pressure being produced. The optimal ratio of exhaust pressure levels to boost pressure levels is 1:1, which will lead to peak performance in a turbo diesel engine. This diesel exhaust back pressure gauge displays exhaust pressure readings from 0 to 60 PSI with pinpoint precision. It is important to monitor drive pressure levels to protect from overboosting, which could also damage the turbo. Get ready to hit the road and Tow to the Max™

Black & Green Double Vision 60 PSI Exhaust Pressure Gauge Black & Green Double Vision 60 PSI Exhaust Pressure Gauge

This truck exhaust back pressure gauge kit comes with everything required for installation. Included you’ll receive an Electronic Pressure Sensor, Copper Cooling Tubing, Compression Fittings, Wiring Harnesses, Mounting Hardware and more. Detailed Installation Instructions walk you through the exhaust drive pressure gauge install step by step.

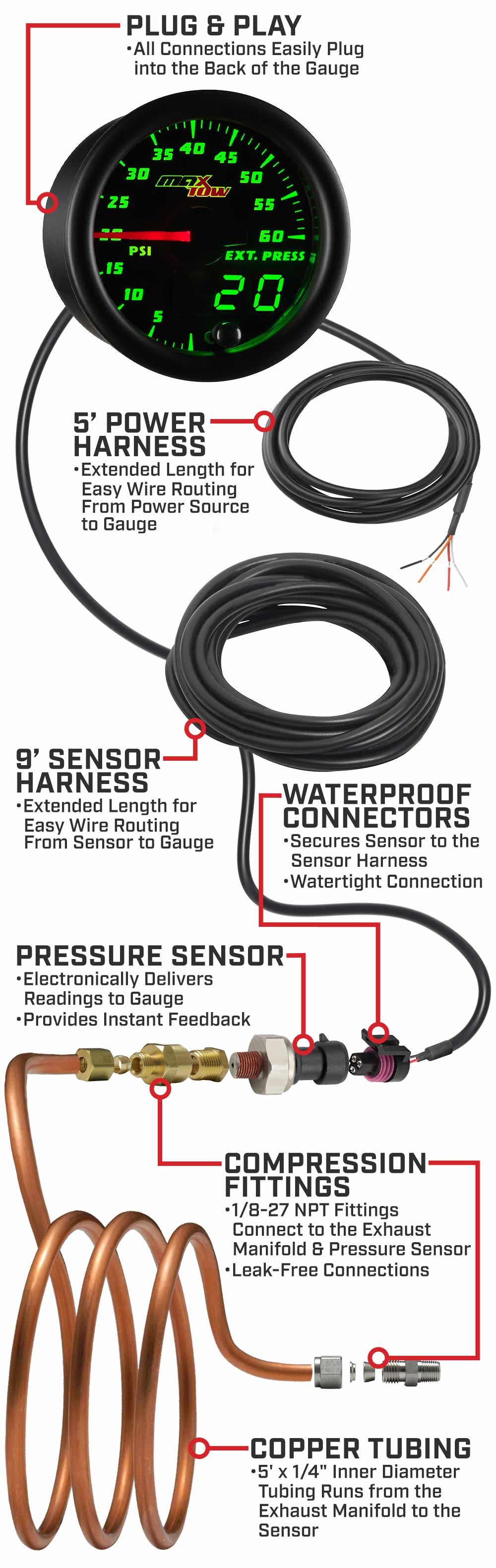

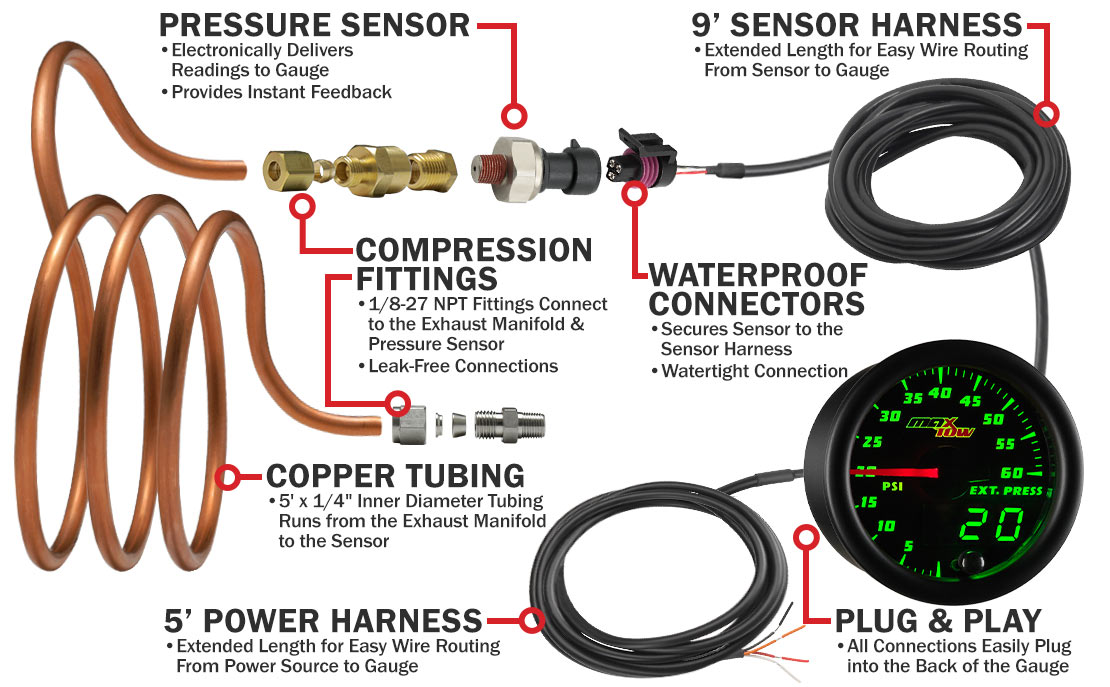

Drive Pressure Gauge Parts & Wiring

Black & Green Double Vision 60 PSI Exhaust Pressure Gauge Parts & Wiring Black & Green Double Vision 60 PSI Exhaust Pressure Gauge Parts & Wiring

MaxTow 60 PSI Exhaust Pressure Gauges for trucks feature sensor and power harnesses with extended lengths for added flexibility during installation. The sensor harness is 9’ and the power harness is 5’, assuring you’ll have more than enough wiring for a seamless install. Easily attach both harnesses to the back of this exhaust manifold pressure gauge for trucks by utilizing Plug and Play connectors.

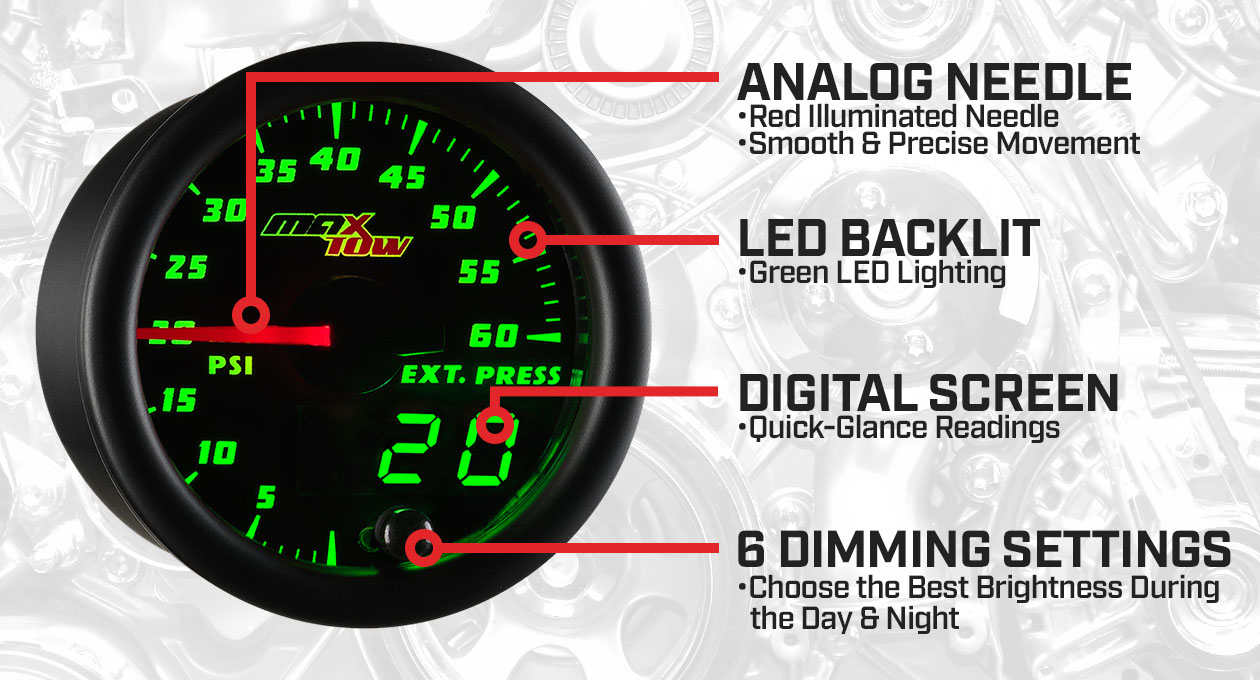

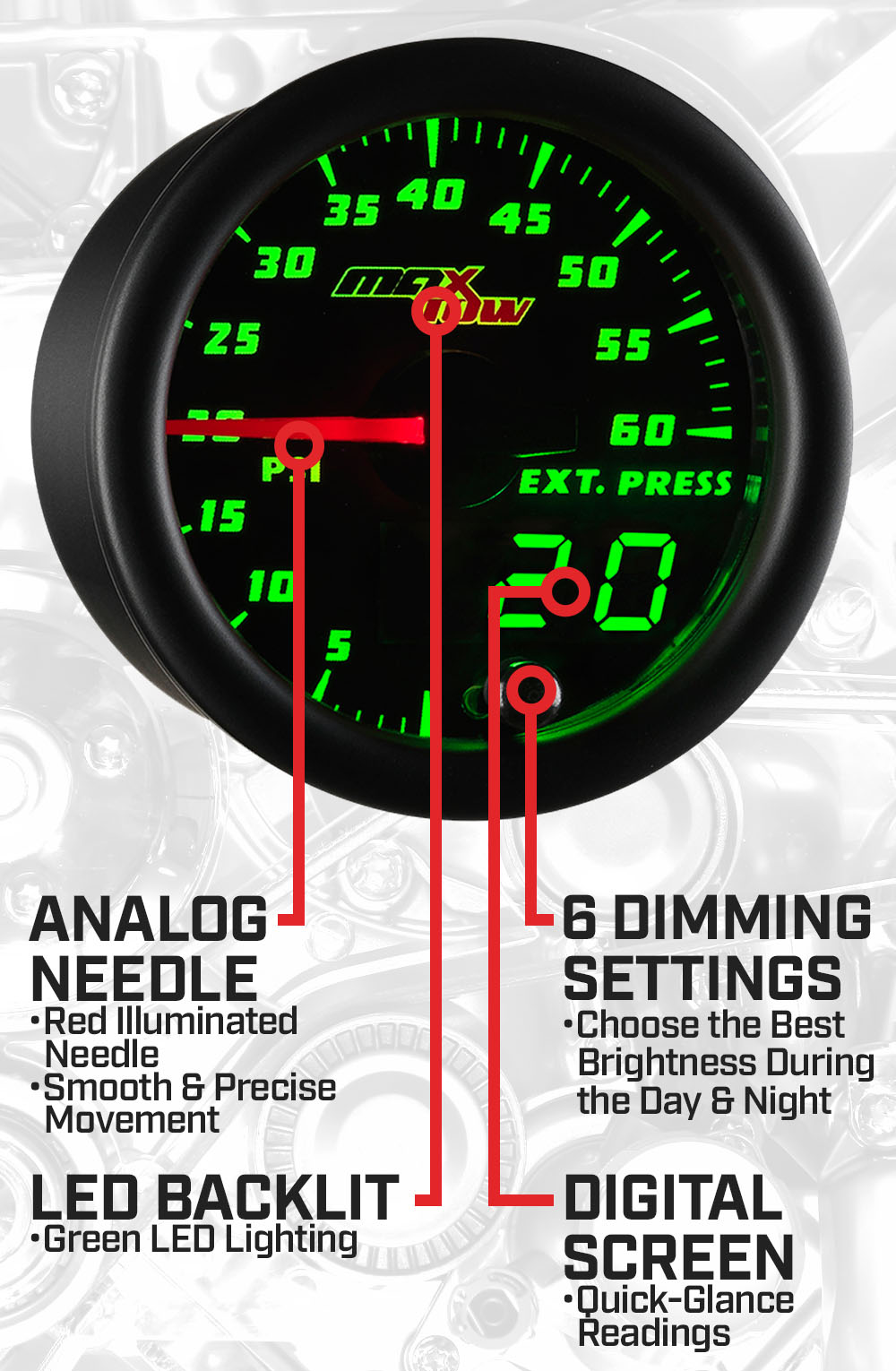

Double Vision™ Series Features

Black & Green Double Vision 60 PSI Drive Pressure Gauge Features Black & Green Double Vision 60 PSI Drive Pressure Gauge Features

MaxTow Black & Green Double Vision™ Gauges feature a black gauge dial and green LED display with an illuminated red needle. Get the classic look of an analog gauge combined with a green digital numerical readout. This 2-1/16” (52mm) gauge is equipped with stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. Brightness Recall retains the previous brightness setting before the truck is powered down.

Pressure Sensor

MaxTow Electronic Pressure Sensor

The Exhaust Back Pressure Gauge Includes a 1/8-27 NPT Electronic Sensor that Can Be Installed to the Exhaust Manifold. Some Manifolds May Have an Exhaust Probe Port.

Wiring Harnesses

MaxTow Plug & Play Wire Harnesses

Included are a 9’ Pressure Sensor Wire and 5’ Power Wire. Additionally, 5' of 1/4" Cooper Cooling Tube and Compression Fittings are Also Included. Easily Connect Both Wiring Harnesses to the Back of the Gauge with Plug and Play Connectors.

Dimming Modes

MaxTow Double Vision Dimming Modes

Each Exhaust Gas Pressure Gauge Is Equipped with 3 Daytime and 3 Nighttime Dimming Modes. Customize the Brightness Level for Optimal Viewing of Readings Anytime of Day or Night.

What's Included

  • 2-1/16” (52mm) 60 PSI Exhaust Drive Pressure Gauge
  • 1/8-27 NPT Electronic Pressure Sensor
  • 5’ of 1/4” Copper Cooling Tubing
  • (2) Sets of Compression Fittings
  • 9’ Sensor Harness
  • 5’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Exhaust Manifold Pressure Gauge For Trucks

Boost pressure and exhaust pressure go hand-in-hand with the performance of a turbo-charged diesel engine. Exhaust pressure, or exhaust drive pressure, is produced when exhaust builds up and is trying to escape from the engine. When boost pressure is increased, exhaust pressure will increase incrementally as well. Basically, the more boost you run, the more drive pressure you’ll get and engine performance can decrease. At the same time, lowering boost pressure will also cause exhaust pressure to decrease. The optimal ratio is 1:1, which will lead to solid performance in a turbo diesel engine. That ratio is not easy to reach, but the goal is to get as close to it as possible.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our Gauges, Pods and Accessories.

Tech Specs
Gauge Series: Black & Green MaxTow Series
Brand: MaxTow
Gauge Type: Exhaust Pressure
Range of Reading: 0 - 60 PSI
Face Color: Black
Size: 52mm
Lens: Clear
Backlighting Color: Green
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
