White & Blue MaxTow Air Pressure Gauge

SKU:
MT-WBDV13
$186.99
$129.99
(You save $57.00 )

UPC:
842559100318
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow White & Blue Double Vision™ Truck Air Pressure Gauges are electronically driven gauges that read and display your truck’s aftermarket air systems from 0 to 200 PSI with the included electronic air pressure sensor. This allows you to keep a close eye on the changing pressures of your truck’s air brakes, air horns or air suspension system to ensure the bags are filled to the proper level. Get ready to hit the road and Tow to the Max™

White & Blue Double Vision Air Pressure Gauge White & Blue Double Vision Air Pressure Gauge

This truck air pressure gauge kit comes with everything required for installation. Included you’ll receive an Electronic Air Pressure Sensor, Wiring Harnesses, Mounting Hardware and more. Detailed Installation Instructions walk you through the air pressure gauge install step by step. Add this truck air brake pressure gauge to virtually any mid-size of full-size pickup to catch unusual dips or spikes in pressure levels.

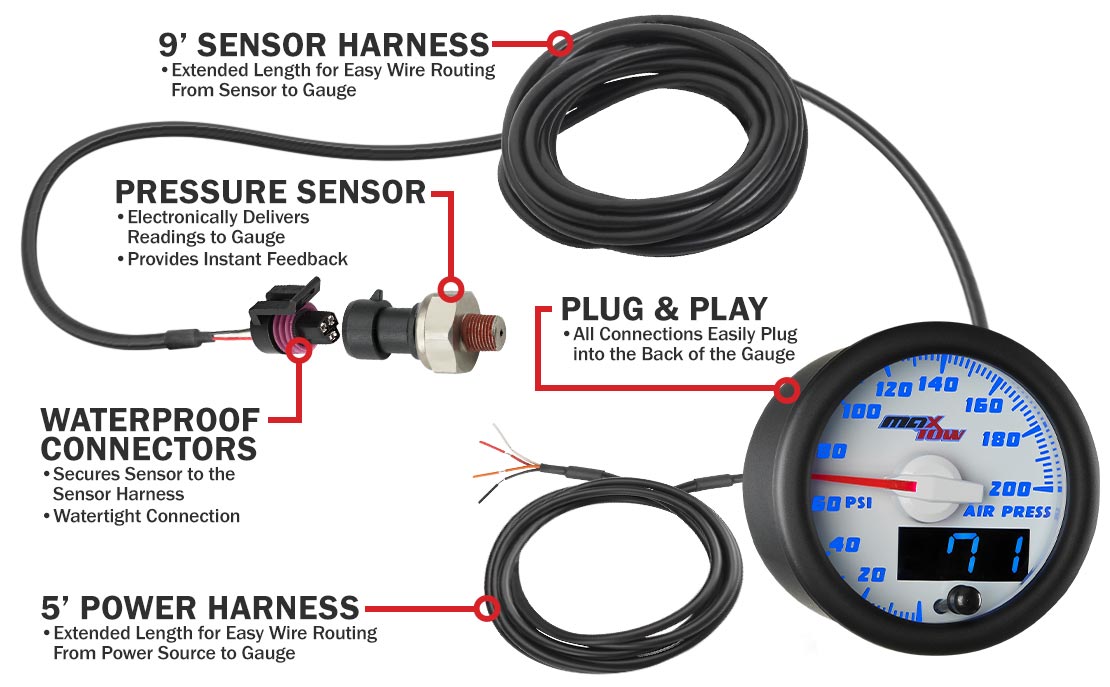

Air Pressure Gauge Parts & Wiring

White & Blue Double Vision Air Pressure Gauge Parts & Wiring White & Blue Double Vision Air Pressure Gauge Parts & Wiring

MaxTow air pressure gauges for trucks feature sensor and power harnesses with extended lengths for added flexibility during installation. The sensor harness is 9’ and the power harness is 5’, assuring you’ll have more than enough wiring for a seamless install. Easily attach both harnesses to the back of this air PSI gauge for trucks by utilizing Plug and Play connectors.

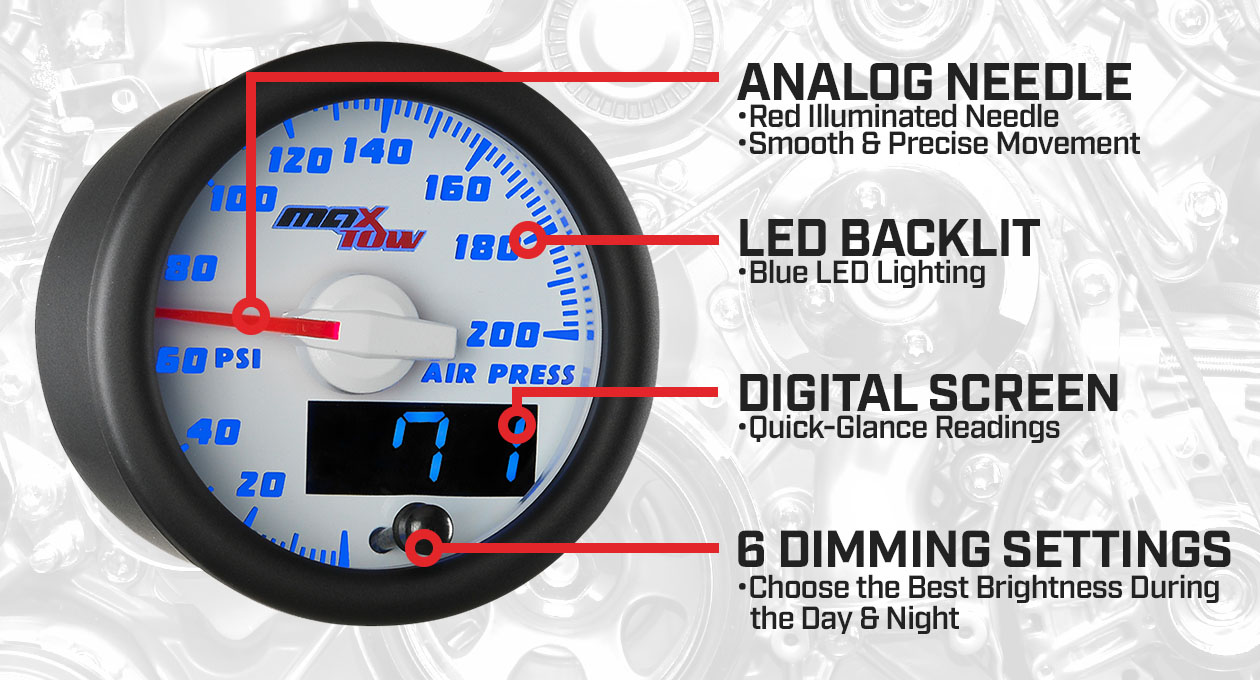

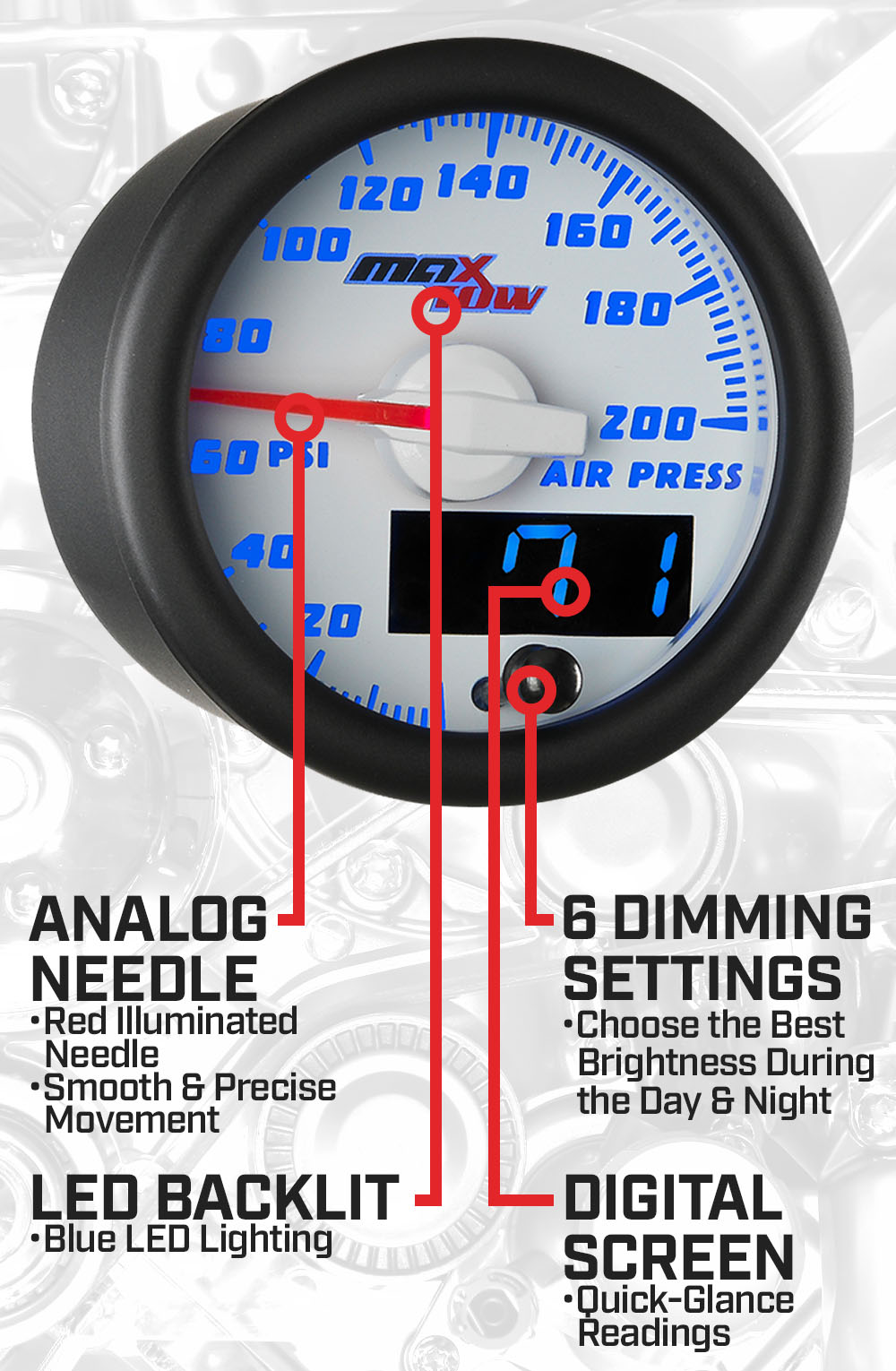

Double Vision™ Series Features

White & Blue Double Vision Air Pressure Gauge Features White & Blue Double Vision Air Pressure Gauge Features

MaxTow White & Blue Double Vision™ Gauges feature a white gauge dial and blue LED display with an illuminated red needle. Get the classic look of an analog gauge combined with a blue digital numerical readout. This 2-1/16” (52mm) gauge is equipped with stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. Brightness Recall retains the previous brightness setting before the truck is powered down.

Air Pressure Sensor

MaxTow Electronic Pressure Sensor

The Air Pressure Gauge Kit Includes a 1/8-27 NPT Electronic Air Pressure Sensor that Installs to the Air Tank, Compressor or Pressurized System by Simply Threading the Sensor to the Port.

Wiring Harnesses

MaxTow Plug & Play Wire Harnesses

Included for this Truck Air Suspension Gauge are a 9’ Air Pressure Sensor Wire and 5’ Power Wire. Connect Both Wiring Harnesses to the Back of the Gauge with Plug and Play Connectors.

Dimming Modes

MaxTow Double Vision Dimming Modes

This Truck Air Pressure Gauge Is Equipped with 3 Daytime and 3 Nighttime Dimming Modes. Customize the Brightness Level for Optimal Viewing of Readings Anytime of Day or Night.

What's Included

  • 2-1/16” (52mm) Air Pressure Gauge
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9’ Sensor Harness
  • 5’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Air Pressure Gauge For Trucks

A truck air pressure gauge is extremely beneficial for modified pickups, racing applications and trucks that are towing large hauls over long distances. Instead of realizing there’s a problem after you’ve lost a significant amount of pressure, a truck air brake pressure gauge will provide you with accurate readings in real time so you’ll know if levels are slowly decreasing or running too low to begin with. A truck air suspension gauge keeps you constantly up to date on the status of your truck’s air systems.

Sensor Thread Note

This analog and digital air pressure gauge includes a 1/8-27 NPT thread size on the sensor which your truck may not be equipped with. As a result, an additional threading adapter could be required for installation of the sensor. If you are unsure if your application requires additional threading adapters, please contact a GlowShift Technical Support Specialist.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our Gauges, Pods and Accessories.

Tech Specs
Gauge Series: White & Blue MaxTow Series
Brand: MaxTow
Gauge Type: Air Pressure
Range of Reading: 0 - 200 PSI
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Blue
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
