White & Green MaxTow 35 PSI Boost Gauge

SKU:
MT-WDV01_35
$134.99
$109.99
(You save $25.00 )

UPC:
842559100875
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow White & Green Double Vision™ 35 PSI Boost Gauges are electronically driven, high-performance diesel truck gauges that read and display boost pressure from 0 to 35 PSI with unrivaled accuracy. These gauges are essential for anyone driving a truck with a turbo or supercharger. At the same time, eliminate the need for running a lengthy vacuum hose and t-fitting through the firewall to the gauge. Get ready to hit the road and Tow to the Max™

White & Green Double Vision 35 PSI Boost Gauge White & Green Double Vision 35 PSI Boost Gauge

This boost gauge kit comes with everything required for installation. Included you’ll receive an Electronic Boost Sensor, Wiring Harnesses, Mounting Hardware and more. Detailed Installation Instructions walk you through the boost gauge install step by step. Install this turbo boost gauge to virtually any turbocharged truck to avoid overboosting, improve engine efficiency, raise fuel economy and more.

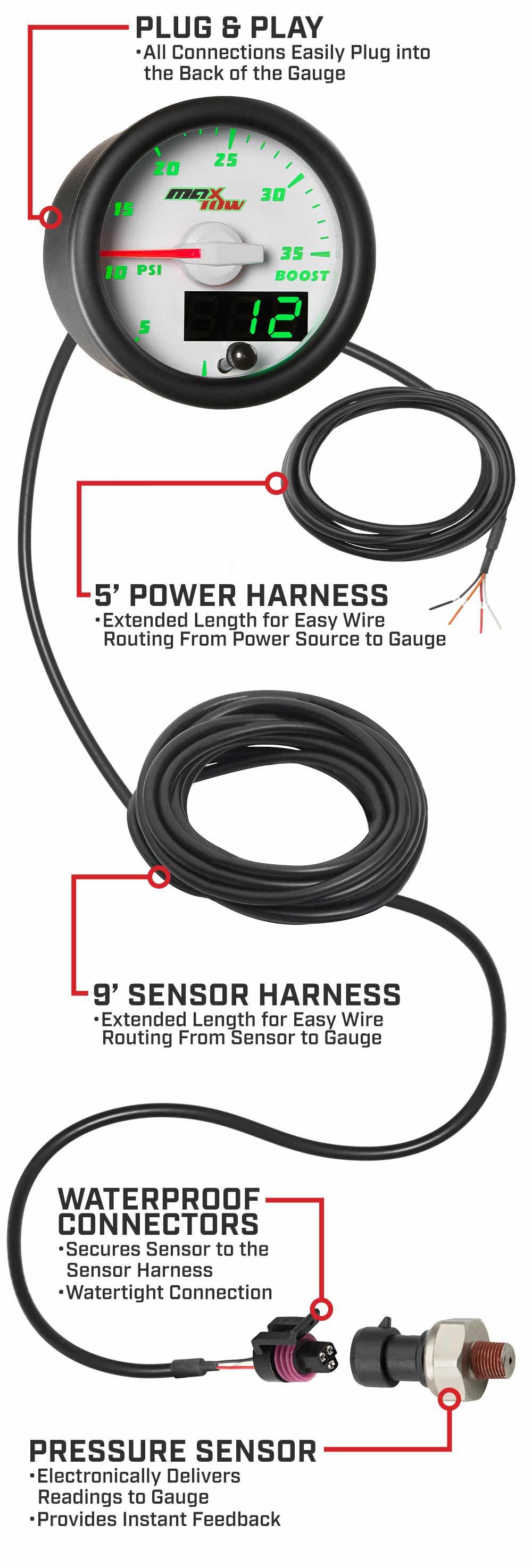

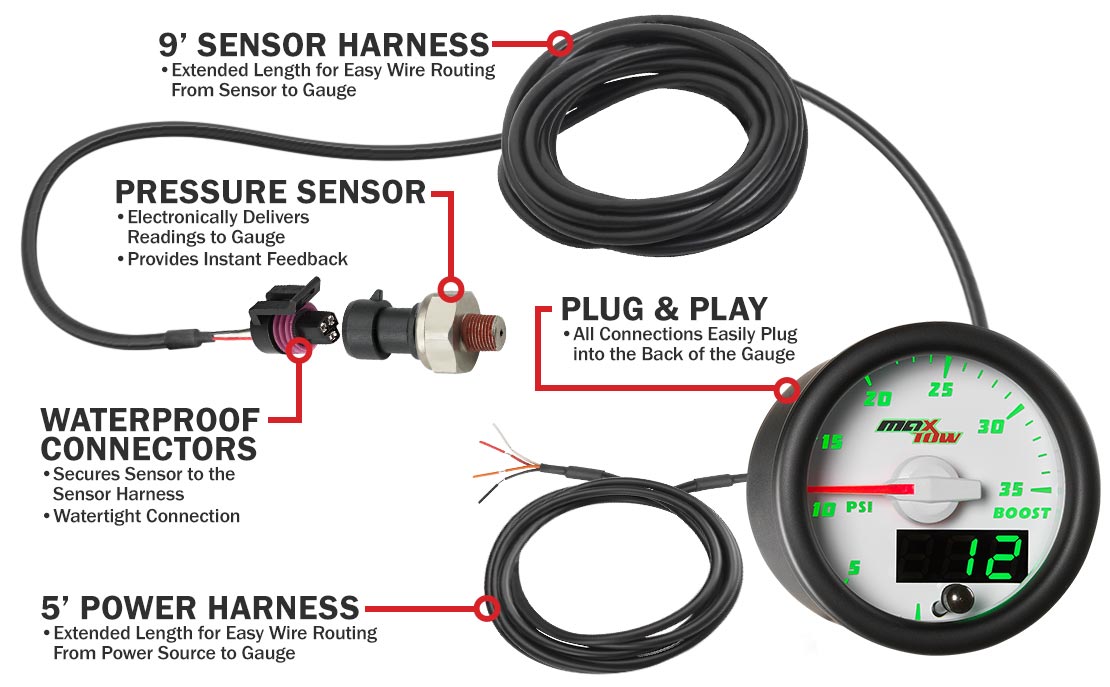

Boost Gauge Parts & Wiring

White & Green Double Vision 35 PSI Boost Gauge Parts & Wiring White & Green Double Vision 35 PSI Boost Gauge Parts & Wiring

MaxTow truck boost gauges feature sensor and power harnesses with extended lengths for added flexibility during installation. The sensor harness is 9’ and the power harness is 5’, assuring you’ll have more than enough wiring for a seamless install. Easily attach both harnesses to the back of this diesel boost gauge for trucks by utilizing Plug and Play connectors.

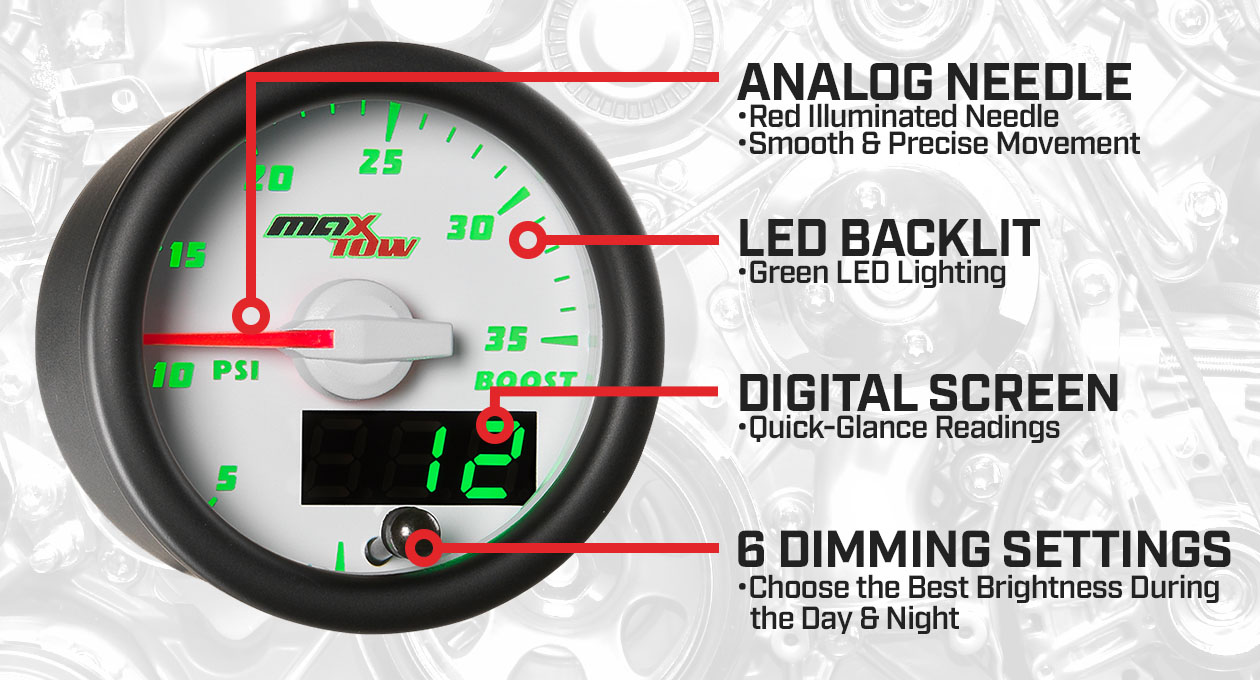

Double Vision™ Series Features

White & Green Double Vision 35 PSI Boost Gauge Features White & Green Double Vision 35 PSI Boost Gauge Features

MaxTow White & Green Double Vision™ Gauges feature a white gauge dial and green LED display with an illuminated red needle. Get the classic look of an analog gauge combined with a green digital numerical readout. This 2-1/16” (52mm) gauge is equipped with stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. Brightness Recall retains the previous brightness setting before the truck is powered down.

Boost Sensor

MaxTow Electronic Pressure Sensor

The 35 PSI Boost Gauge Includes a 1/8-27 NPT Electronic Sensor Which Allows You to Run the Signal Wires Directly to the Gauge Without Having to Run a Vacuum Line.

Wiring Harnesses

MaxTow Plug & Play Wire Harnesses

Included are a 9’ Boost Pressure Sensor Wire and 5’ Power Wire. Easily Connect Both Wiring Harnesses to the Back of the Gauge with Plug and Play Connectors.

Dimming Modes

MaxTow Double Vision Dimming Modes

This Truck Boost Gauge Is Equipped with 3 Daytime and 3 Nighttime Dimming Modes. Customize the Brightness Level for Optimal Viewing of Readings Anytime of Day or Night.

What's Included

  • 2-1/16” (52mm) 35 PSI Boost Gauge
  • 1/8-27 NPT Electronic Boost Sensor
  • 9’ Sensor Harness
  • 5’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Why Do I Need A 35 PSI Boost Gauge?

MaxTow’s 35 PSI turbo boost gauge for diesel trucks gives drivers the ability to monitor their application’s boost pressure levels from 0 to 35 PSI with unrivaled accuracy. These analog and digital boost gauges are extremely useful for older or stock diesel trucks. However, these diesel boost gauges are also optimal for modified trucks, since upgrades will often increase the levels of boost being created.

Sensor Thread Note

This turbo boost gauge includes a 1/8-27 NPT thread size on the sensor which your truck may not be equipped with. As a result, an additional threading adapter could be required for installation of the sensor. If you are unsure if your application requires additional threading adapters, please contact a GlowShift Technical Support Specialist.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our Gauges, Pods and Accessories.

Tech Specs
Gauge Series: White & Green MaxTow Series
Brand: MaxTow
Gauge Type: Boost
Range of Reading: 0 - 35 PSI
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Green
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
